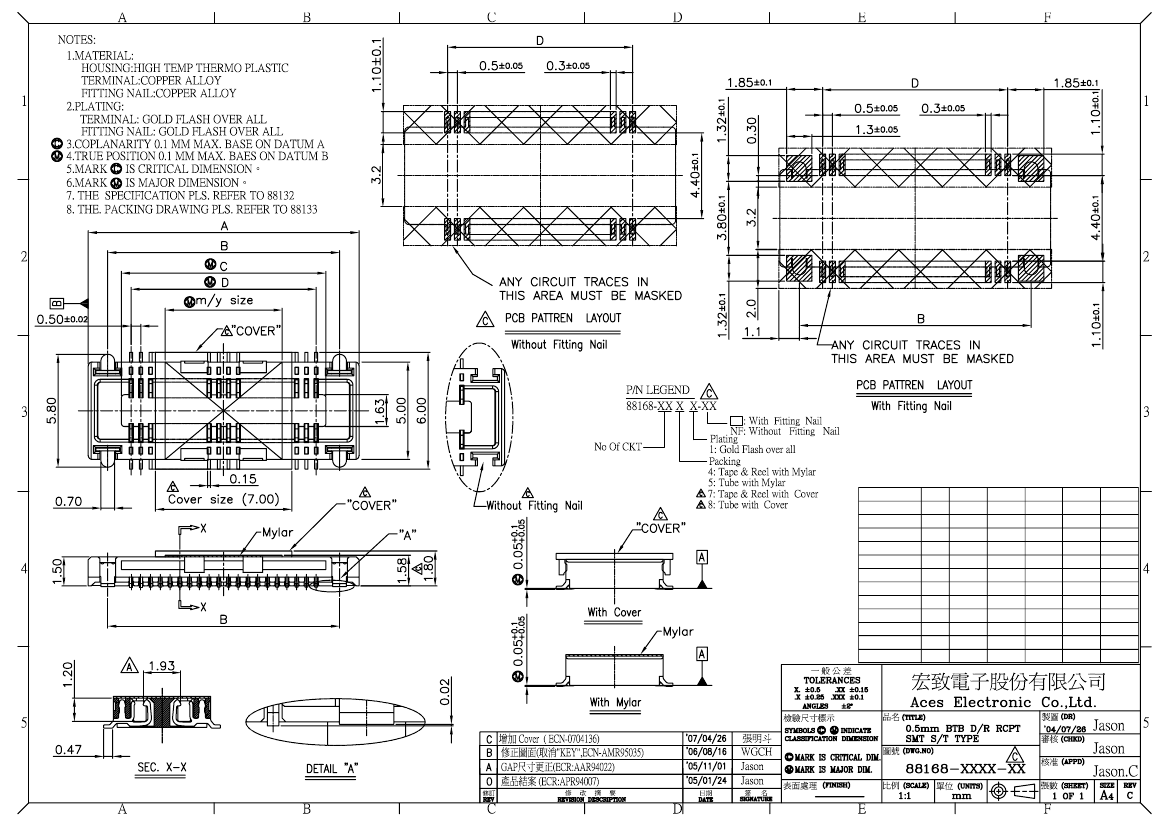

88168-3051: DescriptionBoard Connector, 30 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size366KB，1 Pages; ManufacturerAces Electronics Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

88168-3051 Overview

Board Connector, 30 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Receptacle

88168-3051 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	305586576
Reach Compliance Code	unknown
ECCN code	EAR99
Board mount options	FITTING NAIL
body width	0.197 inch
subject depth	0.062 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	50 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	125VAC V
Durability	30 Cycles
maximum insertion force	.556 N
Insulation resistance	100000000 Ω
insulator material	THERMOPLASTIC
JESD-609 code	e4
Manufacturer's serial number	88168
Plug contact pitch	0.02 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.5118 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	30
Evacuation force-minimum value	.0973 N

Preview

Download Datasheet

View All

Part No.

CKT

88168-20XX

20

88168-30XX

30

88168-40XX

40

88168-50XX

50

88168-60XX

60

88168-70XX

70

88168-80XX

80

88168-90XX

90

88168-1AXX

100

88168-1CXX

120

88168-1EXX

140

88168-1GXX

160

Dim A

8.90

11.40

13.90

16.40

18.90

21.40

23.90

26.40

28.90

33.90

38.90

43.90

Dim B

6.90

9.40

11.90

14.40

16.90

19.40

21.90

24.40

26.90

31.90

36.90

41.90

Dim C

5.50

8.00

10.50

13.00

15.50

18.00

20.50

23.00

25.50

30.50

35.50

40.50

Dim D

4.50

7.00

9.50

12.00

14.50

17.00

19.50

22.00

24.50

29.50

34.50

39.50

M/Y size

W3T12

W6T12

WAT12

WFT12
