192-3-012-0-F-LS0: DescriptionBoard Connector, 12 Contact(s), 3 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal; CategoryThe connector The connector; File Size1MB，1 Pages; ManufacturerMPE-Garry GmbH

Download Datasheet Parametric View All

192-3-012-0-F-LS0 Overview

Board Connector, 12 Contact(s), 3 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal

192-3-012-0-F-LS0 Parametric

Parameter Name	Attribute value
Objectid	309001871
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.174 inch
subject depth	0.222 inch
body length	0.216 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	RND PIN-SKT
Dielectric withstand voltage	424VAC V
insulator material	THERMOPLASTIC
Manufacturer's serial number	192
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	12

Preview

Download Datasheet

View All

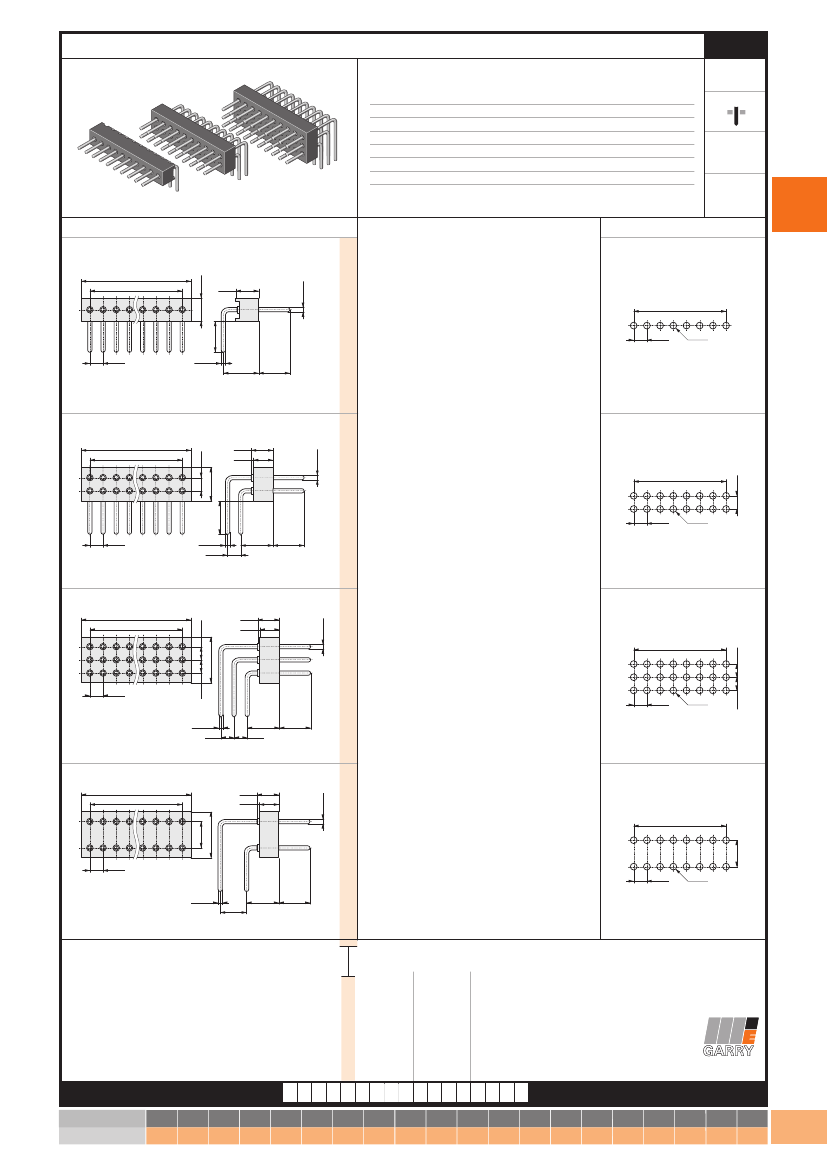

Pin Header with Turned Contacts 1,27 mm

Rated current

1,0 A

Rated voltage

100 V

RMS

/ V

DC

Withstand voltage

300 V

RMS

for one minute

Material contact

Copper alloy

Material insulator

High temp. thermoplast UL94V-0

Operating temperature -40°C to +105°C

Max. processing temper. 260°C for 10 seconds

All dimensions in mm.

Series

192

pitch

termination

contact

size

max.

pincount

1,27

MPE-Garry GmbH • Schäfflerstraße 13 • 87629 Füssen • Germany • Phone: +49 (0) 83 62 / 91 56-0 • Fax: +49 (0) 83 62 / 91 56-500 • Email: vk@mpe-connector.de • www.mpe-connector.de

ø 0,41

Variation

PCB Layout

050/100/150

Product

group

3

ø0,41

n x 1,27 +0,41

(n-1) x 1,27

2,20

3,00

1

3,40

3,00

(n-1) x 1,27

1,27

ø0,65

1,27

ø0,41

1,27

(n/2) x 1,27 +0,41

(n/2-1) x 1,27

2,10

1,90

3,25

2

3,10

3,00

3,20

1,27

ø0,65

1,27

ø0,41

1,27

ø0,41

1,27

(n/3) x 1,27 +0,41

(n/3-1) x 1,27

2,10

1,90

4,42

3

1,27

3,10

1,27

3,00

ø0,65

ø0,41

1,27

ø0,41

(n/2) x 1,27 +0,41

(n/2-1) x 1,27

2,10

1,90

2,54

4,42

(n/2-1) x 1,27

2,54

1,27

ø0,65

4

1,27

ø0,41

2,54

3,10

3,00

* No. of contacts:

Variation 1 = 002 - 050

Variation 2 = 004 - 100

Variation 3 = 009 - 150

Variation 4 = 004 - 100

Plating contact (T,F)

Variation (1,2,3,4)

Plating:

T = Sn

F = Au

No. of contacts *

(002,... - 150)

www.mpe-connector.de

Order code:

Mating series

see page

192-?-???-0-?-LS0

200 204 208

4-9

4-10 4-11

1,27

(n/2-1) x 1,27

1,27

(n/2-1) x 1,27

3-17
