BL11-46GTT-10U

Description
Board Connector, 10 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Plug
CategoryThe connector    The connector
File Size119KB,1 Pages
ManufacturerMPE-Garry GmbH
Environmental Compliance
Download Datasheet Parametric View All

BL11-46GTT-10U Overview

Board Connector, 10 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Plug

BL11-46GTT-10U Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid304277037
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresROHS COMPLIANT
body width0.094 inch
subject depth0.181 inch
body length0.5 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN
Contact completed and terminatedTin (Sn)
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact styleDUAL PRONG
Dielectric withstand voltage700VAC V
insulator materialTHERMOPLASTIC
JESD-609 codee3
Manufacturer's serial numberBL11
Plug contact pitch0.05 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.118 inch
Terminal pitch1.27 mm
Termination typeSOLDER
Total number of contacts10
PRODUCT GROUP 8 -
MALE AND FEMALE HEADER 2,00/1,27/1,00/0,80/0,50 mm
FEMALE HEADER 1,27 mm
ID: 184

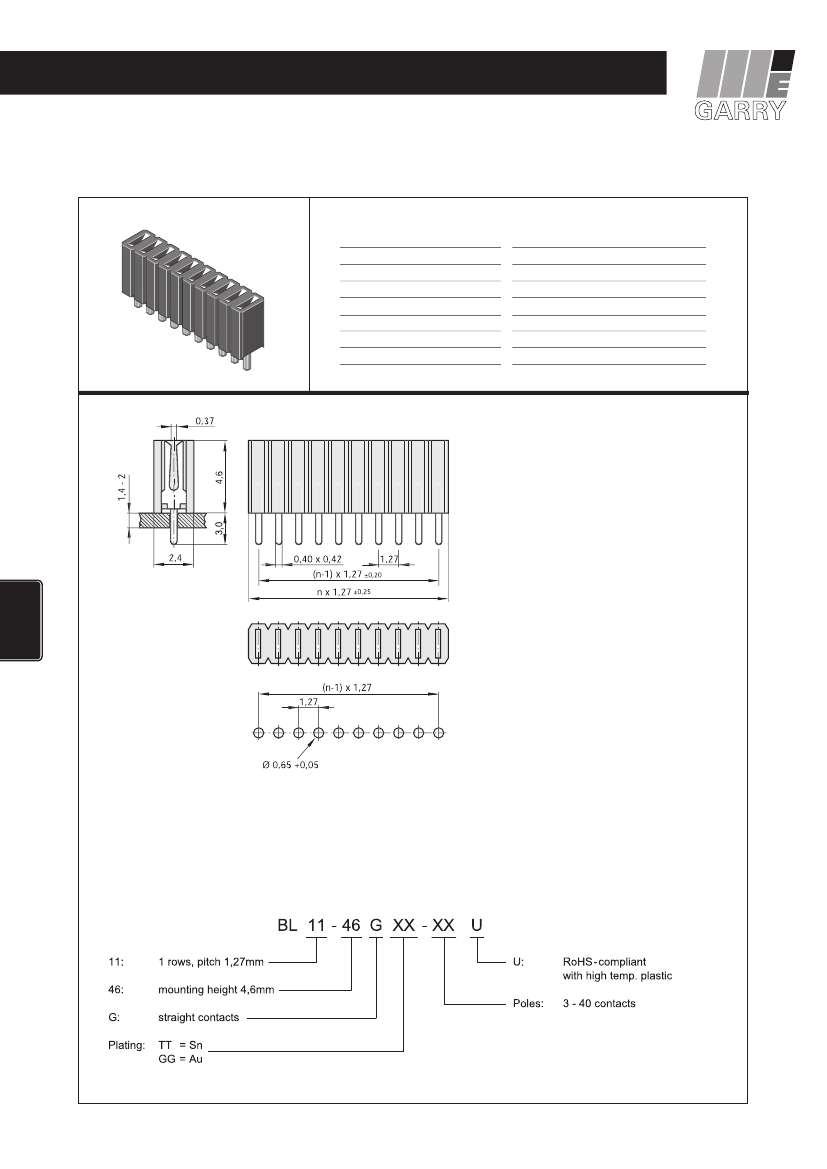

BL 11-46G
Series 521
TECHNICAL DATA
Pitch
Insulating Material
Contact Material
Rated Current
Rated Voltage
Withstanding Voltage
Operating Temperature
Maximum Soldering Temperature
1,27 mm
high temp. thermoplast UL94V-0
phosphor bronze
1 Amp.
100 V
RMS
/150 V
DC
500 V
AC
for one minute
-40°C to +105°C
260°C for 10 seconds
230
8
| 1,27 mm
All dimensions in mm.
Other dimensions upon request.
