BL12-43AGG-03U

Description
Board Connector, 3 Contact(s), 1 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Plug
CategoryThe connector    The connector
File Size123KB,1 Pages
ManufacturerMPE-Garry GmbH
Environmental Compliance
Download Datasheet Parametric View All

BL12-43AGG-03U Overview

Board Connector, 3 Contact(s), 1 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Plug

BL12-43AGG-03U Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid304293643
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresROHS COMPLIANT
body width0.108 inch
subject depth0.169 inch
body length0.256 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU
Contact completed and terminatedGold (Au)
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
Dielectric withstand voltage700VAC V
insulator materialTHERMOPLASTIC
JESD-609 codee4
Manufacturer's serial number501
Plug contact pitch0.079 inch
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
Rated current (signal)1.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.106 inch
Terminal pitch2.0066 mm
Termination typeSOLDER
Total number of contacts3

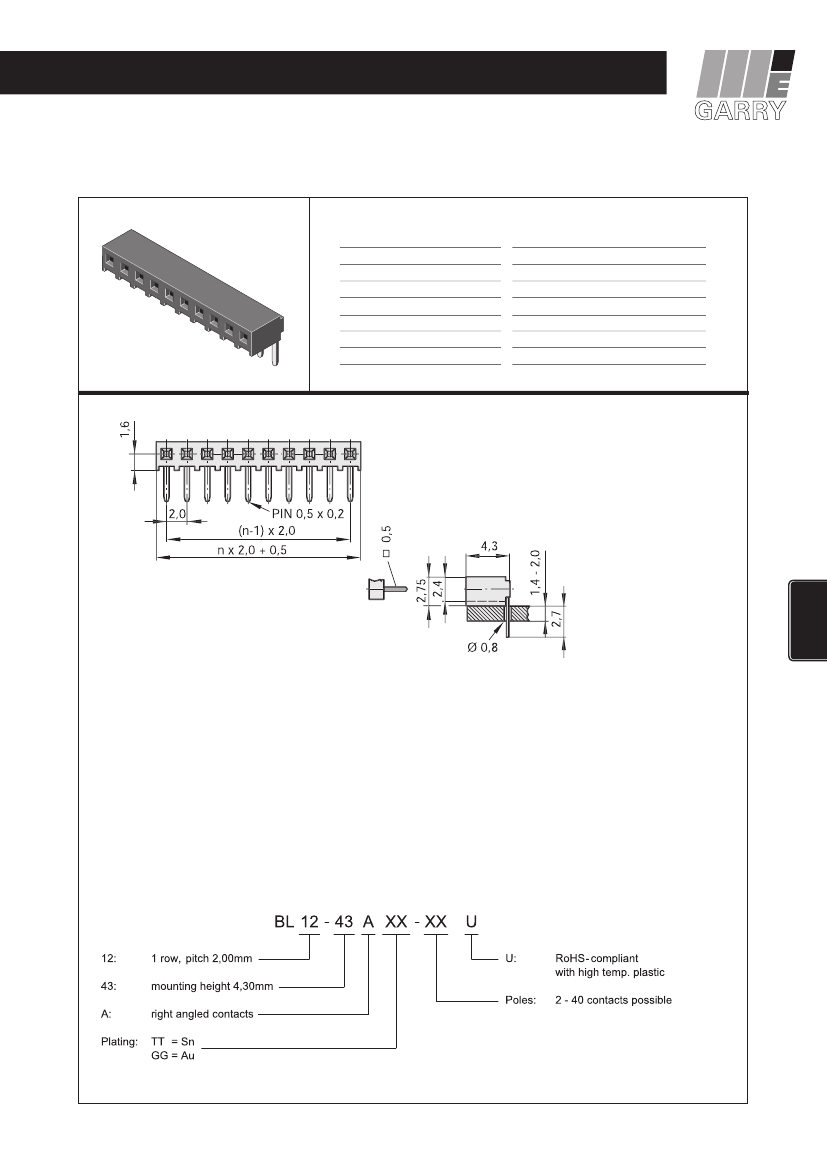

PRODUCT GROUP 8 -
MALE AND FEMALE HEADER 2,00/1,27/1,00/0,80/0,50 mm
FEMALE HEADER 2,00 mm
ID: 317
BL 12-43A
Series 501
TECHNICAL DATA
Pitch
Insulating Material
Contact Material
Rated Current
Rated Voltage
Withstanding Voltage
Operating Temperature
Maximum Soldering Temperature
2,00 mm
high temp. thermoplast UL94V-0
phosphor bronze
1,5 Amp.
100 V
RMS
/150 V
DC
500 V
AC
for one minute
-40°C to +105°C
260°C for 10 seconds
All dimensions in mm.
Other dimensions upon request.
