ETC5054D-X/H datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Telecom circuit> ETC5054D-X/H

ETC5054D-X/H: DescriptionIC serial codec/filter SO-16w; CategoryWireless rf/communication Telecom circuit; File Size2MB，18 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

ETC5054D-X/H Overview

IC serial codec/filter SO-16w

ETC5054D-X/H Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Parts packaging code	SOIC
package instruction	SOP-16
Contacts	16
Reach Compliance Code	compliant
Law of compression and extension	MU-LAW
filter	YES
JESD-30 code	R-PDSO-G16
length	10.3 mm
Negative supply voltage rating	-5 V
Number of functions	1
Number of terminals	16
Operating mode	SYNCHRONOUS/ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum seat height	2.65 mm
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Telecom integrated circuit types	PCM CODEC
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	7.5 mm
Base Number Matches	1

Preview

Download Datasheet

View All

ETC5054

ETC5057

SERIAL INTERFACE CODEC/FILTER

COMPLETE CODEC AND FILTERING SYS-

TEM (DEVICE) INCLUDING:

– Transmit high-pass and low-pass filtering.

– Receive low-pass filter with sin x/x correction.

– Active RC noise filters

–

µ-law

or A-law compatible COder and DECoder.

– Internal precision voltage reference.

– Serial I/O interface.

– Internal auto-zero circuitry.

A-LAW 16 PINS (ETC5057FN, 20 PINS)

µ-LAW

WITHOUT SIGNALING, 16 PINS

(ETC5054FN, 20 PINS)

MEETS OR EXCEEDS ALL D3/D4 AND

CCITT SPECIFICATIONS

±5V

OPERATION

LOW OPERATING POWER - TYPICALLY 60

POWER-DOWN STANDBY MODE - TYPI-

CALLY 3 mW

AUTOMATIC POWER-DOWN

TTL OR CMOS COMPATIBLE DIGITAL IN-

TERFACES

MAXIMIZES LINE INTERFACE CARD CIR-

CUIT DENSITY

0 to 70°C OPERATION

DIP16

(Plastic)

ORDERING NUMBERS:

ETC5057N

ETC5054N

DESCRIPTION

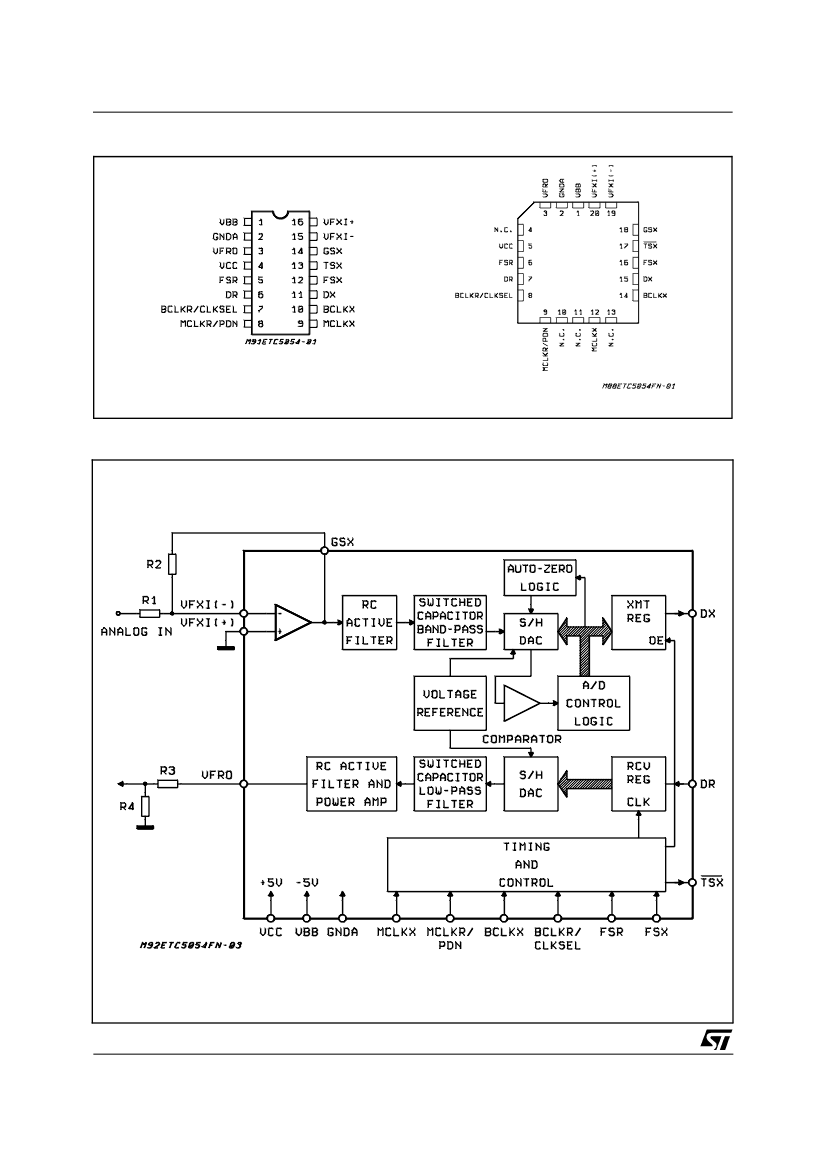

The ETC5057/ETC5054 family consists of A-law

and

µ–law

monolithic PCM CODEC/filters utilizing

the A/D and D/A conversion architecture shown in

the block diagram below, and a serial PCM inter-

face. The devices are fabricated using double-

poly CMOS process. The encode portion of each

device consists of an input gain adjust amplifier,

an active RC pre-filter which eliminates very high

frequency noise prior to entering a switched-ca-

pacitor band-pass filter that rejects signals below

200 Hz and above 3400 Hz. Also included are

auto-zero circuitry and a companding coder which

samples the filtered signal and encodes it in the

companded A-law or

µ–law

PCM format. The de-

code portion of each device consists of an ex-

panding decoder, which reconstructs the analog

signal from the companded A-law or

µ–law

code,

a low-pass filter which corrects for the sin x/x re-

sponse of the decoder output and rejects signals

above 3400 Hz and is followed by a single-ended

power amplifier capable of driving low impedance

loads. The devices require 1.536 MHz, 1.544

-O

SO16 (Wide)

ORDERING NUMBERS:

ETC5057D

ETC5054D

PLCC20

ORDERING NUMBERS:

ETC5057FN

ETC5054FN

MHz, or 2.048 MHz transmit and receive master

clocks, which may be asynchronous, transmit and

receive bit clocks which may vary from 64 kHz to

2.048 MHz, and transmit and receive frame sync

pulses. The timing of the frame sync pulses and

PCM data is compatible with both industry stand-

ard formats.

1/18

March 2000

This is advanced information on a new product now in development or undergoing evaluation. Details are subject to change without notice.
