EPSA13BBHE-6.023229MTR datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> EPSA13BBHE-6.023229MTR

EPSA13BBHE-6.023229MTR: DescriptionCRYSTAL OSCILLATOR, CLOCK, 6.023229 MHz, CMOS OUTPUT; CategoryPassive components oscillator; File Size788KB，10 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

EPSA13BBHE-6.023229MTR Overview

CRYSTAL OSCILLATOR, CLOCK, 6.023229 MHz, CMOS OUTPUT

EPSA13BBHE-6.023229MTR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7038912520
Reach Compliance Code	compliant

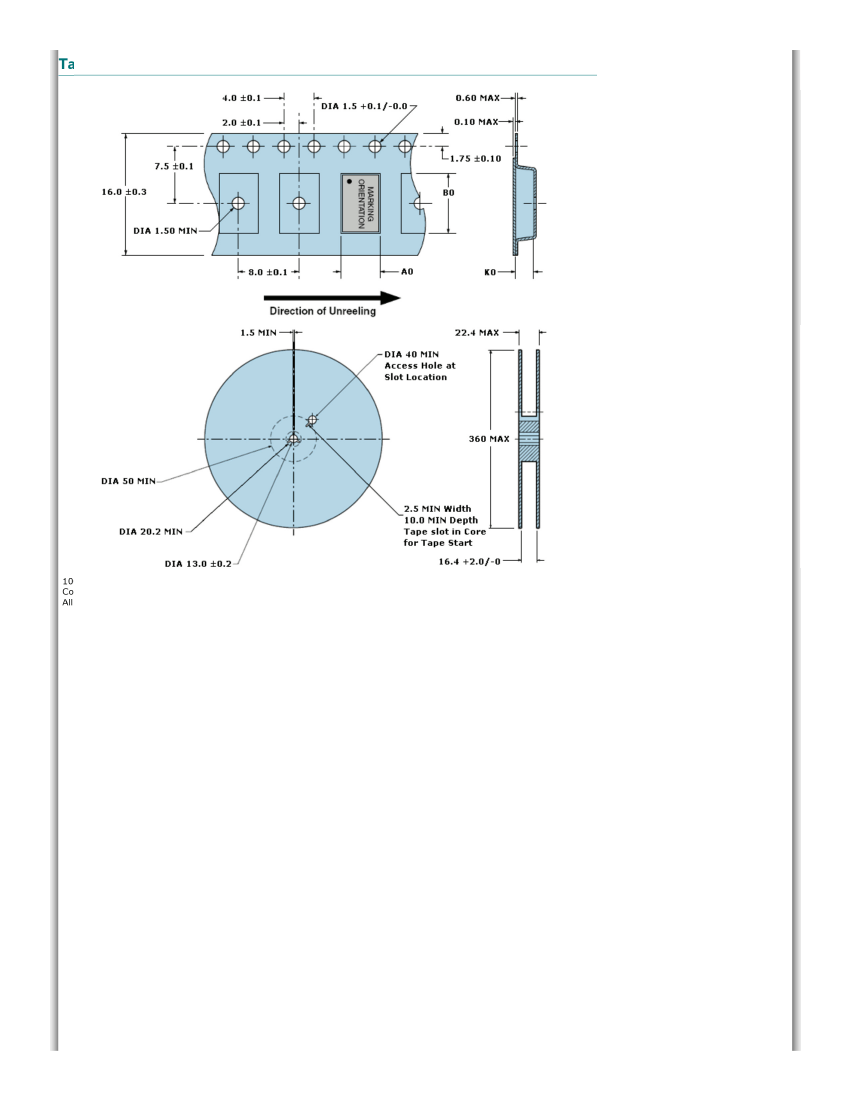

Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time	3 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Number of terminals	4
Nominal operating frequency	6.023229 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS
Output load	15 pF

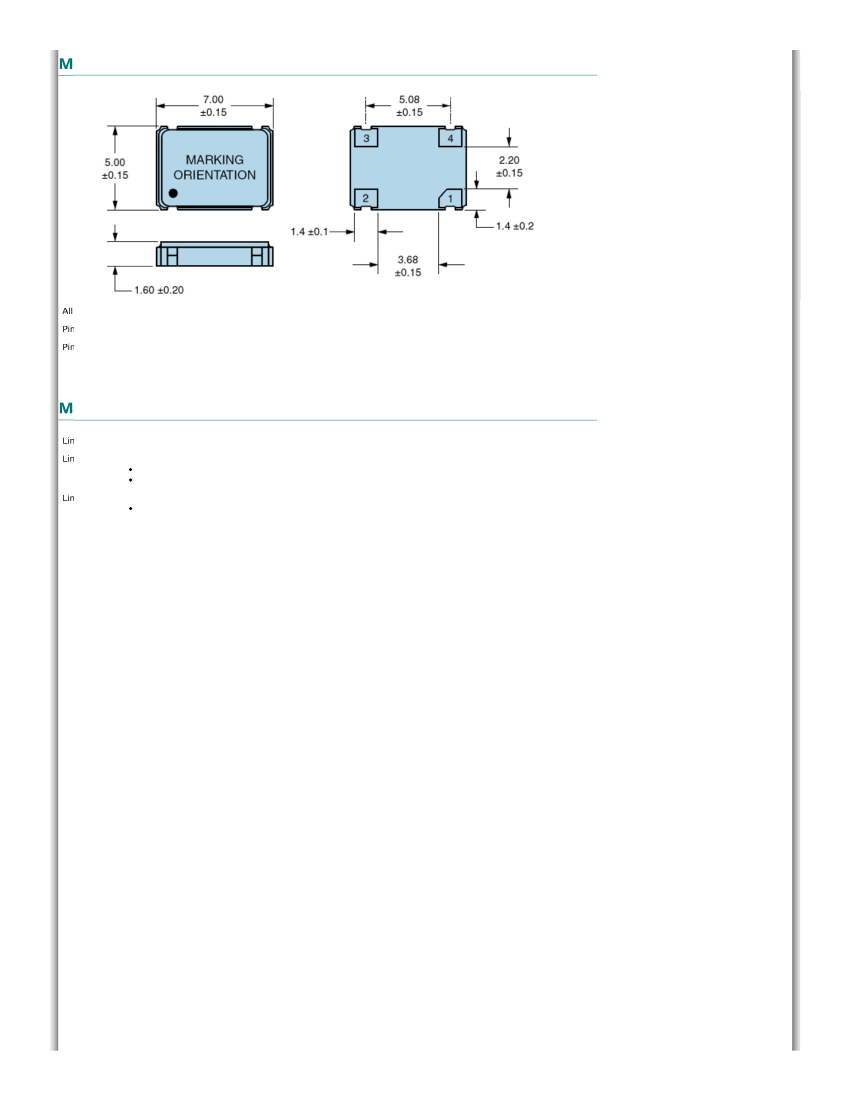

physical size	7.0mm x 5.0mm x 1.6mm
longest rise time	3 ns
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Nickel/Gold (Ni/Au)

Preview

Download Datasheet

View All

Ecliptek | EPSA13 Series Oscillator

http://www.ecliptek.com/oscillators/EPSA13/

Log On

| 714-433-1200 |

Email Customer Support

Home

Products

Quick Quote

My Parts List

Site Map

EPSA13 Series Oscillator

Spread Spectrum Quartz Crystal Clock Oscillators LVCMOS (CMOS) 3.3Vdc 4 Pad 5.0mm x 7.0mm Ceramic Surface Mount

(SMD)

2011/65 +

2015/863

168 SVHC

Revision B 08/29/2012

Electrical Specifications

Nominal Frequency

2.000MHz to 200.000MHz

Some frequencies within this range may not be available.

Frequency Tolerance/Stability

(Inclusive of all conditions: Frequency Stability over the Operating

Temperature Range, Supply Voltage Change, Output Load Change,

First Year Aging at 25°C, Shock, and Vibration)

±50ppm Maximum

-40°C to +85°C

3.3V

±10%

-0.5V

to +4.2V

15mA Maximum

23mA Maximum

27mA Maximum

30mA Maximum

166MHz

40mA Maximum

200MHz

over

Nominal

Frequency

2MHz to 25MHz

25.000001MHz to 50MHz

50.000001MHz to 100MHz

100.000001MHz to

Operating Temperature Range

Supply Voltage (V

)

Maximum Supply Voltage

Input Current

over Nominal Frequency of 166.000001MHz to

Output Voltage Logic High (V

)

Output Voltage Logic Low (V

)

Duty Cycle

90% of V

Minimum (I

= -8mA)

10% of V

Maximum (I

= +8mA)

Measured at 50% of waveform

50 ±5(%)

Measured at 10% to 90% of Waveform

3nSec Maximum

15pF Maximum

CMOS

Tri-State (Disabled Output: High Impedance)

Power Down (Disabled Output: High Impedance)

70% of V

Minimum or No Connection to Enable Output, 30% of V

Maximum to Disable Output

70% of V

Minimum or No Connection to Enable Output, 30% of V

Maximum to Disable Output

100nSec Maximum

3mSec Maximum

Unloaded; Pad 1 = Ground

10 A Maximum (Power Down)

100nSec Maximum

Rise Time/Fall Time

Load Drive Capability

Output Logic Type

Output Control Function

Power Down Input Voltage (Vih and Vil)

Tri-State Input Voltage (Vih and Vil)

Power Down Output Disable Time

Power Down Output Enable Time

Standby Current

Tri-State Output Disable Time

1 of 10

28-Jan-2016 2:05 PM
