.100” X .200” Contact Spacing, Switching Contact
Features
• Flat Plate Installation eliminates the need for
secondary operation tooling which can damage
the connector.
• Extra large chamfered entry
• Conforms to Bell-core spec TR-TSY-00078
• Extended card scoops available
• Replaceable contacts
• Molded in polarization available between
contact, or on contact position.
• De-population of contacts per
customer specification.
• Available in selective gold plate at contact point
• Many other custom options available, including,
but not limited to:
• Single or Both Ends Open
• Selectively Loaded with Standard Signal Contacts
1000 Series Card Edge Connector
Specifications
Insulator Material: Glass filled polyester, type PBT,
94 V-O, UL Rated.
Contact Material: Phosphor Bronze Alloy
Contact Plating: Gold and/or Tin over .000050” Nickel,
(See Contact Plating Options).
Current Rating:
3 amp at 30°C
Contact Resistance:
Contact to Daughter Card:
10 m
W
max.
Compliant section to P.T.H.:
2 m
W
max.
Insulation Resistance:
5000 M
W
min.
Dielectric Withstand Voltage:
1000 V AC
Daughter Board Insertion Force:
16 oz max. per contact pair
when tested with a .071” thick
gage.
Daughter Board Withdrawal Force:
1 oz min. per contact pair
when tested with a .054” thick
gage.
Compliant Section Insertion Force:
40 lbs max per contact
Compliant Section Withdrawal Force:
10 lbs min. per contact
Recommended Board Thickness:
.093”+
Recommended PCB Layout Page A-33
Operating Temperature:
-54
B
C to +125
B
C
Recommended Hole Size
.040 ±.003 [1.02]
.0453 ±.001 [1.15]
.0040 [.10] min.
.0003 [.008] min.
R
C
R
Dimensions are in inch [mm]
Drilled Hole
Diameter
Plating
Thickness
.001-.003 [.03-.08]
.0003 [.008]min.
.001-.003 [.03-.08]
Hole
Diameter
Pad
Diameter
Recognized under the recognized component
Program of Underwriters Laboratories, Inc.
File Numbers: E146967 and E176234
.0453±.001
[1.15]
Copper
Tin / Lead
After Plating
.040±.003
[1.02]

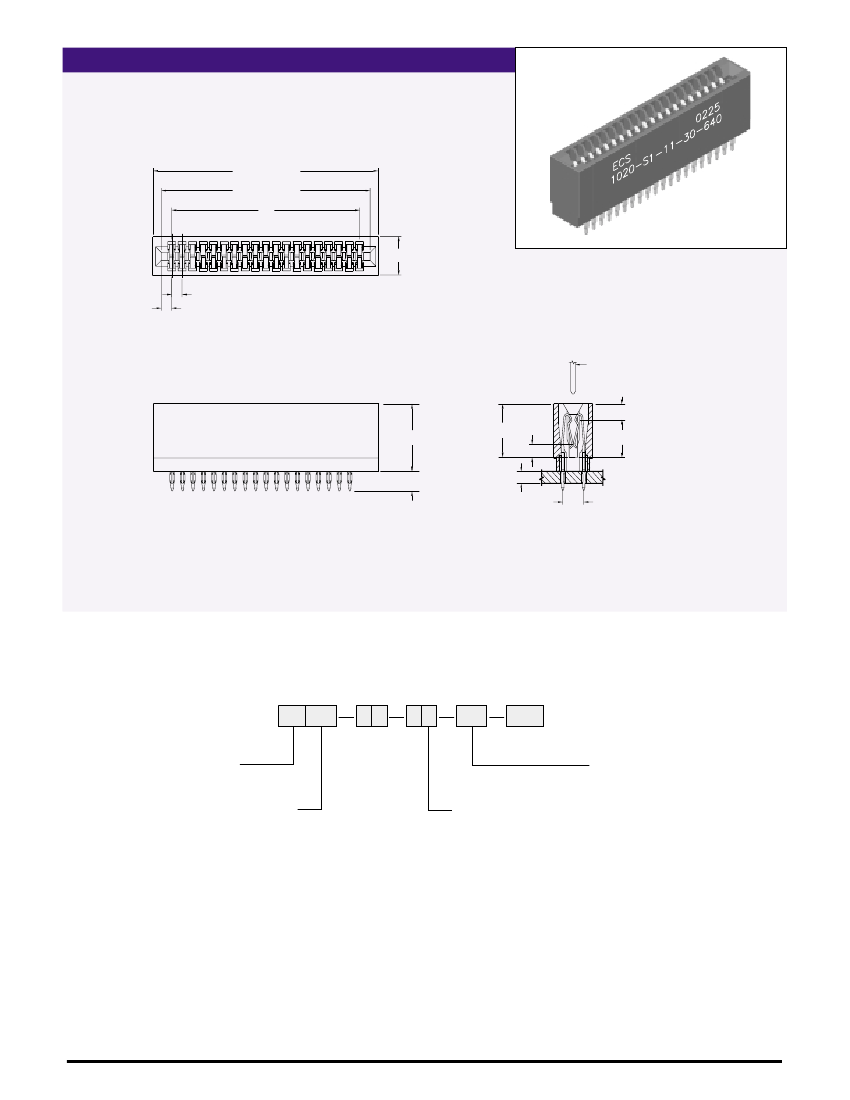

.065 [1.65]
NO. OF POS. / CONTACTS
05/10
10/20
12/24
15/30
18/36
20/40
22/44
25/50
28/56
30/60
31/62
35/70
36/72
40/80
43/86
50/100
55/110
60/120
65/130
70/140
A
0.756 [19.20]
1.256 [31.90]
1.456 [36.98]
1.756 [44.60]
2.056 [52.22]
2.256 [57.30]
2.456 [62.38]
2.756 [70.00]
3.056 [76.62]
3.256 [82.70]
3.356 [85.24]
3.756 [95.40]
3.856 [97.94]
4.256 [108.10]
4.556 [115.72]
5.256 [133.50]
5.756 [146.20]
6.256 [158.90]
6.756 [171.60]
7.256 [184.30]
B
0.600 [15.24]
1.100 [27.94]
1.300 [33.02]
1.600 [40.64]
1.900 [48.26]
2.100 [53.34]
2.300 [58.42]
2.600 [66.04]
2.900 [73.66]
3.100 [78.74]
3.200 [81.28]
3.600 [91.44]
3.700 [93.98]
4.100 [104.14]
4.400 [111.76]
5.100 [129.54]
5.600 [142.24]
6.100 [154.94]
6.600 [167.64]
7.100 [180.34]
C
0.400 [10.16]
0.900 [22.86]
1.100 [27.94]
1.400 [35.56]
1.700 [43.18]
1.900 [48.26]
2.100 [53.34]
2.400 [60.96]
2.700 [68.58]
2.900 [73.66]
3.000 [76.20]
3.400 [86.36]
3.500 [88.90]
3.900 [99.06]
4.200 [106.68]
4.900 [124.46]
5.400 [137.16]
5.900 [149.86]
6.400 [162.56]
6.900 [175.26]
Dimensions are in inch [mm]
For reference only, can go 1 through 70 positions.
