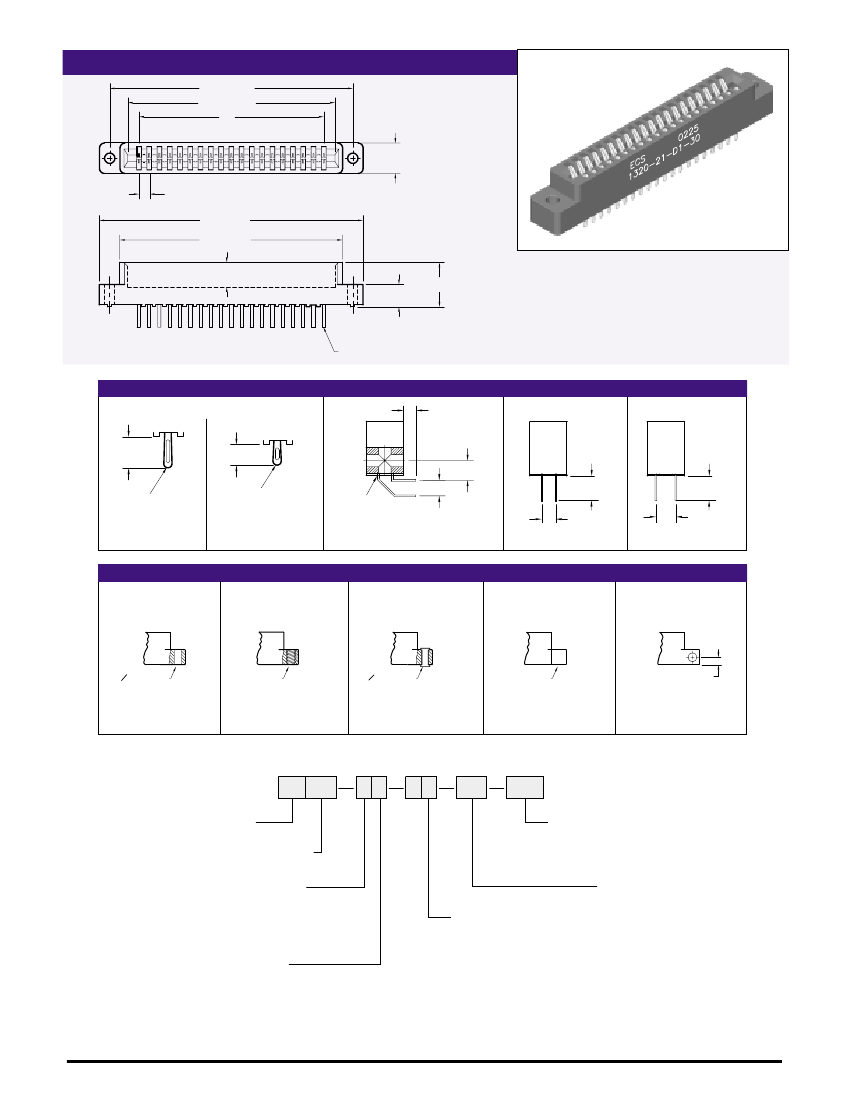

1300 Series Low Profile Card Edge Connector
.100[2.54] Contact Centers
Specifications
Insulator Material: Glass filled polyester, type PBT,
94 V-O, UL Rated.
Contact Material: Phosphor Bronze Alloy
Contact Plating: Gold and/or Tin over .000050” Nickel,
(See Contact Plating Options).
Current Rating:
3 amp at 30°C
Contact Resistance: Contact to Daughter Card:
10 m
W
Insulation Resistance: 5000 M
W
Dielectric Withstand Voltage: 1000 V AC
Daughter Board Insertion Force:
16 oz max. per contact pair
when tested with a .071” thick gage.
R
C
R
Daughter Board Withdrawal Force:
1 oz min. per contact pair
when tested with a .054” thick gage.
CONTACTS
4/8
5/10
6/12
7/14
8/16
10/20
12/24
13/26
15/30
18/36
19/38
20/40
22/44
23/46
25/50
26/52
28/56
30/60
31/62
35/70
36/72
40/80
43/86
44/88
49/98
50/100
60/120
Recognized under the recognized component
Program of Underwriters Laboratories, Inc.
File Numbers: E146967 and E176234
A
.300 [7.62]
.400 [10.16]
.500 [12.70]
.600 [15.24]
.700 [17.78]
.900 [22.86]
1.100 [27.94]
1.200 [30.48]
1.400 [35.56]
1.700 [43.18]
1.800 [45.72]
1.900 [48.26]
2.100 [53.34]
2.200 [55.88]
2.400 [60.96]
2.500 [63.50]
2.700 [68.58]
2.900 [73.66]
3.000 [76.20]
3.400 [86.36]
3.500 [88.90]
3.900 [99.06]
4.200 [106.68]
4.300 [109.22]
4.800 [121.92]
4.900 [124.46]
5.900 [149.86]
B
.500 [12.70]
.600 [15.24]
.700 [17.78]
.800 [20.32]
.900 [22.86]
1.100 [27.94]
1.300 [33.02]
1.400 [35.56]
1.600 [40.64]
1.900 [48.26]
2.000 [50.80]
2.100 [53.34]
2.300 [58.42]
2.400 [60.96]
2.600 [66.04]
2.700 [68.58]
2.900 [73.66]
3.100 [78.74]
3.200 [81.28]
3.600 [91.44]
3.700 [93.98]
4.100 [104.14]
4.400 [111.76]
4.500 [114.30]
5.000 [127.00]
5.100 [129.54]
6.100 [154.94]
C
.675 [17.15]
.775 [19.69]
.875 [22.23]
.975 [24.77]
1.075 [27.31]
1.275 [32.39]
1.475 [37.47]
1.575 [40.01]
1.775 [45.09]
2.075 [52.71]
2.175 [55.25]
2.275 [57.79]
2.475 [62.87]
2.575 [65.41]
2.775 [70.49]
2.875 [73.03]
3.075 [78.11]
3.275 [83.19]
3.375 [85.73]
3.775 [95.89]
3.875 [98.43]
4.275 [108.59]
4.575 [116.21]
4.675 [118.75]
5.175 [131.45]
5.275 [133.99]
6.275 [159.39]
D
.975 [24.77]
1.075 [27.31]
1.175 [29.85]
1.275 [32.39]
1.375 [34.93]
1.575 [40.01]
1.775 [45.09]
1.875 [47.63]
2.075 [52.71]
2.375 [60.33]
2.475 [62.87]
2.575 [65.41]
2.775 [70.49]
2.875 [73.03]
3.075 [78.11]
3.175 [80.65]
3.375 [85.73]
3.575 [90.81]
3.675 [93.35]
4.075 [103.51]
4.175 [106.05]
4.575 [116.21]
4.875 [123.83]
4.975 [126.37]
5.475 [139.07]
5.575 [141.61]
6.575 [167.01]
E
1.275 [32.39]
1.375 [34.93]
1.475 [37.47]
1.575 [40.01]
1.675 [42.55]
1.875 [47.63]
2.075 [52.71]
2.175 [55.25]
2.375 [60.33]
2.675 [67.95]
2.775 [70.49]
2.875 [73.03]
3.075 [78.11]
3.175 [80.65]
3.375 [85.73]
3.475 [88.27]
3.675 [93.35]
3.875 [98.43]
3.975 [100.97]
4.375 [111.13]
4.475 [113.67]
4.875 [123.83]
5.175 [131.45]
5.275 [133.99]
5.775 [146.69]
5.875 [149.23]
6.875 [174.63]
F
.330 [8.38]
.400 [10.16]
Dimensions are in inch [mm]
POLARIZING KEYS
P/N 13-PK2
.230 [5.84]
KEY IN BETWEEN CONTACTS
(ORDER SEPARATELY)
KEY REPLACES ONE PAIR OF CONTACTS
(ORDER SEPARATELY)
.032 [.81]
.200 [5.08]
.175 [4.44]
.280 [7.11]
.051 [1.30]
.103 [2.62]
CONSULT FACTORY FOR MOLDED IN KEY
5.05 [12.83]
P/N 13-PK1
WWW.ECSCONN.COM
.100[2.54] Contact Centers, Low Profile Card Edge
D
±.005[.13]
B
±.005[.13]
A
F
.100 [2.54] typ.
E
±.015[.38]
C
±.010[.25]
.265 [6.73]
.245 [6.22]
.431 [10.95]
Refer to Termination Type
Dimensions are in inch [mm]
TERMINATION TYPE
Eyelet Accepts 3-#26 AWG
.125 [3.18]
.275 [6.98]
.225 [5.72]
.185 [4.70]
.016 [.41] thick
.007 [.18] thick
Overall plated only
.156 [3.96]
Letter B side
.137 [3.48]
.140 [3.56]
.137 [3.48]
.200 [5.08]
5
= Wide Dip Solder
1
= Eyelet
2
= Eyelet
3
= Right Angle
4
= Narrow Dip Solder
MOUNTING STYLE
0 .125 [3.18]
#4-40
0 .116 [2.95]
Clearance for
#4-40 screw
3
= Floating Bobbin
Ears Removed
.135 [3.43]
1
= Clearance Hole
2
= Threaded Insert
4
= No Mounting Ears
5
= Side Mounting
13 XX
.100” X .200” Low Profile
01
-
60
PART NUMBERING
XX
DX
XX
XXX
010
= Card Extender For .062”
[1.58] Thick PCB
SERIES CODE
NO. CONTACT PAIRS
1
= Eyelet (.016 [.41] thick)
2
= Eyelet (.007 [.18] thick)
3
= Right Angle
4
= Narrow Dip Solder
5
= Wide Dip Solder
MODIFICATIONS
TERMINATION TYPE
Insulator / Contact
1
= Valox / Phosphor Bronze
2
= Valox / Beryllium Copper
3
= Ryton / Phosphor Bronze
MATERIALS
CONTACT
10
= 10µ” Au
20
= 15µ” Au
30
= 30µ” Au
40
= 10µ” Au
50
= 15µ” Au
60
= 30µ” Au
50µ” Nickel Underplate
PLATING
MOUNTING STYLE
1
= Clearance Hole
2
= Threaded Insert
3
= Floating Bobbin
4
= No Mounting Ear
5
= Side Mounting
100µ” Sn
100µ” Sn
100µ” Sn
5µ” Au
5µ” Au
5µ” Au
TAIL
CONSULT FACTORY FOR CONNECTORS BUILT TO YOUR SPECIFICATION
