RVS-50V2R2MD55U-R: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 2.2uF, Surface Mount, 1717, CHIP, GREEN; CategoryPassive components capacitor; File Size156KB，2 Pages; ManufacturerELNA

Download Datasheet Parametric View All

RVS-50V2R2MD55U-R Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 2.2uF, Surface Mount, 1717, CHIP, GREEN

RVS-50V2R2MD55U-R Parametric

Parameter Name	Attribute value
Objectid	8147539557
package instruction	, 1717
Reach Compliance Code	unknown
Country Of Origin	Malaysia
YTEOL	7.65
Other features	STANDARD: IEC-60384-1
capacitance	2.2 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
ESR	91000 mΩ
leakage current	0.003 mA
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	50 V
Guideline	IEC60384-4
ripple current	10 mA
size code	1717
surface mount	YES
Delta tangent	0.12
Terminal shape	FLAT

Preview

Download Datasheet

View All

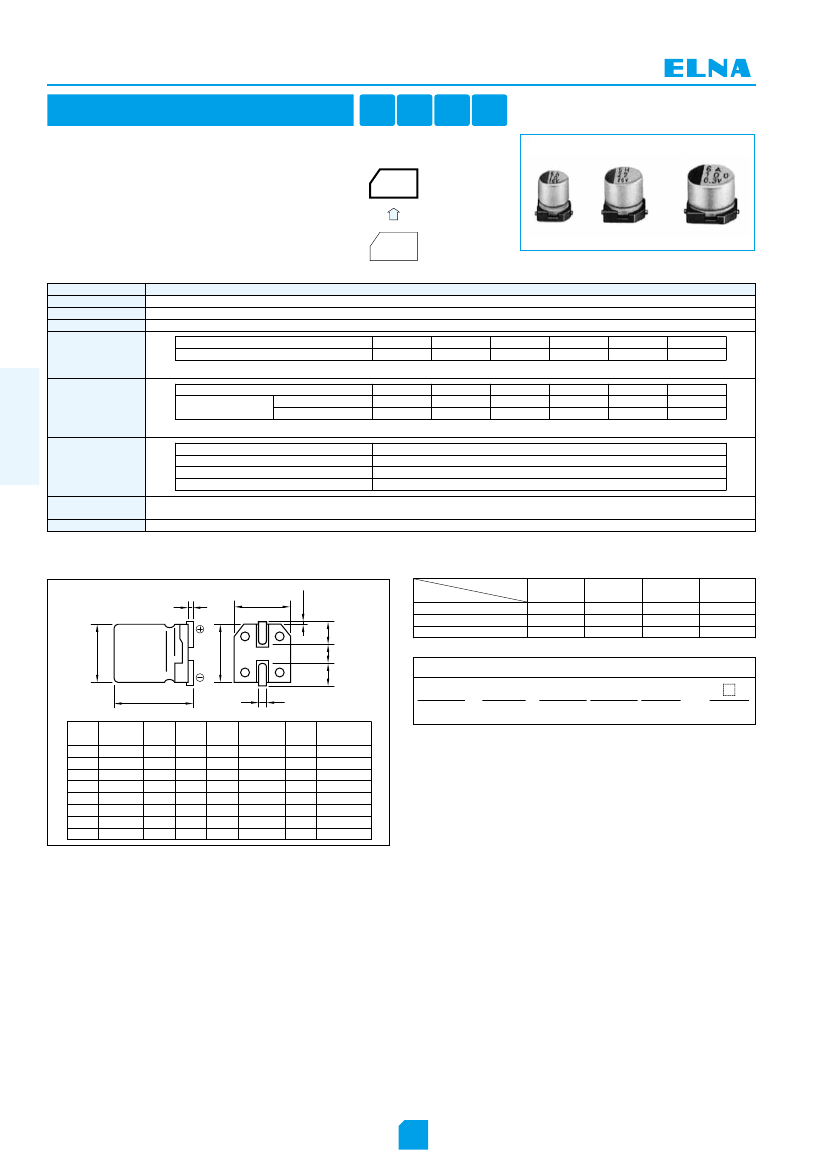

RVS

●

VERTICAL CHIP TYPE ALUMINUM ELECTROLYTIC CAPACITORS

GREEN

CAP

SMD

Anti-

cleaning

1000hours

solvent

105˚C

®

Chip Type 105°C Standard Capacitors

Compatible with surface mounting.

Supplied with carrier taping.

Guarantees 1000 hours at 105°

C.

RVS

High temperature

RV2

Speciﬁcations

Item

Category temperature range (℃)

Tolerance at rated capacitance (%)

Marking color : Black print

Leakage current (µA)

Tangent of loss angle

(tanδ)

Performance

ー55 to ＋105

±20

Less than 0.01CV or 3 whichever is larger (after 2 minutes) C : Rated capacitance (µF) ; V : Rated voltage (V)

Rated voltage (V)

tanδ (max.)

6.3

0.30

10

0.26

16

0.22

25

0.16

35

0.13

(20℃,120Hz)

(20℃)

50

0.12

(20℃,120Hz)

Characteristics at high

and low temperature

Rated voltage (V)

Ｚ

ー25℃/Ｚ

＋20℃

Impedance ratio (max.)

Ｚ

ー40℃/Ｚ

＋20℃

6.3

4

8

10

3

5

16

2

4

25

2

3

35

2

3

50

2

3

(120Hz)

0.3MAX

0.4±0.2

φD±0.5

B±0.2

(P)

(C)

CHIP

ALUMINUM

●

Endurance (105℃)

(Applied ripple current)

Test time

Leakage current

Percentage of capacitance change

Tangent of the loss angle

1000 hours

The initial speciﬁed value or less

Within ±20% of initial value

200% or less of the initial speciﬁed value

Shelf life (105℃)

Applicable standards

Test time : 1000 hours; other items are the same as those for the endurance. Voltage application treatment : According to JIS C5101-1

JIS C5101-1 1998, -18 1999 (IEC 60384-1 1992, -18 1993)

Outline Drawing

A±0.2

Unit : mm

Coeﬃcient of Frequency for Rated Ripple Current

Frequency (Hz)

Rated voltage (V)

50・60

0.80

120

1

1k

1.15

1.25

1.35

10k・100k

1.25

1.40

1.50

6.3 to 16

25 to 35

50

Part numbering system (example : 16V47µF)

RVS

Series code

L

W

( ) :

Reference size

̶

16

Rated voltage

symbol

V

470

M

F55

Casing

symbol

U̶

Taping

symbol

Rated capacitance Capacitance

symbol

tolerance symbol

φD

4

５

6.3

8

10

L

5.3±0.2

7.7±0.3

6.5±0.3

10±0.5

10.5±0.5

A

4.3

5.3

6.6

8.4

10.4

B

4.3

5.3

6.6

8.4

10.4

C

2.0

2.3

2.7

3.4

3.0

3.3

0.5

0.7

W

to

0.8

1.1

P

1.0

1.5

2.0

2.3

3.1

4.7

Casing

symbol

D55

E55

F55

F80

G68

G10

H10

HA5

Soldering conditions are described on page 13.

Land pattern size are described on page 11.

The taping speciﬁcations are described on page 14.
