High Reliability Ferrite Chip Beads
aerospace
aviation
military
medical
AEM’s High Reliability Ferrite Chip Beads
Benefits
n
Sole source and first ever Defense Supply Center
Columbus (DSCC) approved ferrite chip bead
(tested to Drawing 03024)
Made in USA
Sn/Pb terminations (5%+ Pb, no tin whisker worries)
Designed and qualified as Hi-Rel
Complete material and process traceability
Meets all high reliability demands
As the first and only DLA-approved ferrite chip bead
designed for high reliability use, the HRB Series
ferrite chip beads from AEM, Inc. are manufactured
in a AS9100 facility in San Diego, CA, providing
complete material and process traceability. All
components are manufactured with qualified
materials and process systems and tested to DSCC
drawing 03024.
The HRB Series beads are designed with mission
critical applications in mind. Capable of operating
in harsh environments and extreme temperatures,
these Hi-Rel chips are free of tin whiskers with
Sn/Pb or Au terminations. A variety of EIA/EIAJ
chip sizes are offered and feature nickel barrier
terminations with a solder plate finish to help
ensure a reliable solder joint.
n
n
n
n
n
Features
n
n
n
n
n
n
Operating temperature range of –55°C to +125°C
Tin whisker free (Sn/Pb or Au termination finish)
Reliable terminations (Ni barrier)
Groups A/B data are supplied with each shipment.
Group C inspection is optional.
Monolithic structure for closed magnetic path and high
reliability
Standard EIA/EIAJ chip sizes (0603, 0805, 1206)
Applications
n
n
n
n
Mission critical
Where replacement is not an option
Where pure tin terminations are prohibited
Down-hole and undersea
AEM, INC.
6610 Cobra Way, San Diego, CA 92121, USA
858.481.0210
w w w. a e m - u s a . c o m
AEM’s High Reliability Ferrite Chip Beads
AEM Part No.
0603
HRB0603S300P.500 . .
HRB0603S600P.500 . .
HRB0603S101P.400 . .
HRB0603S151P.400 . .
HRB0603S181P.400 . .
HRB0603S301P.200 . .
HRB0603S401P.200 . .
HRB0603S601P.200 . .
HRB0603S102P.200 . .
HRB0805S300P4.00 . .
HRB0805S500P2.00 . .
HRB0805S600P1.50 . .
HRB0805S700P1.50 . .
HRB0805S101P1.00 . .
HRB0805S121P1.00 . .
HRB0805S151P1.00 . .
HRB0805S221P1.00 . .
HRB0805S331P1.00 . .
HRB0805S471P1.00 . .
HRB0805S601P1.00 . .
HRB0805S102P1.00 . .
HRB1206S300P4.00 . .
HRB1206S500P3.00 . .
HRB1206S800P1.50 . .
HRB1206S121P1.50 . .
HRB1206S251P1.50 . .
HRB1206S501P1.00 . .
HRB1206S601P1.00 . .
DSCC Part No.
03024-001P
03024-002P
03024-003P
03024-004P
03024-005P
03024-006P
03024-007P
03024-008P
03024-009P
03024-010P
03024-011P
03024-012P
03024-013P
03024-014P
03024-015P
03024-016P
03024-017P
03024-018P
03024-019P
03024-020P
03024-021P
03024-022P
03024-023P
03024-024P
03024-025P
03024-026P
03024-027P
03024-028P
Impedance Ω
30
60
100
150
180
300
400
600
1000
30
50
60
70
100
120
150
220
330
470
600
1000
30
50
80
120
250
500
600
Max. Ω RDC
0.15
0.15
0.20
0.25
0.25
0.30
0.35
0.40
0.60
0.02
0.08
0.15
0.15
0.20
0.20
0.20
0.20
0.25
0.25
0.30
0.40
0.01
0.03
0.10
0.10
0.10
0.20
0.30
Max. Amps
0.50
0.50
0.40
0.40
0.40
0.20
0.20
0.20
0.20
4.00
2.00
1.50
1.50
1.00
1.00
1.00
1.00
1.00
1.00
1.00
1.00
4.00
3.00
1.50
1.50
1.50
1.00
1.00
0805
1206
Other Sizes and Values may be added by request

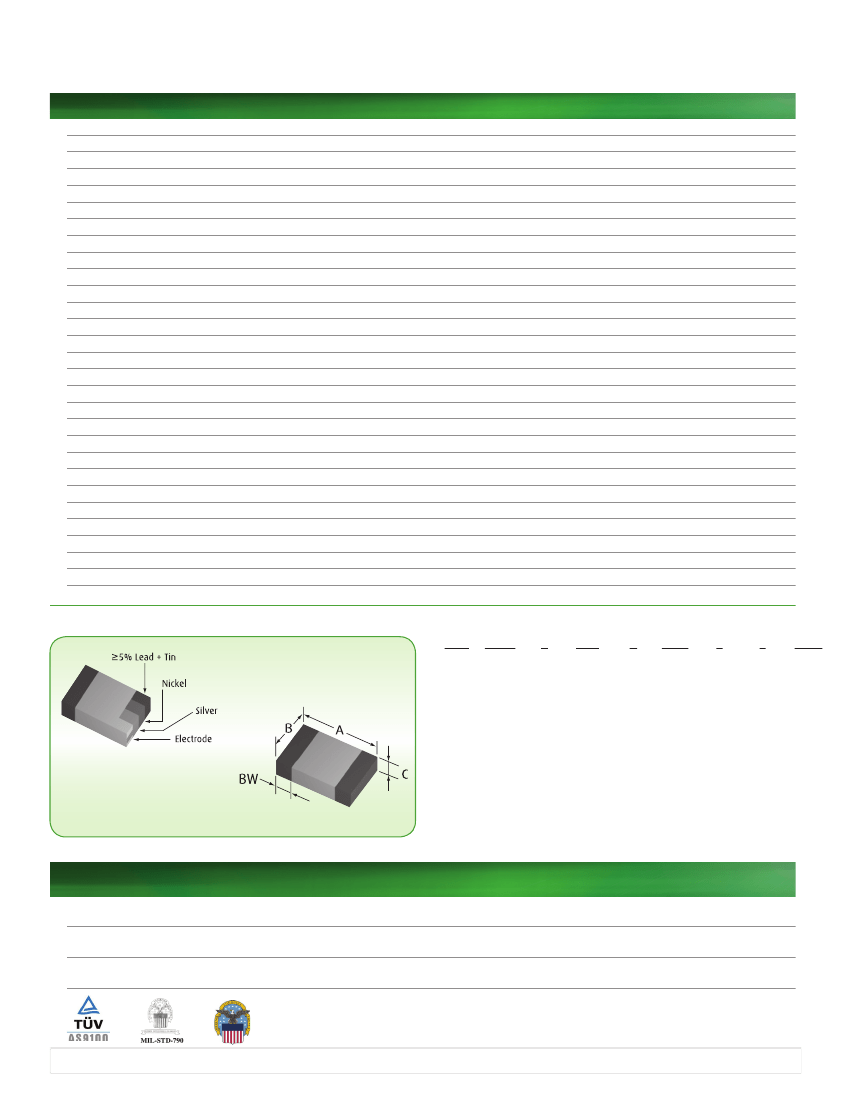

Shape and Dimensions
Product Identification
HRB
(1)
0805
(2)
S
(3)
300
(4)
P
(5)
4.00
(6)
F
(7)
T
(8)
(EM)
(9)
(1) Series code: High Reliability Ferrite Chip Bead
(2) Chip size, EIA/EIAJ dimensions A x B
First 2 digits: A (“length) Last 2 digits: B (“width)
(3) Speed code: S = Standard
(4) Value code: Impedance (Ohms at 100 MHz)
The first two digits are significant. The last digit specifies zeros to
follow 300 = 30 Ohms
(5) Tolerance code: J = ±5%; K = ±10%; M = ±20%; P = ±25%
(6) Current value in Ampere (4.00 = 4A; .150 = 0.15A)
(7) Termination code: F = Sn/Pb solder plate; G = Au plate
(8) Package Code: T = Tape & Reel; B = Bulk
(9) Engineering Model (if applicable); no (EM) = Flight Model
Chip Size
EIA
/
EIAJ
0603/1608
0805/2012
1206/3216
A
Inch (mm)
0.063 ± 0.006
(1.60 ± 0.15)
0.079 ± 0.008
(2.00 ± 0.20)
0.126 ± 0.008
(3.20 ± 0.20)
B
Inch (mm)
0.031 ± 0.006
(0.80 ± 0.15)
0.049 ± 0.008
(1.25 ± 0.20)
0.063 ± 0.008
(1.60 ± 0.20)
C
Inch (mm)
0.031 ± 0.006
(0.80 ± 0.15)
0.035 ± 0.008
(0.90 ± 0.20)
0.043 ± 0.008
(1.10 ± 0.20)
TERMINATION (BW)
Inch (mm)
0.014 ± 0.006
(0.36 ± 0.15)
0.020 ± 0.010
(0.51 ± 0.25)
0.020 ± 0.010
(0.51 ± 0.25)
January 2013
AEM, INC.
6610 Cobra Way, San Diego, CA 92121, USA
858.481.0210
w w w. a e m - u s a . c o m
