AEC-Q200 MLCC
X7R DIELECTRIC, SOFT TERMINATION SPECIFICATION
PRODUCT DESCRIPTION
Rev. C
The AEC-Q200 qualified (A Series) soft termination X7R dielectric MLC capacitors are manufactured using green materials
without lead or cadmium. These capacitors provide reliable performance through the exact formulation of dielectric
powders, preparation of conductive paste, advanced automatic manufacturing, and strict quality control to assure
excellent control in dielectric thickness, electrode integrity, electrode-to-termination continuity and rugged for automotive
applications.
PRODUCT FEATURES
1.
2.
3.
High reliability and stability for automotive applications
RoHS and HALOGEN compliant
AEC-Q200 Qualified
PART NUMBER DESCRIPTION
1210
Size
1210 (EIA)
1812 (EIA)
1825 (EIA)
2220 (EIA)
2225 (EIA)
A
Series
A : AEC-Q200
501
Rated Voltage (VDC)
100: 10V
160: 16V
250: 25V
500: 50V
101: 100V
201: 200V
251: 250V
501-500V
631: 630V
102: 1000V
202: 2000V
302: 3000V
X
103
Dielectric Capacitance
X: X7R
103: 0.01µF
104: 0.10µF
105: 1.0µF
K
F
Tolerance
Termination
F: Flex/Soft Termination
F: ±1%
G: ±2%
J: ±5%
K: ±10%
E
Packaging
E: 7” Plastic Tape
GENERAL ELECTRICAL DATA
Dielectric
Size
Capacitance
Rated voltage (WVDC)
DF
Insulation resistance
Operating temperature
Capacitance change
Terminal Plating
X7R
See table 1
See table 2
See table 2
2.5% max
≥10GΩ
-55°C to +125°C
±15% max
Ni/Sn (lead-free termination)
PHYSICAL DIMENSIONS
Figure
Symbol
L
W
T
T
s
Dimension
See table 1
See table 1
See table 1
0.75 ± 0.35 mm (1210 & 1812 case size)
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
1
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
AEC-Q200 MLCC
X7R DIELECTRIC, SOFT TERMINATION SPECIFICATION
Table 1:
Capacitor Size Code
Case Size
0402
0402
0603
0603
0805
0805
0805
0805
0805
1206
1206
1206
1206
1206
1206
1210
1210
1210
1210
1210
1812
1812
1825
1825
2220
2220
2220
2225
Size Code
BA
BC
CA
CC
DB
DC
DD
DE
DF
EA
EB
EC
ED
EE
EG
FA
FC
FD
FE
FF
HA
HC
IA
IB
JA
JB
JC
KA
Max. Thickness (mm)
0.55
0.52
0.87
0.95
0.7
0.9
1.35
0.95
1.45
0.9
1.05
1.35
1.3
1.8
1.9
1.05
1.35
1.8
2.2
2.8
1.35
2.2
Length (mm)
1.00 ±0.05
1.0 ±0.20
1.6 ±0.1
1.6 +0.15/-0.01
2.0 ±0.15
2.0 ±0.15
2.0 ±0.15
2.0 ±0.2
2.0 ±0.2
3.2 ±0.15
3.2 ±0.15
3.2 ±0.15
3.2 ±0.2
3.2 ±0.2
3.2 +0.3/-0.1
3.2 ±0.3
3.2 ±0.3
3.2 ±0.4
3.2 ±0.4
3.2 ±0.4
4.5 ±0.4
4.5 ±0.4
Width (mm)
0.50 ±0.05
0.50 ±0.20
0.8 ±0.1
0.8 +0.15/-0.1
1.25 ±0.1
1.25 ±0.1
1.25 ±0.1
1.25 ±0.2
1.25 ±0.2
1.6 ±0.15
1.6 ±0.15
1.6 ±0.15
1.6 ±0.15
1.6 ±0.2
1.6 +0.3/-0.1
2.5 ±0.2
2.5 ±0.2
2.5 ±0.3
2.5 ±0.3
2.5 ±0.3
3.2 ±0.3
3.2 ±0.3
Thickness (mm)
0.50 ±0.05
0.50 ±0.2
0.8±0.07
0.8 +0.15/-0.1
0.6 ±0.1
0.8 ±0.1
1.25 ±0.1
0.85 ±0.1
1.25 ±0.2
0.8 ±0.1
0.95 ±0.1
1.25 ±0.1
1.15 ±0.15
1.6 ±0.2
1.6 +0.3/-0.1
0.95 ±0.1
1.25 ±0.1
1.6 ±0.2
2.0 ±0.2
2.5 ±0.3
1.25 ±0.1
2.0 ±0.2
Rev. C
2225
2225
KB
KC
2.2
2.8
2.2
2.8
3.1
2.2
2.8
3.1
4.6 ±0.3
4.6 ±0.3
5.7 ±0.4
5.7 ±0.4
5.7 ±0.4
5.7 ±0.4
5.7 ±0.4
5.7 ±0.4
6.3 ±0.4
5.0 ±0.4
5.0 ±0.4
5.0 ±0.4
5.0 ±0.4
6.3 ±0.4
6.3 ±0.4
6.3 ±0.4
2.0 ±0.2
2.5 ±0.3
2.0 ±0.2
2.5 ±0.3
2.8 ±0.3
2.0 ±0.2
2.5 ±0.3
2.8 ±0.3
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
2
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
AEC-Q200 MLCC
X7R DIELECTRIC, SOFT TERMINATION SPECIFICATION

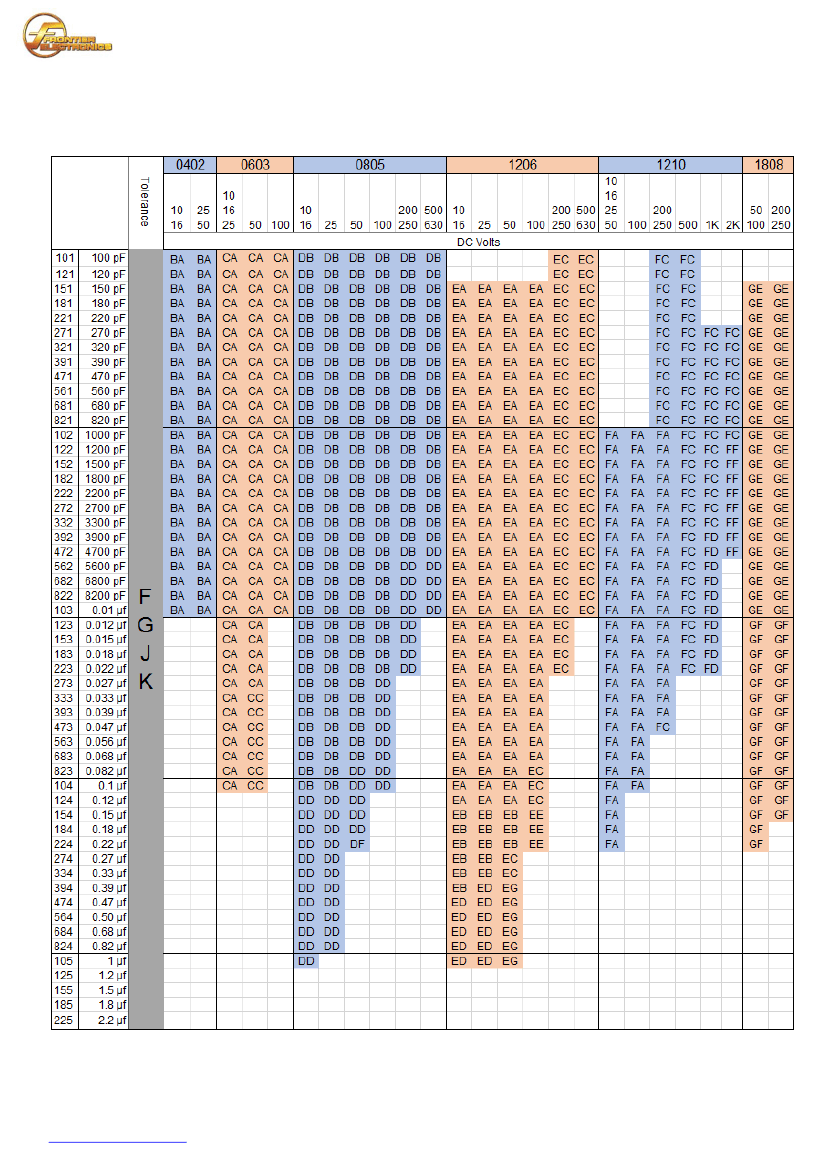

Table 2: Capacitance & Voltage Range (1 of 2)
Rev. C
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
3
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
AEC-Q200 MLCC
X7R DIELECTRIC, SOFT TERMINATION SPECIFICATION

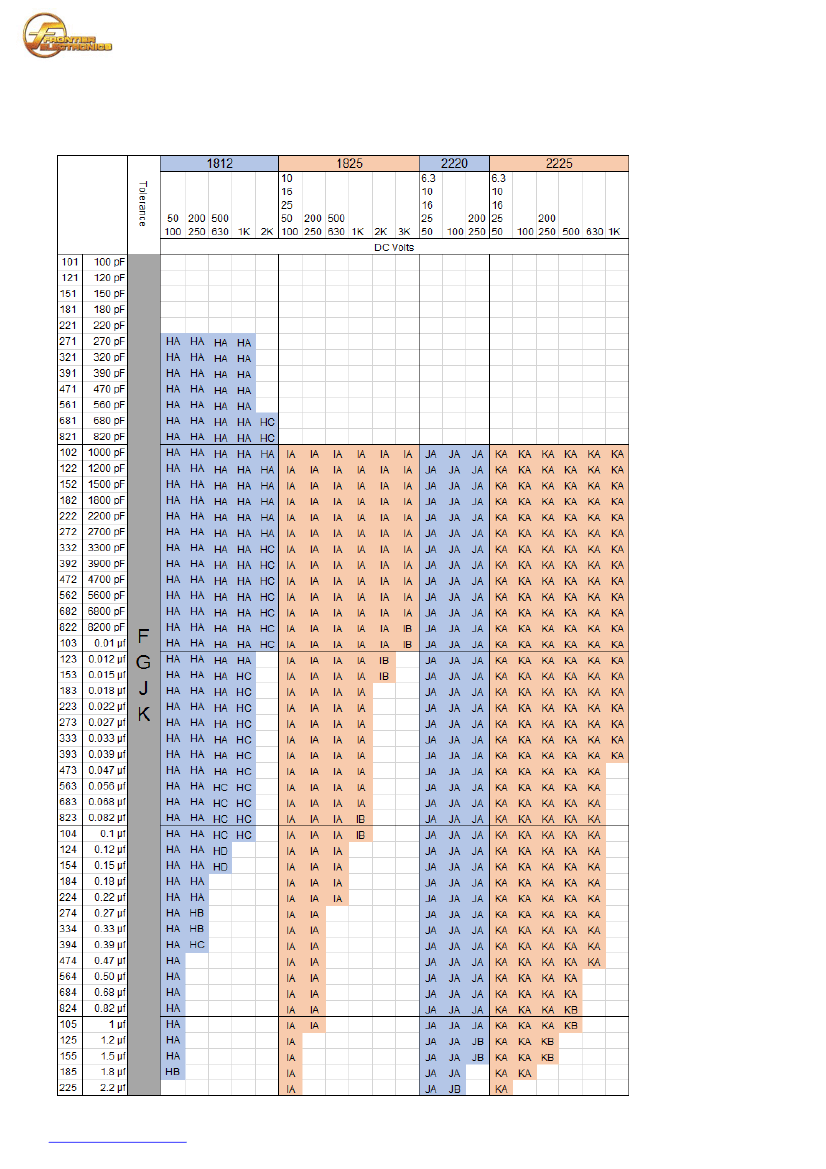

Table 2: Capacitance & Voltage Range (2 of 2)
Rev. C
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
4
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
AEC-Q200 MLCC
X7R DIELECTRIC, SOFT TERMINATION SPECIFICATION
Measuring Method
Rev. C
Capacitor under PCB
The test sample is soldered onto a PCB and the PCB is deflected, with deflection rate of 1mm/s until
the capacitance change exceeds ±12.5%, which is considered a failing point.
The table below summarizes the deflection results:
Size: 1210
Std.
Soft
Term
Term
5
12
2
5
3.5
9.9
Size: 1812
Std.
Soft
Term
Term
5
15
2
5
3.5
9.9
Size: 1825
Std.
Soft
Term
Term
5
15
4
5
4.5
11.2
Size: 2220
Std.
Soft
Term
Term
5
12
3
5
4
8.9
Size: 2225
Std.
Soft
Term
Term
5
12
3
5
4.5
8.9
Max.
Min.
Avg.
Units: mm
Frontier Electronics Corp.
®
http://www.frontierusa.com
Page
5
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
