NRLFW681M80V25X20 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> NRLFW681M80V25X20

NRLFW681M80V25X20: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 80V, 20% +Tol, 20% -Tol, 680uF, Through Hole Mount, 20MM H RADIAL LEADED, CAN; CategoryPassive components capacitor; File Size61KB，2 Pages; ManufacturerNIC Components Corp

Download Datasheet Parametric View All

NRLFW681M80V25X20 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 80V, 20% +Tol, 20% -Tol, 680uF, Through Hole Mount, 20MM H RADIAL LEADED, CAN

NRLFW681M80V25X20 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1991331120
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	680 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
ESR	317 mΩ
JESD-609 code	e0
leakage current	0.699714 mA
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	80 V
ripple current	1000 mA
surface mount	NO
Delta tangent	0.17
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	SNAP-IN

Preview

Download Datasheet

View All

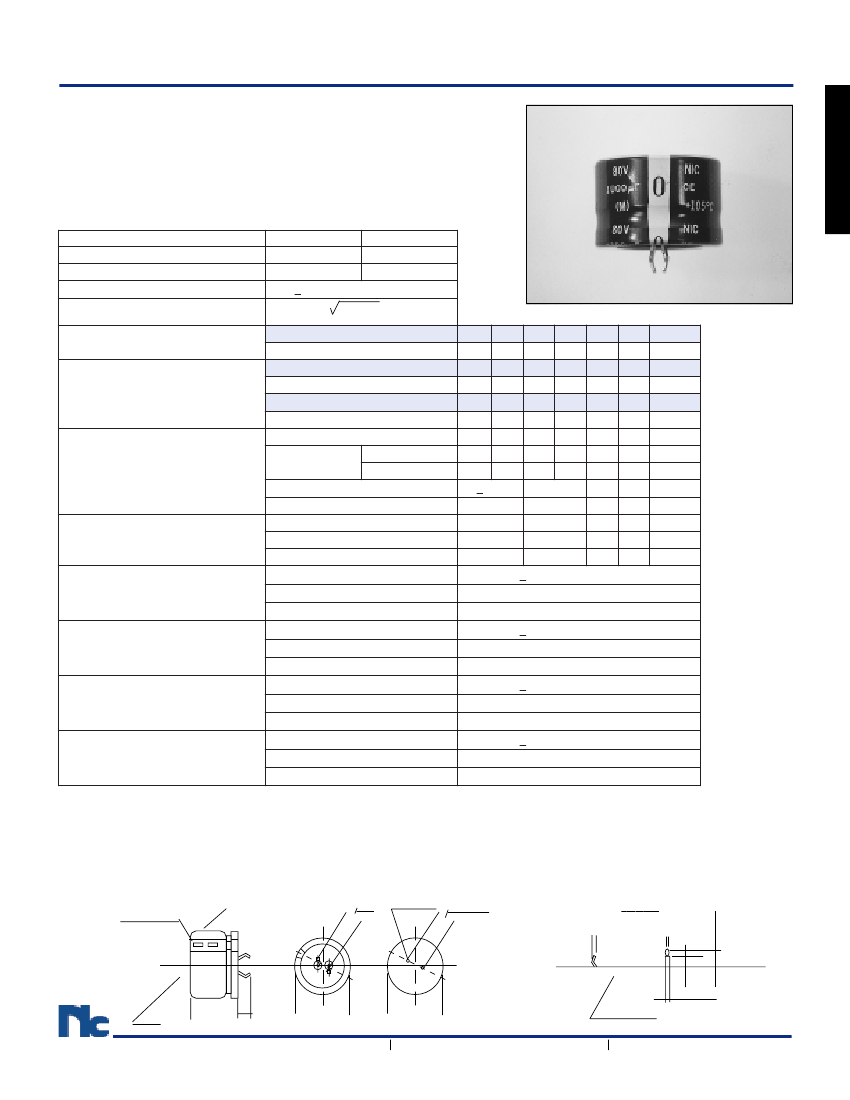

Large Can Aluminum Electrolytic Capacitors

FEATURES

• LOW PROFILE (20mm HEIGHT)

• EXTENDED TEMPERATURE RATING +105

• LOW DISSIPATION FACTOR AND LOW ESR

• HIGH RIPPLE CURRENT

• WIDE CV SELECTION

• SUITABLE FOR SWITCHING POWER SUPPLIES

SPECIFICATIONS

Operating Temperature Range

Rated Working Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Max. Leakage Current

After 5 Minutes (20

Dissipation Factor (Tan

δ)

120Hz/20°C

-40

C ~ +105

16 ~ 250Vdc

68 ~ 10,000

µF

-25

C ~ +105

400Vdc

33 ~ 100

µF

NRLFW Series

LEADED

+ 20% (M) at 120Hz, +20°C

3 C(

F)V (

W.V. (Vdc)

Tan

max.

W.V. (Vdc)

S.V. (Vdc)

W.V. (Vdc)

S.V. (Vdc)

Frequency (Hz)

10 ~ 100Vdc

160 ~ 450Vdc

0.45

160

200

0.93

0.75

200

250

300

100

400

450

120

1.0

450

500

100

100~400

0.15

100

125

10K~50K

1.15

1.40

+105

1.0

0.35 0.30 0.25 0.20 0.17

Surge Voltage

Ripple Current Correction Factors

Multiplier @ 105°C

0.95 0.99

0.80 0.95

2.6

-25

1.05 1.08

1.20 1.25

+70

2.5

-40

20%

+85

2.1

Temperature (°C)

Multiplier

Temperature (°C)

Low Temperature Stability

(16 ~ 250Vdc Ratings)

Capacitance Decrease

Impedance Ratio

Capacitance Change

Load Life Test

2,000 Hours @ 105°C

Shelf Life Test

No Load

2,000 Hours @ 105°C

Surge Voltage Test

1,000 Cycles of 0.5" On

& 4.5" Off at 25°C

Soldering Effect

MIL-STD-202F

Method 210A

Tan

& ESR

Leakage Current

Capacitance Change

Tan

& ESR

Leakage Current

Capacitance Change

Tan

& ESR

Leakage Current

Capacitance Change

Tan

& ESR

Leakage Current

< +45

2.7

1.5

+60

10%

Within + 20% of initial measured value

Less than 200% of the specified maximum value

Less than the specified maximum value

Within + 20% of initial measured value

Less than 200% of the specified maximum value

Less than the specified maximum value

Within + 20% of initial measured value

Less than 200% of the specified maximum value

Less than the specified maximum value

Within + 10% of initial measured value

Less than the specified maximum value

*NON-STANDARD VOLTAGES FOR THIS SERIES

MECHANICAL CHARACTERISTICS:

1. Safety Vent:

The capacitors are provided with a pressure sensitive safety vent on the top of can which is normally covered by a PVC patch for the purpose of

....insula-

tion. The vent is designed to rupture in the event that high internal gas pressure is developed by circuit malfunction or mis-use like reverse

....voltage.

2. Terminal Strength:

Each terminal of the capacitor shall withstand an axial pull force of 4.5Kg for a period 10 seconds or a radial bent force of 2.5Kg for a period of 30

onds.

Insulation Sleeve

10.0

0.1

Terminal

(t=0.8)

....sec-

Can Top Vent

NIC COMPONENTS

www.niccomp.com

2.0 Max.

(∅D)

6.3

1.0

(4.0mm Leads Available As Option)

∅d ±

1.0

Top of Spin

www.lowESR.com

¦¦

Sleeve Color:

Dark Blue

4.0

1.5

www.RFpassives.com

119

¦¦

Max. 2.0

0.8

6.3

1.0

Minus Polarity Marking

¦ ¦
