54F398/BSA-T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54F398/BSA-T

54F398/BSA-T: DescriptionIC F/FAST SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, COMPLEMENTARY OUTPUT, CDFP20, FF/Latch; Categorylogic logic; File Size137KB，5 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54F398/BSA-T Overview

IC F/FAST SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, COMPLEMENTARY OUTPUT, CDFP20, FF/Latch

54F398/BSA-T Parametric

Parameter Name	Attribute value
package instruction	DFP,
Reach Compliance Code	unknown
Other features	FOUR 2:1 MUX FOLLOWED BY REGISTER
series	F/FAST
JESD-30 code	R-CDFP-F20
Logic integrated circuit type	D FLIP-FLOP
Number of digits	4
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	COMPLEMENTARY
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
propagation delay (tpd)	10.5 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	FLAT
Terminal location	DUAL
Trigger type	POSITIVE EDGE
minfmax	120 MHz
Base Number Matches	1

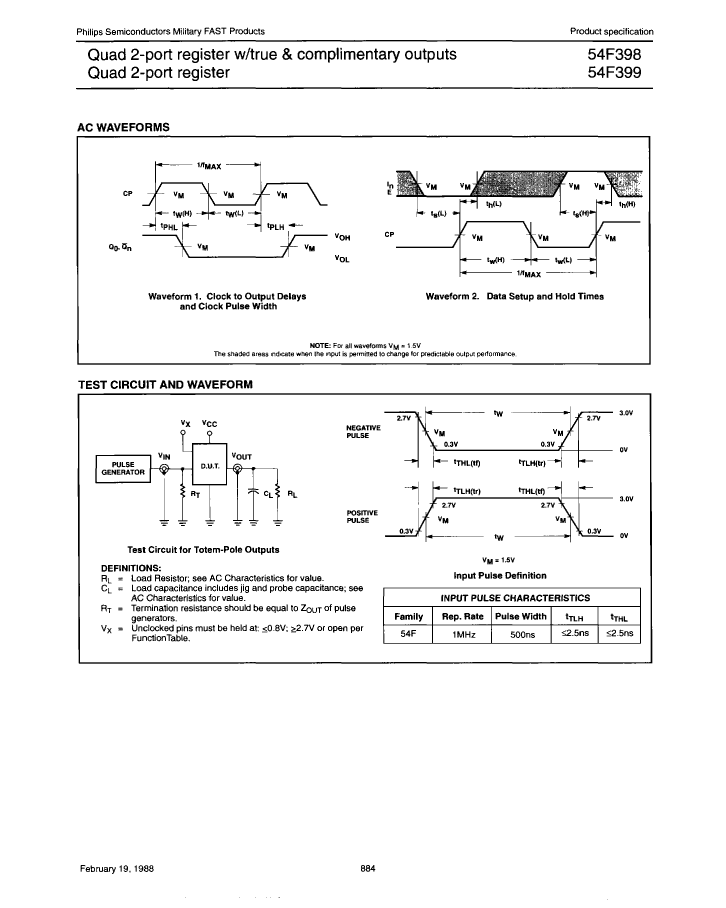

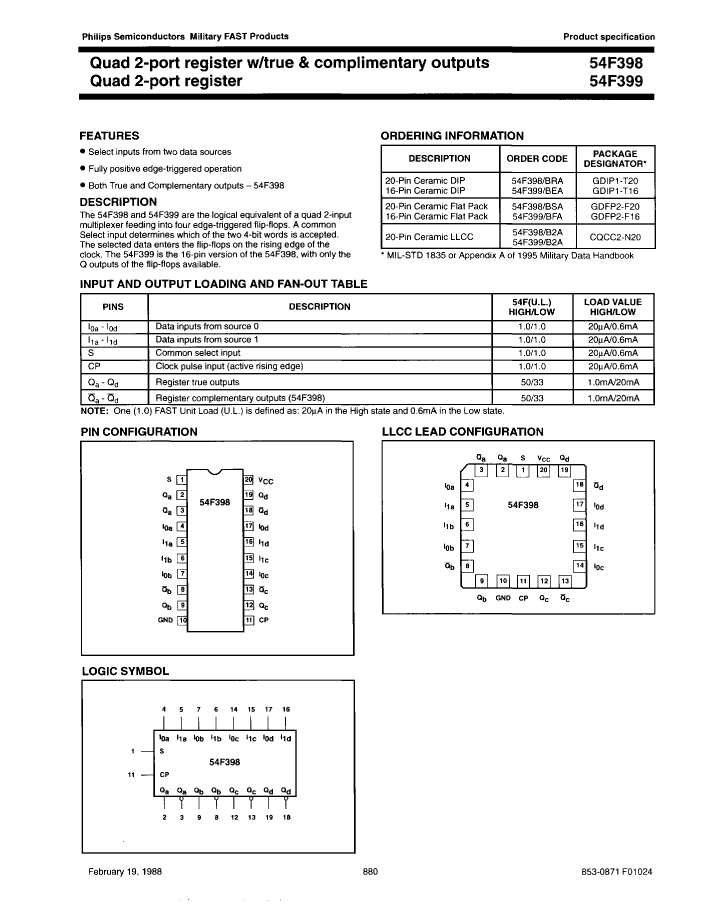

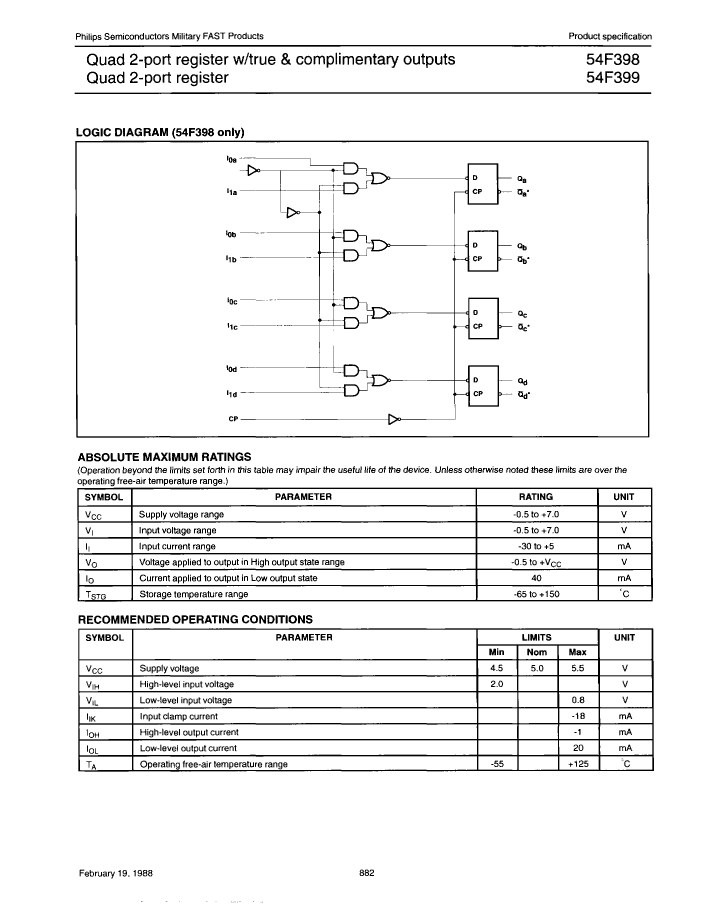

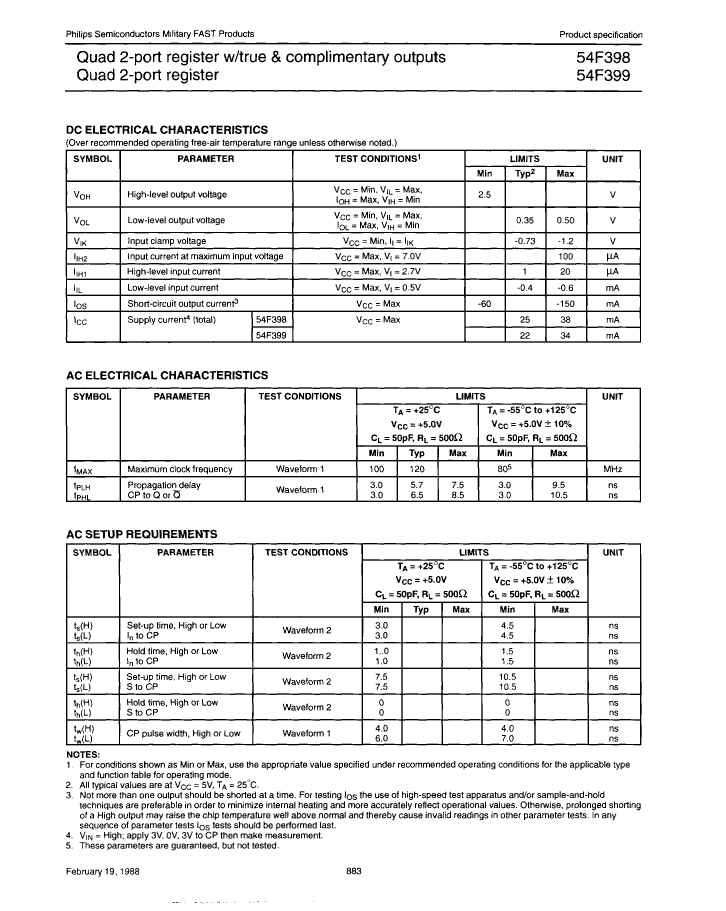

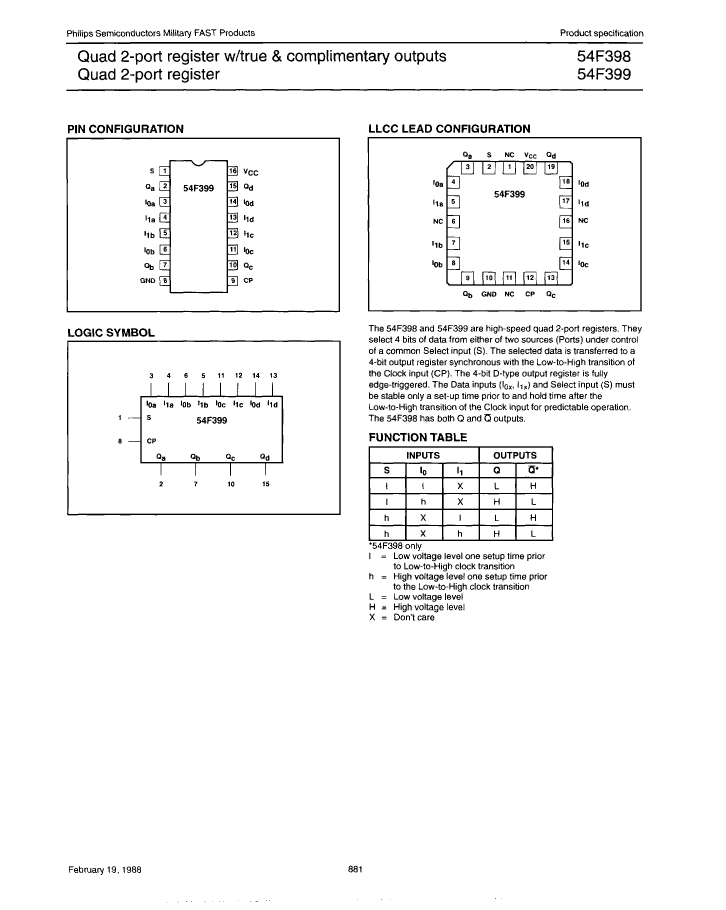

Preview

Download Datasheet

View All

54F398/BSA-T Related Products

	54F398/BSA-T	54F399/B2A-T	54F398/BRA	54F398/BSA	54F399/B2A	54F399/BEA	54F398/B2A-T	54F399/BFA-T	54F399/BFA	54F398/B2A
Description	IC F/FAST SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, COMPLEMENTARY OUTPUT, CDFP20, FF/Latch	IC F/FAST SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, CQCC20, FF/Latch	IC F/FAST SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, COMPLEMENTARY OUTPUT, CDIP20, FF/Latch	IC F/FAST SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, COMPLEMENTARY OUTPUT, CDFP20, FF/Latch	IC F/FAST SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, CQCC20, FF/Latch	IC F/FAST SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, CDIP16, CERAMIC, DIP-16, FF/Latch	IC F/FAST SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, COMPLEMENTARY OUTPUT, CQCC20, FF/Latch	IC F/FAST SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, CDFP16, FF/Latch	IC F/FAST SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, CDFP16, FF/Latch	IC F/FAST SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, COMPLEMENTARY OUTPUT, CQCC20, FF/Latch
package instruction	DFP,	QCCN,	DIP,	DFP,	QCCN,	DIP,	QCCN,	DFP,	DFP,	QCCN,
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	FOUR 2:1 MUX FOLLOWED BY REGISTER	FOUR 2:1 MUX FOLLOWED BY REGISTER	FOUR 2:1 MUX FOLLOWED BY REGISTER	FOUR 2:1 MUX FOLLOWED BY REGISTER	FOUR 2:1 MUX FOLLOWED BY REGISTER	FOUR 2:1 MUX FOLLOWED BY REGISTER	FOUR 2:1 MUX FOLLOWED BY REGISTER	FOUR 2:1 MUX FOLLOWED BY REGISTER	FOUR 2:1 MUX FOLLOWED BY REGISTER	FOUR 2:1 MUX FOLLOWED BY REGISTER
series	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST
JESD-30 code	R-CDFP-F20	S-CQCC-N20	R-GDIP-T20	R-CDFP-F20	S-CQCC-N20	R-GDIP-T16	S-CQCC-N20	R-CDFP-F16	R-CDFP-F16	S-CQCC-N20
Logic integrated circuit type	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP
Number of digits	4	4	4	4	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	20	20	20	20	20	16	20	16	16	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output polarity	COMPLEMENTARY	TRUE	COMPLEMENTARY	COMPLEMENTARY	TRUE	TRUE	COMPLEMENTARY	TRUE	TRUE	COMPLEMENTARY
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	QCCN	DIP	DFP	QCCN	DIP	QCCN	DFP	DFP	QCCN
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE
Package form	FLATPACK	CHIP CARRIER	IN-LINE	FLATPACK	CHIP CARRIER	IN-LINE	CHIP CARRIER	FLATPACK	FLATPACK	CHIP CARRIER
propagation delay (tpd)	10.5 ns	10.5 ns	10.5 ns	10.5 ns	10.5 ns	10.5 ns	10.5 ns	10.5 ns	10.5 ns	10.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	YES	YES	NO	YES	YES	YES	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	NO LEAD	THROUGH-HOLE	FLAT	NO LEAD	THROUGH-HOLE	NO LEAD	FLAT	FLAT	NO LEAD
Terminal location	DUAL	QUAD	DUAL	DUAL	QUAD	DUAL	QUAD	DUAL	DUAL	QUAD
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
minfmax	120 MHz	120 MHz	120 MHz	120 MHz	120 MHz	120 MHz	120 MHz	120 MHz	120 MHz	120 MHz
Base Number Matches	1	1	1	1	1	1	1	1	1	1
