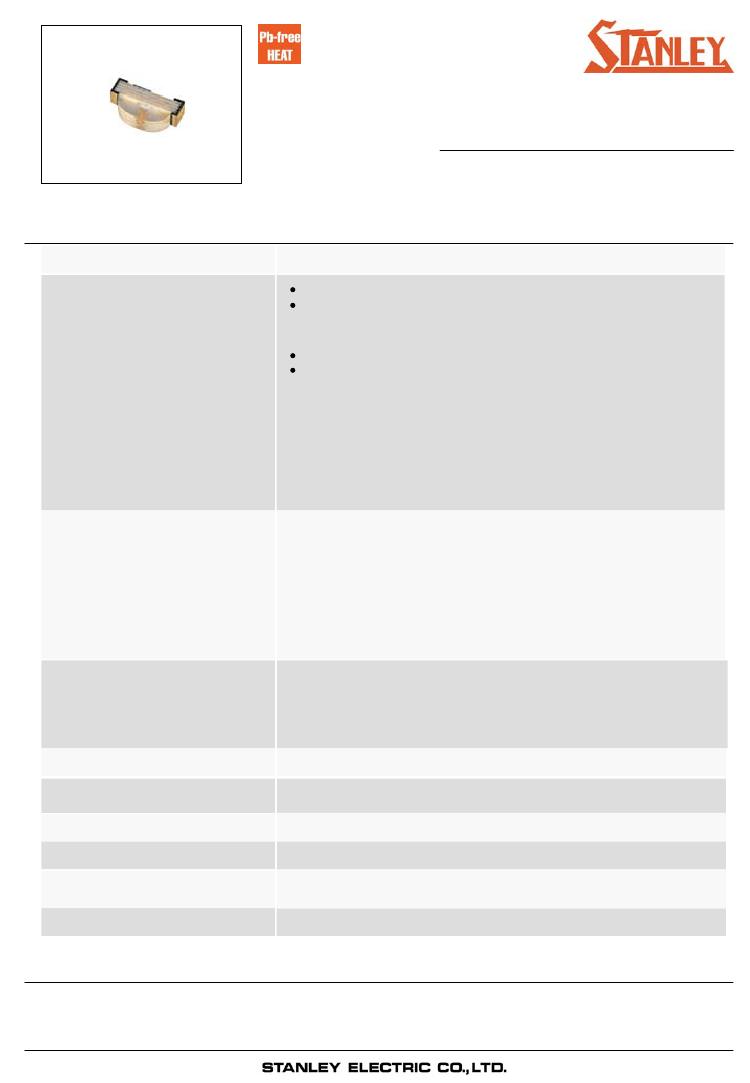

1113F Series
Features
Package
Product features
Right Angle Type (2.1 x 1.0 mm) Type, Milky White resin
Outer Dimension 2.1 x 1.0 x 0.6mm ( L x W x H )
Temperature range
Storage Temperature
: -40℃½100℃
Operating Temperature : -30℃½85℃
Lead–free soldering compatible
RoHS compliant
Single Color Right Angle Type (2.1 X 1.0 mm)
Dominant wavelength
Green
Yellow Green
Red
: 567nm(PG)
: 572nm(PY)
: 647nm(BR)
Half Intensity Angle
PG
PY
BR
:
θx
= 145 deg.,
θy
= 147 deg.
:
θx
= 150 deg.,
θy
= 147 deg.
:
θx
= 131 deg.,
θy
= 153 deg.
Die materials
Rank grouping parameter
Assembly method
Soldering methods
Taping and reel
ESD
PG,PY : GaP,
BR : GaAlAs
Sorted by luminous intensity per rank taping
Auto pick & place machine (Auto Mounter)
Reflow soldering and manual soldering
4,000pcs per reel in a 8mm width tape. (Standard)
Reel diameter:φ180mm
More than 2kV(HBM)
Recommended Applications
Cellular Phone, Electric Household Appliances, OA/FA, Other General Applications
2007.8.31
Page 1
1113F Series
Absolute Maximum Ratings
(Ta=25℃)
Single Color Right Angle Type (2.1 X 1.0 mm)
Item
Power Dissipation
Forward Current
Pulse Forward
Current
※
1
Symbol
P
d
I
F
I
FRM
⊿I
F
⊿I
FRM
V
R
T
opr
T
stg
Absolute Maximum Ratings
PG
70
25
60
0.36
0.86
4
PY
70
25
60
0.36
0.86
4
-30~+85
-40~+100
BR
57.5
25
60
0.36
0.86
4
Unit
mW
mA
mA
mA/℃
mA/℃
V
℃
℃
Derating
(Ta=25℃ or higher)
Reverse Voltage
Operating
Temperature
Storage Temperature
※1
I
FRM
Measurement condition : Pulse Width≦1ms., Duty≦1/20.
2005.7.29
Page 3
1113F Series
Luminous Intensity Rank
I
V
（
mcd）
PG
BR
PY
I
F
=20mA
I
F
=20mA
I
F
=20mA
MIN. MAX. MIN. MAX. MIN. MAX.
3.8
4.5
5.4
6.4
7.6
9.0
5.4
6.4
7.6
9.0
10.7
-
7.0
8.3
9.9
11.7
14.0
16.5
9.9
11.7
14.0
16.5
19.8
-
7.0
8.3
9.9
11.7
14.0
16.5
9.9
11.7
14.0
16.5
19.8
-
Single Color Right Angle Type (2.1 X 1.0 mm)
(Ta=25℃)
Rank
A
B
C
D
E
F
※
Please contact our sales staff concerning rank designation.
2005.7.29
Page 5
