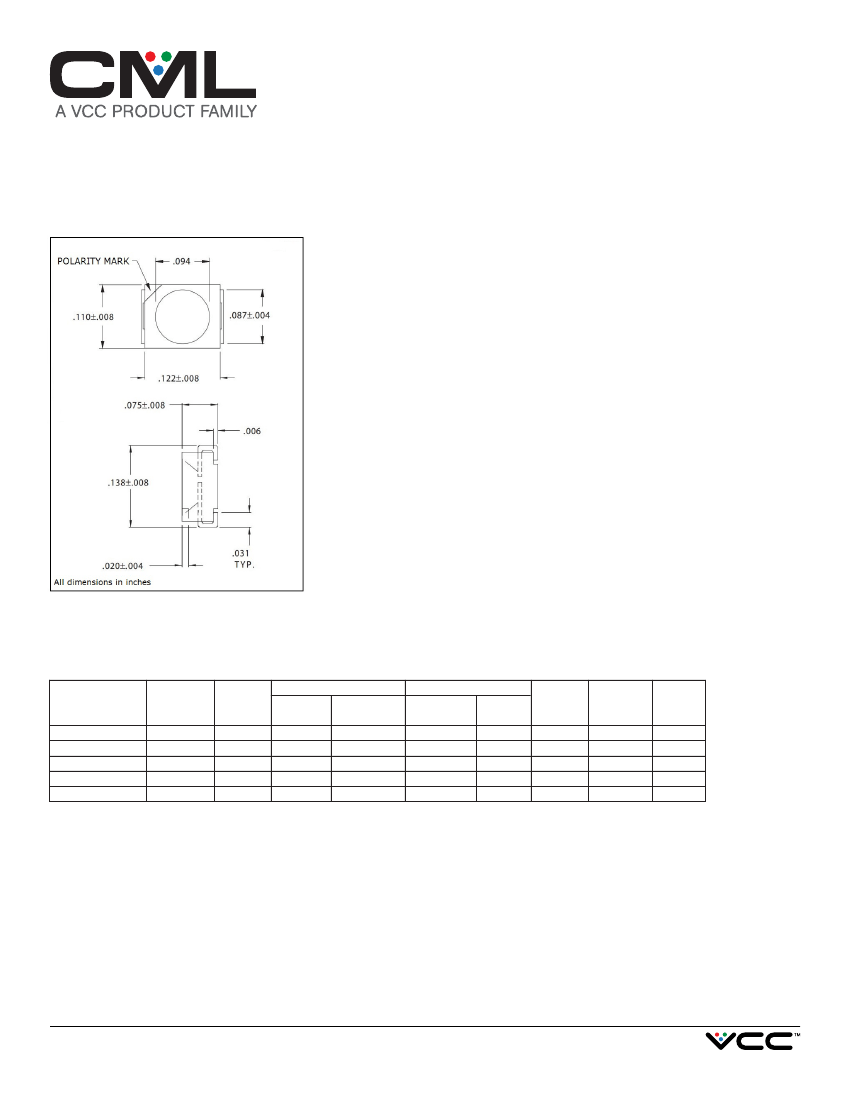

CMD67-21 SERIES SMT LEDs

Description and Features

Surface Mount Technology

• Tape and reel packaged for high-speed autoinsertion.

• Convection and vapor-phase eflow compatible.

• Compact form enables high density placement.

• Packaged 2000 pieces per reel.

•

RoHS Compliant

Leading Edge LED Optoelectronic Performance

• Consistent high brightness.

• Integral lensing for narrow angle light dispersion.

• Bi-color available.

Exceptional Reliability

• Stringent process controls assure quality.

• Extensive qualification testing to meet strictest

requirements.

• Designed to permit easy post-reflow solder joint inspection.

• Refer to “Solder Pad Geometry 1.pdf”

Electro-Optical Characteristics and Ratings

P art Number

E mitted

C olor

G reen

Y ellow

H.E . R ed

B right R ed

Lens

C olor

C lear

Luminous Intensity

Min.

(mcd)

15.0

6.0

25.0

36.0

T yp.

(mcd)

25.0

10.0

40.0

62.0

F orward V oltage

T yp.

(V )

2.1

2.0

1.7

Max.

(V )

2.8

2.4

P olarity

Mark

Indicates

C athode

Anode

C MD67-21VG C /TR8

C MD67-21VY C /TR8

C MD67-21VR C /TR8

C MD67-21S R C /TR8

C MD67-21UR C /TR8

V iew

P eak

Wavelength Angle

(degrees)

(nm)

120

570

120

585

120

640

120

660

120

660

Absolute Maximum Ratings

Green

H.E.Red

Yellow

Bright Red

Units

Power Dissipation.....................................................105....................120......................105......................100..................mW

Storage/Operating Temperature.........................-40 to +85...........-40 to +85...........-40 to +85............-40 to +85...............°C

Peak Forward Current (1μs @ 10% duty cycle)........150...................150......................150......................150...................mA

Reverse Voltage (IR=100μA).....................................5.0....................5.0.......................5.0........................5.0.....................V

Lead Solder Time @ 260°C........................................5........................5..........................5.........................5.............Seconds

Average Forward Current...........................................25.....................30........................30........................30....................mA
