Devices are ESD protected; however, handling precautions are recommended.
1. A short circuit from OUT to V+ can cause excessive heating and damage the device. The maximum short circuit output current (OUT to V–) is
approximately 20mA, independent of V
V+
.
2. Measured at the output switch point where V
OUT
≅
1.4Vdc with R
S
= 0Ω, V+ = 5Vdc to 30Vdc, and over the full input common-mode range
(0Vdc to V+ – 1.5Vdc).
3. The direction of input current is out of the device due to its PNP input.
4. The input common-mode voltage, V
IN+
, or V
IN–
must not go below –0.3V. The upper end of the common-mode voltage range is V+ – 1.5V at 25°C,
but either or both inputs can go to +36Vdc without damage, independent of V
V+
.
5. The response time measured using a 100mV input step with 5mV overdrive. With greater overdrive, 300ns can be obtained. See “Typical
Characteristics.”
6. Positive excursions of input voltage may exceed the power supply level. As long as the other voltage remains within the common-mode range, the
comparator will provide a proper output state. The low input voltage state must not be below –0.3Vdc (or 0.3Vdc below V
V–
).
May 2008
2
M9999-051608
Micrel, Inc.
MIC6270
Typical Characteristics
0.5
SUPPLY CURRENT (mA)
Supply Current
vs. Supply Voltage
T
A
= +125°C
INPUT CURRENT (nA)
50
Input Current
vs. Supply Voltage
SATURATION VOLTAGE (V)
10
Output Saturation
Voltage
T
A
= –55°C
+25°C
+25°C
0.4
–55°C
40
T
A
= +125°C
1
0.3
30
+25°C
0.1
+125°C
0.2
R
L
=
0.1
0
10
20
30
SUPPLY VOLTAGE (V)
40
20
–55°C
V
IN(cm)
= 0Vdc
0.01
10
0
10
20
30
SUPPLY VOLTAGE (V)
40
0.001
0.01
0.1
1
10
100
OUTPUT SINK CURRENT (mA)
Output Response Time
vs. Overdrive (Test Circuit)
OUTPUT (V)
OUTPUT (V)
+5V
V
IN
4
1
5
5.1k
V
OU T
INPUT (mV)
0
-50
-100
-150
-100
0
INPUT (mV)
6
5
4
3
2
1
0
-1
50
Output Response Time
vs. Overdrive
INPUT
OVERDRIVE
= 5mV
100mV
20mV
6
5
4
3
2
1
0
150
-1
100
50
Output Response Time
vs. Overdrive
INPUT
OVERDRIVE
= 100mV
5mV
20mV
T
A
= 25°C
100 200
TIME (ns)
300
400
T
A
= 25°C
0
-50
-200
0
200 400
TIME (ns)
600
800
May 2008
3
M9999-051608
Micrel, Inc.
MIC6270
Package Information

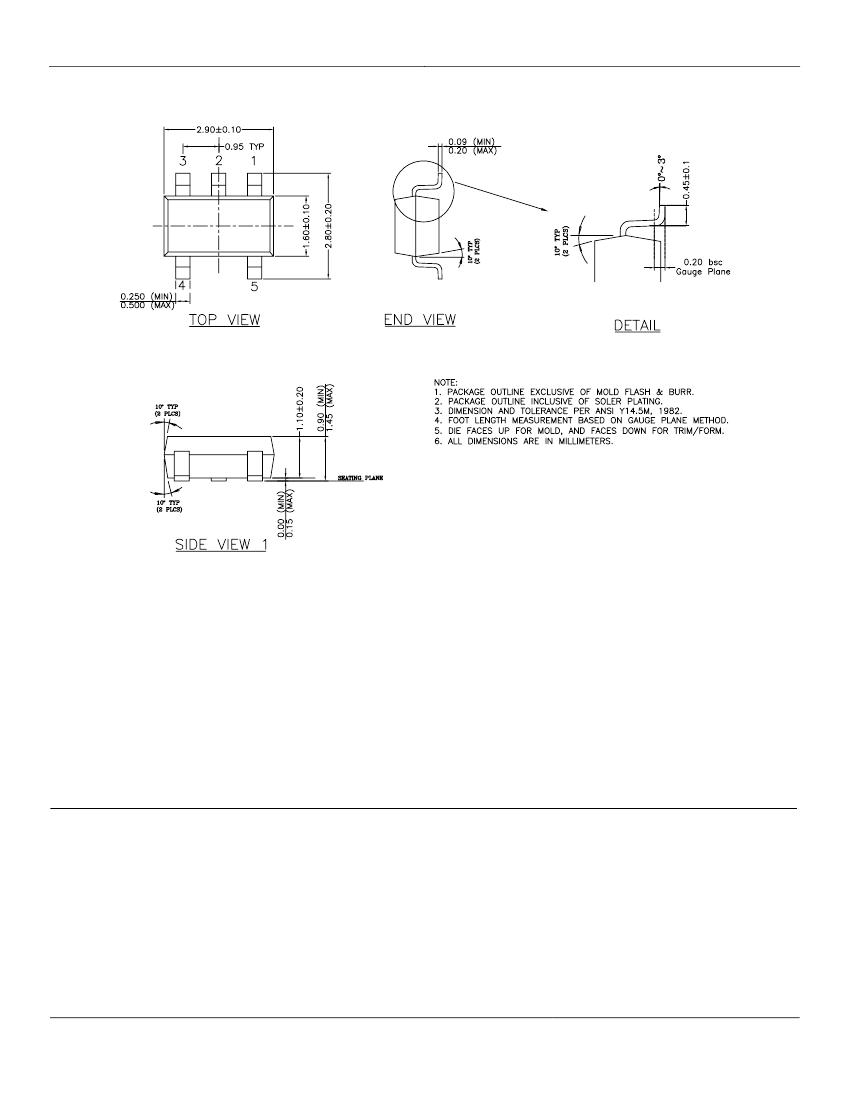

5-Pin SOT-23 (M5)
MICREL, INC. 2180 FORTUNE DRIVE SAN JOSE, CA 95131 USA
TEL +1 (408) 944-0800 FAX +1 (408) 474-1000 WEB http:/www.micrel.com
