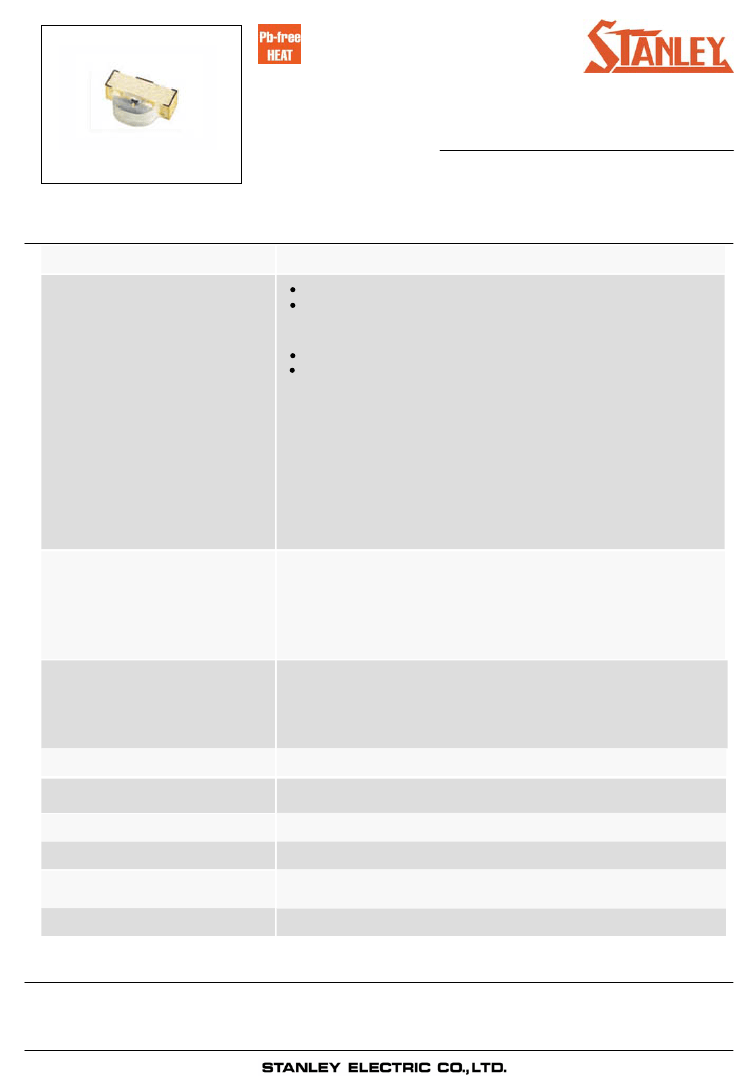

1101F Series

Features

Package

Product features

Right Angle Type (3.0 x 2.0 mm), Water Clear resin

Outer Dimension 3.0 x 2.0 x 1.0mm ( L x W x H )

Temperature range

Storage Temperature

: -40℃½100℃

Operating Temperature : -40℃½85℃

Lead–free soldering compatible

RoHS compliant

Single Color High Brightness Type

Dominant wavelength

Yellow

Orange

Red

: 590nm(FY)

: 605nm(FA)

: 626nm(FR)

Half Intensity Angle

θx

= 140 deg.,

θy

= 130 deg.

Die materials

Rank grouping parameter

Assembly method

Soldering methods

Taping and reel

ESD

AlGaInP

Sorted by luminous intensity and wavelength per rank taping

Auto pick & place machine (Auto Mounter)

Reflow soldering and manual soldering

3,000pcs per reel in a 8mm width tape. (Standard)

Reel diameter:φ180mm

More than 2kV(HBM)

Recommended Applications

Amusement Equipment, Electric Household Appliances, Cellular Phone, Other General Applications

2007.8.31

Page 1

FY1101F-TR Related Products

	FY1101F-TR	FR1101F-TR	FA1101F-TR
Description	led yellow clear right angle smd	led red clear right angle smd	led orange clear right angle smd
Standard Package	-	3,000	3,000
Category	-	Optoelectronics	Optoelectronics
Family	-	LED Indication - Discrete	LED Indication - Discrete
Packaging	-	Tape & Reel (TR)	Tape & Reel (TR)
Col	-	Red	Orange
Wavelength - Domi	-	626nm	605nm
Wavelength - Peak	-	635nm	609nm
Millicandela Rating	-	50mcd	65mcd
Voltage - Forward (Vf) (Typ)	-	1.9V	1.9V
Current - Tes	-	20mA	20mA
Viewing Angle	-	140°, 130°	140°, 130°
Lens Type	-	Cle	Cle
Lens Style/Size	-	Rectangle with Domed Top, 2mm x 1mm	Rectangle with Domed Top, 2mm x 1mm
Package / Case	-	2-SMD, No Lead	2-SMD, No Lead
Size / Dimensi	-	3.00mm L x 2.00mm W	3.00mm L x 2.00mm W
Heigh	-	1.00mm	1.00mm
Mounting Type	-	Surface Mount, Right Angle	Surface Mount, Right Angle
Other Names	-	404-1060-2FR1101FTR	404-1061-2FA1101FTR
