SUPERBRIGHT LED LAMP
VAOL-5GDE4
Feature
§
§
§
Low Power Consumption
High Intensity
I.C. compatible

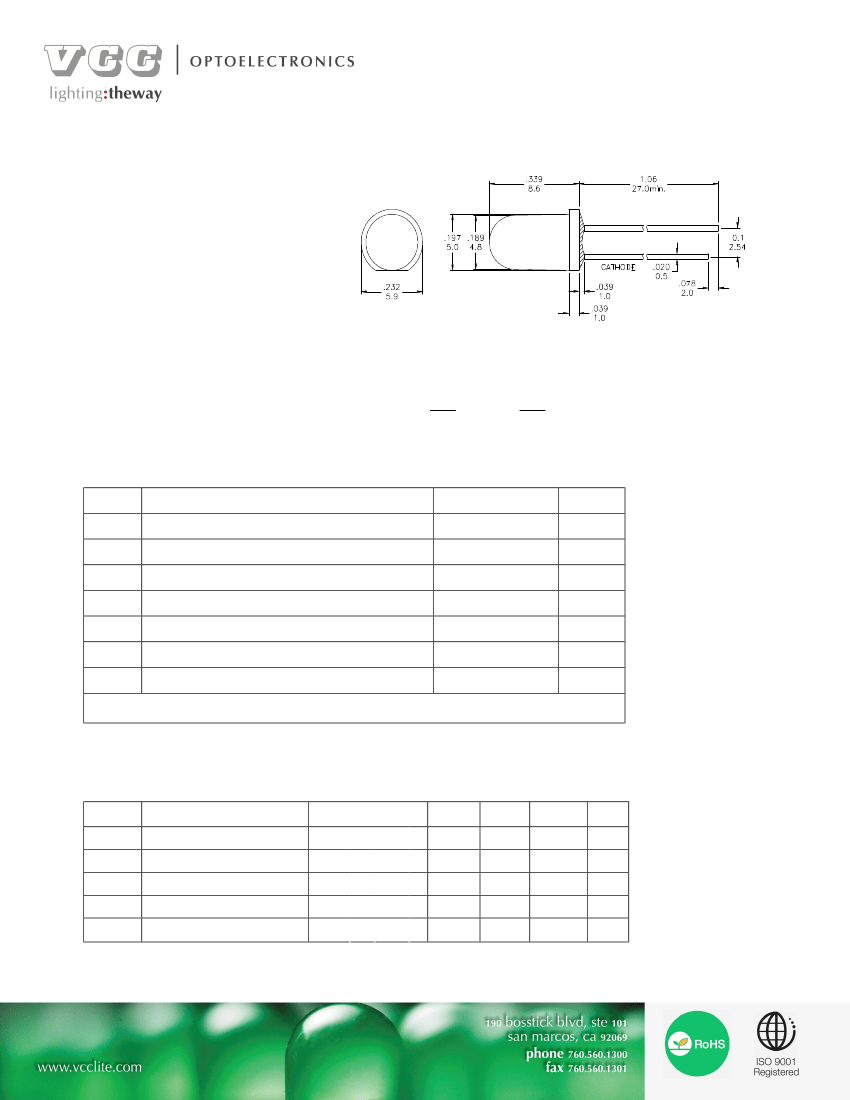

Package Dimension
Applications
§
§
§
§
§
Commercial Outdoor Sign Board
Front Panel Indicator
Dot-Matrix Module
LED Bulb
These High Intensity LEDs are Based on
GaP/GaP Material Technology
Emitted color:Green
Water Transparent Lens
Description
§
§
＊Tolerance：±
0.01
0.25
Unit：±
inch
mm
Absolute Maximum Ratings at Ta＝25℃
Symbol
PD
VR
IAF
IPF
―
Topr
Tstg
Power Dissipation
Reverse Voltage
Average Forward Current
Peak Forward Current（Duty＝0.1，1kHz）
Derating Linear Form 25℃
Operating Temperature Range
Storage Temperature Range
Parameter
Max.
100
5
30
100
0.4
–40
to
＋
80
–40
to
＋
100
Unit
mW
V
mA
mA
mA∕℃
℃
℃
Lead Soldering Temperature [1.6mm（0.063inch）From Body] 260℃ For 5 Seconds.
Electrical / Optical Characteristics and Curves at Ta＝25℃
Symbol
VF
IR
△θ
IV
λd
Parameter
Forward Voltage
Reverse Current
Half Intensity Angle
Luminous Intensity
Dominant Wavelength
Test Condition
IF＝ 20 mA
VR＝ 5
V
IF＝ 20 mA
IF＝ 20 mA
IF＝ 20 mA
Min.
Typ.
2.0
30
380
570
Max.
2.4
100
Unit
V
μA
Deg.
mcd.
nm
Electrical Characteristics at Ta＝25℃
Symbol
Parameter
Condition
Unit
Grade
BIN 13
--
Iv
Luminous Intensity
IF＝20mA
V
F
Forward Voltage
IF＝20mA
λD
Dominant Wavelength
IF＝20mA
mcd
Range
345~485
--
Grade
C
D
E
F
G
V
Range
1.9~2.0
2.0~2.1
2.1~2.2
2.2~2.3
2.3~2.4
Grade
G9
G10
G11
nm
Range
569~571
571~573
573~575
Binning
Intensity: Tolerance of minimum and maximum =
±
15%
Vf: Tolerance of minimum and maximum =
±
0.05v
NOTE:
1. Static electricity and surge damages the LED. It is recommend to use a anti-static wrist
band or anti-electrostatic glove when handing the LEDs. All devices, equipment and machinery
must be properly grounded.
2. Specific binning requirements
–please
contact our home office

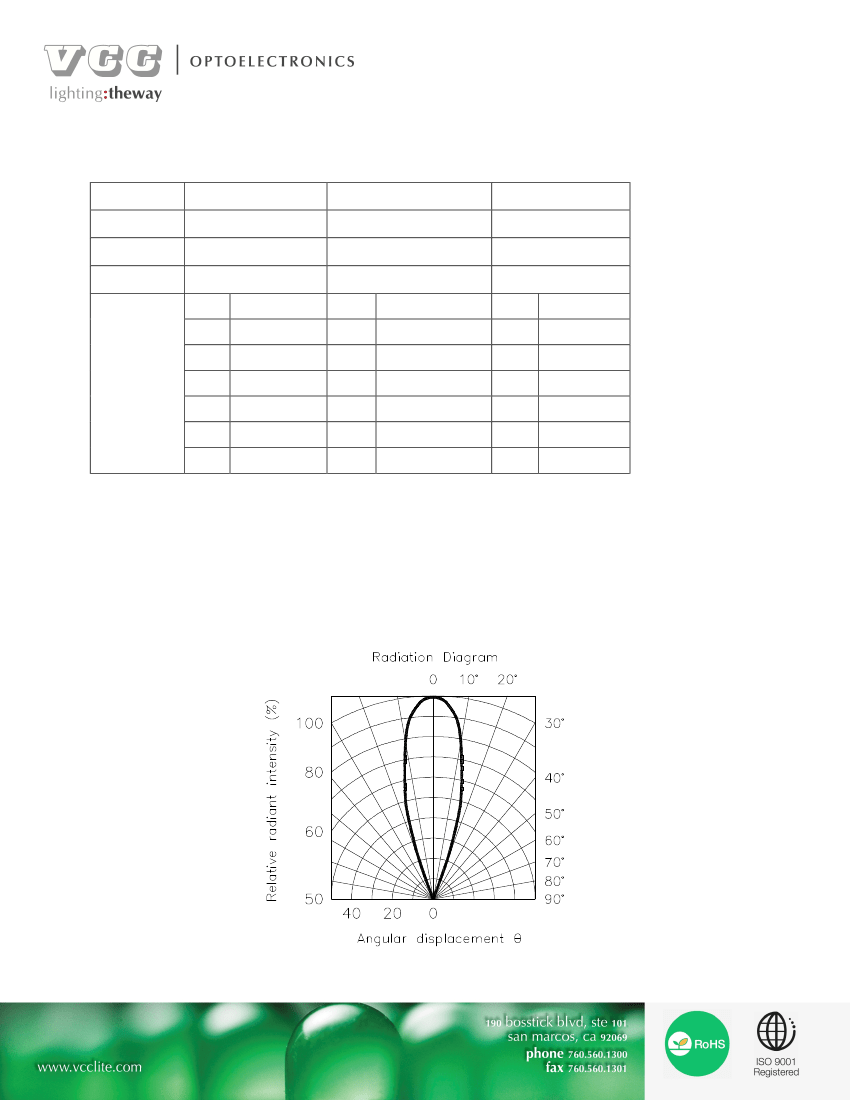

Radiation Diagram
IF=20 mA 50% Power Angle
Angle Y=30∘
GREEN

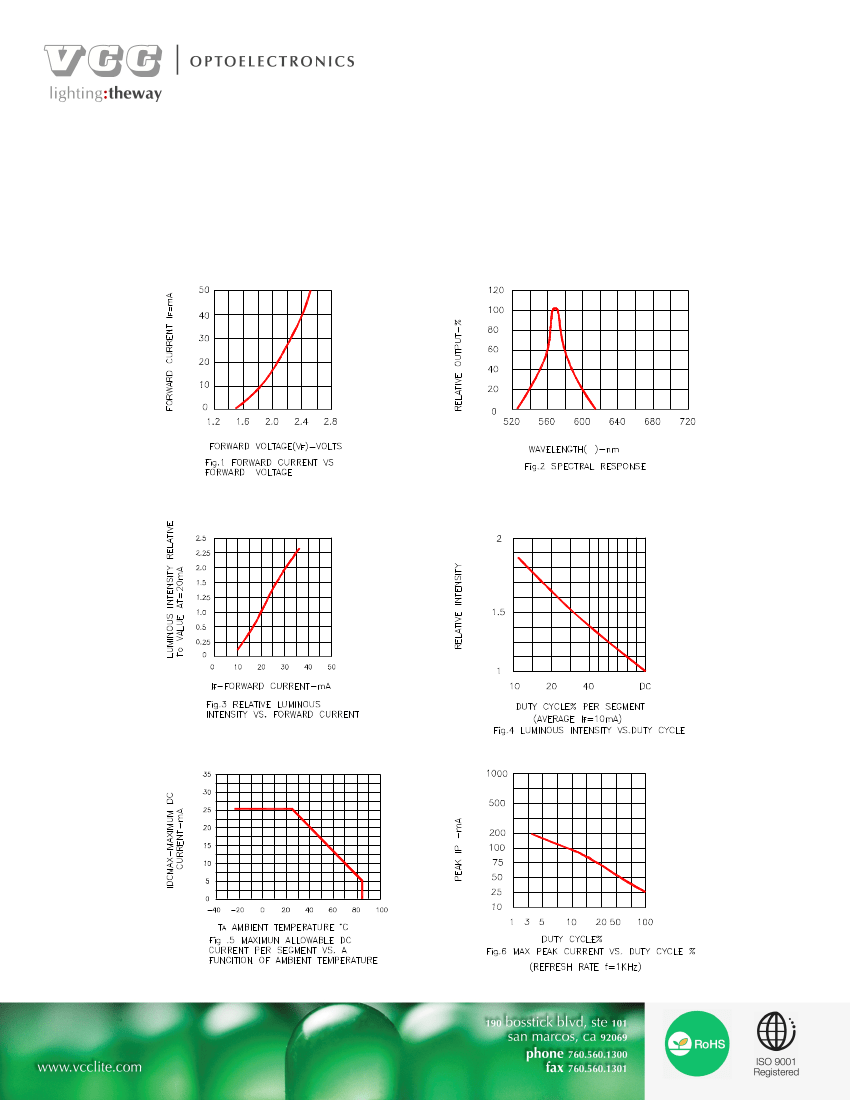

Typical Electro-optical Characteristic Curves
(25°C Free Air Temperature Unless Otherwise Specified)
