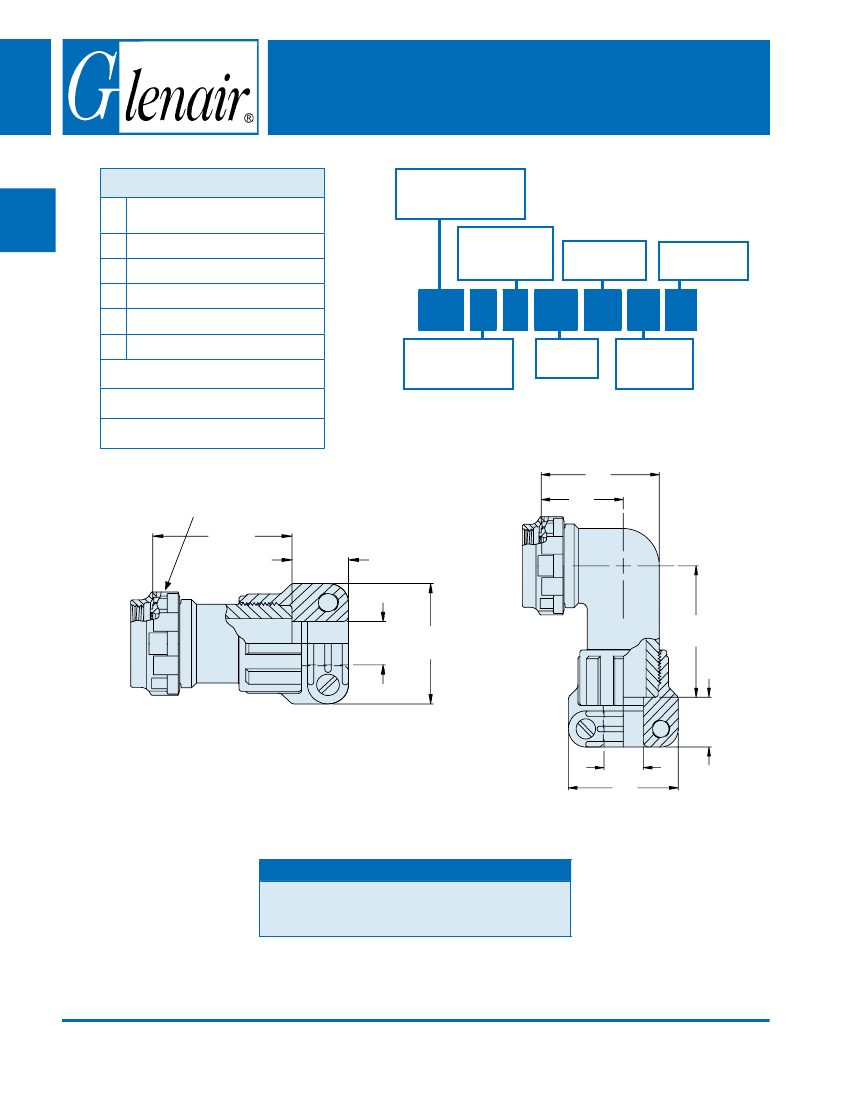

360-014

Composite Non-Environmental Backshell

with Self-Locking Rotatable Coupling

and Strain Relief

Composite

Backshells

CONNECTOR DESIGNATOR:

MIL-DTL-5015, -26482 Series II, and

-83723 Series I and III

MIL-DTL-38999 Series I, II

MIL-DTL-38999 Series 1.5 (JN1003)

MIL-DTL-38999 Series III and IV

MIL-DTL-28840

DG123 and DG123A

Product Series

360

- Non-Environmental

Strain Relief

Angle and Profile

- Straight

- 90° Elbow

Finish Symbol

(See

Table III)

Cable Entry

(Table

IV)

360

014 XO 19 20

Basic Part

Number

Connector

Shell Size

(See

Table II)

SELF-LOCKING

ROTATABLE COUPLING

STANDARD PROFILE

Connector

Designator

A, F, L, H, G and U

Anti-Decoupling

Device

1.25

(31.8)

Max

.59 (15.0) Max

Cable

Range

.59 (15.0)

Max

Cable

Range

NOTES

Coupling nut supplied unplated.

See Table I in Intro for front-end dimensional details.

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

A-36

Rev. 12 FEBRUARY 2013
