PC814XJ0000F Series
PC814XJ0000F
Series
∗
DIP 4pin
AC Input Photocoupler
4-channel package type is also available.
(model No.
PC844XJ0000F Series)
■
Description
PC814XJ0000F Series
contains an IRED optically
coupled to a phototransistor.
It is packaged in a 4pin DIP, available in SMT gullw-
ing lead-form option.
Input-output isolation voltage(rms) is 5.0kV.
Collector-emitter voltage is 80V and CTR is 20% to
300% at input current of
±1mA.
■
Agency approvals/Compliance
1. Recognized by UL1577, file No. E64380 (as model
No.
PC814)
2. Approved by VDE (DIN EN60747-5-2
(∗)
) (as an op-
tion), file No. 40008087 (as model No.
PC814)
3. Package resin : UL flammability grade (94V-0)
(∗)
DIN EN60747-5-2 : successor standard of DIN VDE0884
■
Features
1. 4pin DIP package
2. Double transfer mold package (Ideal for Flow Solder-
ing)
3. AC input type
4. High collector-emitter voltage (V
CEO
: 80V)
5. Current transfer ratio (CTR : MIN. 20% at I
F
=±1mA,
V
CE
=5V)
6. High isolation voltage between input and output
(V
iso(rms)
: 5.0 kV)
7. Lead-free and RoHS directive compliant
■
Applications
1. Programmable controllers
2. Telephone sets, telephone exchangers
3. System appliances
4. Signal transmission between circuits of different po-
tentials and impedances
Notice The content of data sheet is subject to change without prior notice.
In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that may occur in equipment using any SHARP
devices shown in catalogs, data books, etc. Contact SHARP in order to obtain the latest device specification sheets before using any SHARP device.
1
Sheet No.: D2-A03503EN
Date Sep. 1. 2006
© SHARP Corporation
PC814XJ0000F Series
■
Internal Connection Diagram
1
1
4
2
3
2
3
4
Anode/Cathode
Cathode/Anode
Emitter
Collector
■

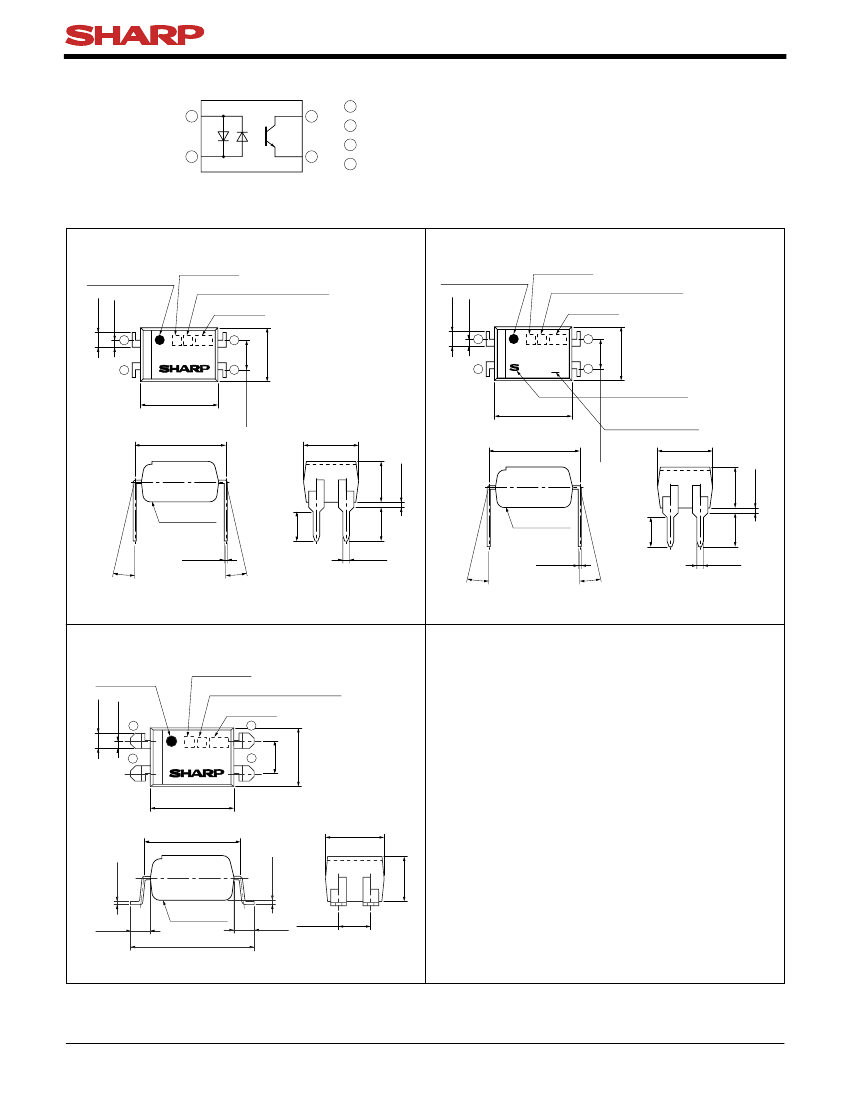

Outline Dimensions
1. Through-Hole [ex.
PC814XJ0000F]
Primary side mark
1.2
±0.3
0.6
±0.2
Rank mark
Factory identification mark
Rank mark
Factory identification mark
Date code
1
4
(Unit : mm)
2. Through-Hole (VDE option) [ex.
PC814XNYJ00F]
Primary side mark
1.2
±0.3
0.6
±0.2
Date code
1
4
4.58
±0.50
PC814
2
3
PC814
2
4
6.5
±0.5
3
6.5
±0.5
2.54
±0.25
SHARP mark "S"
7.62
±0.30
4.58
±0.50
0.5
TYP.
3.5
±0.5
7.62
±0.30
2.54
±0.25
4.58
±0.50
VDE
Indenfication mark
4.58
±0.50
3.0
±0.5
3.5
±0.5
0.5
±0.1
0.5
TYP.
Epoxy resin
0.26
±0.10
θ
θ
: 0 to 13˚
θ
0.26
±0.10
θ
θ
: 0 to 13˚
θ
0.5
±0.1
Product mass : approx. 0.23g
3. SMT Gullwing Lead-Form [ex.
PC814XPJ000F]
Primary side
mark
1.2
±0.3
0.6
±0.2
Rank mark
Factory identification mark
Date code
1
4
Product mass : approx. 0.23g
2
PC814
6.5
±0.5
7.62
±0.30
3
4.58
±0.50
2.54
±0.25
4.58
±0.50
0.35
±0.25
0.26
±0.10
1.0
+0.4
−0.0
Epoxy resin
10.0
+0.0
−0.5
±0.25
1.0
+0.4
2.54
−0.0
Product mass : approx. 0.22g
Plating material : SnCu (Cu : TYP. 2%)
3.5
±0.5
2.7
±0.5
Epoxy resin
2.7
±0.5
3.0
±0.5
Sheet No.: D2-A03503EN
2
PC814XJ0000F Series
Date code (2 digit)
1st digit
Year of production
A.D
Mark
2002
A
2003
B
2004
C
2005
D
2006
E
2007
F
2008
H
2009
J
2010
K
2011
L
2012
M
·
·
N
·
2nd digit
Month of production
Month
Mark
January
1
February
2
March
3
April
4
May
5
June
6
July
7
August
8
September
9
October
O
November
N
December
D
A.D.
1990
1991
1992
1993
1994
1995
1996
1997
1998
1999
2000
2001
Mark
P
R
S
T
U
V
W
X
A
B
C
·
·
·
repeats in a 20 year cycle
Factory identification mark
Factory identification Mark
no mark
Japan
Indonesia
Philippines
China
* This factory marking is for identification purpose only.
Please contact the local SHARP sales representative to see
the actual status of the production.
Country of origin
Rank mark
Refer to the Model Line-up table
Sheet No.: D2-A03503EN
3
PC814XJ0000F Series
■
Absolute Maximum Ratings
Parameter
Symbol
I
F
Forward current
*1
Peak forward current
I
FM
P
Power dissipation
Collector-emitter voltage V
CEO
Emitter-collector voltage V
ECO
I
C
Collector current
Collector power dissipation
P
C
P
tot
Total power dissipation
*2
Isolation voltage
V
iso (rms)
T
opr
Operating temperature
T
stg
Storage temperature
*3
Soldering temperature
T
sol
Input
(T
a
=25˚C)
Rating
Unit
±50
mA
±1
A
70
mW
80
V
6
V
50
mA
150
mW
200
mW
5.0
kV
−30
to
+100
˚C
−55
to
+125
˚C
260
˚C
*1 Pulse width≤100µs, Duty ratio : 0.001
*2 40 to 60%RH, AC for 1 minute, f=60Hz
*3 For 10s
■
Electro-optical Characteristics
Parameter
Forward voltage
Peak forward voltage
Terminal capacitance
Collector dark current
Collector-emitter breakdown voltage
Emitter-collector breakdown voltage
Collector current
Collector-emitter saturation voltage
Isolation resistance
Floating capacitance
Cutt-off frequency
Rise time
Response time
Fall time
Symbol
V
F
V
FM
C
t
I
CEO
BV
CEO
BV
ECO
I
C
V
CE (sat)
R
ISO
C
f
f
C
t
r
t
f
Conditions
I
F
=±20mA
I
FM
=±0.5A
V=0, f=1kHz
V
CE
=50V,
I
F
=0
I
C
=0.1mA,
I
F
=0
I
E
=10µA,
I
F
=0
I
F
=±1mA,
V
CE
=5V
I
F
=±20mA,
I
C
=1mA
DC500V, 40 to 60%RH
V=0, f=1MHz
V
CE
=5V,
I
C
=2mA,
R
L
=100Ω,
−3dB
Output
Input
Output
Transfer
charac-
teristics
V
CE
=2V,
I
C
=2mA,
R
L
=100Ω
MIN.
−
−
−
−
80
6
0.2
−
5×10
10
−
15
−
−
TYP.
1.2
−
30
−
−
−
−
0.1
1×10
11
0.6
80
4
3
MAX.
1.4
3.0
250
100
−
−
3.0
0.2
−
1.0
−
18
18
(T
a
=25˚C)
Unit
V
V
pF
nA
V
V
mA
V
Ω
pF
kHz
µs
µs
Sheet No.: D2-A03503EN
4
PC814XJ0000F Series
■
Model Line-up
Lead Form
Package
DIN EN60747-5-2
Model No.
Through-Hole
Sleeve
100pcs/sleeve
SMT Gullwing
Taping
2 000pcs/reel
Rank mark
I
C
[mA]
(I
F
=±1mA,
V
CE
=5V,
T
a
=25˚C)
0.2 to 3.0
0.5 to 1.5
−−−−−−
Approved
−−−−−−
PC814XJ0000F PC814XNYJ00F PC814XPJ000F
PC814X1J000F PC814X1YJ00F PC814XP1J00F
with or without
A
Please contact a local SHARP sales representative to inquire about production status.
Sheet No.: D2-A03503EN
