IXA20-BB5F8-19.999999MHZ datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> IXA20-BB5F8-19.999999MHZ

IXA20-BB5F8-19.999999MHZ: DescriptionParallel - Fundamental Quartz Crystal,; CategoryPassive components Crystal/resonator; File Size336KB，2 Pages; ManufacturerILSI; Websitehttp://www.ilsiamerica.com

Download Datasheet Parametric View All

IXA20-BB5F8-19.999999MHZ Overview

Parallel - Fundamental Quartz Crystal,

IXA20-BB5F8-19.999999MHZ Parametric

Parameter Name	Attribute value
Objectid	7190421888
Reach Compliance Code	compliant
Other features	AEC-Q200; TS-16949; AT-CUT; TR, 7 INCH
Ageing	3 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	300 µW
frequency stability	0.005%
frequency tolerance	50 ppm
load capacitance	8 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	19.999999 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L5.0XB3.2XH1.0 (mm)/L0.197XB0.126XH0.039 (inch)
Series resistance	50 Ω
surface mount	YES

Preview

Download Datasheet

View All

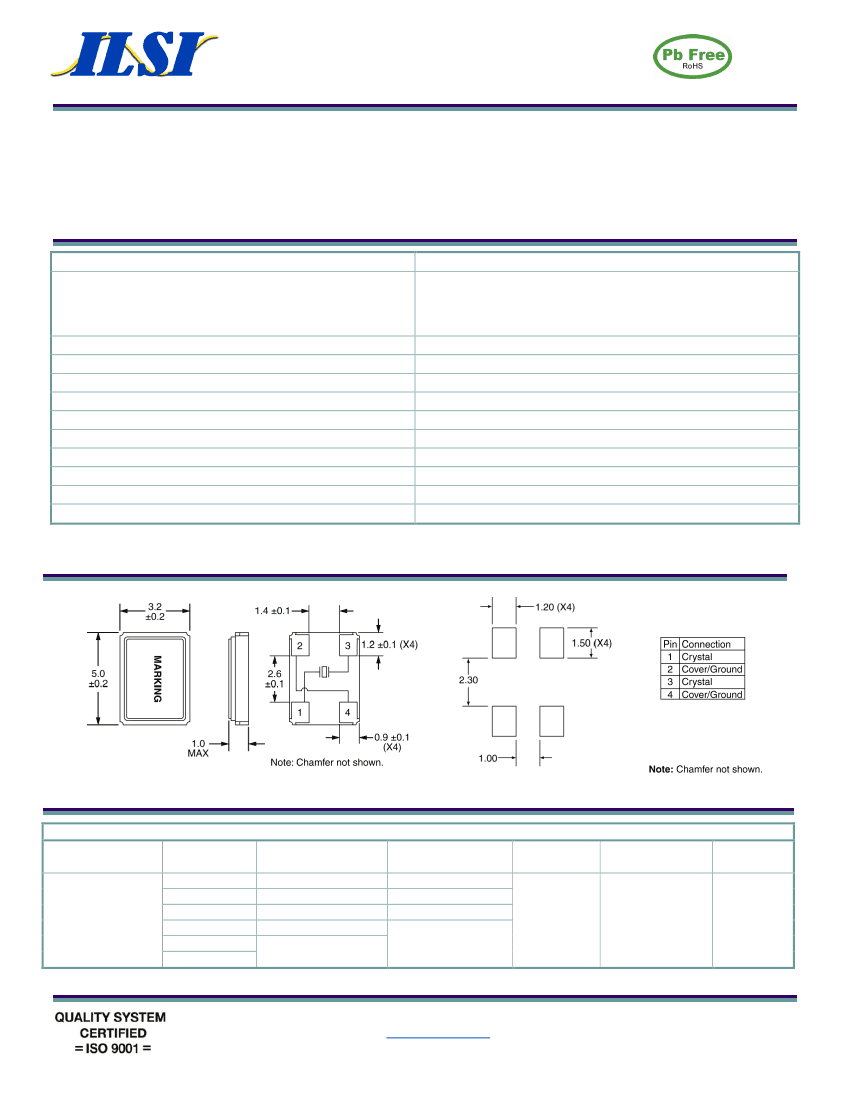

4 Pad Ceramic Package Quartz Crystal, 5.0mm x 3.2mm

Product Features:

AEC – Q200 qualified

TS16949 certified production lines

RoHS and REACH compliant

Suitable for use in harsh environments

Extended operating temperature range: -40°C to +125°C

IXA20 Series

Applications:

Navigation, GPS

Infotainment System

Instrument Panel, Ethernet

ADAS Radar, Camera, Engine Control Units

Lidar Systems, TPMS

Electrical Specifications

Frequency

Equivalent Series Resistance

7.6MHz – 11.999999MHz

12MHz – 13.999999MHz

14MHz – 19.999999MHz

20MHz – 54MHz

Shunt Capacitance (C0)

Frequency Tolerance (at 25°C)

Frequency Stability (over Temperature)

Mode of Operation

Crystal Cut

Load Capacitance

Drive Level

Aging

Operating Temperature Range

Storage Temperature Range

7.6MHz to 54MHz

100 Ohms Maximum

60 Ohms Maximum

50 Ohms Maximum

40 Ohms Maximum

5pF Maximum

±50ppm, ±30ppm, ±25ppm, ±20ppm, ±15ppm, or ±10ppm

±100ppm, ±50ppm, ±30ppm, or ±20ppm

Fundamental

AT Cut

8pF to 32pF or Specify

300µWatts Maximum

3ppm/Year

Maximum

-40°C to +85°C, -40°C to +105°C, or -40°C to +125°C

-50°C to +150°C

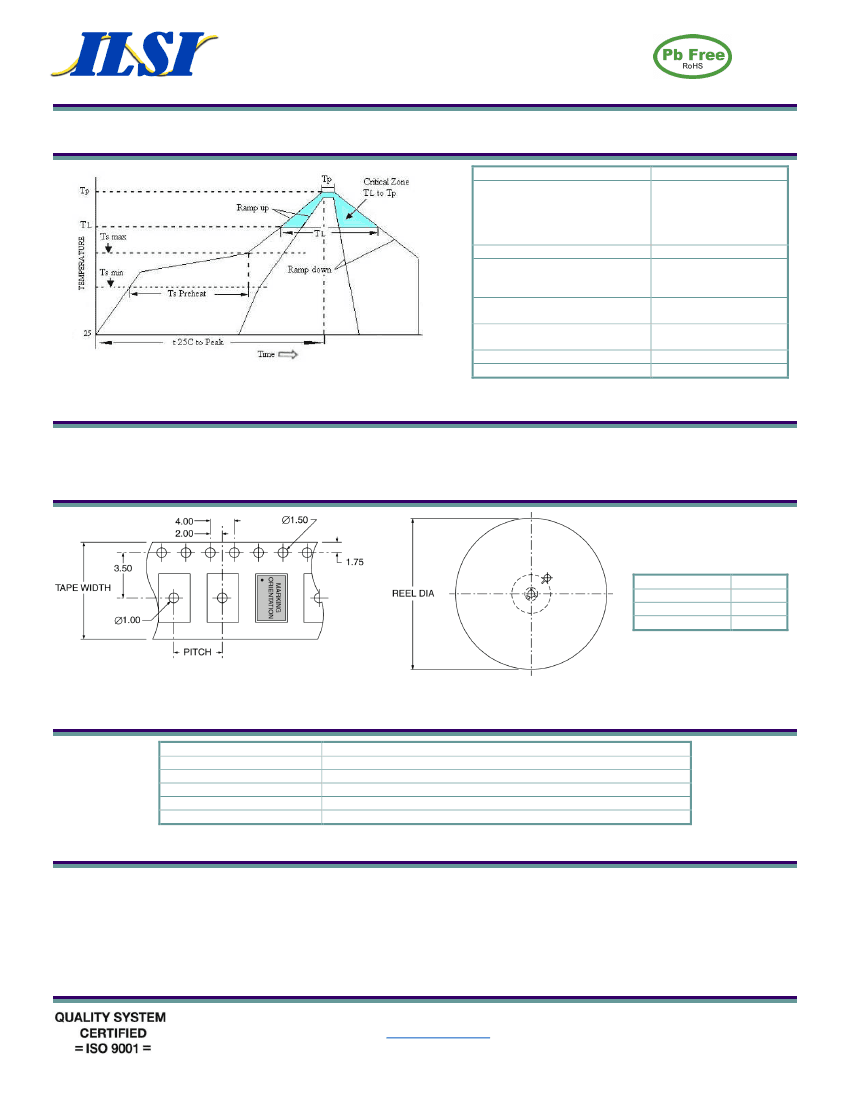

Mechanical and Solder Pad Dimensions

Part Number Guide

Sample Part Number: IXA20 – FBDF18 - 25.000 MHz

Package

Frequency

Tolerance

B = ±50ppm

F = ±30ppm

IXA20 -

G = ±25ppm

H = ±20ppm

I = ±15ppm

J = ±10ppm

Frequency

Stability

A = ±100ppm

B = ±50ppm

F = ±30ppm*, **

H = ±20ppm*, **

Operating

Temperature Range

5 = -40°C to +85°C

D = -40°C to +105°C

F = -40°C to +125°C

Mode of

Operations

Load Capacitance

Frequency

F = Fundamental

8pF to 32pF or

Specify

- 25.000 MHz

* Not available at all frequencies. ** Not available for all temperature ranges.

ILSI America Phone 775-851-8880 ● Fax 775-851-8882 ●email: e-mail@ilsiamerica.com ●

www.ilsiamerica.com

Specifications subject to change without notice

Rev: 02/09/18_A

Page 1 of 2
