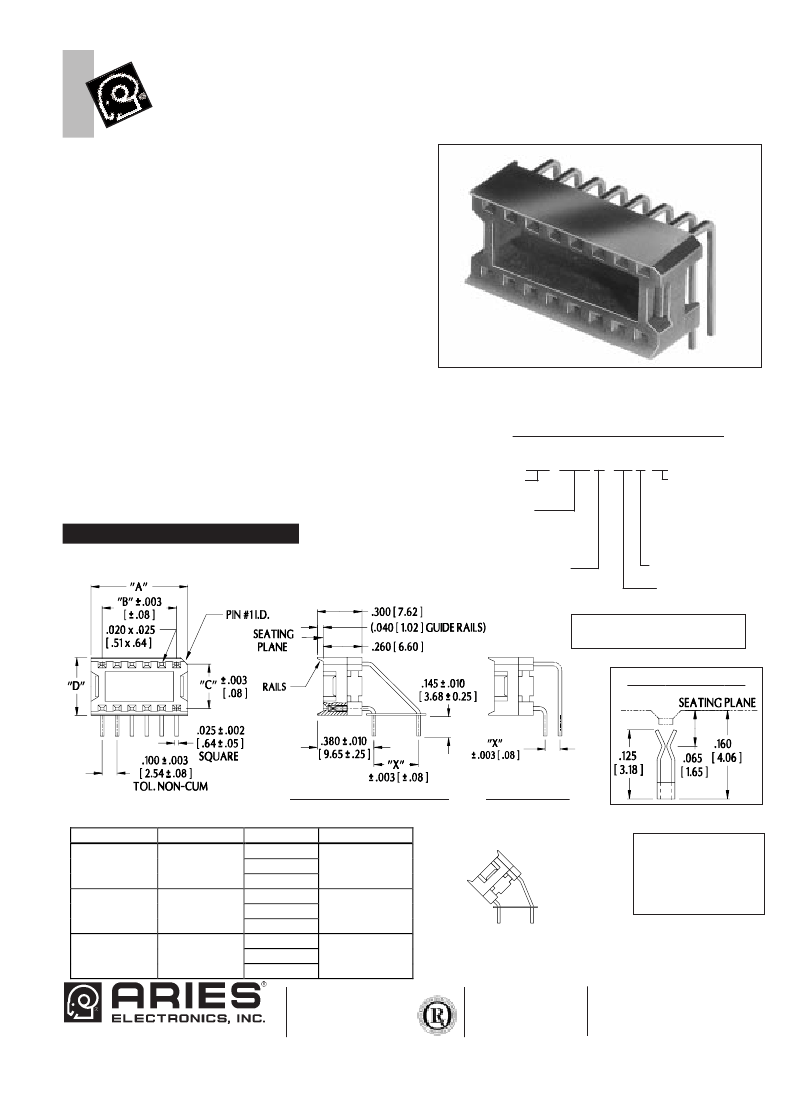

Series 800 Vertisockets
™
Horizontal Mounting with Bifurcated Contacts
FEATURES:
• Aries offers a full line of Vertisockets
TM
for DIP packaging of
LEDs, incandescent lamps, DIP switches, test points, etc.
The variations of mounting position and pin configuration
provide exceptional design freedom.
• Restricted entry for contact protection.
•Accepts standard LEDs and incandescent displays as well as
.500 [12.70] and .600 [15.24] high large displays.
SPECIFICATIONS:
• Standard body material is red UL 94-HB Glass-filled Nylon.
• High temperature body material is black UL 94V-0 4/6 Nylon.
• Bifurcated contacts are Grade A spring-tempered Phosphor
Bronze per QQ-B-750.
• Contact plating is either 100µ [2.54µm] min. Tin per
MIL-T-10727 or 10µ [.254µm] min. Gold per MIL-G-45204,
over 50µ [1.27µm] min. Nickel per QQ-N-290.
• Contact current rating=1.5 Amps.
• Operating temperature=221 °F [105°C] Tin plating,
=257°F [125°C] Gold plating.
• Insertion Force=110 grams/pin average; Withdrawal
Force=75 grams/pin average.
• Accepts flat leads up to .014 [.36] thick and .020 [.51] wide;
round leads up to .020 [.51] in diameter.
• Accepts lead lengths: .075-.160 [1.91-4.06].
MOUNTING CONSIDERATIONS:
• Suggested PCB hole size=.044 ± .002 [1.12 ± .05] dia.
Note: Aries specializes in custom design and production. In addition to the
standard products shown on this page, special materials, platings, sizes, and
configurations can be furnished, depending on quantities. Aries reserves the
right to change product specifications without notice.
ORDERING INFORMATION
XX-X82X-90XXX
No. of pins
(see table)
Series:
282: “C”=.200 [5.08]
82: “C”=.300 [7.62]
682: “C”=.600 [15.24]
0: “X”=.100 [2.54]
2: “X”=.200 [5.08]
3: “X”=.300 [7.62]
Optional suffix:
WR=Without
rails
V0=UL 94V-0
plastic
T=Tin plating
No suffix=Gold
plating
Display angle
A
LL
DIMENSIONS
:
INCHES
[
MILLIMETERS
]
“A”=(NO. OF PINS PER ROW X .100 [2.54]) + .050 [1.27]
“B”=(NO. OF PINS PER ROW - 1) X .100 [2.54]
All tolerances ± .005 [.13]
unless otherwise specified
90° ± 2°
CONTACT DETAIL
“X”=.300 [7.62] & .200 [5.08]
(angled bend w/spacer)
Centers “C”
.200 [5.08]
Dim. “D”
.290 [7.37]
Dim. “X”
.100 [2.54]
.200 [5.08]
.300 [7.62]
.100 [2.54]
.200 [5.08]
.300 [7.62]
.100 [2.54]
.200 [5.08]
.300 [7.62]
Available Sizes
8, 10
“X”=.100 [2.54]
(straight bend)
.300 [7.62]
.390 [9.91]
8, 14 thru 20
Consult Data Sheet
No. 13002 for
Vertical Mounting
Vertisockets
TM
with
bifurcated contacts.
Consult factory for
sizes not shown and
other display angles
UK/IRELAND/GB
TEL: +44 870 240 0249
FAX: +44 1653 600493
uking@arieselec.com
EUROPE/MAINLAND/HOLLAND
TEL: +31 78 615 94 65
FAX: +31 78 615 43 11
13001
europe@arieselec.com
.600 [15.24]
.690 [17.53]
8 thru 40, 48
REV.C
