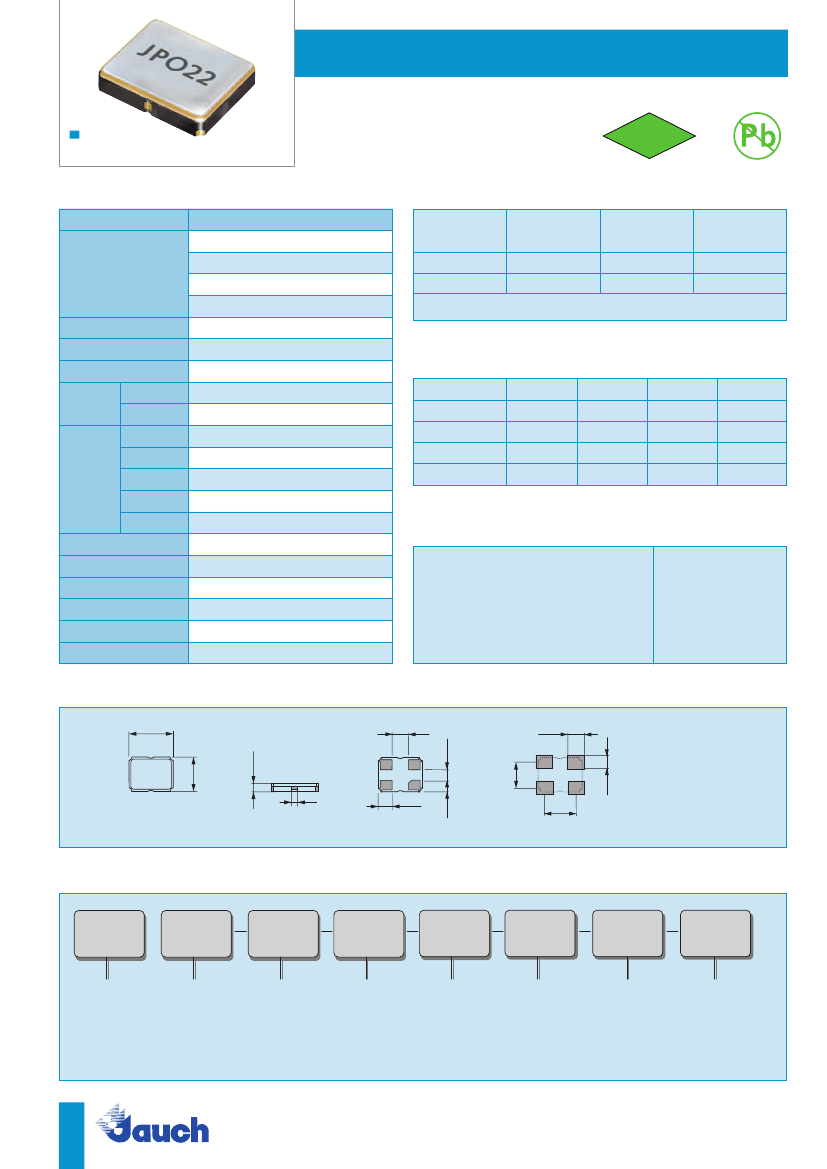

Programmed Oscillator · JPO22 · 3.3/2.5/1.8 V
Programmed SMD CMOS Oscillator 2.5 x 2.0 mm
actual size
■
■
■
■
fast delivery service
tristate or stop function available
reflow soldering temperature: 260
°C max.
RoHS compliant, ceramic/metal package
2002/95/EC
RoHS compliant
Pb free: pins / pads
RoHS
General Data
type
frequency range
JPO22 3.3V / 2.5V / 1.8V
3.9 ~ 200.0 MHz (3.3 V, 15 pF)
3.9 ~ 130.0 MHz (2.5 V, 15 pF)
3.9 ~ 100.0 MHz (1.8 V, 15 pF)
3.9 ~ 50.0 MHz (3.3 V / 2.5 V / 1.8 V, 30 pF)
frequency stability over all*
current consumption
supply voltage V
DC
temperature
operating
storage
output
rise & fall time
load max.
current max.
low level max.
high level min.
standby function
output enable time max.
output disable time max.
start-up time max.
standby current max.
symmetry at 0.5 x V
DC
+/-30ppm ~ +/-100ppm (see table 1)
see table 2
3.3 V / 2.5 V / 1.8 V +/-10%
-20°C ~ +70°C / -40°C ~ +85°C
-55°C ~ +125°C
see table 3
15 pF / 30 pF
8mA (3.3 V) / 4mA (2.5 V) / 2mA (1.8 V)
0.4 V
V
DC
- 0.4 V
tristate (TRI) / stop (STP)
100ns (TRI) / 10ms (STP)
250ns
10ms
10µA (STP version only)
45% ~ 55% typ. (40% ~ 60% max. )
Table 1: Frequency Stability Code
stability code
A
± 100 ppm
-10 °C ~ +70 °C
-40 °C ~ +85 °C
O
O
O
available
B
± 50 ppm
O
G
± 30 ppm
•
standard
•
•
–
* includes stability at 25 °C, operating temp. range, supply voltage change, shock and vibration, aging 1st year.
Table 2: Current Consumption max.
frequency range
3.9 ~ 50.0 MHz
3.9 ~ 100.0 MHz
100.0 ~ 130.0 MHz
130.0 ~ 200.0 MHz
V
DC
=3.3 V
18 mA
17 mA
20 mA
25 mA
V
DC
=2.5 V
15 mA
12 mA
16 mA
–
V
DC
=1.8V
8 mA
8 mA
–
–
load
30 pf
15 pf
15 pf
15 pf
* a ceramics capacitor of 100nF between pin #2 and pin #4 with short distance wiring is strongly recommended
Table 3: Rise & fall time max.
6 ns: 3.9 ~ 50.0 MHz at 30 pF / 1.8 V
5 ns: 3.9 ~ 50.0 MHz at 30 pF / 3.3 V & 2.5 V
4 ns: 3.9 ~ 100.0 MHz at 15 pF / 3.3 V & 2.5 V & 1.8 V
3 ns: 100.0 ~ 130.0 MHz at 15 pF / 2.5 V & 3.3 V
2 ns: 130.0 ~ 200.0 MHz at 15 pF / 3.3 V
note:
- specific data on request
- rise time: 0.1 V
DC
~ 0.9 V
DC
- fall time: 0.9 V
DC
~ 0.1 V
DC
Dimensions
2.5
±0.1
0.90
±0.1
#4
#3
2.0
±0.1
#3
0.85
±0.05
#4
0.55
±0.1
0.90
±0.1
0.7
±0.1
#1
#2
0.4
#2
0.8
±0.1
#1
1.85
±0.1
pin connection
# 1: e/d
# 2: ground
# 3: output
# 4: V
DC
in mm
1.45
±0.1
top view
side view
bottom view
pad layout
Order Information
O
Oscillator
frequency
in MHz
type
frequency stability
code
supply voltage
code
output load
code
0.80
±0.1
standby function
temp. range
3.9 ~ 200.0 MHz (3.3 V)
3.9 ~ 130.0 MHz (2.5 V)
3.9 ~ 100.0 MHz (1.8 V)
JPO22
see table 1
3.3 = 3.3 V
2.5 = 2.5 V
1.8 = 1.8 V
1 = 15 pF
2 = 30 pF
STP = stop function blank = -20 °C ~ +70 °C
TRI = tristate function T1 = -40 °C ~ +85 °C
Example: O 125.0-JPO22-B-2.5-1-STP-T1
(LF = RoHS compliant / Pb free pins or pads)
Jauch Quartz GmbH
•
e-mail: info@jauch.de
full data can be found under: www.jauch.de / www.jauch.fr / www.jauchusa.com
All specifications are subject to change without notice
230908
Programmed Oscillator · JPO22 · 3.3/2.5/1.8V
Taping specification
1.75
4.0
ø 1.55
8.4
0.3
±0.05
5.25
±0.1
120°
2.7
±0.05
8.0
2.0
ø 13
ø 80
ø 178
4.0
2.25
±0.05
Feeding
1.2
±0.05
ø 13
±0.5
in mm
500 pcs per reel
Reflow Soldering Profile
temperature (°C)
260
200
150
100
50
60 ~120 s
60 s max.
10 s max.
260
°C
max.
220
±5 °C
180
±5 °C
Marking (optional)
JPO / year / month / internal code
date code:
A ~ M: Jan.- Dec.
7: 2007
8: 2008
9: 2009
Jan.
A
July
G
Febr.
B
Aug.
H
Mar.
C
Sept.
J
Apr.
D
Oct.
K
May
E
Nov.
L
June
F
Dec.
M
time (s)
note: parts are also suitable for soldering systems with lead (Pb) content
Packing Note
–
–
standard packing units are 500 pieces per reel
non-multiple packing units are only supplied taped / bulk
Enable / Disable Function
pin #1 (e/d control)
open
high ”1” (V
IH
≥
0.7 V
DC
)
low ”0” (V
IL
≤
0.3 V
DC
)
pin #3 (output, STP)
active
active
stop, high impedance
stop (STP) function:
• oscillator stops
• output high impedance
pin #3 (output, TRI)
active
active
high impedance
tristate (TRI) function:
• oscillator active
• output high impedance
Jauch Quartz GmbH
•
e-mail: info@jauch.de
full data can be found under: www.jauch.de / www.jauch.fr / www.jauchusa.com
All specifications are subject to change without notice
