152 RMH
Vishay BCcomponents
Aluminum Capacitors
Radial Miniature, High Voltage
FEATURES
Polarized aluminum
non-solid electrolyte
electrolytic
capacitors,
case,
Radial leads, cylindrical
insulated with a blue sleeve
Pressure relief
Charge and discharge proof
Fig.1 Component outline
aluminum
Miniaturized, ultra high CV-product per unit volume
Long useful life:
3000 h to 4000 h at 105 °C, high reliability
Compliant to RoHS Directive 2002/95/EC
APPLICATIONS
High-reliability and professional applications
Lighting, monitors, consumer electronics,
industrial
Filtering of high voltages in power supplies
general
QUICK REFERENCE DATA
DESCRIPTION
Nominal case sizes (Ø D x L in mm)
Rated capacitance range, C
R
Tolerance on C
R
Rated voltage range, U
R
Category temperature range
Endurance test at 105 °C
Useful life at 105 °C:
Case Ø D = 10 mm and 12.5 mm
Case Ø D = 16 mm and 18 mm
Useful life at 40 °C, 1.6 x I
R
applied:
Case Ø D = 10 mm and 12.5 mm
Case Ø D = 16 mm and 18 mm
Shelf life at 0 V, 105 °C
Based on sectional specification
Climatic category IEC 60068
200 000 h
260 000 h
1000 h
IEC 60384-4/EN 130300
40/105/56
3000 h
4000 h
VALUE
10 x 12 to 18 x 35
1.5 µF to 220 µF
±
20 %
200 V to 450 V
- 40 °C to + 105 °C
2000 h
MARKING
The capacitors are marked (where possible) with the
following information:
Rated capacitance value (in µF)
Tolerance on rated capacitance, code letter in accordance
with IEC 60062 (M for ± 20 %)
Rated voltage (in V)
Date code, in accordance with IEC 60062
Code indicating factory of origin
Name of manufacturer
Upper category temperature (105 °C)
Negative terminal identification
Series number (152)
SELECTION CHART FOR C
R
, U
R
AND RELEVANT NOMINAL CASE SIZES
(Ø D x L in mm)
C
R
(µF)
1.5
2.2
4.7
6.8
10
22
33
47
68
100
220
U
R
(V)
200
-
-
-
-
-
10 x 12
10 x 16
-
10 x 20
-
12.5 x 20
-
12.5 x 25
16 x 20
16 x 35
250
-
-
-
-
-
10 x 16
12.5 x 20
-
12.5 x 20
-
12.5 x 25
16 x 20
-
16 x 25
-
400
-
10 x 12
10 x 16
10 x 12
10 x 16
10 x 20
12.5 x 25
16 x 20
16 x 20
-
16 x 25
-
16 x 35
18 x 35
-
450
10 x 12
10 x 16
10 x 20
-
12.5 x 20
12.5 x 20
16 x 25
18 x 20
16 x 35
18 x 25
18 x 35
-
-
-
-
www.vishay.com
125
Document Number: 28320
Revision: 21-Feb-11
For technical questions, contact:
aluminumcaps1@vishay.com
152 RMH
Vishay BCcomponents
Aluminum Capacitors
Radial Miniature, High Voltage
DIMENSIONS
in millimeters,
AVAILABLE FORMS
ØD
ØD
F
15
min
5 min
4+ 1
-0
F
ØD
ØD
Fig.2
Form CA:
Long leads
Table 1
Fig.3
Form CB:
Cut leads
Fig.4
Form TFA:
Taped in
box
(ammopack)
DIMENSIONS
in millimeters,
MASS AND PACKAGING QUANTITIES
NOMINAL
CASE SIZE
ØD x L
10 x 12
10 x 16
10 x 20
12.5 x 20
12.5 x 25
16 x 20
16 x 25
16 x 35
18 x 20
18 x 25
18 x 35
Note
Detailed tape dimensions see section ‘PACKAGING’.
CASE
CODE
14
15
16
17
18
19a
19
21
1820
1825
22
PACKAGING QUANTITIES
ØD
Ø D
max.
L
max.
F
MASS
(g)
1.6
1.9
2.2
4.0
5.0
6.0
8.0
11.0
8.0
10.0
14.5
FORM
CA
1000
500
500
500
250
250
250
100
100
100
100
FORM
CB
500
500
500
500
250
250
250
100
100
100
100
FORM
TFA
800
800
800
500
500
250
250
-
-
-
-
0.6
0.6
0.6
0.6
0.6
0.8
0.8
0.8
0.8
0.8
0.8
10.5
10.5
10.5
13.0
13.0
16.5
16.5
16.5
18.5
18.5
18.5
13.5
17.5
22.0
22.0
27.0
22.0
27.0
37.5
22.0
27.0
37.5
5.0 ± 0.5
5.0 ± 0.5
5.0 ± 0.5
5.0 ± 0.5
5.0 ± 0.5
7.5 ± 0.5
7.5 ± 0.5
7.5 ± 0.5
7.5 ± 0.5
7.5 ± 0.5
7.5 ± 0.5
www.vishay.com
126
For technical questions, contact:
aluminumcaps1@vishay.com
Document Number: 28320
Revision: 21-Feb-11
152 RMH
Aluminum Capacitors
Radial Miniature, High Voltage
ELECTRICAL DATA
SYMBOL
DESCRIPTION
C
R
rated capacitance at 100 Hz, tolerance ± 20 %
rated RMS ripple current at 100 Hz, 105
C
I
R
max. leakage current after 1 min at U
R
I
L1
tan
max. dissipation factor at 100 Hz
Z
max. impedance at 10 kHz
Note
Unless otherwise specified, all electrical values in Table 2 apply at
T
amb
= 20 °C, P = 86 kPa to 106 kPa, RH = 45 % to 75 %
.
Table 2
Vishay BCcomponents
ORDERING EXAMPLE
Electrolytic capacitor 152 series
4.7 µF/400 V; ± 20 %
Nominal case size:Ø 10 mm x 16 mm; Form TFA
Ordering code: MAL215236478E3
Former 12NC: 2222 152 36478
ELECTRICAL DATA AND ORDERING INFORMATION
U
R
(V)
C
R
100 Hz
(µF)
10
22
33
47
68
100
220
10
22
33
47
47
100
2.2
4.7
4.7
6.8
10
22
22
33
47
68
100
1.5
2.2
4.7
6.8
10
22
22
33
33
47
NOMINAL
CASE SIZE
ØD x L
(mm)
10 x 12
10 x 16
10 x 20
12.5 x 20
12.5 x 25
16 x 20
16 x 35
10 x 16
12.5 x 20
12.5 x 20
12.5 x 25
16 x 20
16 x 25
10 x 12
10 x 12
10 x 16
10 x 16
10 x 20
12.5 x 25
16 x 20
16 x 20
16 x 25
16 x 35
18 x 35
10 x 12
10 x 16
10 x 20
12.5 x 20
12.5 x 20
16 x 25
18 x 20
16 x 35
18 x 25
18 x 35
I
R
100 Hz
105 °C
(mA)
85
120
150
240
310
340
630
105
180
180
310
310
340
44
48
65
65
80
150
150
190
240
310
380
30
50
65
80
90
150
150
200
200
260
I
L1
1 min
(µA)
130
202
268
352
478
670
1390
145
235
318
423
423
820
96
127
126
152
190
334
334
466
634
886
1270
90
99
133
162
205
367
367
516
516
705
tan
100 Hz
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
Z
10 kHz
()
6.3
3.2
2.3
0.9
0.6
0.4
0.2
6.3
2.3
1.5
0.9
0.9
0.4
28.0
24.0
18.0
12.0
9.0
3.8
3.8
2.6
2.0
1.7
0.9
26.0
26.0
20.0
16.0
10.0
4.6
4.6
3.4
3.4
2.0
ORDERING CODE MAL2152 .......
BULK PACKAGING
TAPED
FORM CA
52109E3
52229E3
52339E3
52479E3
52689E3
52101E3
52221E3
53109E3
53229E3
53339E3
53479E3
93475E3
53101E3
56228E3
96475E3
56478E3
56688E3
56109E3
56229E3
96225E3
56339E3
56479E3
56689E3
56101E3
57158E3
57228E3
57478E3
57688E3
57109E3
57229E3
97225E3
57339E3
97335E3
57479E3
FORM CB
62109E3
62229E3
62339E3
62479E3
62689E3
62101E3
62221E3
63109E3
63229E3
63339E3
63479E3
93476E3
63101E3
66228E3
96476E3
66478E3
66688E3
66109E3
66229E3
96226E3
66339E3
66479E3
66689E3
66101E3
67158E3
67228E3
67478E3
67688E3
67109E3
67229E3
97226E3
67339E3
97336E3
67479E3
FORM TFA
32109E3
32229E3
32339E3
32479E3
32689E3
32101E3
-
33109E3
33229E3
33339E3
33479E3
93473E3
33101E3
36228E3
96473E3
36478E3
36688E3
36109E3
36229E3
96223E3
36339E3
36479E3
-
-
37158E3
37228E3
37478E3
37688E3
37109E3
37229E3
-
-
-
-
200
250
400
450
Document Number: 28320
Revision: 21-Feb-11
For technical questions, contact:
aluminumcaps1@vishay.com
www.vishay.com
127
152 RMH
Vishay BCcomponents
Aluminum Capacitors
Radial Miniature, High Voltage
ADDITIONAL ELECTRICAL DATA
PARAMETER
Voltage
Surge voltage
Reverse voltage
Current
Leakage current
Inductance
Equivalent series inductance (ESL)
Resistance
Equivalent series resistance (ESR)
Table 3
Case Ø D = 10 mm
Case Ø D
12.5 mm
Calculated from tan
max.
and C
R
(see Table 2)
typ. 16 nH
typ. 18 nH
ESR = tan
/2f
C
R
After 1 min at U
R
After 5 min at U
R
U
R
= 200 V to 250 V
U
R
= 400 V to 450 V
U
s
1.15 x U
R
U
s
1.10 x U
R
U
rev
1 V
I
L1
0.03 C
R
x U
R
+ 70 µA
I
L5
0.015 C
R
x U
R
+ 30 µA
CONDITIONS
VALUE
MULTIPLIER OF RIPPLE CURRENT (I
R
)
FREQUENCY (Hz)
50
100
300
1000
3000
10 000
100
000
I
R
MULTIPLIER
U
R
250 V
0.75
1.00
1.50
2.00
2.20
2.50
3.00
U
R
250 V
0.75
1.00
1.30
1.60
1.90
2.20
2.50

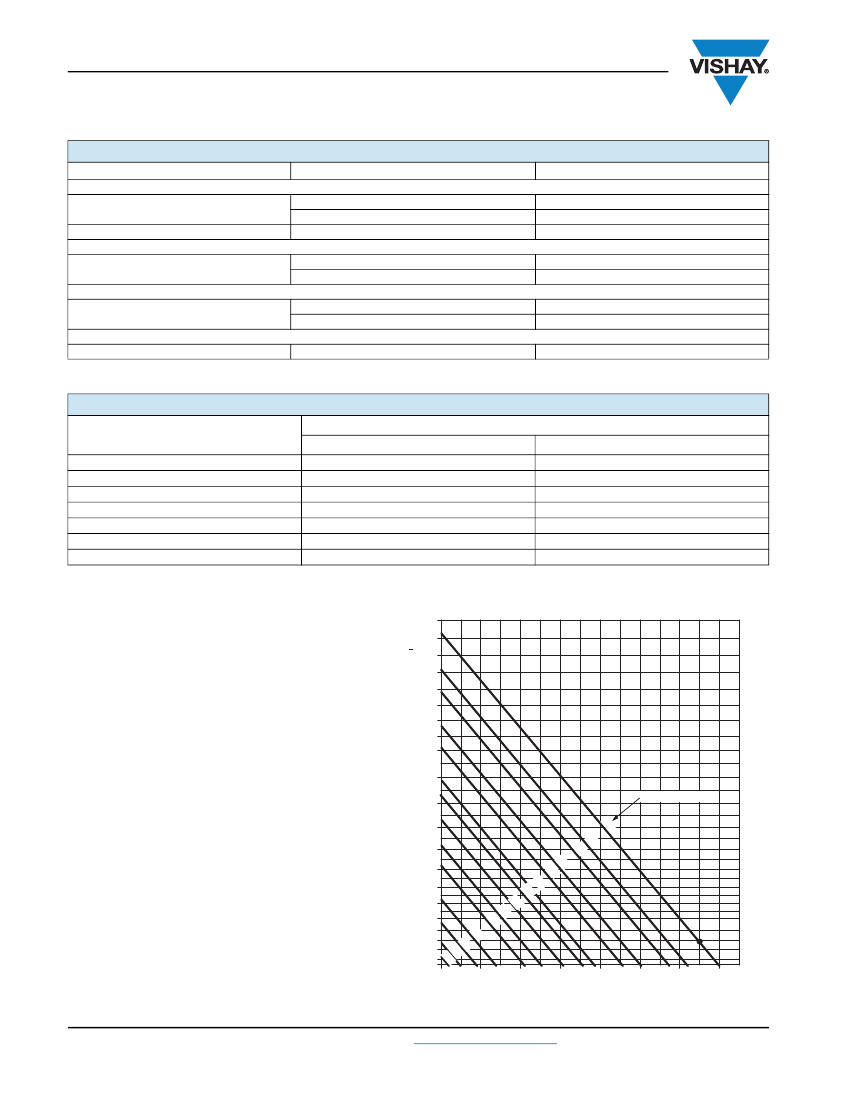

RIPPLE CURRENT AND USEFUL LIFE
3.8
IA 3.7
IR 3.6
3.5
3.4
3.3
3.2
3.1
3.0
2.8
2.6
0
1.
CCC206
lifetime multiplier
2.4
5
1.
2.2
0
3.
0
4.
0
2.
2.0
0
6.
0
8
.
1.8
I
A
= actual ripple current at 100 Hz
I
R
= rated ripple current at 100 Hz, 105 °C
(1)
12
1.6
20
Useful life at 105 °C and I
R
applied
case Ø D = 10 mm and 12.5 mm : 3000 h
case Ø D = 16 mm and 18 mm: 4000 h
1.4
1.2
1.0
0.8
0.5
0.0
30
60
0
10 0
15 0
20
(1)
40
50
60
70
80
90
100
110
T
amb
(°C)
Fig.5 Multiplier of
useful
life as a function of ambient temperature and ripple current load
www.vishay.com
128
For technical questions, contact:
aluminumcaps1@vishay.com
Document Number: 28320
Revision: 21-Feb-11
152 RMH
Aluminum Capacitors
Radial Miniature, High Voltage
Table 4
Vishay BCcomponents
TEST PROCEDURES AND REQUIREMENTS
TEST
NAME OF TEST
REFERENCE
IEC 60384-4/
EN130300
subclause 4.13
PROCEDURE
(quick reference)
T
amb
= 105 °C; U
R
applied;
2000 h
REQUIREMENTS
C/C:
± 20 %
tan
2 x spec. limit
Z
2 x spec. limit
I
L5
spec. limit
C/C:
±50 %
tan
3 x spec. limit
Z
3 x spec. limit
I
L5
spec. limit
no short or open circuit
total failure percentage:
1 %
C/C:
± 20 %
tan
2 x spec. limit
Z
2 x spec. limit
I
L5
2 x spec. limit
C/C:
± 15 %
I
L5
spec. limit
tan
spec. limit
Endurance
CECC 30301
subclause 1.8.1
Useful life
T
amb
= 105 °C; U
R
and I
R
applied;
case Ø D = 10 mm and 12.5 mm: 3000 h
case Ø D = 16 mm and 18 mm: 4000 h
Shelf life
(storage at high
temperature)
IEC 60384-4/
EN130300
subclause 4.17
T
amb
= 105 °C; no voltage applied;
1000 h
after test: U
R
to be applied for 30 min, 24 h to 48 h
before measurement
T
amb
= 105 °C:
125 h at U = - 1 V,
followed by 125 h at U
R
Reverse voltage
IEC 60384-4/
EN130300
subclause 4.15
Document Number: 28320
Revision: 21-Feb-11
For technical questions, contact:
aluminumcaps1@vishay.com
www.vishay.com
129
Embedded System
京公网安备 11010802033920号
EEWORLD
