252S48E6R2CV3S: DescriptionCeramic Capacitor, Multilayer, Ceramic, 2500V, 4.0323% +Tol, 4.0323% -Tol, NP0, -/+30ppm/Cel TC, 0.0000062uF, 2325,; CategoryPassive components capacitor; File Size685KB，12 Pages; ManufacturerJohanson Technology; Websitehttp://www.johansontechnology.com; Environmental Compliance

Download Datasheet Parametric View All

252S48E6R2CV3S Overview

Ceramic Capacitor, Multilayer, Ceramic, 2500V, 4.0323% +Tol, 4.0323% -Tol, NP0, -/+30ppm/Cel TC, 0.0000062uF, 2325,

252S48E6R2CV3S Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	239328084
package instruction	, 2325
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	6.4
capacitance	0.0000062 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	3.81 mm
JESD-609 code	e3
length	5.84 mm
multi-layer	Yes
negative tolerance	4.0323%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	Bulk
positive tolerance	4.0323%
Rated (DC) voltage (URdc)	2500 V
series	E
size code	2325
Temperature characteristic code	NP0
Temperature Coefficient	30ppm/Cel ppm/°C
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
width	6.35 mm

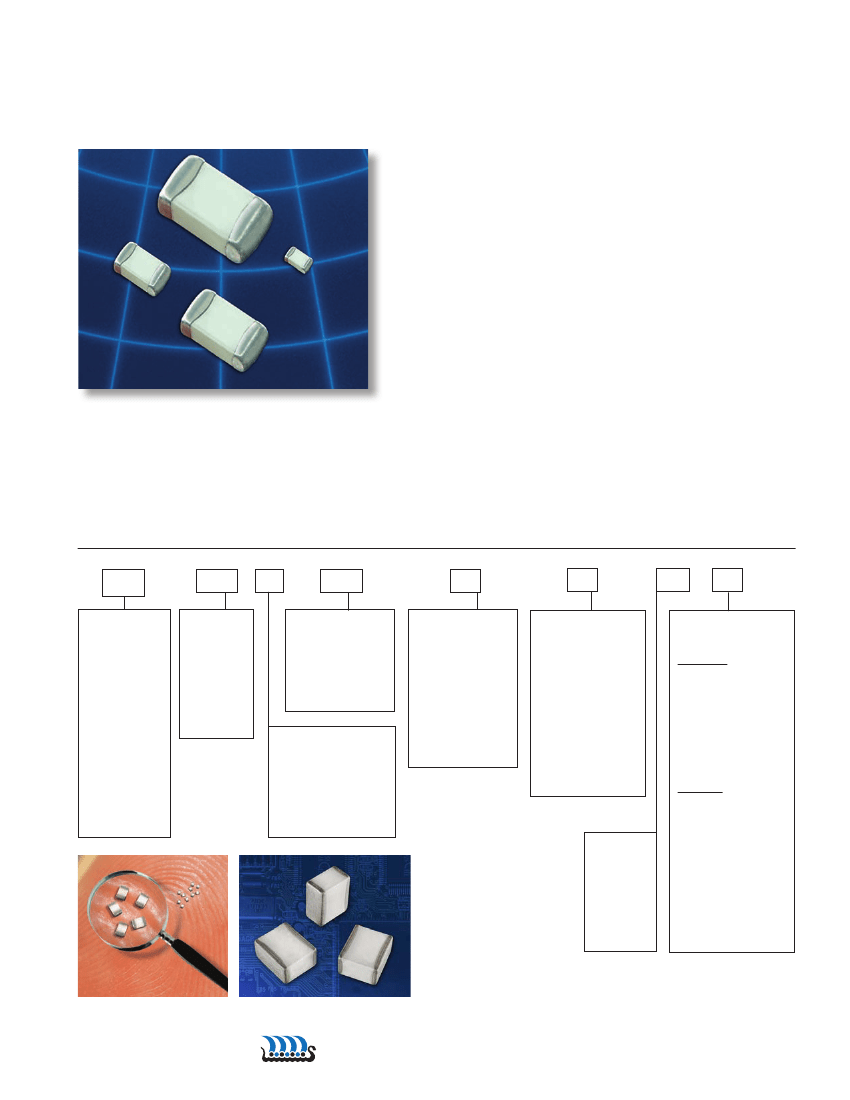

252S48E6R2CV3S Preview

ULTI

-L

AYER

IGH

-Q C

APACITORS

These lines of multilayer capacitors have been developed for

High-Q and microwave applications.

•

The

S-Series

(R03S, R07S, R14S, R15S) capacitors give an

ultra-high Q performance, and exhibit NP0 temperature char-

acteristics.

•

The

L-Series

(R05L) capacitors give mid-high Q performance,

and exhibit NP0 temperature characteristics.

•

The

E-Series

(S42E, S48E, S58E) capacitors give excellent

high-Q performance from HF to Microwave frequencies.

Typical uses are high voltage, high current applications. They

are offered in chip (Ni barrier or Non-Magnetic Pt.-Ag) or in

Non-Magnetic leaded form.

•

The

W-Series

(R05W) capacitors offer a large capacitance

value in an ultra-small 0201 package size. These exhibit a X7R

temperature characteristic.

•

RoHS compliance is standard for all unleaded parts (see

termination options box).

OW TO

RDER

252

VOLTAGE (DC)

6R3 = 6.3 V

101 = 100 V

160 = 16 V

250 = 25 V

500 = 50 V

201 = 200 V

251 = 250 V

301 = 300 V

501 = 500 V

102 = 1000 V

152 = 1500 V

202 = 2000 V

252 = 2500 V

362 = 3600 V

502 = 5000 V

722 = 7200 V

S48

CASE SIZE

R03 (01005)

R05 (0201)

R07 (0402)

R14 (0603)

R15 (0805)

S42 (1111)

S48 (2525)

S58 (3838)

470

CAPACITANCE (pF)

1st two digits are

signiﬁcant; third digit

denotes number of

zeros, R = decimal.

100 = 10 pF

101 = 100 pF

TOLERANCE

A = ± 0.05 pF

B = ± 0.10 pF

C = ± 0.25 pF

D = ± 0.50 pF

F = ±1 %

G = ±2%

J = ±5%

K = ± 10%

For tolerance

availability, see chart.

TERMINATION

Nickel Barrier

V = Ni/Sn (Green)

T = Ni/SnPb

G = Ni/Au (Green)

Non-Mag*

U = Cu/Sn (Green)

C = Cu/SnPb

Leaded (All Non-Mag)*

1 = Microstrip

2 = Axial Ribbon

3 = Axial Wire

4 = Radial Ribbon

5 = Radial Wire

PACKAGING

S = Bulk

W = Waffle Pack

01005 - 0603

Y = Paper 5” Reel

T = Paper 7” Reel

*R = Paper 13” Reel

*J = Paper 5” Reel -

Horizontally Oriented Electrodes

*N = Paper 5” Reel -

Vertically Oriented Electrodes

DIELECTRIC

S = Ultra High Q NPO

L = High Q NPO

E = Ultra High Q NPO,

High Voltage, High Power,

*T = High Temp (175C)

Ultra High Q NPO

W= X7R

*L = Paper 7” Reel -

Horizontally Oriented Electrodes

*V = Paper 7” Reel -

Vertically Oriented Electrodes

Part Number written:

252S48E470KV4E

MARKING

3 = Cap Code

& Tolerance

4 = No Marking

6 = EIA Code

(Marking on

0805 and

larger only)

0805 - 3838

Z = Embossed 5” Reel

E = Embossed 7” Reel

*U = Embossed 13” Reel

*M = Embossed 5” Reel -

Horizontally Oriented Electrodes

*Q = Embossed 5” Reel -

Vertically Oriented Electrodes

*G = Embossed 7” Reel -

Horizontally Oriented Electrodes

*P = Embossed 7” Reel -

Vertically Oriented Electrodes

Tape specifications

conform to EIA RS481

“*” - Not available for all MLCC - Call factory for info.

www.johansontechnology.com

eSR / H

igH

-Q C

apaCiToR

eleCTion

HaRT

Miniature Size - Portable Electronics

RF Power Applications

EIA Size

Cap. Value

Capacitance

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

1.0

1.1

1.2

1.3

1.4

1.5

1.6

1.7

1.8

1.9

2.0

2.1

2.2

2.4

2.7

3.0

3.3

3.6

3.9

4.3

4.7

5.1

5.6

6.2

6.8

7.5

8.2

9.1

Code

0R1

0R2

0R3

0R4

0R5

0R6

0R7

0R8

0R9

1R0

1R1

1R2

1R3

1R4

1R5

1R6

1R7

1R8

1R9

2R0

2R1

2R2

2R4

2R7

3R0

3R3

3R6

3R9

4R3

4R7

5R1

5R6

6R2

6R8

7R5

8R2

9R1

100

110

120

130

150

160

180

200

220

240

270

300

330

16 V

25 V

50/200 V

50 V

250 V

01005

(R03S)

0201 (R05)

NPO

(R05L)

X7R*

(R05W)

0402 0603 0805 0805

(R07S) (R14S) (R15S) (R15E)

Voltage

1111

(S42E)

2525

(S48E)

3838

(S58E)

A**

250 V

500V

1000V

2500V

3600V

7200V

* The R05W parts, which are X7R, can only be provided with “K” or “M” tolerance.

**A tolerance only available for R07S (0402) and R14S(0603) caps

Consult factory for Non-Standard values.

www.johansontechnology.com

eSR / H

igH

-Q C

apaCiToR

eleCTion

HaRT

Miniature Size - Portable Electronics

RF Power Applications

EIA Size

Cap. Value

Capacitance

100

110

120

130

150

160

180

200

220

240

270

300

330

360

390

430

470

510

560

620

680

750

820

910

1000

1200

1500

1800

2200

2700

3300

3900

4700

5100

10000

Code

360

390

430

470

510

560

620

680

750

820

910

101

111

121

131

151

161

181

201

221

241

271

301

331

361

391

431

471

511

561

621

681

751

821

911

102

122

152

182

222

272

332

392

472

512

103

01005

(R03S)

Toler-

ance

0201 (R05)

NPO

(R05L)

X7R*

(R05W)

0402 0603 0805 0805

(R07S) (R14S) (R15S) (R15E)

Voltage

1111

(S42E)

2525

(S48E)

3838

(S58E)

25 V

16 V

250 V

16 V

250 V

500V

16 V

10 V

500V

300V

200V

100V

50V

1000V

500V

10 V

2500V

1500V

1000V

500V

300V

10 V

6.3 V

3600V

2500V

1000V

500V

7200V

* The R05W parts, which are X7R, can only be provided with “K” and “M” tolerance.

Consult factory for Non-Standard values.

www.johansontechnology.com

ieleCTRiC

HaRaCTeRiSTiCS

TEMPERATURE COEFFICIENT:

QUALITY FACTOR / DF:

INSULATION RESISTANCE:

npo

x7R

± 15%, -55 to 125°C

16VDC DF

≤

3.5% @ 1 KHz, 25°C

10VDC DF

≤

5.0% @ 1 KHz, 25°C

0 ± 30ppm /°C, -55 to 125°C

>1,000 @ 1 MHz, Typical 10,000

>100 GΩ @ 25°C,WVDC;

125°C IR is 10% of 25°C rating

500 V

≤

2.5 X WVDC Min., 25°C, 50 mA max

1000 V

≤ 1.5

X WVDC Min., 25°C, 50 mA max

> 1500 = 1 X WVDC Min., 25°C, 50 mA max

1MHz ±50kHz, 1.0±0.2 VRMS, 25°C

DIELECTRIC STRENGTH:

>500

ΩF*

or 10 GΩ* @ 25°C,WVDC;

125°C IR is 10% of 25°C rating

* whichever is less

2.5 X WVDC Min., 25°C, 50 mA max

1KHz ±50Hz, 1.0±0.2 VRMS, 25°C

100 - 10,000 pF

TEST PARAMETERS::

AVAILABLE CAPACITANCE:

Size 01005:

Size 0201:

Size 0402:

Size 0603:

0.2 - 10 pF

0.2 - 100 pF

0.2 - 33 pF

0.2 - 100 pF

Size 0805:

Size 1111:

Size 2525:

Size 3838:

0.3 - 220 pF

0.2 - 1000 pF

1.0 - 2700 pF

1.0 - 5100 pF

ECHANICAL

& E

NVIRONMENTAL

HARACTERISTICS

SPECIFICATION

SOLDERABILITY:

RESISTANCE TO

SOLDERING HEAT:

Solder coverage

≥

90% of metalized areas

No termination degradation

No mechanical damage

Capacitance change: ±2.5% or 0.25pF

Q>500 I.R. >10 G Ohms

Breakdown voltage: 2.5 x WVDC

Termination should not pull off.

Ceramic should remain undamaged.

No mechanical damage.

Capacitance change: 2% or 0.5pF Max

MIL-STD-202, Method 108l

No mechanical damage

Capacitance change: ±3.0% or 0.3 pF

Q>500 I.R. >1 G Ohms

Breakdown voltage: 2.5 x WVDC

No mechanical damage.

Capacitance change: ±2.5% or 0.25pF

Q>2000 I.R. >10 G Ohms

Breakdown voltage: 2.5 x WVDC

No mechanical damage.

Capacitance change: ±5.0% or 0.50pF max.

Q>300 I.R.

≥

1 G-Ohm

Breakdown voltage: 2.5 x WVDC

No mechanical damage.

Capacitance change: ±5.0% or 0.50pF max.

Q>300 I.R. = 1 G-Ohm min.

Breakdown voltage: 2.5 x WVDC

No mechanical damage.

Capacitance change: ±2.5% or 0.25pF

Q>1000 I.R.

≥

10 G-Ohm

Breakdown voltage: 2.5 x WVDC

TEST PARAMETERS

Preheat chip to 120°-150°C for 60 sec., dip terminals in rosin flux

then dip in Sn62 solder @ 240°±5°C for 5±1 sec

Preheat device to 80°-100°C for 60 sec.

followed by 150°-180°C for 60 sec.

Dip in 260°±5°C solder for 10±1 sec.

Measure after 24±2 hour cooling period

Linear pull force* exerted on axial leads soldered to each terminal.

*0402

≥

2.0lbs, 0603

≥

2.0lbs (min.)

Glass epoxy PCB: 0.5 mm deflection

Applied voltage: 120% of WDVC for capacitors rated at 500 volts DC or less.

100% of WDVC for capacitors rated at 1250 volts DC or less.

Temperature: 125°±3°C

Test time: 1000+48-0 hours

5 cycles of: 30±3 minutes @ -55°+0/-3°C,

2-3 min. @ 25°C, 30±3 min. @ +125°+3/-0°C,

2-3 min. @ 25°C

Measure after 24±2 hour cooling period

Relative humidity: 90-95%

Temperature: 40°±2°C

Test time: 500 +12/-0 Hours

Measure after 24±2 hour cooling period

Applied voltage: 1.5 VDC, 50 mA max.

Relative humidity: 85±2% Temperature: 40°±2°C

Test time: 240 +12/-0 Hours

Measure after 24±2 hour cooling period

Cycle performed for 2 hours in each of three perpendicular directions

Frequency range 10Hz to 55 Hz to 10 Hz traversed

in 1 minute. Harmonic motion amplitude: 1.5mm

TERMINAL

ADHESION:

PCB DEFLECTION:

LIFE TEST:

THERMAL CYCLE:

HUMIDITY,

STEADY STATE:

HUMIDITY,

LOW VOLTAGE:

VIBRATION:

www.johansontechnology.com

ECHANICAL

HARACTERISTICS

Size

Units

Length

Width

Thickness

End Band

EIA 01005

Metric (0402)

EIA 0201

Metric (0603)

EIA 0402

Metric (1005)

EIA 0603

Metric (1608)

EIA 0805

Metric (2012)

.016 ±.001

.024 ±.001

.040 ±.004

(1.02 ±0.1)

.062 ±.006

.080 ±.008

.008 ±.001

.012 ±.001

.020 ±.004

(0.51 ±0.1)

.008 ±.001

(0.20 ±0.03)

.012 ±.001

(0.30 ±0.03)

.020 ±.004

(0.51 ±0.1)

(0.76 +.13-.08)

.040 ±.006

(1.02 ±.15)

.006 Max.

(0.15 Max.)

.008 Max.

(0.20 Max.)

.010 ±.006

(0.25 ±.15)

.014 ±.006

(0.35 ±.15)

.020 ±.010

(0.50 ±.25)

(0.40 ±0.03) (0.20 ±0.03)

(0.60 ±0.03) (0.30 ±0.03)

.032 ±.006 .030 +.005/-.003

.050 ±.008

(1.57 ±0.15) (0.81 ±0.15)

(2.03 ±0.20) (1.27 ±0.20)

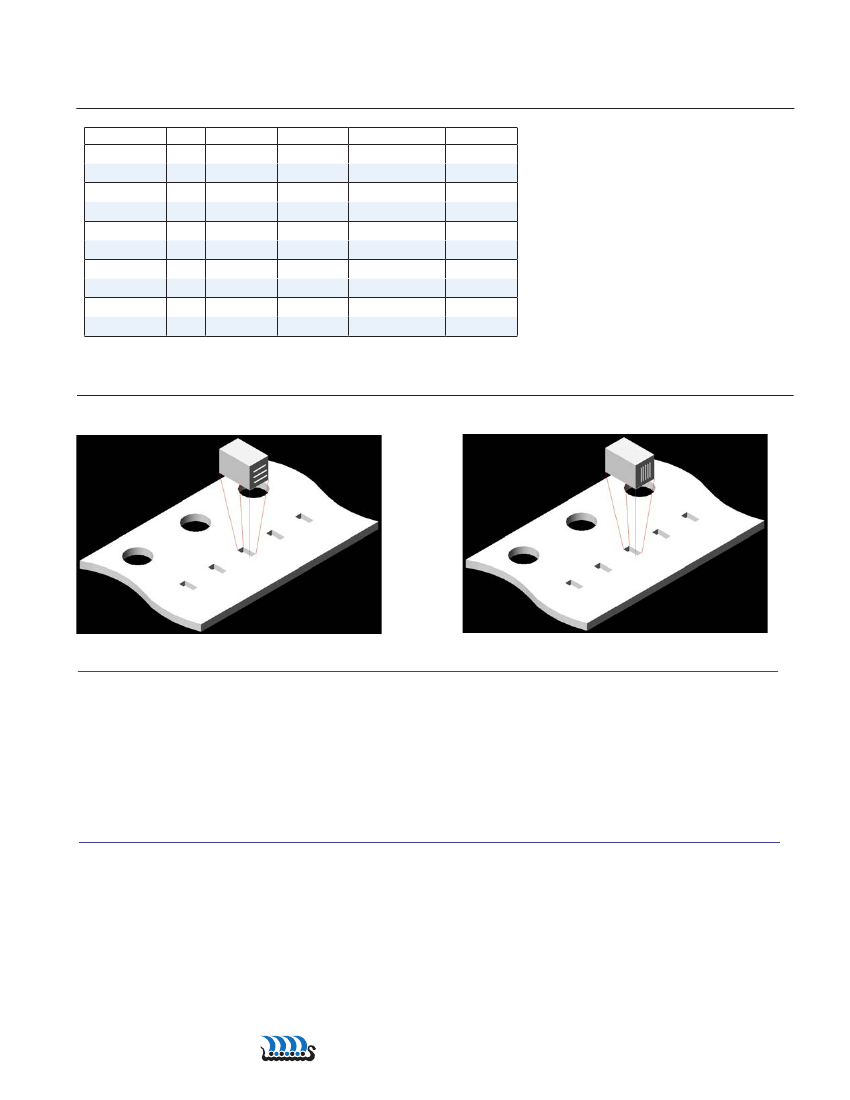

oRizonTal anD

eRTiCle

RienTeD

apaCiToRS

Horizontal Electrode Orientation

Vertical Electrode Orientation

ppliCaTionS

& F

eaTuReS

Size:

Performance:

Termination:

Applications:

RoHS Compliant

EIA 0201, 0402

SRF’s up to 20 GHz, Ultra High Q, Tight tolerance, Ultralow ESR

Ni/Au, Ni/Sn, Ni/SnPb

High Frequency Wireless Communications, Portable Wireless Products, Battery Powered

Products

eniFiTS oF uSing

RienTeD

apaCiToRS

•

Consistent Orientation - Improved repeatability of production circuits.

Consistent Orientation - More consistent filter performance.

Vertical Orientation - The elimination of parallel frequencies.

Vertical Orinetation - Lower inductance for a given capacitor.

Horizontal Orientation - Lower coupling between adjacent capacitors.

www.johansontechnology.com

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Photoelectric isolation circuit design plan

Class S power amplifier 02

500W household AC voltage regulator circuit

Switching regulated power supply circuit for tube amp

Simple electronic keyboard circuit

Touch timer switch circuit diagram

MSP430 driver 1602: I just came into contact with 430. With the help of various parties, I finally got 1602 running. Let me share: #include #include#define uchar unsigned char #define uint unsigned int uchar table[]="X X...; 小杜在此 Microcontroller MCU

Jlink connection problem: When using the smallest board stm32f103vet and using jlink connect, it always prompts count not find supported cpu core on jtag chain bad jtag. . . . Now the program is running, what is the problem? ?...; squn stm32/stm8

PIC Development Tools: PIC Development Tools - EasyPIC6 Development System EasyPIC6 is a development system that supports more than 160 8-, 14-, 18-, 20-, 28- and 40-pin PIC microcontrollers.A high-speed on-board USB 2.0 pr...; c709244459 Microchip MCU

Bill of Materials Problem: I used AD13 to draw the board and generate a BOM table in PDF format, and found that the generated table contained fewer materials.See the picture:There are three missing. 1M, 0 ohm, and 1K resistors ...; chenbingjy PCB Design

A week of highlights!!!: Time flies~ It's time for our weekly review, so let's not waste time. Let's take a look at what wonderful posts are out! ! [color=Red][b][size=5]Wonderful Posts[/size][/b][/color] [b][url=https://bbs....; okhxyyo Energy Infrastructure?

RTC crystal: Recently, a project used STM32, which required it to sleep at night and wake up at regular time in the morning. I encountered some problems in the process of adjusting RTC. I will share them with you ...; fuqing5542 MCU

Shortcut: A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components
