T356J476J016AT-TR datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> T356J476J016AT-TR

T356J476J016AT-TR: DescriptionTantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 5% +Tol, 5% -Tol, 47uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size403KB，13 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com; Environmental Compliance

Download Datasheet Parametric View All

T356J476J016AT-TR Overview

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 5% +Tol, 5% -Tol, 47uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT

T356J476J016AT-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1617328325
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7.5
capacitance	47 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
JESD-609 code	e3
leakage current	0.0056 mA
Manufacturer's serial number	T356
Installation features	THROUGH HOLE MOUNT
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	DISK PACKAGE
method of packing	TR, 12 INCH
polarity	POLARIZED
positive tolerance	5%
Rated (DC) voltage (URdc)	16 V
surface mount	NO
Delta tangent	0.06
Terminal surface	Matte Tin (Sn)
Terminal shape	WIRE

Preview

Download Datasheet

View All

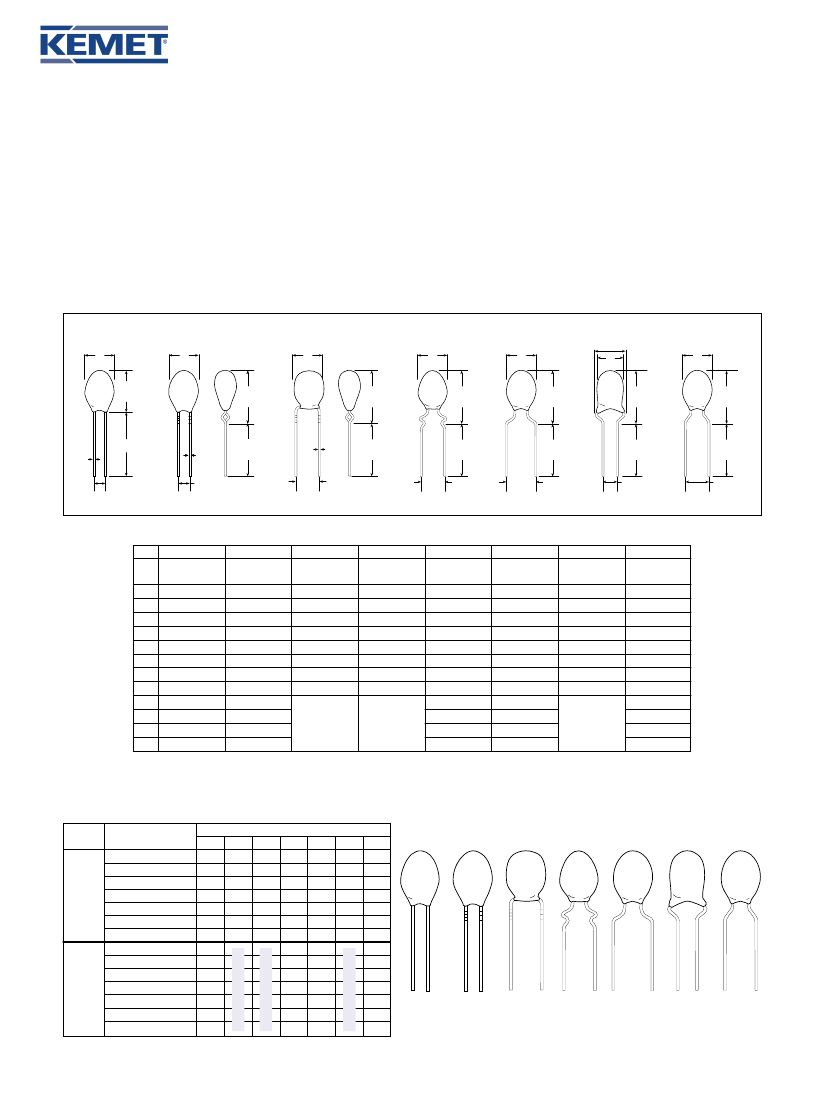

TANTALUM DIPPED / RADIAL — POLAR

PERFORMANCE CHARACTERISTICS

• CAPACITANCE/VOLTAGE RANGE:

T35X/T39X: 0.1-680µF, 3-50 Volts.

T36X: 0.1-330µF, 6-50 Volts.

• CAPACITANCE TOLERANCE: Available in stan-

dard EIA nominal values with ±20% and ±10%

standard.

• DISSIPATION FACTOR: Maximum DF limits are

shown in corresponding series part number list-

ings. See Application Notes Section, page 76 for

additional information.

• DC LEAKAGE CURRENT: Maximum leakage val-

ues at 25° are shown in part number listings,

pages 63-65, 67, 68 and 70. See Application

Notes Section, pages 76 & 77 for additional infor-

mation.

• RATED VOLTAGE; WORKING VOLTAGE; SURGE

VOLTAGE; REVERSE VOLTAGE: See Application

Notes Section, pages 76 & 77 for description.

• IMPEDANCE and ESR: See Application Notes

Section, page 77 & 78 for description. Reference

ESR values are shown in table below.

• AC RIPPLE VOLTAGE: Permissible AC ripple volt-

age is related to equivalent series resistance

(ESR) and power dissipation capability. Maximum

power dissipation for each case size is listed in

Table below. For additional description see page

78.

Case

Size

T35X, A

T39X B

T36X A

Power Dissipation

(max.) @ 25°C (watts)

.040

.050

.060

.065

.070

.080

.090

.100

.110

.120

.130

.140

.050

.075

.090

.135

Maximum Power Dissipation Capability @ 25°C

Commercial T35X/T36X/T39X ESR (OHMS) at 100 kHz @ +25°C

(The ESR values provided below are for reference only. No warranty, as

stated on page 3 and reincorporated here, is made as to the accuracy

of these values for any particular T35X, T36X, T39X Series product.)

Cap.

µF

0.10

0.15

0.22

0.33

0.47

0.68

1.00

1.50

2.20

3.30

4.70

6.80

10.0

15.0

22.0

33.0

47.0

68.0

100.0

150.0

220.0

330.0

Volt

26.0

21.0

17.0

15.0

13.0

10.0

8.0

6.0

5.0

4.0

3.0

2.5

2.0

1.6

1.3

1.0

0.8

Volt

26.0

21.0

17.0

15.0

13.0

10.0

8.0

5.0

3.5

3.0

2.5

2.0

1.6

1.2

1.0

• ENVIRONMENTAL CONSIDERATIONS:

A. Shock Test: MIL-STD-202, Method 213.

B. Thermal Shock, MIL-STD-202, Method 107,

Condition A.

C. Moisture Resistance: MIL-STD-202,

Method 106.

D. Solderability: MIL-STD-202, Method 208.

For additional Environmental Test Information

see pages 80, 81 and 82.

• LEAD MATERIAL: Effective June 30, 2005 the

T35x, T368 and T39x Series will be available, as an

option, with 100% Matte Tin (RoHS compliant) lead wire

or Sn/Pb lead wire. Please see page 63 for part number

ordering information. The T363 and T369 lead mater-

ial will remain Sn/Pb solder coated steel core with a

copper ply per MIL-STD-127 and at this time will not

be available

with a 100% Sn option.

•

LEAD TAPE AND REEL:

Reeling per specification

RS-468. See pages 72 - 74 for additional information.

KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606 (864) 963-6300

Tantalum Dipped /

Radial — Polar

13.0

10.0

8.0

6.0

5.0

3.7

3.0

2.0

1.8

1.6

0.9

0.7

13.0

10.0

8.0

6.0

5.0

3.7

2.7

2.1

1.7

1.3

1.0

0.8

0.6

10.0

8.0

6.0

5.0

4.0

3.2

2.5

2.0

1.6

1.3

1.0

0.8

0.6

10.0

9.0

7.0

5.5

4.5

3.6

2.9

2.3

1.8

1.4

1.2

0.9

0.6

10.0

8.0

6.0

5.0

4.0

3.1

2.5

2.0

1.5

1.2

1.0

0.8
