C4255HF-2X05P: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Male, 0.165 inch Pitch, Locking, Natural Insulator, Receptacle; CategoryThe connector The connector; File Size36KB，1 Pages; ManufacturerJoint Tech Electronic Industrial Co., Ltd.

Download Datasheet Parametric Compare View All

C4255HF-2X05P Overview

Board Connector, 10 Contact(s), 2 Row(s), Male, 0.165 inch Pitch, Locking, Natural Insulator, Receptacle

C4255HF-2X05P Parametric

Parameter Name	Attribute value
Maker	Joint Tech Electronic Industrial Co., Ltd.
Reach Compliance Code	unknown
subject depth	0.772 inch
body length	0.874 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact point gender	MALE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	NYLON
Manufacturer's serial number	C4255
Plug contact pitch	0.165 inch
Match contact row spacing	0.165 inch
Installation option 1	LOCKING
Installation option 2	LATCH
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	9 A
Guideline	UL
reliability	COMMERCIAL
Total number of contacts	10
Base Number Matches	1

Preview

Download Datasheet

View All

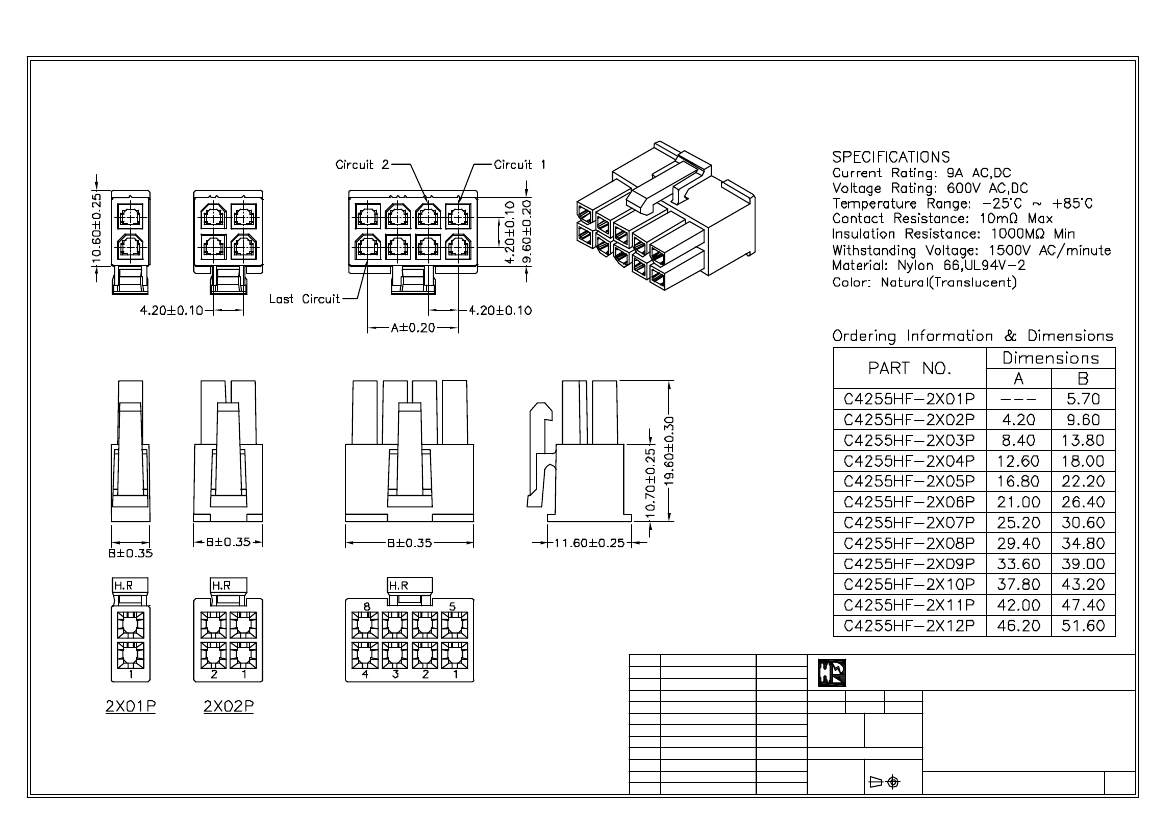

JOINT TECH ELECTRONIC IND. CO., LTD.

JOY DAY INDUSTRIAL CO., LTD.

UNIT

SCALE

SHEET

1 of 1

DRAWN BY

APPROVED BY

李勤

董正一

2006.06.07

GENERAL TOLERANCE

X.X ±

0.25

ANGLE ±

X.XX ±

0.15

X.XXX ±

0.05

TITLE:

REVISE

NEW RELEASE

2006.09.11

2006.06.26

2006.06.07

4.20mm PITCH

HOUSING-RECEPTACLE,

MINI-FIT

DRAW NO.:

C4255HF-2XNP

REV.

DESCRIPTION

DATE

C4255HF-2X05P Related Products

	C4255HF-2X05P	C4255HF-2X11P	C4255HF-2X07P	C4255HF-2X06P	C4255HF-2X01P	C4255HF-2X02P	C4255HF-2X10P	C4255HF-2X08P	C4255HF-2X04P	C4255HF-2X12P
Description	Board Connector, 10 Contact(s), 2 Row(s), Male, 0.165 inch Pitch, Locking, Natural Insulator, Receptacle	Board Connector, 22 Contact(s), 2 Row(s), Male, 0.165 inch Pitch, Locking, Natural Insulator, Receptacle	Board Connector, 14 Contact(s), 2 Row(s), Male, 0.165 inch Pitch, Locking, Natural Insulator, Receptacle	Board Connector, 12 Contact(s), 2 Row(s), Male, 0.165 inch Pitch, Locking, Natural Insulator, Receptacle	Board Connector, 2 Contact(s), 2 Row(s), Male, 0.165 inch Pitch, Locking, Natural Insulator, Receptacle	Board Connector, 4 Contact(s), 2 Row(s), Male, 0.165 inch Pitch, Locking, Natural Insulator, Receptacle	Board Connector, 20 Contact(s), 2 Row(s), Male, 0.165 inch Pitch, Locking, Natural Insulator, Receptacle	Board Connector, 16 Contact(s), 2 Row(s), Male, 0.165 inch Pitch, Locking, Natural Insulator, Receptacle	Board Connector, 8 Contact(s), 2 Row(s), Male, 0.165 inch Pitch, Locking, Natural Insulator, Receptacle	Board Connector, 24 Contact(s), 2 Row(s), Male, 0.165 inch Pitch, Locking, Natural Insulator, Receptacle
Maker	Joint Tech Electronic Industrial Co., Ltd.	Joint Tech Electronic Industrial Co., Ltd.	Joint Tech Electronic Industrial Co., Ltd.	Joint Tech Electronic Industrial Co., Ltd.	Joint Tech Electronic Industrial Co., Ltd.	Joint Tech Electronic Industrial Co., Ltd.	Joint Tech Electronic Industrial Co., Ltd.	Joint Tech Electronic Industrial Co., Ltd.	Joint Tech Electronic Industrial Co., Ltd.	Joint Tech Electronic Industrial Co., Ltd.
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
subject depth	0.772 inch	0.772 inch	0.772 inch	0.772 inch	0.772 inch	0.772 inch	0.772 inch	0.772 inch	0.772 inch	0.772 inch
body length	0.874 inch	1.866 inch	1.205 inch	1.039 inch	0.224 inch	0.378 inch	1.701 inch	1.37 inch	0.709 inch	2.031 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON
Manufacturer's serial number	C4255	C4255	C4255	C4255	C4255	C4255	C4255	C4255	C4255	C4255
Plug contact pitch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch
Match contact row spacing	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation option 2	LATCH	LATCH	LATCH	LATCH	LATCH	LATCH	LATCH	LATCH	LATCH	LATCH
Number of rows loaded	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	9 A	9 A	9 A	9 A	9 A	9 A	9 A	9 A	9 A	9 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Total number of contacts	10	22	14	12	2	4	20	16	8	24
Base Number Matches	1	1	1	1	1	1	1	1	1	1
