QBLP601 series
0603 LED
------------------------------------------------------------------------------------------------------------------------------------------
QT-Brightek Chip LED Series
SMD 0603 LED
Part No.: QBLP601 series
Product: QBLP601 series
Date: November 13, 2014
Version# 3.2
Page 1 of 13
QBLP601 series
0603 LED
------------------------------------------------------------------------------------------------------------------------------------------
Table of Contents:
Introduction ........................................................................................................................................... 3
Electrical / Optical Characteristic (Ta=25
o
C) ........................................................................................ 4
Absolute Maximum Rating .................................................................................................................... 4
CIE Chromaticity Diagram..................................................................................................................... 7
Solder Profile & Footprint .................................................................................................................... 10
Packing ............................................................................................................................................... 11
Labeling .............................................................................................................................................. 12
Ordering Information ........................................................................................................................... 12
Revision History .................................................................................................................................. 13
Disclaimer ........................................................................................................................................... 13
Product: QBLP601 series
Date: November 13, 2014
Version# 3.2
Page 2 of 13
QBLP601 series
0603 LED
------------------------------------------------------------------------------------------------------------------------------------------
Introduction
Feature:
Water clear lens
Package in tape and reel
Ultra bright 0603 LED package
InGaN technology for IB/IG/IW
AlInGaP technology for R/S/AG/Y/O
Description:
These ultra bright 0603 LEDs have a height profile of
0.60mm. Combination of high brightness output and
small footprint, these LEDs are ideal for keypad
backlighting and status indication.
Application:
Status indication
Back lighting application
Certification & Compliance:
TS16949
ISO9001
RoHS Compliant

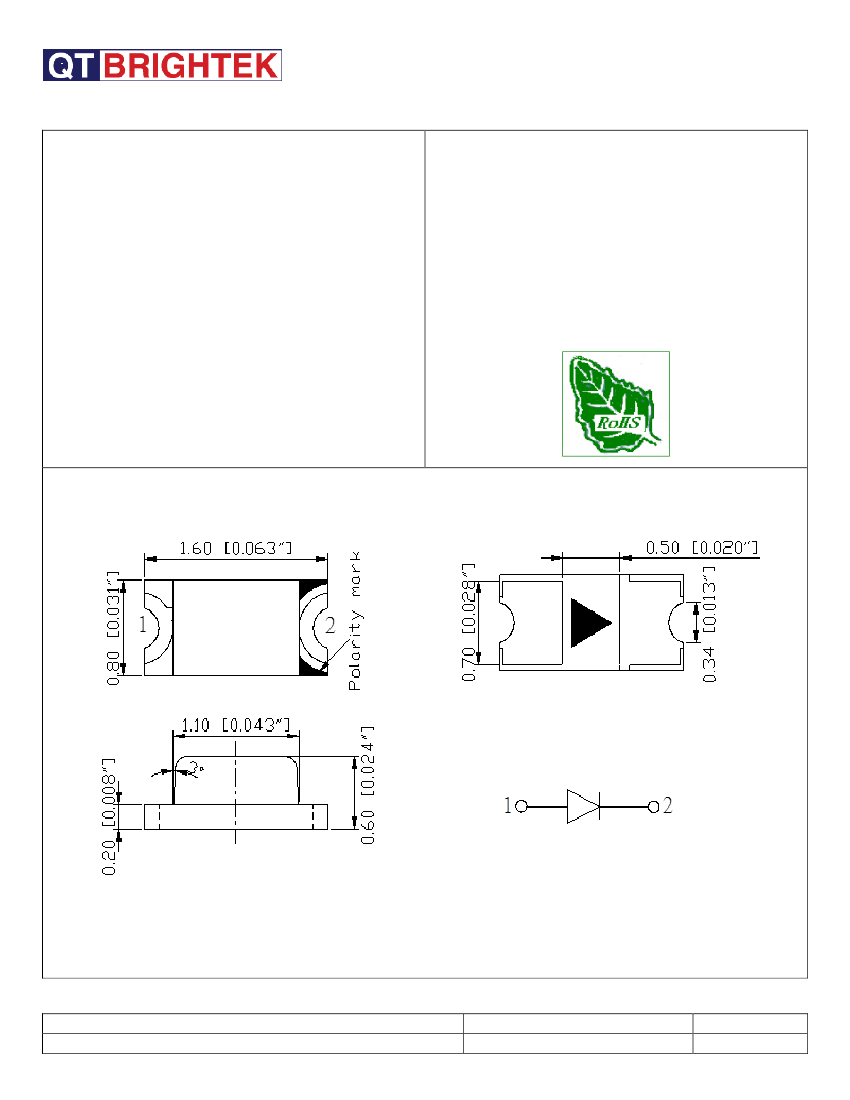

Dimension:
Units: mm / tolerance = +/-0.1mm
Product: QBLP601 series
Date: November 13, 2014
Version# 3.2
Page 3 of 13
QBLP601 series
0603 LED
------------------------------------------------------------------------------------------------------------------------------------------
Electrical / Optical Characteristic (Ta=25
o
C)
Product
QBLP601-IB
QBLP601-IG
QBLP601-IW
QBLP601-R
QBLP601-S
QBLP601-AG
QBLP601-Y
QBLP601-O
Color
Blue
True Green
White
Red
Deep Red
Yellow Green
Yellow
Orange
I
F
(mA)
20
20
20
20
20
20
20
20
V
F
(V)
Typ. Max.
3.2
3.7
3.2
3.2
2.0
2.0
2.0
2.0
2.0
3.7
3.7
2.5
2.5
2.5
2.5
2.5
Min.
465
520
-
620
630
565
585
600
λ
D
(nm)
Typ.
Max.
470
475
525
X=0.28
Y=0.26
I
V
(mcd)
Min.
Typ.
50
90
250
200
80
25
32
80
80
450
330
100
45
45
150
165
530
-
630
650
576
595
610
625
640
570
590
605
Absolute Maximum Rating
Material
InGaN (IB/IG/IW)
P
d
(mW) I
F
(mA) I
FP
(mA)* V
R
(V)
111
30
125
5
5
T
OP
(
o
C)
-40 ~ +80
-40 ~ +80
T
ST
(
o
C)
-40 ~ +100
-40 ~ +100
T
SOL
(
o
C)**
260
260
AlInGaP (R/S/AG/Y/O)
75
30
125
*Duty 1/8 @ 1KHz
**IR Reflow for no more than 10 sec @ 260
o
C
Product: QBLP601 series
Date: November 13, 2014
Version# 3.2
Page 4 of 13
QBLP601 series
0603 LED
------------------------------------------------------------------------------------------------------------------------------------------
Forward Voltage V
F
@ I
F
=20mA
Bin
b
c
d
e
f
g
h
Min.
1.6
1.9
2.2
2.5
2.8
3.1
3.4
Max.
1.9
2.2
2.5
2.8
3.1
3.4
3.7
Unit
V
Luminous Intensity I
V
@ I
F
=20mA
Bin
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
Min.
25
32
40
50
63
80
100
125
160
200
250
320
400
500
630
Max.
32
40
50
63
80
100
125
160
200
250
320
400
500
630
800
Unit
mcd
Dominant Wavelength λ
D
for Blue @ I
F
=20mA
Bin
G
H
I
J
Min.
465
467.5
470
472.5
Max.
467.5
470
472.5
475
Unit
nm
Dominant Wavelength λ
D
for True Green @ I
F
=20mA
Bin
U
V
W
X
Min.
520
522.5
525
527.5
Max.
522.5
525
527.5
530
Unit
nm
Product: QBLP601 series
Date: November 13, 2014
Version# 3.2
Page 5 of 13
