SM7565B226P201NPW-5 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> SM7565B226P201NPW-5

SM7565B226P201NPW-5: DescriptionCeramic Capacitor, Ceramic,; CategoryPassive components capacitor; File Size1MB，8 Pages; ManufacturerKnowles; Websitehttp://www.knowles.com

Download Datasheet Parametric View All

SM7565B226P201NPW-5 Overview

Ceramic Capacitor, Ceramic,

SM7565B226P201NPW-5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	7196464960
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
Number of terminals	2

Preview

Download Datasheet

View All

Capacitor Assemblies - ST & SM

These ranges of both High Capacitance and High Voltage MLC

assemblies are available in C0G and X7R dielectrics.

Low ESR and Low ESL are inherent in the design giving the

assemblies a high capability up to 1MHz and offer far superior

performance than either Aluminum or Tantalum electrolytic

capacitors.

They are designed for use in high power or high frequency

applications such as switched mode power supplies, DC-

DC converters, high capacitance discharge circuits, high

temperature filtering/decoupling.

They can be made with up to five same size chips with

various lead configurations to safeguard against thermal and

mechanical stresses.

The commercial ‘ST’ series provide the highest capacitance

available and are 100% tested for Dielectric Withstanding

Voltage, Insulation Resistance, Capacitance, and Dissipation

Factor.

In contrast, the High Reliability ‘SM’ series is designed and

tested for military and industrial applications and tested as per

of MIL-PRF-49470 (DSCC 87106), Group A.

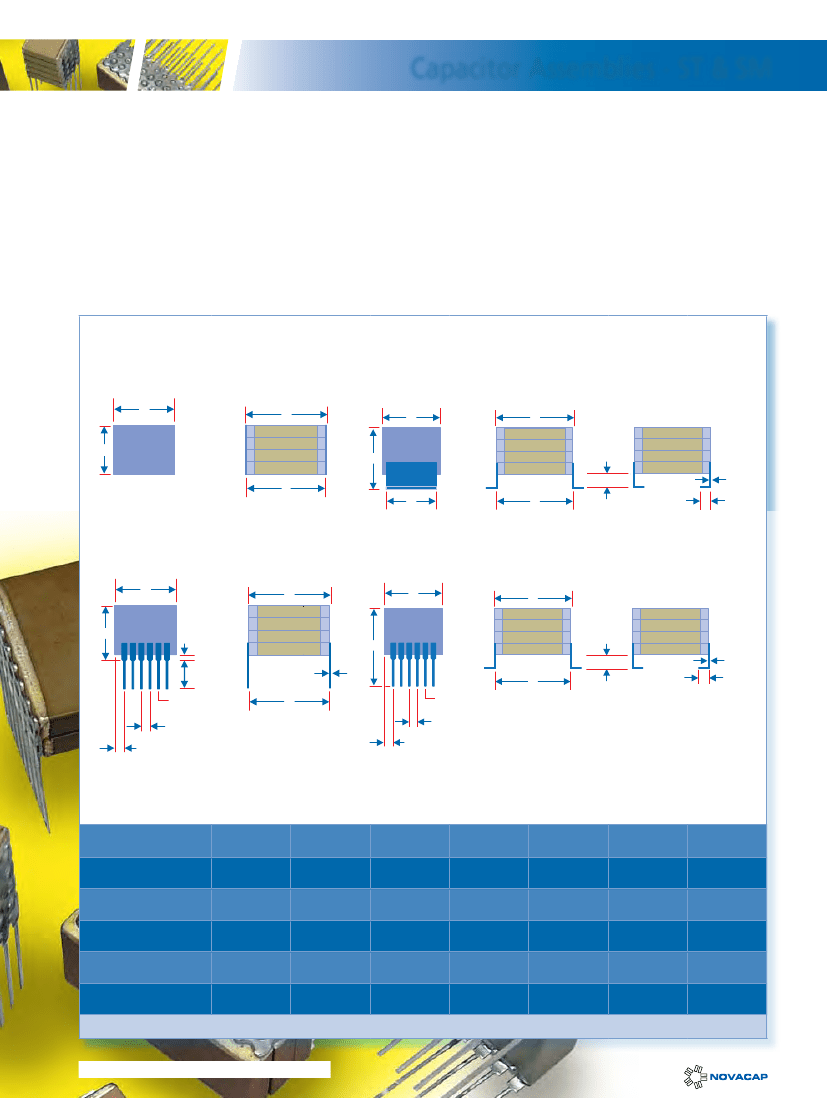

Dimensions - inches/mm

NN or NP (no leads)

TJ & TL (tab leads)

TL & TJ (tab leads)

0.070 ±0.010

(1.78 ±0.25)

0.005

(0.13)

0.050 min

(1.27 min)

LN (straight wire leads)

0.055 ±0.010

(1.40 ±0.25)

& LL (bent wire leads)

0.020 ±0.002

(0.51 ±0.05)

0.100 (2.54)

0.025 min / 0.100 max

(0.63 min / 2.54 max)

0.070 ±0.010

(1.78 ±0.25)

0.050 min

(1.27 min)

0.010

(0.25)

0.250 min

(6.35 min)

0.020 ±0.002

(0.51 ±0.05)

0.100 (2.54)

0.025 min / 0.100 max

(0.63 min / 2.54 max)

0.010

(0.25)

Size

inches ±0.025/mm ±0.64:

1812

0.210/5.33

0.125/3.18

0.260/6.60

0.180/4.57

N/A

1825

0.210/5.33

0.250/6.35

0.260/6.60

0.180/4.57

2225

0.250/6.35

0.300/7.62

0.220/5.59

3640

0.400/10.20

0.430/10.90

0.360/9.14

4540

0.480/12.20

0.400/10.20

0.530/13.50

0.450/11.40

5550

0.580/14.70

7565

0.780/19.80

inches ±0.025:/mm ±0.64:

E max

L nom

inches:/

mm:

inches:/

mm:

0.500/12.70 0.650*/16.50

0.630/16.00

0.550/14.00

0.830/21.10

0.750/19.10

Leads

per side

*±0.035/1.89
