KT1612A52000CEW28TXX

Description
Clipped Sine Output Oscillator,
CategoryPassive components    oscillator
File Size613KB,1 Pages
ManufacturerKyocera
Environmental Compliance
Download Datasheet Parametric View All

KT1612A52000CEW28TXX Overview

Clipped Sine Output Oscillator,

KT1612A52000CEW28TXX Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid7311966791
Reach Compliance Codeunknown
Other featuresAEC-Q200; TR
Ageing1 PPM/YEAR
Frequency Adjustment - MechanicalNO
frequency stability1.5%
Installation featuresSURFACE MOUNT
Nominal operating frequency52 MHz
Maximum operating temperature85 °C
Minimum operating temperature-20 °C
Oscillator typeCLIPPED SINE
Output impedance10000 Ω
Output level0.8 V
physical size1.65mm x 1.25mm x 0.55mm
Nominal supply voltage2.8 V
surface mountYES

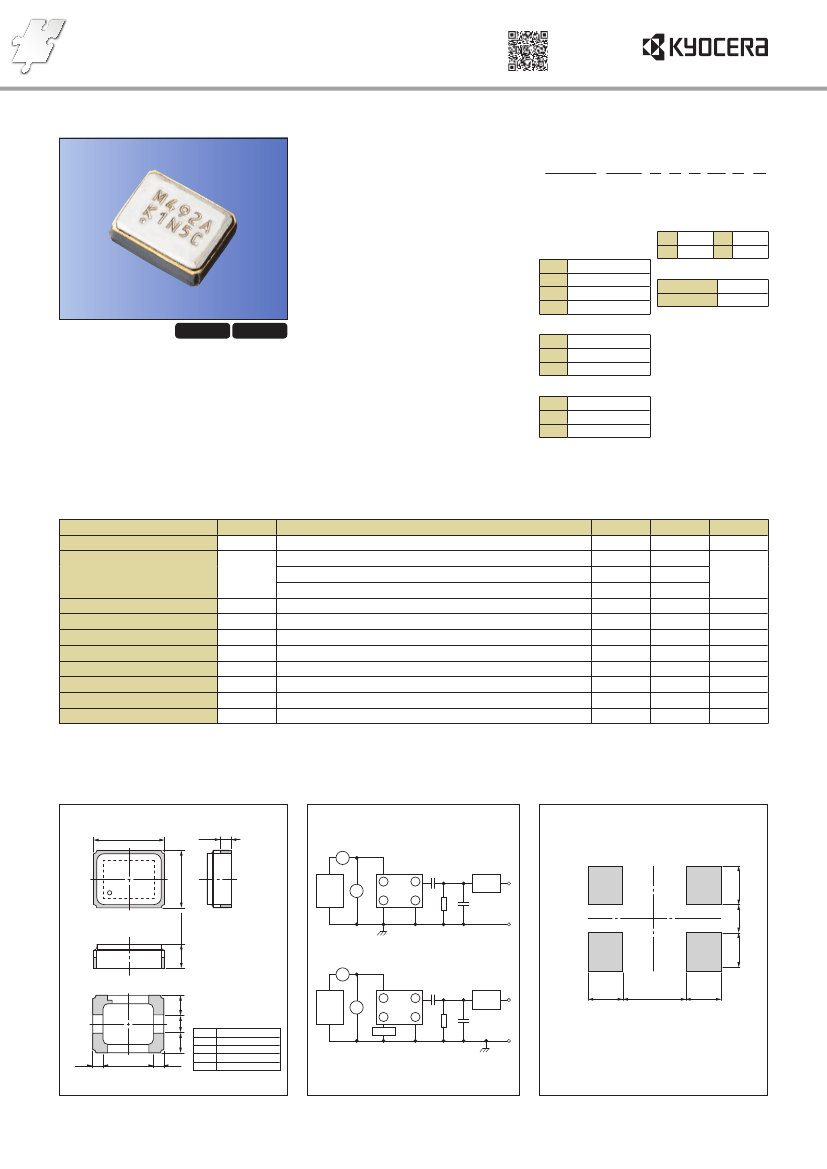

Temperature Compensated Crystal Oscillators (TCXO, VCTCXO)
Surface Mount Type TCXO KT1612 Series
1.6×1.2mm
Features
• Ultra-miniature SMD type
(1.65×1.25×0.55mm)
• Freq. temp. characteristics.
: ±2.0×10
−6
/ −30 to +85°C
: ±0.5×10
−6
/ −30 to +85°C (for GNSS)
• 1.68 to 3.63V drive available
• Reflow compatible
• Operating Temp. −40 to +105°C (Option)
• Disable Function (Option)
How to Order
KT1612A 26000
□ □ □ □□ □
xx
Series
Output Frequency
Freq. Temp. Chrst.
A
B
C
D
C
E
G
W
V
U
±0.5×10
−6
±1.0×10
−6
±1.5×10
−6
±2.0×10
−6
−30°C
−20°C
−10°C
+85°C
+80°C
+75°C
③ ④ ⑤ ⑥ ⑦ ⑧
Supply Voltage
18
30
1.8V
3.0V
28
33
2.8V
3.3V
Voltage Control Function
T
Spec. Code*
TCXO
VCTCXO
Applications
AEC-Q200 RoHS Compliant
• Mobile Communications, W-LAN
• Low power radio communications
• GNSS Unit
Lower Operating Temp.
Individual Specification
*Please contact us for Spec. Code.
Upper Operating Temp.

Packaging (Tape & Reel 18000 pcs./ reel)

Specifications
Item
Output Frequency Range
Frequency Tolerance
Frequency Aging
Storage Temperature Range
Operating Temperature Range
Voltage Control Range
Supply Voltage
Output Level
Current Consumption
Harmonics
Symbol
fo
f
_tol
f
_age
T
_stg
T
_use
f
_cont
V
CC
Vpp
I
CC
vs Temperature
vs Load
vs Voltage
Per Year
Conditions
Min.
10
−0.5/ −2
−0.2
−0.2
−1
−40
−30
±8
1.68
0.8
Max.
52
+0.5/ +2
+0.2
+0.2
+1
+85
+85
±15
3.63
2
−5
Units
MHz
×10
−6
×10
−6
°C
°C
×10
−6
V
Vp−p
mA
dBc
Positive
Clipped Sine*, Load: 10k ohm / / 10pF
* : A DC-cut capacitor is not embedded in this crystal oscillator. Connect a DC-cut capacitor (≥1nF) to the line-out terminal of the oscillator.
*
Please
contact us for other specifications.
Dimensions
1.65±0.05
#4
#3
1.25±0.05
0.2
(Unit: mm)
Test Circuit
Test circuit 1
TCXO
A
Co
POWER
SUPPLY
Vcc
Recommended Land Pattern
(Unit: mm)
Spectrum Analyzer &
Counter, Oscilloscope
V
1
TCXO
2
RL
CL
0.55 max.
Test circuit 2
VCTCXO
A
Co
Spectrum Analyzer &
Counter, Oscilloscope
FET
PROBE
#1
#2
0.425 0.4 0.425
POWER
SUPPLY
Vcc
4
V
1
Vcon
TCXO
3
2
RL
0.5
0.9
0.5
CL
0.35 #4
0.95
#3 0.35
#1pin
#2pin
#3pin
#4pin
Pin Con guration
GND/ Vcon
GND
OUTPUT
Vcc
Note: A capacitor of value 0.01µF between V
cc
and GND is recommended.
RL=10kΩ±10% CL=10pF±10%
CL include Probe Capacitance
Co: DC Cut Capacitance
As of February 2019
0.55
0.4
#1
#2
0.55
4
3
FET
PROBE
