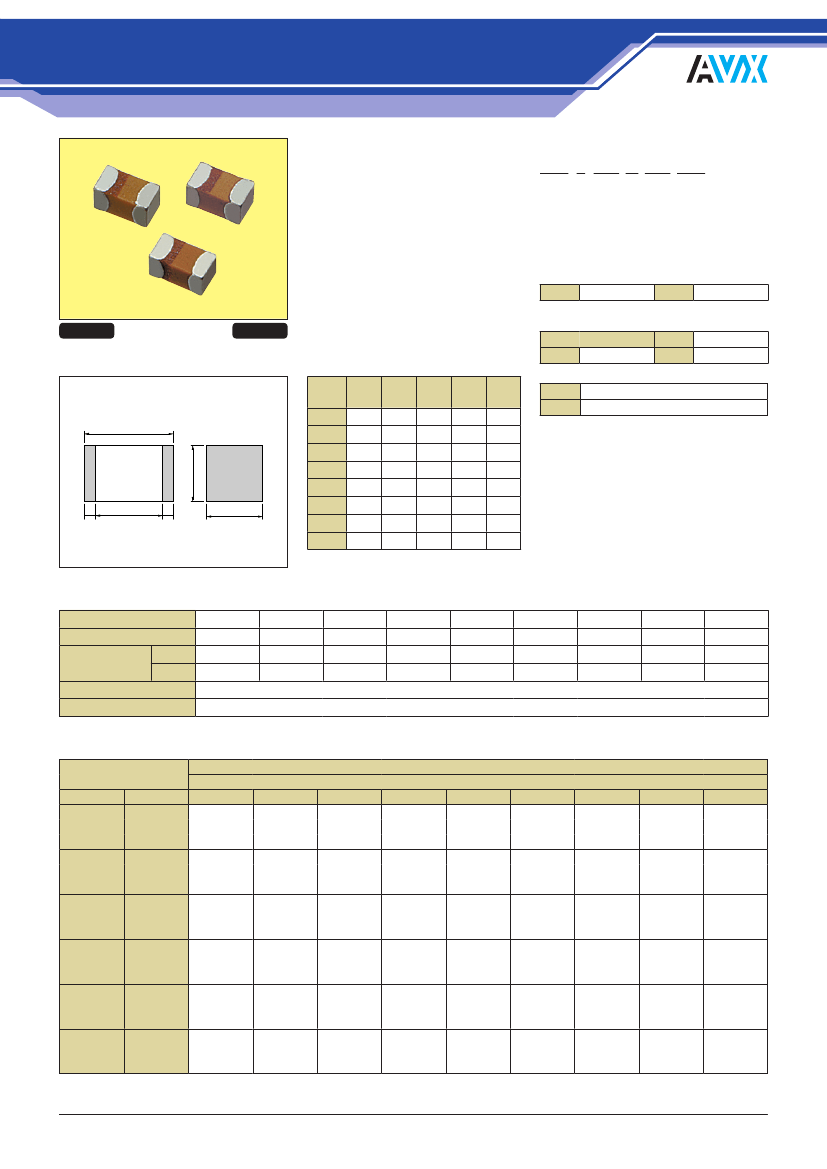

TAC Series (Miniature)
Tantalum Capacitors
Features
Ultra−miniature (0402)
5 surface termination at one end
•
Low ESR, low inductance
•
•
How to Order
TAC L 225 M 003 PTA
① ② ③ ④ ⑤
⑥
① Series
② Case Size (See Table)
③ Capacitance (pF)
(Code: 2 Significant Digits and Number of Zeros)
④ Tolerance
K
∗
∗
Optional
Applications
•
Compact Electronic Equipment
±10%
M
±20%
Pb Free
RoHS Compliant
(Unit: mm)
⑤ Rated DC Voltage
ex.
002
Case
size
K
L
1.0
+0.2
−0.0
1.6
2.0
2.0
2.0
+0.2
−0.0
+0.2
−0.0
Dimensions
2VDC
006
010
6.3VDC
10VDC
⑥ Packaging
W
0.5
+0.2
−0.0
0.85
1.35
1.35
1.35
+0.15
−0.00
+0.15
−0.00
H
0.5
+0.2
−0.0
0.85
1.35
+0.15
−0.00
+0.15
−0.00
t (min.) S (min.)
0.10
0.15
0.15
0.40
0.65
0.85
2.00
0.85
0.15
0.85
2.30
PTA
RTA
Paper Tape (7” reel)
Plastic Tape (7” reel)
L
L
R
A
U
V
H
T
H
3.2±0.2 1.6±0.2 1.6±0.2 0.15
+0.2
−0.0
+0.15
−0.00
0.6 max. 0.15
1.0 max. 0.15
1.2 max. 0.15
t
S
t
W
3.2±0.2 1.6
+0.2
0.75 max. 1.80
−0.1
+0.2
−0.0
+0.15
−0.00
+0.2
−0.1
3.5±0.2 2.8
Specifications
Rated Voltage (V
R
)
≤+
85°C
Category Voltage (V
C
)
≤+125°C
Surge Voltage (V
S
)
≤+
85°C
≤+125°C
2
1.3
2.7
1.7
3
2
3.9
2.6
4
2.7
5.2
3.2
5
3.5
6.5
4
6.3
4
8
5
−55°C
to
+125°C
1%/ 1000H (85°C, Rated Voltage, 0.1Ω/
V)
10
7
13
8
16
10
20
12
20
13
26
16
25
17
32
20
Operating Temperature Range
Failure Rate
Capacitance and Voltage Range
Capacitance
µF
0.33
0.47
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
CODE
334
474
684
105
155
225
335
475
685
106
156
226
336
476
686
107
157
227
2V
3V
Capacitance Range (letter denotes case code)
Rated Votage
4V
5V
6.3V
10V
16V
K/ L
K/ L
K/ L
L
L
L/ R
L/ R
L/ R
L/ R/ H
R/ H/ V
R
R/ A
T
L
L
L/ U
L
R
R
20V
25V
K/ L
K/ L
L
K/ L/ U
R
R
R
R
A
K/ L
K/ L
K/ L
L
L
R
L/ R
R
H/ R
R
R/ A
T
L
L
L
L/ U
L
L/ R
L/ R
L/ R
R/ H
R
A
A
L
K/ L
L
K/ L
L/ U
L
L/ R
L/ R
L/ R/ H
R/ H
R
R/ A
T
R
R
Note: Voltage ratings are minimum values. AVX reserves the right to supply higher voltage ratings in the same case size, to the same reliability standards.
Tantalum Capacitors
Niobium Oxide Capacitors (OxiCap
TM
)

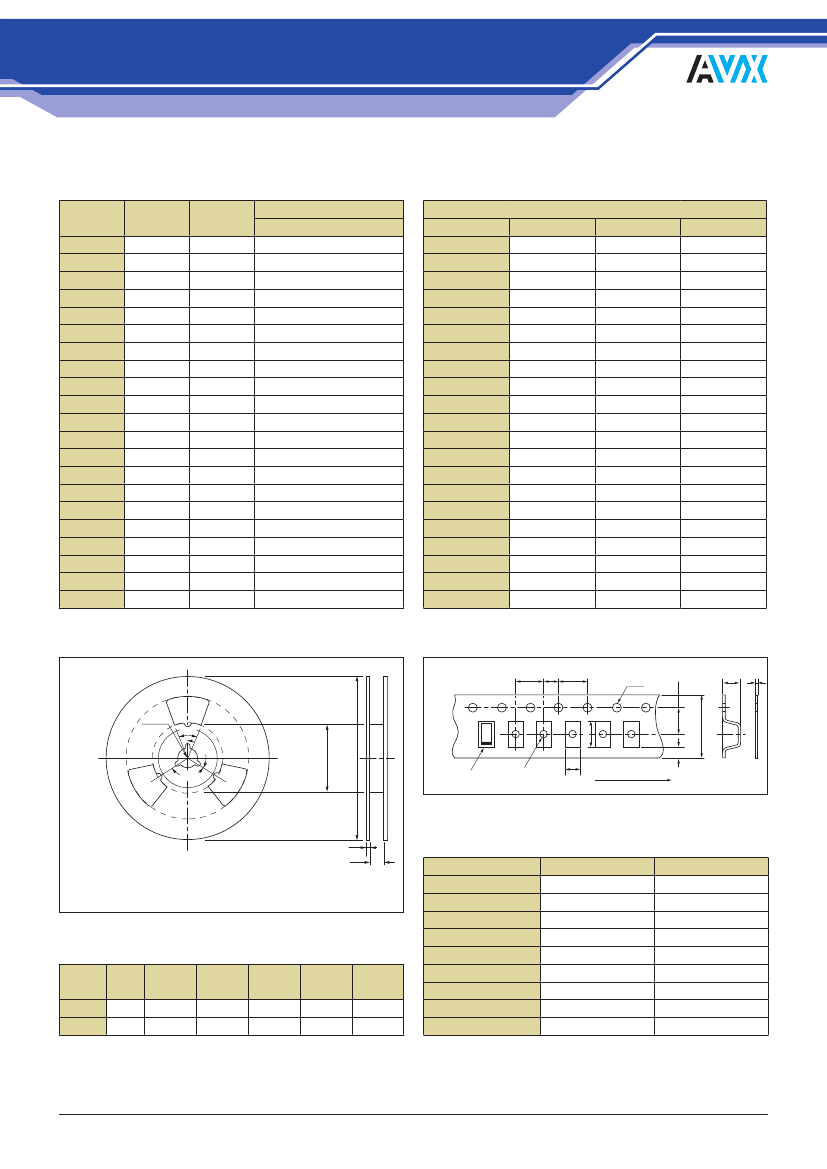

Packaging
Tape and reel packaging for automatic component placement.
Please enter required suffix code, R or S on order.
•
Taping
Case
size
A
B
C
D
E
V
R
S
T
P
W
X
F
Y
TACK
TACL
TACR
TACA/ X
TACU
TACH
TACT
Tape width
(mm)
8
8
12
12
12
12
8
8
8
8
12
12
12
12
8
8
8
8
8
8
8
P
(mm)
4
4
8
8
8
8
4
4
4
4
8
8
8
8
2
4
4
4
4
4
4
180mm (7”) real
Quantity
2000
2000
500
500
400
400
2500
2500
2500
2500
1000
1000
1000
1000
10000
3500
2500
2000
3500
3500
2500
Case size
A
B
C
D
E
V
R
S
T
P
W
X
F
Y
TACK
TACL
TACR
TACA/ X
TACU
TACH
TACT
•
Carrier Tape
Total Tape thickness−K max.
K
1.87
2.22
2.92
3.22
4.50
3.84
1.30
1.30
1.30
1.60
1.65
1.65
2.15
2.15
0.75
1.10
1.70
1.87
0.80
1.10
1.00
Ao
1.83
3.15
3.45
4.48
4.50
6.43
1.65
1.95
3.20
1.65
3.57
4.67
3.45
4.67
0.75
1.025
1.70
1.83
1.70
1.70
3.20
Bo
3.57
3.77
6.40
7.62
7.50
7.44
2.45
3.55
3.80
2.45
6.40
7.62
6.40
7.62
1.35
1.95
2.45
3.57
2.45
2.45
3.80
• Reel
(Unit: mm)
• Carrier Tape
P
P
2
P
0
D
E
K
½
A
0
½½½
½
½
½½½½
+ve capacitor orientation
D
1
B
0
Direction of feed
Tape dimensions comply to EIA 481 A.
Dimensions Ao and Bo of the pocket and the tape thickness, K, are dependent on the components size.
Tape material do not affect component solderability during storage.
Carrier tape thickness < 0.4mm.
½½ ½½½½½½½½½½½½½½½½½½½½
½
½½½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½½½½ ½½½½½½½
½½½½½½½½½½½½½½½½½½½
½½½½½½½½½½½½½½½½½½½½
½
½½½½½½½½½½½½½½½½½½½½½
½
½
G
W
½½½½½½
F
½½
½
½
(Unit: mm)
Code
P
G
F
E
W
8mm tape
4±0.1
0.75 min.
3.5±0.05
1.75±0.1
8±0.3
2±0.05
4±0.1
1.5
+0.2
−0.0
12mm tape
8±0.1
0.75 min.
5.5±0.05
1.75±0.1
12±0.3
2±0.05
4±0.1
1.5
+0.2
−0.0
1.5
+0.2
−0.0
Real
size
180mm (7”)
180mm (7”)
Tape width
(mm)
12
8
A
B
C
W
t
P
2
P
0
D
D
1
178±2.00 50 min.
178±2.00 50 min.
13.0±0.50 12.4+1.5/
−0
1.50±0.50
13.0±0.50 8.4+1.5/
−0
1.50±0.50
1.0
+0.2
−0.0
Tantalum Capacitors
Niobium Oxide Capacitors (OxiCap
TM
)
Recommended Land Pattern
Case size
A
B
PW
(Unit: mm)
PSL
3.80
4.00
6.50
8.00
8.00
8.00
2.70
3.80
4.00
2.70
6.50
8.00
6.50
8.00
2.20
2.80
3.20
4.20
4.40
4.70
PL
1.40
1.40
2.00
2.00
2.00
2.00
1.00
1.40
1.40
1.00
2.00
2.00
2.00
2.00
0.90
1.10
1.30
1.60
1.60
1.70
PS
1.00
1.20
2.50
4.00
4.00
4.00
0.80
1.00
1.20
1.00
2.50
4.00
2.50
4.00
0.40
0.60
0.60
1.00
1.20
1.30
PW
1.80
2.80
2.80
3.00
3.00
3.70
1.60
1.80
2.80
1.60
2.80
3.00
2.80
3.00
0.70
1.00
1.50
1.60
1.80
3.00
C
TAJ
TPS
TPM
TCJ
TLJ
TRJ
THJ
NOJ
NOS
NOM
D
E
V
R
S
T
P
W
X
F
Y
K
L
TAC
TLC
R/ H/ U
X
A/ V
T
PL
PS
PSL
Recommended Reflow Profile for
Lead−Free Product
300
Allowable range of peak temp./ time combination
for IR reflow
250
Peak Temperature: 245½5½C (10s max.)
Time at >230½C
40s max.
260
250
200
Temp. (½C)
Temp. (½C)
150
Pre-heating 150½15½C
60 to 90s
Max. Peak Gradient
2.5½C/ s
Dangerous Range
240
230
220
Allowable
Range
Recommended Range
with
Care
100
Time to Peak 160 to 200s
50
210
0
10
20
30
40
50
60
70
0
Time (sec.)
0
0.5
1
1.5
2
2.5
3
3.5
4
4.5
Time (min.)
Please contact us for Lead−Free Products.
Technical Summary
1. Voltage Derating
We can offer to use AVX software “Select−a−Cap” to select a part number for safety use.
2. Surge Current
As a general rule of thumb, the maximum current a tantalum capacitor can withstand is given by the following equation.
Imax
=
Vrated/ (0.65
+
Catalog ESR)
So for example for D case/ 100uF/ 10V capacitor (Catalog ESR
=
0.9 Ohms)
This would be :
Imax
=
10/ (0.65
+
0.9)
≒
6.45Amps
3. If more aggressive mounting techniques are to be used, please contact AVX Tantalum for guidance.
4. Reverse Voltage
The values quoted are not intended to cover continuous reverse operation.
The peak reverse voltage applied to the capacitor must not exceed.
a) 10% of rated DC voltage to a maximum of 1V at 25°C.
b) 3% of rated DC voltage to a maximum of 0.5V at 85°C.
c) 1% of category DC voltage to a maximum of 0.1V at 125°C.
