MXAAFHC50M0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> MXAAFHC50M0

MXAAFHC50M0: DescriptionParallel - Fundamental Quartz Crystal,; CategoryPassive components Crystal/resonator; File Size463KB，2 Pages; ManufacturerMeritek Electronics; Websitehttp://www.meritekusa.com; Environmental Compliance

Download Datasheet Parametric View All

MXAAFHC50M0 Overview

Parallel - Fundamental Quartz Crystal,

MXAAFHC50M0 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7180198706
package instruction	SMD, 4 PIN
Reach Compliance Code	compliant
YTEOL	7.32
Other features	TR, 7 INCH
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.003%
frequency tolerance	20 ppm
load capacitance	30 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	50 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L2.0XB1.6XH0.59 (mm)/L0.079XB0.063XH0.023 (inch)
Series resistance	60 Ω
surface mount	YES

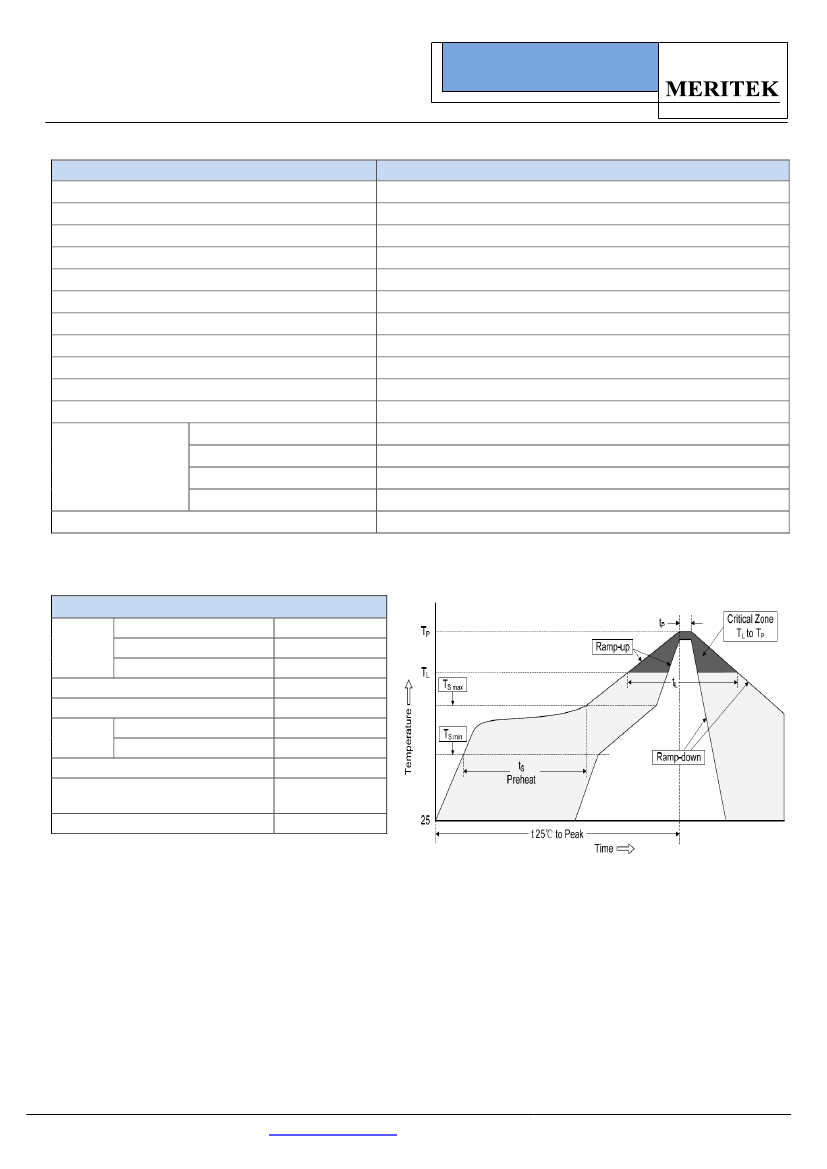

Preview

Download Datasheet

View All

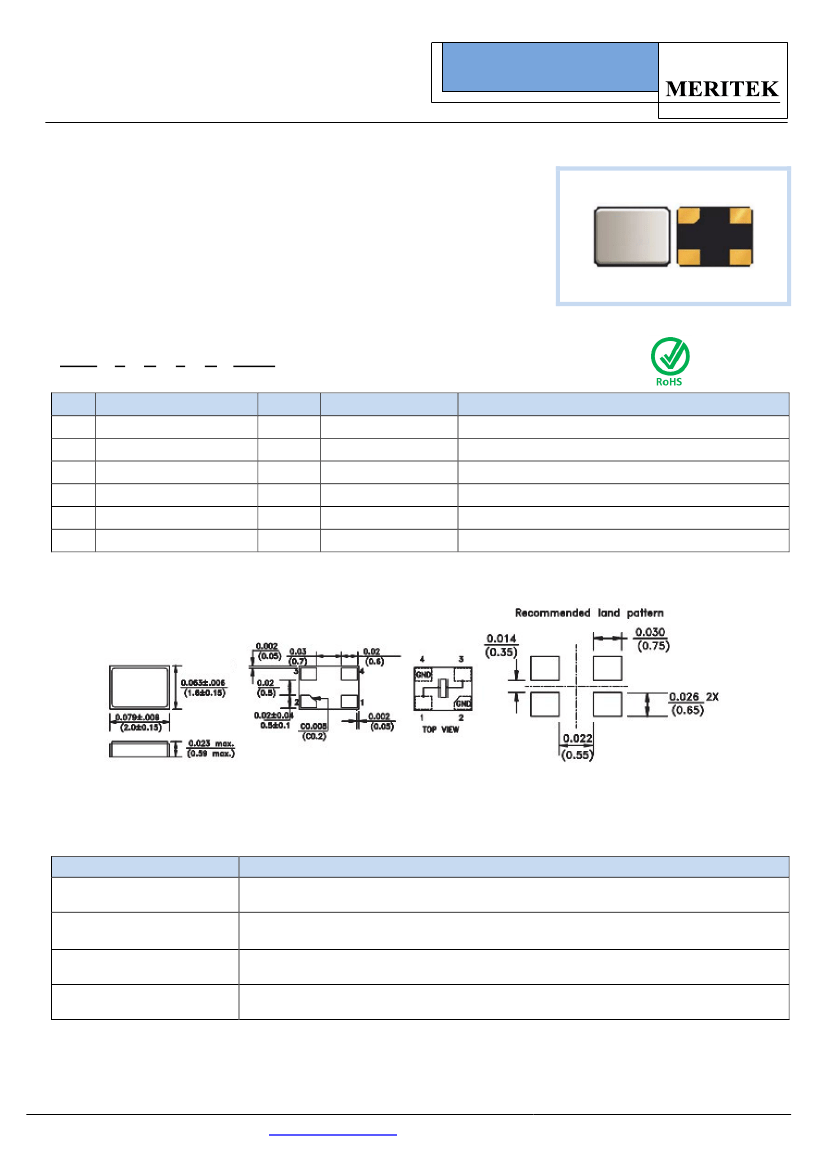

Ceramic SMD Crystal Unit

SMD 2.0 x 1.6mm Type

EATURE



Surface Mount Low Profile

Seam Sealed Ceramic

Excellent Heat Resistance

High precision and high frequency stability

MXA series

Applications: Wired Network, Mobile Communication, WiMAX, WLAN,

Test Equipment

ART

UMBERING

YSTEM

MXA

(1)

(2)

(3)

(4)

(5)

(6)

(2)

(3)

(4)

Item

C 20M0

(5)

(6)

Code

MXA

20M0

Description

Crystal Unit

F: 20pF

H: ±30ppm

J: ±50ppm

C: -20~+70ºC

20M0: 20.000MHz

Series Reference

Ceramic SMD Crystal 2.0x1.6mm 4 Pads

E: 18pF, R: Series Resonance (see options)

F: ±20ppm, G: ±25ppm (see options)

G: ±25ppm, H: ±30ppm (see options)

C: -20~+70ºC, I: -40~+85ºC (see options)

18M0 ~ 50M0 (M denotes decimal point)

Meritek Series

Load Capacitance

Frequency Tolerance

Stability vs Oper Temp.

Operating Temp.

Frequency

IMENSIONS AND

ECOMMENDED

ATTERN

(Unit:mm)

VAILABLE

PTIONS

Parameters

Load Capacitance

Frequency Tolerance

Stability vs Oper Temp.

Operating Temperature

Part Number Options

R: Series Resonance, 3: 3pF ~ 8: 8pF,

A: 10pF, B: 12pF, C: 15pF, D: 16pF, E: 18pF, F: 20pF, K: 22pF, G: 25pF, H: 30pF, L: 32pF

A: ±10ppm, C: ±15ppm, F: ±20ppm, G: ±25ppm, H: ±30ppm, J: ±50ppm

A: ±10ppm, C: ±15ppm, F: ±20ppm, G: ±25ppm, H: ±30ppm, J: ±50ppm, K: ±100ppm

B: 0~+70C, A: -10~+60C, C: -20~+70C, K: -30~+85C, I: -40~+85C, R: -40~+105C

Note: Custom options available. Contact Meritek for more information.

Meritek Electronics Corporation

www.meritekusa.com

Rev.7a 12/21/2017
