5962-9090102MLA datasheet, PDF

Datasheet> All Categories > logic> logic> 5962-9090102MLA

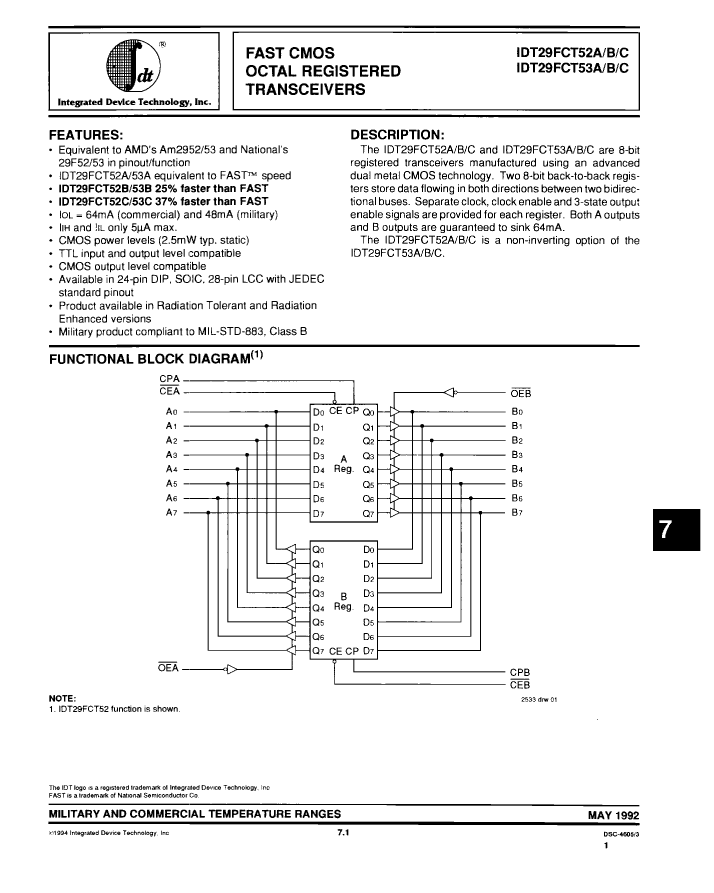

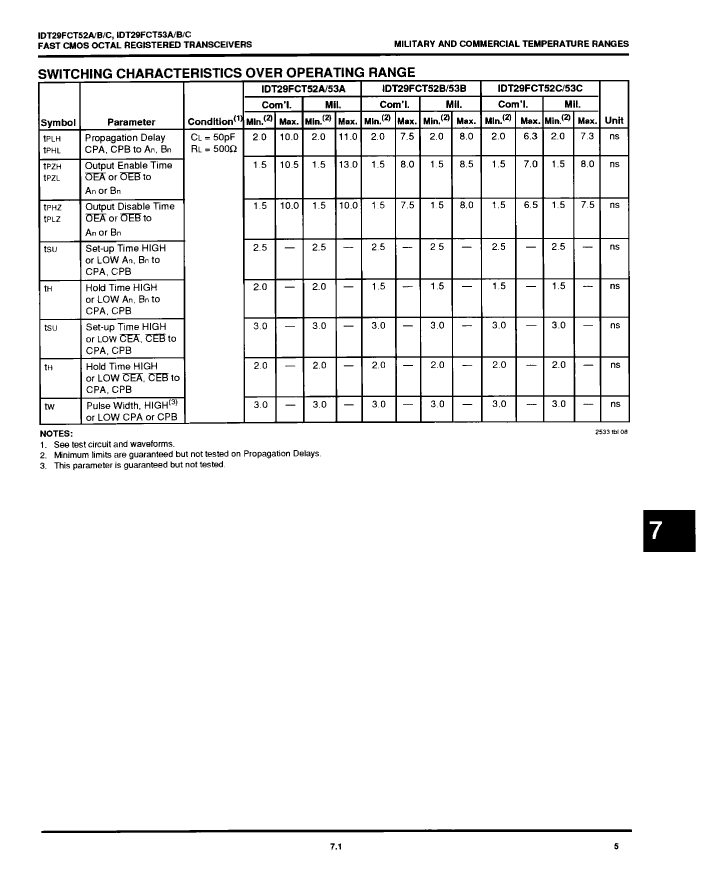

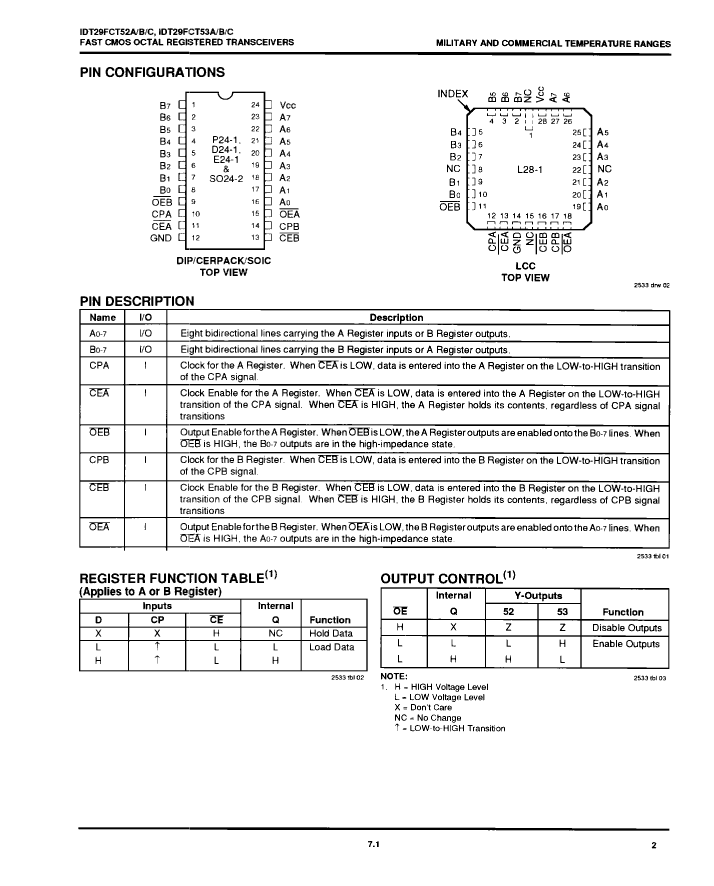

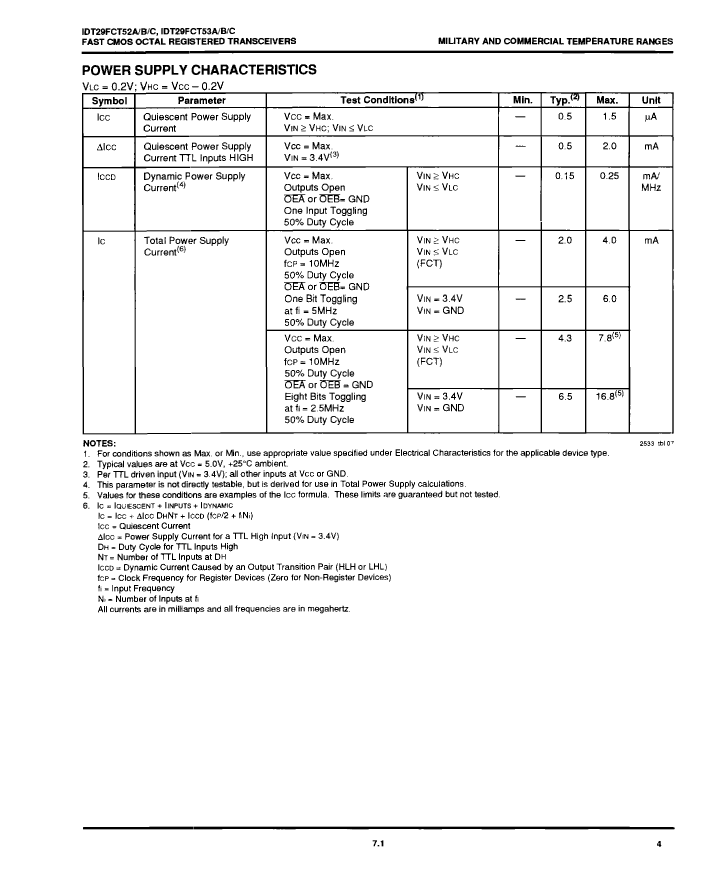

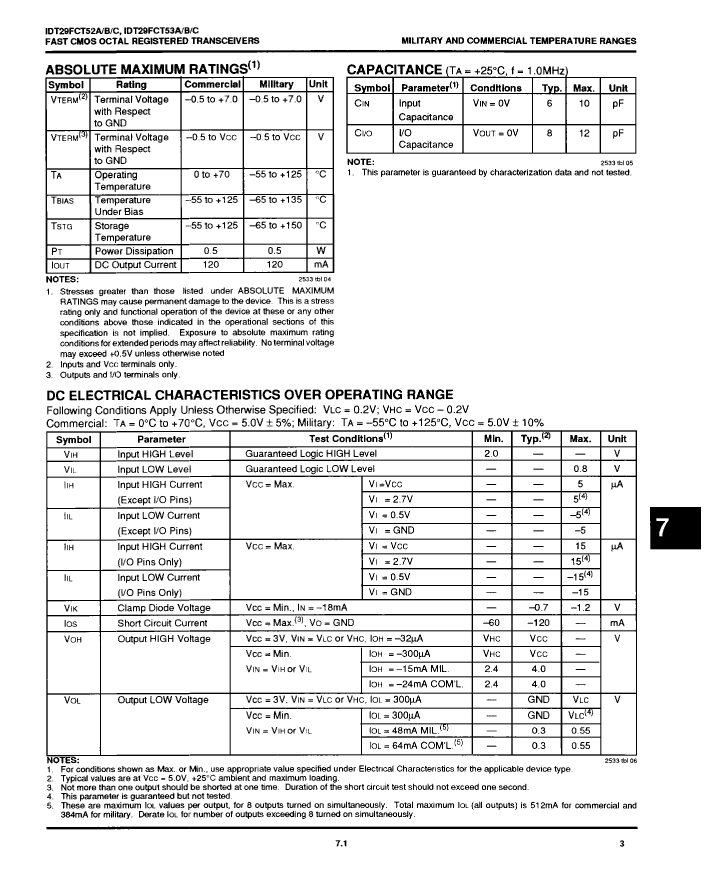

5962-9090102MLA: DescriptionCDIP-24, Tube; Categorylogic logic; File Size194KB，7 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

5962-9090102MLA Overview

CDIP-24, Tube

5962-9090102MLA Parametric

Parameter Name	Attribute value
Brand Name	Integrated Device Technology
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	CDIP
package instruction	0.300 INCH, CERDIP-24
Contacts	24
Manufacturer packaging code	SD24
Reach Compliance Code	not_compliant
Other features	INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION; CLOCK ENABLE
series	FCT
JESD-30 code	R-GDIP-T24
JESD-609 code	e0
length	32.004 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER
Humidity sensitivity level	1
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	240
propagation delay (tpd)	8 ns
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

5962-9090102MLA Related Products

	5962-9090102MLA	5962-9090101M3A	5962-9090103MKA	5962-9090101MKA	5962-9090103M3A	5962-9090102M3A	5962-9090102MKA	5962-9090101MLA	5962-9090103MLA
Description	CDIP-24, Tube	LCC-28, Tube	Registered Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDFP24, CERPACK-24	Registered Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDFP24, CERPACK-24	Registered Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CQCC28, LCC-28	LCC-28, Tube	Registered Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDFP24, CERPACK-24	CDIP-24, Tube	Registered Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP24, 0.300 INCH, CERDIP-24
Parts packaging code	CDIP	LCC	DFP	DFP	QLCC	LCC	DFP	CDIP	DIP
package instruction	0.300 INCH, CERDIP-24	LCC-28	DFP,	DFP,	QCCN,	LCC-28	DFP,	0.300 INCH, CERDIP-24	DIP,
Contacts	24	28	24	24	28	28	24	24	24
Reach Compliance Code	not_compliant	not_compliant	unknown	unknown	unknown	not_compliant	unknown	not_compliant	unknown
Other features	INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION; CLOCK ENABLE	INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION; CLOCK ENABLE	INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION; CLOCK ENABLE	INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION; CLOCK ENABLE	INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION; CLOCK ENABLE	INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION; CLOCK ENABLE	INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION; CLOCK ENABLE	INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION; CLOCK ENABLE	INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION; CLOCK ENABLE
series	FCT	FCT	FCT	FCT	FCT	FCT	FCT	FCT	FCT
JESD-30 code	R-GDIP-T24	S-CQCC-N28	R-GDFP-F24	R-GDFP-F24	S-CQCC-N28	S-CQCC-N28	R-GDFP-F24	R-GDIP-T24	R-GDIP-T24
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
length	32.004 mm	11.4554 mm	15.748 mm	15.748 mm	11.4554 mm	11.4554 mm	15.748 mm	32.004 mm	32.004 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER
Number of digits	8	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1	1
Number of ports	2	2	2	2	2	2	2	2	2
Number of terminals	24	28	24	24	28	28	24	24	24
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	QCCN	DFP	DFP	QCCN	QCCN	DFP	DIP	DIP
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	FLATPACK	FLATPACK	CHIP CARRIER	CHIP CARRIER	FLATPACK	IN-LINE	IN-LINE
propagation delay (tpd)	8 ns	11 ns	7.3 ns	11 ns	7.3 ns	8 ns	8 ns	11 ns	7.3 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883
Maximum seat height	5.08 mm	2.54 mm	2.286 mm	2.286 mm	2.54 mm	2.54 mm	2.286 mm	5.08 mm	5.08 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	YES	YES	YES	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	THROUGH-HOLE	NO LEAD	FLAT	FLAT	NO LEAD	NO LEAD	FLAT	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	QUAD	DUAL	DUAL	QUAD	QUAD	DUAL	DUAL	DUAL
width	7.62 mm	11.4554 mm	9.144 mm	9.144 mm	11.4554 mm	11.4554 mm	9.144 mm	7.62 mm	7.62 mm
Base Number Matches	1	1	1	1	1	1	1	1	1
Maker	-	-	-	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	-	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
