54102-G14-38 datasheet, PDF - EEWORLD Datasheet

54102-G14-38: DescriptionBoard Connector, 76 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Black Insulator, Receptacle,; CategoryThe connector The connector; File Size161KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

54102-G14-38 Overview

Board Connector, 76 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Black Insulator, Receptacle,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1152956913
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	9.1
Other features	POLY BAG PACKAGING
body width	0.19 inch
subject depth	0.1 inch
body length	3.8 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	POLYETHYLENE
JESD-609 code	e0
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	130 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL, CSA
Terminal length	0.4 inch
Terminal pitch	2.54 mm
Termination type	WIRE WRAP
Total number of contacts	76

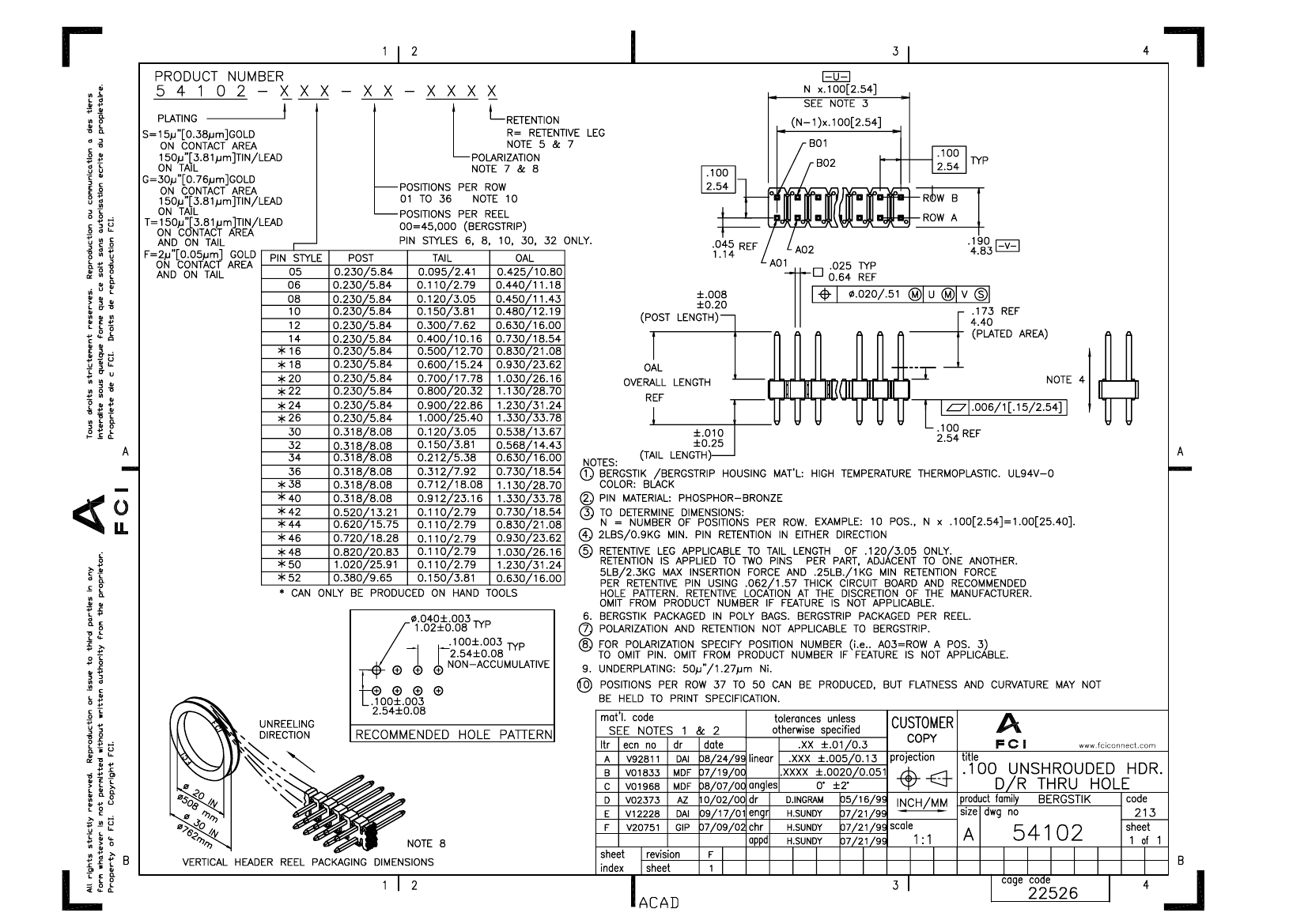

PDM: Rev:F

STATUS:

Released

Printed: Aug 02, 2002
