5mm (T1)¾) Package Discrete LED
3mm (T1 Package Discrete LED
YELLOW
WARM WHITE
3UWCX.XXXW-X
♦
♦
♦
♦
♦
♦
♦
Industry Standard 3mm (T1) Package
RoHS Compliant
Water Clear Lens
3100K Color Temperature
Multiple Intensity and Viewing Angle Options
Available in Flange and Standard LED Body styles
Ideal for Status Indication and Display
Bivar’s 3mm T1 Package 3UWC Series LED may be used in almost any application. They are offered
in 3100K color temperature and come in multiple intensity, viewing angle, and body styles. Bivar offers
a water clear LED lens for maximum light output. The Flange LED is ideal for Panel Mount Clip & Ring
assemblies and the Standard LED is ideal for vertical spacer and holder assemblies.
Part Number
3UWC5.035W-F
3UWC8.035W-F
3UWC5.030W
3UWC8.030W
Material
Emitted Color
Color Temperature
Lens Appearance
Viewing Angle
35°
InGaN/Sapphire
WHITE
3100K
Water Clear
35°
30°
30°
Part Number Designation
3UWC X.X XX W - X
LED SERIES
INTENSITY x 1000
VIEWING
ANGLE
BODY STYLE
COLOR
TEMPERATURE
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
SENSITIVE DEVICES
RoHS
Compliant
Moisture
Sensitivity
Levels 1
Bivar reserves the right to make changes at any time without notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Revision A 12/10
Page 1 of 5
5mm (T1) Package Discrete LED
3mm (T1)¾) Package Discrete LED
LEDs
3mm (T1 Package Discrete LED
GREEN
AMBERWHITE
WARM

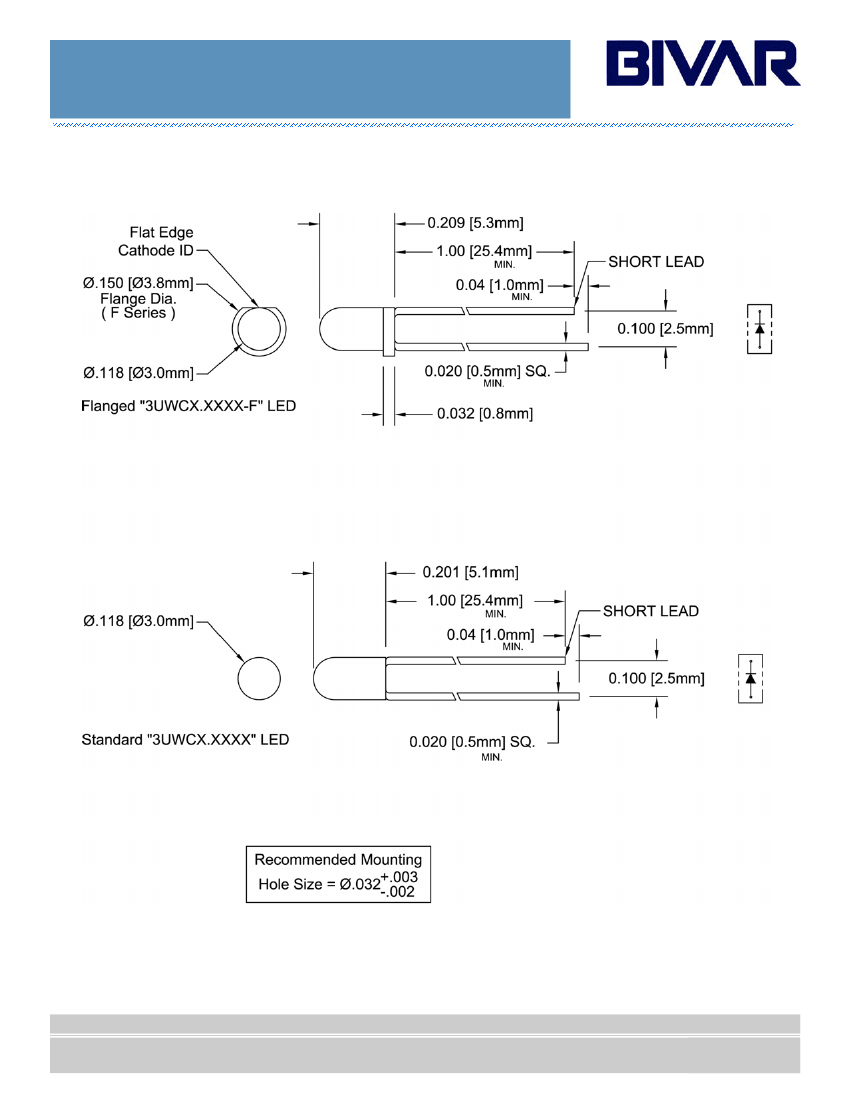

Outline Dimensions
Outline Drawings Notes:
1. All dimensions are in inches [millimeters].
2. Standard tolerance: ±0.010" unless otherwise noted.
3. Tolerance of overall epoxy outline: ±0.020" unless otherwise noted.
4. Epoxy meniscus may extend to 0.060" max.
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Revision A 12/10
Page 2 of 5
5mm (T1) Package Discrete LED
3mm (T1)¾) Package Discrete LED
LEDs
3mm (T1 Package Discrete LED
GREEN
AMBERWHITE
WARM
Absolute Maximum Ratings
T
A
= 25°C unless otherwise noted
Power Dissipation
Forward Current ( DC )
Peak Forward Current
1
Reverse Voltage
Operating Temperature Range
Storage Temperature Range
Lead Soldering Temperature ( 3 mm from the base of the epoxy bulb )
2
Notes: 1. 10% Duty Cycle, Pulse Width
≤
0.1 msec.
120 mW
30 mA
100mA
5V
-25 ~ +80°C
-30 ~ +80°C
260°C
2. Solder time less than 5 seconds at temperature extreme.
Electrical / Optical Characteristics
T
A
= 25°C & I
F
= 20 mA unless otherwise noted
Forward
Voltage (V)
1
Recommend
Forward
Current (mA)
Reverse
Current
(μA)
MAX
10
Luminous
Intensity Iv (mcd)
MIN
TYP
MAX
/
/
/
/
Viewing
Angle
2
Ө
½
(deg)
TYP
35
35
30
30
Part Number
CCT (Kelvin)
MIN
/
/
/
/
TYP
3100
3100
3100
3100
MAX
/
/
/
/
MIN TYP MAX MIN TYP MAX
3UWC5.035W-F
3UWC8.035W-F
3UWC5.030W
3UWC8.030W
3.0
3.4
3.8
/
20
/
4000 5000
6000 8000
4000 5000
6000 8000
3.0
3.4
3.8
/
20
/
10
Notes: 1. Tolerance of forward voltage : ±0.05V.
Directivity Radiation
—
Relative Luminous Intensity vs. Radiation Angle
Ta = 25°C unless other noted
(30° Viewing Angle)
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
(35° Viewing Angle)
Revision A 12/10
Page 3 of 5
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
5mm (T1) Package Discrete LED
3mm (T1)¾) Package Discrete LED
LEDs
3mm (T1 Package Discrete LED
GREEN
AMBERWHITE
WARM

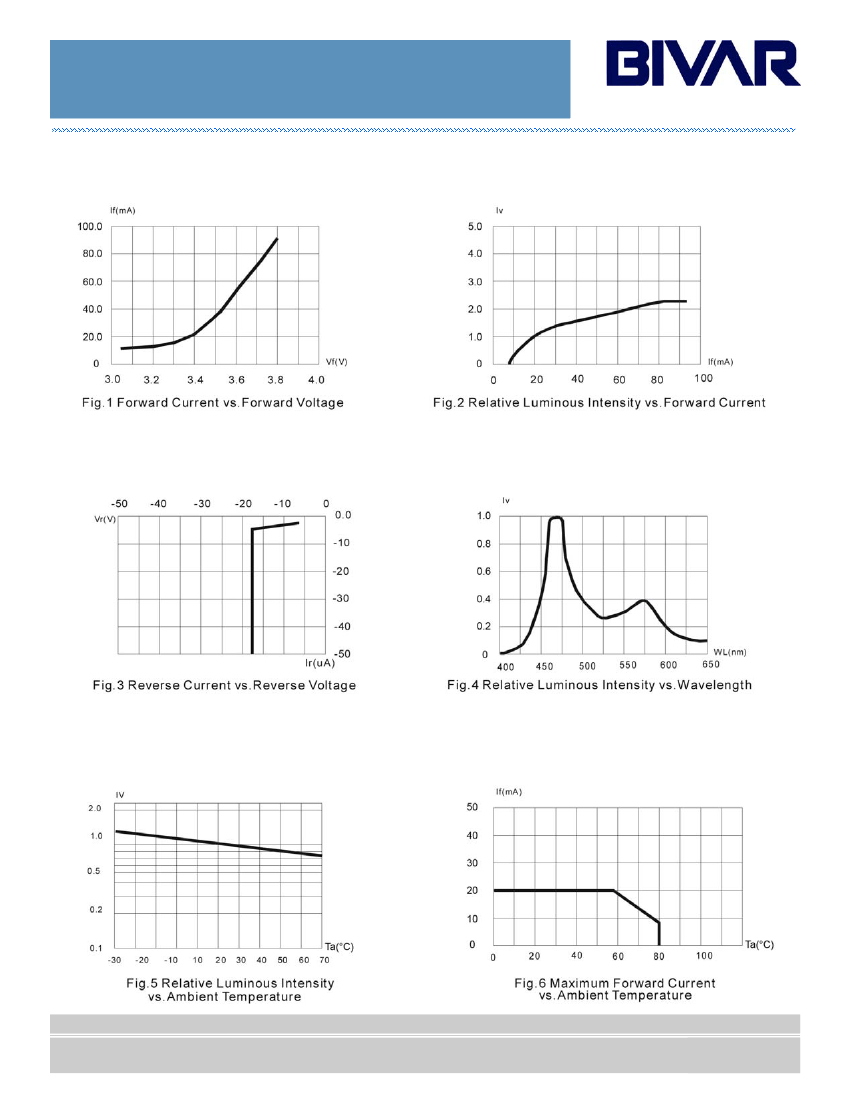

Typical Electrical / Optical Characteristics
T
A
= 25°C unless otherwise noted
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Revision A 12/10
Page 4 of 5
5mm (T1) Package Discrete LED
3mm (T1)¾) Package Discrete LED
LEDs
3mm (T1 Package Discrete LED
GREEN
AMBERWHITE
WARM
Recommended Soldering Conditions
Recommended Lead Free Wave Soldering Profile
Preheat Temperature: 100ºC Max.
Preheat Time: 20 ~ 50 Seconds
Peak Temperature: 260ºC Max.
Solder Time Above 217ºC: 5 Seconds Max.
Note: Turn off top heater at preheat to prevent the lamp body directly exposed to the heat source.
Packaging and Labeling Plan
AntiStatic Poly Bag with Desiccant
(500 pcs Max. per Bag)
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Rev. A 01/16/08
Revision A 12/10
Page 4 of 4
Page 5 of 5
