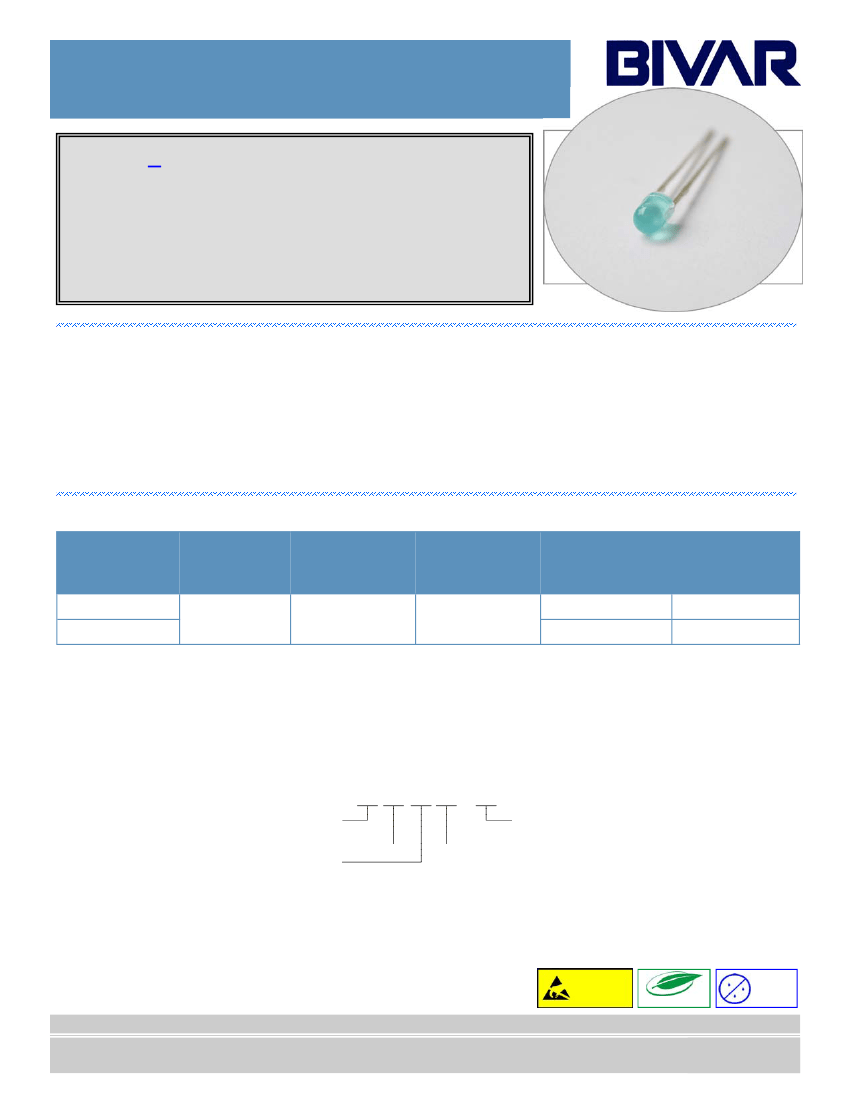

3mm (T1) Package Discrete LED
3mm (T1) Package Discrete LED
TURQUOISE, Bright
BLUE, Low Current
GREEN,
AMBER, Super Bright
AMBER Ultra Ultra Bright
Ultra Bright
BLUE, Low Current
B
3BWDL-X
♦
♦
♦
♦
♦
♦
Industry Standard 3mm (T1) Package
RoHS Compliant
Diffused Lens
Available in Flange (F) and Shouldered (S) Lead Frame
Styles
2 mA Low Operating Current
Ideal for Status Indication and Display
Bivar 3mm T1 Package 2 mA Low Current LED is special binned at 2 mA and is ideal for those applica-
tions where lower power budget is required such as solar panel or battery-powered portable devices.
Bivar offers diffused LED lens for uniform light output. The Flanged LED is ideal for Panel Mount Clip
& Ring assemblies. The Shouldered Lead frame LED is ideal for vertical spacer assemblies without
lead bends and also has a built in strain relief feature which is ideal for right angle holder assemblies
that require lead bends.
Part Number
3BWDL-F
3BWDL-S
Material
Emitted Color
Peak. Wavelength
λp(nm)
TYP.
430nm
Lens Appearance
Blue Diffused
Blue Diffused
Viewing Angle
35°
40°
GaN/SiC
BLUE
Part Number Designation
3 X X L -X
LED Body, mm
Emitted Color
Lens Appearance
Lead Frame & Body Style
i.e. -F, -S
Low Current
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
SENSITIVE DEVICES
RoHS
Compliant
Moisture
Sensitivity
Levels 1
Bivar reserves the right to make changes at any time without notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Revision C 06/15
Page 1 of 5
3mm (T1) Package Discrete LED
LEDs
3mm (T1) Package Discrete LED
TURQUOISE, Bright
BLUE, Low Current
GREEN,
AMBER, Super Bright
AMBER Ultra Ultra Bright
BLUE, Ultra Bright

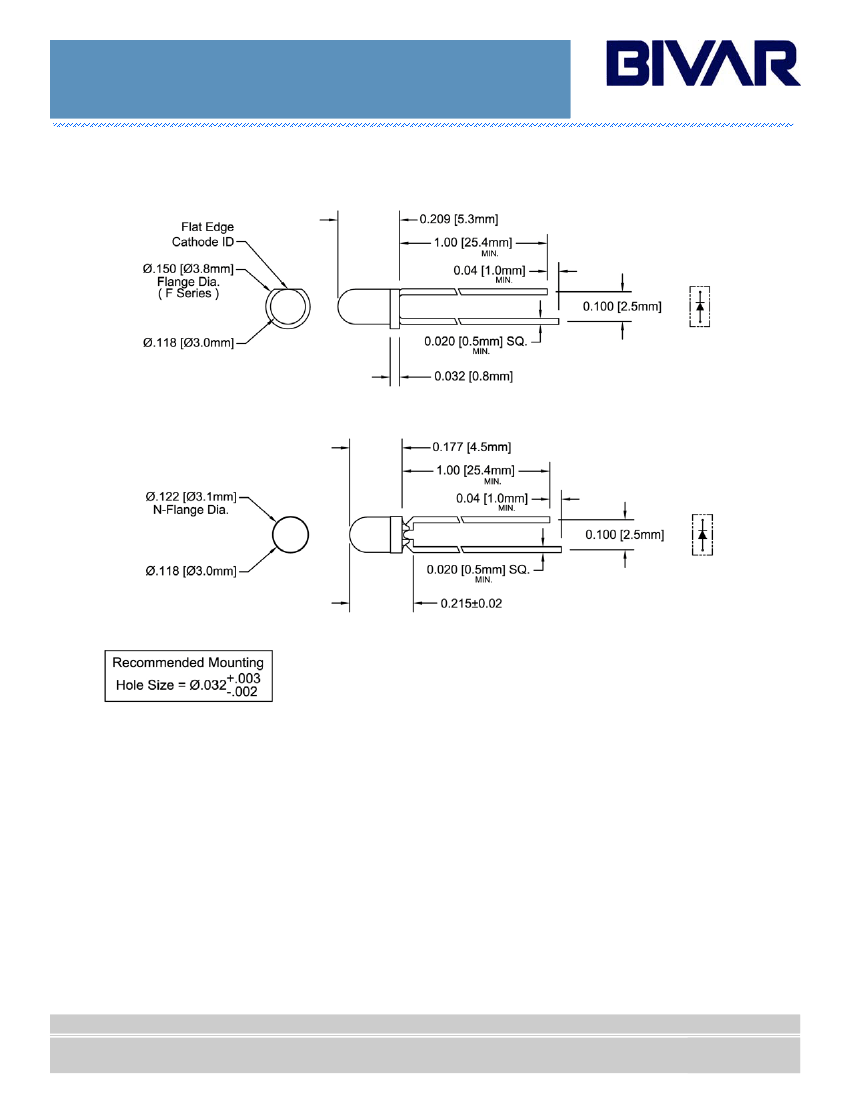

Outline Dimensions
Flanged “3XXL-F” LED
Shouldered Lead “3XXL-S” LED
Outline Drawings Notes:
1. All dimensions are in inches [millimeters].
2. Standard tolerance: ±0.010" unless otherwise noted.
3. Tolerance of overall epoxy outline: ±0.020" unless otherwise noted.
4. Epoxy meniscus may extend to 0.060" max.
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Revision C 06/15
Page 2 of 5
3mm (T1) Package Discrete LED
LEDs
3mm (T1) Package Discrete LED
TURQUOISE, Bright
BLUE, Low Current
GREEN,
AMBER, Super Bright
AMBER Ultra Ultra Bright
BLUE, Ultra Bright
Absolute Maximum Ratings
T
A
= 25°C unless otherwise noted
Power Dissipation
Forward Current ( DC )
Peak Forward Current
1
Reverse Voltage
Operating Temperature Range
Storage Temperature Range
Lead Soldering Temperature ( 3 mm from the base of the epoxy bulb )
2
Notes: 1. 10% Duty Cycle, Pulse Width
≤
0.1 msec.
20 mW
7 mA
/ mA
5V
-25 ~ +85°C
-30 ~ +100°C
260°C
2. Solder time less than 5 seconds at temperature extreme.
Electrical / Optical Characteristics
T
A
= 25°C & I
F
= 2 mA unless otherwise noted
Forward
Voltage (V)
1
Recommend
Forward
Current (mA)
Reverse
Dominant
Current
Wavelength (nm)
2
(μA)
MAX
100
MIN
/
/
TYP
/
/
MAX
/
/
Luminous
Intensity Iv (mcd)
MIN
/
/
TYP
2.5
2.5
MAX
/
/
Viewing
Angle
2
Ө
½
(deg)
TYP
35
40
Part Number
MIN TYP MAX MIN TYP MAX
3BWDL-F
3BWDL-S
/
3.8
4.2
/
2
/
Notes: 1. Tolerance of forward voltage : ±0.05V.
2. Tolerance of dominant wavelength : ±1.0nm.
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Revision C 06/15
Page 3 of 5
3mm (T1) Package Discrete LED
LEDs
3mm (T1) Package Discrete LED
TURQUOISE, Bright
BLUE, Low Current
GREEN,
AMBER, Super Bright
AMBER Ultra Ultra Bright
BLUE, Ultra Bright

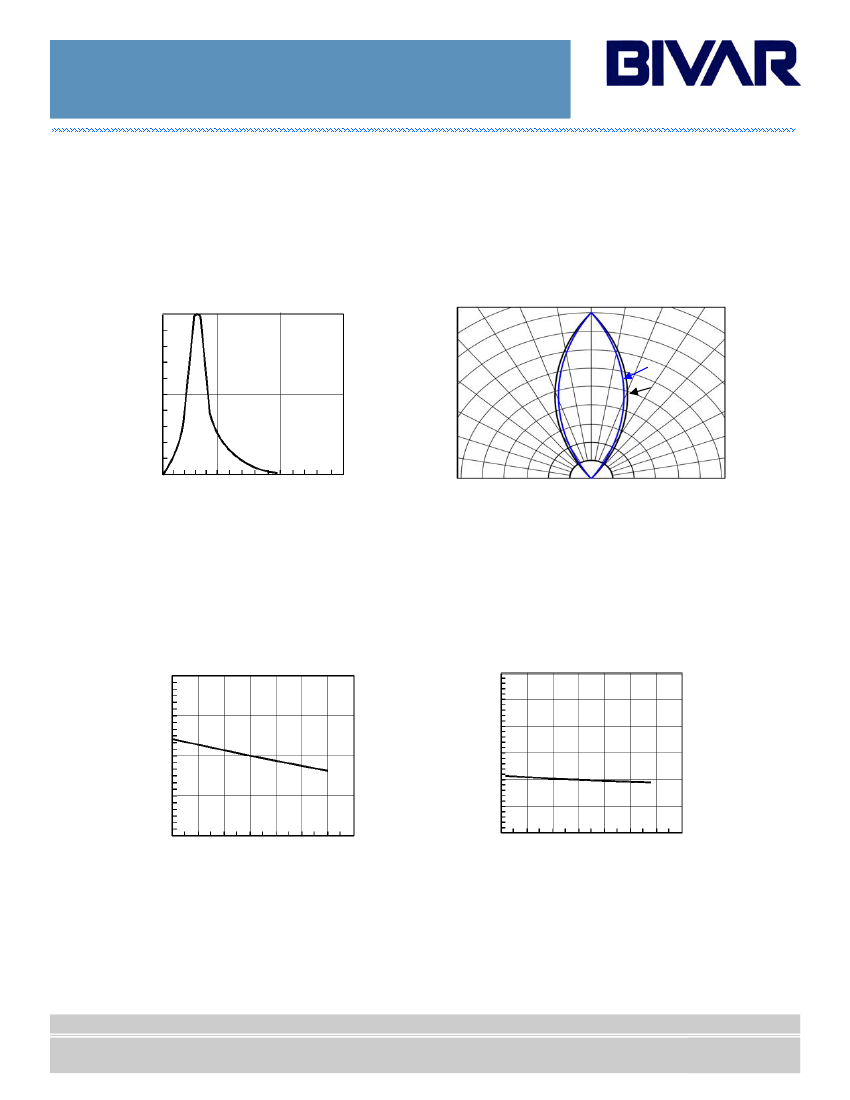

Typical Electrical / Optical Characteristics
T
A
= 25°C unless otherwise noted
Iv
0°
10°
20°
30°
40°
1.0
0.5
35°
40°
50°
60°
70°
80°
0.0
400
λ(nm)
90°
0.5
0.3
0.1
0.2
0.4
0.6
Fig. 2 Directivity Radiation Diagram
450
500
550
Fig. 1 Relative Luminous Intensity vs. Wavelength
Vf (V)
Iv
1.2
1.1
1.0
0.9
0.8
-40
T (°C)
3.0
2.0
1.0
0
40
80
0.0
T (°C)
-40
0
40
80
Fig. 3 Forward Voltage vs. Temperature
Fig. 4 Relative Luminous Intensity vs. Temperature
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Revision C 06/15
Page 4 of 5
3mm (T1) Package Discrete LED
LEDs
3mm (T1) Package Discrete LED
TURQUOISE, Bright
BLUE, Low Current
GREEN,
AMBER, Super Bright
AMBER Ultra Ultra Bright
BLUE, Ultra Bright
Recommended Soldering Conditions
Recommended Lead Free Wave Soldering Profile
Preheat Temperature: 100ºC Max.
Preheat Time: 20 ~ 50 Seconds
Peak Temperature: 260ºC Max.
Solder Time Above 217ºC: 5 Seconds Max.
Note: Turn off top heater at preheat to prevent the lamp body directly exposed to the heat source.
Packaging and Labeling Plan
AntiStatic Poly Bag with Desiccant
(500 pcs Max. per Bag)
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Rev. A 01/16/08
Revision C 06/15
Page 4 of 4
Page 5 of 5
