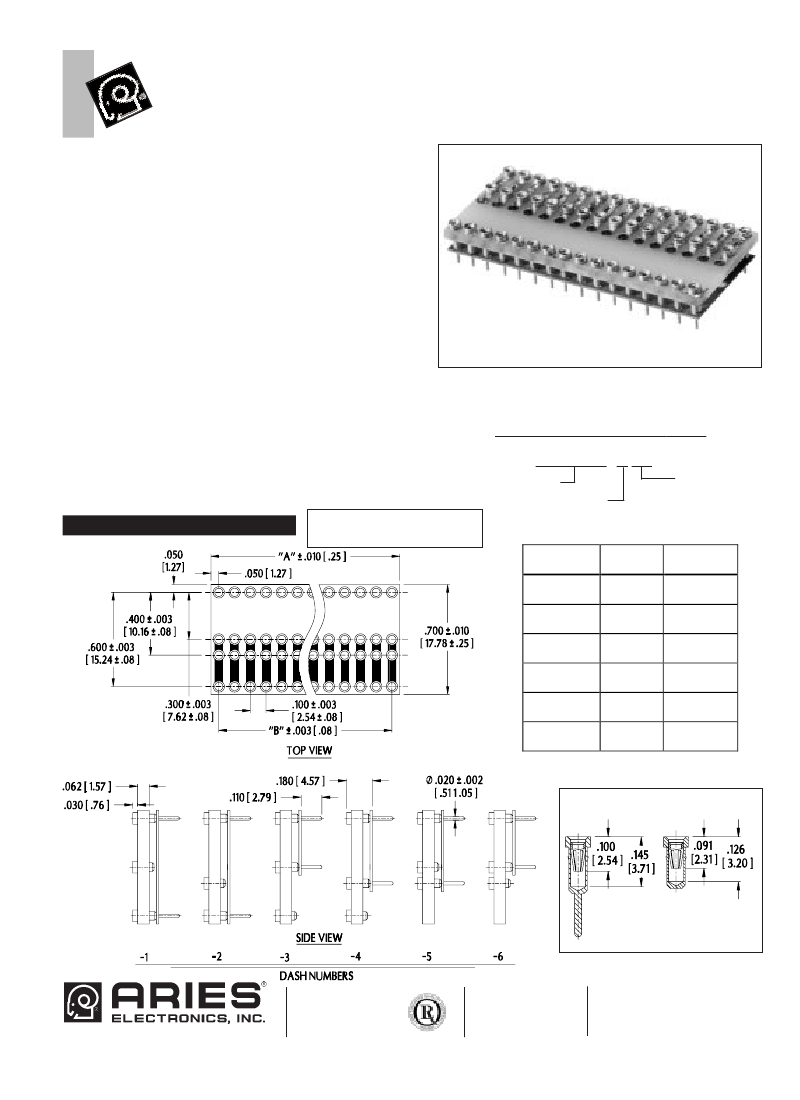

Part No. 1109335-XXX
LO-PRO
®
file DIP Adapter Sockets
FEATURES:
• LO-PRO
®
file adapters convert DIP ICs from one row-to-row
spacing to another.
• Available in six configurations and have an overall height of
only .180 [4.57].
SPECIFICATIONS:
• Socket body is FR-4, .062 [1.57] thick, with 1 ounce Copper
traces.
• Spacer is Phenolic Laminate (Fishpaper).
• Pin body is Brass Alloy 360 1/2 hard per UNS C36000
ASTM-B16-85.
• Pin body plating is 200u” [1.27um] min. 93/7 Tin/Lead per Mil-
P-81728 over 100u” [2.54um] min. Nickel per QQ-N-290.
• 4-fingered collet contact is Beryllium Copper Alloy per
UNS C17200 ASTM-B194-92.
• Contact plating is 10u” [.25um] min. Gold per MIL-G-45204
over 50u” [1.27um] min. Nickel per QQ-N-290.
• Contact current rating=3 Amps.
• Operating temperature=221°F [105°C].
• Insertion Force=180 grams/pin; Withdrawal Force=90
grams/pin; Normal Force=140 grams/pin; based on a .018 [.46]
diameter test lead.
• Accepts leads .015-.025 [.38-.64] in diameter, .100-.126
[2.54-3.20] long.
MOUNTING CONSIDERATIONS:
• Suggested PCB hole size=.030 ± .002 [.76 ± .05] dia.
Note: Aries specializes in custom design and production. In addition to the
standard products shown on this page, special materials, platings, sizes, and
configurations can be furnished, depending on quantities. Aries reserves the
right to change product specifications without notice.
ORDERING INFORMATION
11 0 9 3 3 5 - X X X
Basic part no.
Dash no.
(see table and diagram)
Par D as
t
h
N o.
-
1
-
2
-
3
-
4
-
5
-
6
D evi
ce
Cent s
er
.
300
[ 62]
7.
.
400
[ 16]
10.
.
600
[ 24]
15.
.
600
[ 24]
15.
.
300
[ 62]
7.
.
400
[ 16]
10.
No. of pins:
6 to 32
A
LL
DIMENSIONS
:
INCHES
[
MILLIMETERS
]
All tolerances ± .005 [.13]
unless otherwise specified
PCB H ol
e
Cent s
er
.
600
[ 24]
15.
.
600
[ 24]
15.
.
300
[ 62]
7.
.
400
[ 16]
10.
.
400
[ 16]
10.
.
300
[ 62]
7.
http://www.arieselec.com • info@arieselec.com
NORTH AMERICA
Frenchtown, NJ USA
TEL: (908) 996-6841
FAX: (908) 996-3891
UK/IRELAND/GB
TEL: +44 870 240 0249
FAX: +44 1653 600493
uking@arieselec.com
EUROPE/MAINLAND/HOLLAND
TEL: +31 78 615 94 65
FAX: +31 78 615 43 11
12031
europe@arieselec.com
REV.C
