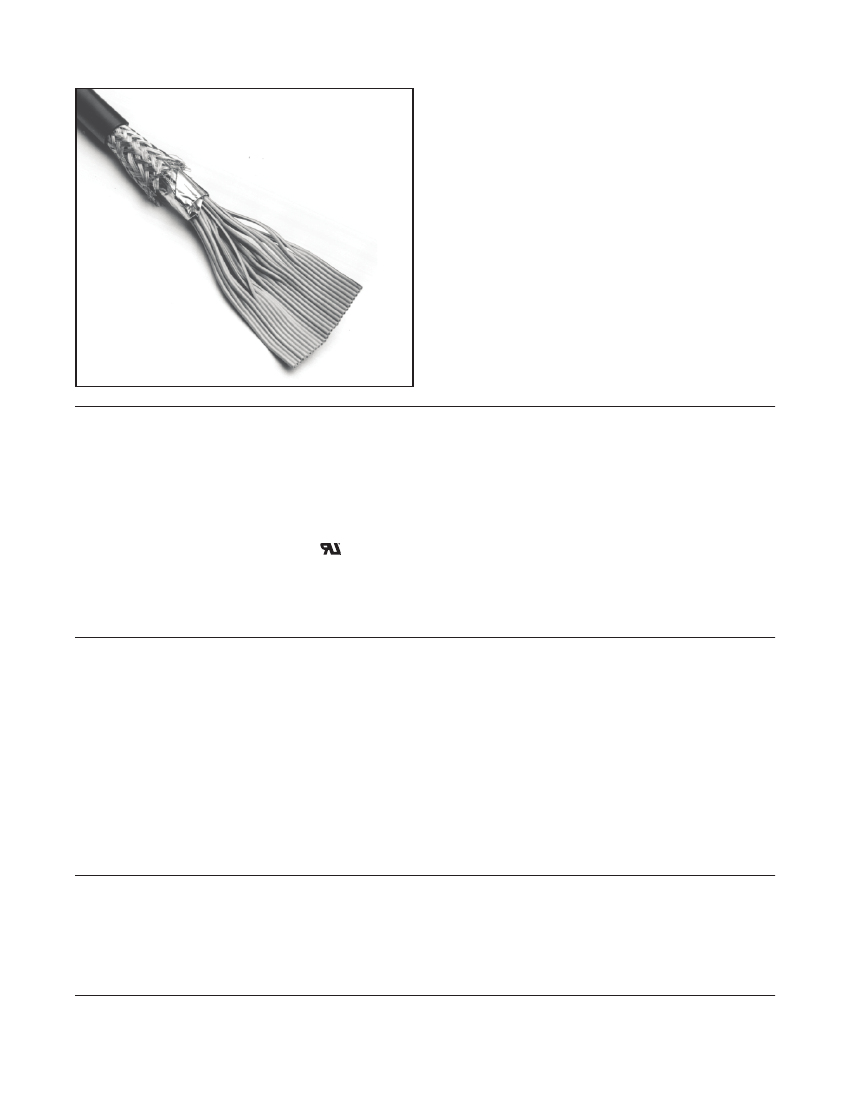

Note: Unbalanced is measured between ground-signal-ground conductors with shield grounded. Balanced is measured between signal conductors within a pair, with the shield floating.
Environmental
Temperature Rating:
USA: -20° C to +105° C
Flammability Rating:
USA: VW-1
Canada: -20° C to +80° C
Canada: FT1
UL File No.: E118773, Power Limited Circuit Cable: CL2 (or AWM Style 20267)
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

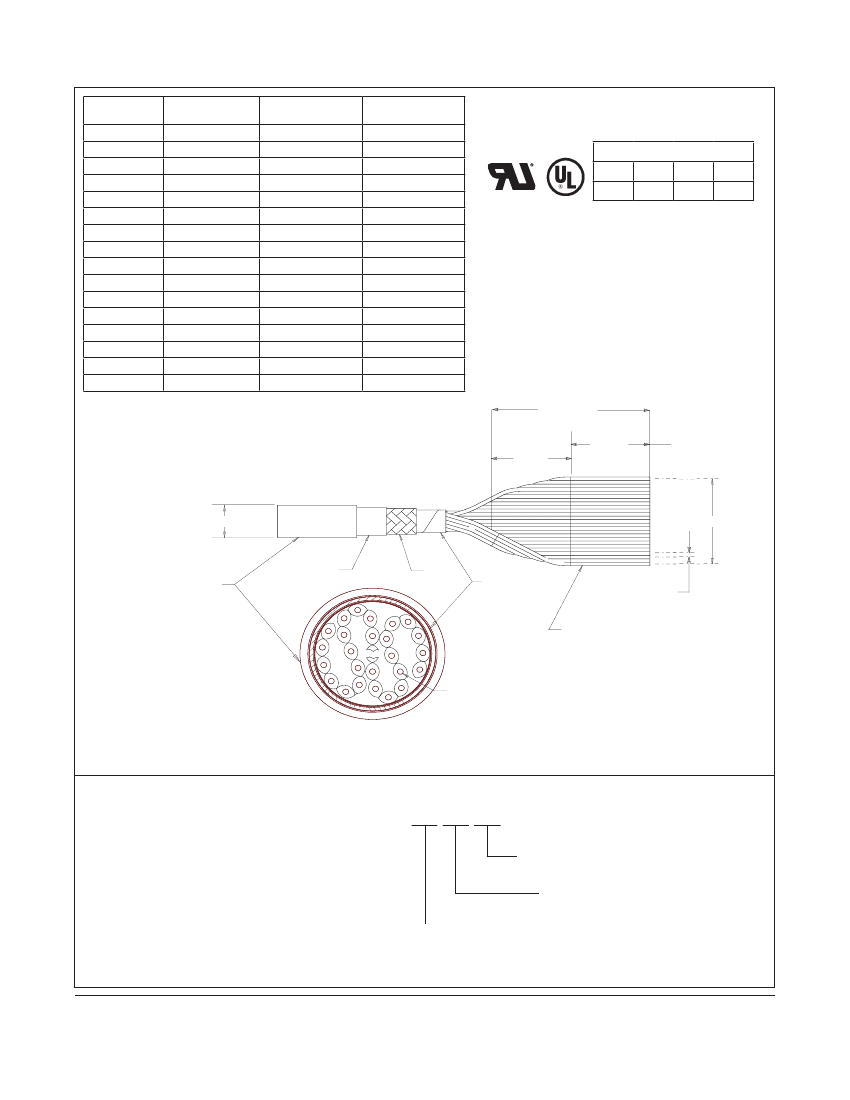

Round, Shielded/Jacketed, Flat Cable
.050" 28 AWG Stranded, Mass Terminatable, PVC/PVC
Number of
Conductors
09
10
14
15
3M Part Number
3659/09
3659/10
3659/14
3659/15
Dimension A
0.27 [ 6.9 ]
0.27 [ 6.9 ]
0.31 [ 7.9 ]
0.31 [ 7.9 ]
Dimension B Ref
(See Note 2)
0.40 [ 10.2 ]
0.45 [ 11.4 ]
0.65 [ 16.5 ]
0.70 [ 17.8 ]
.0
Inch
±.1
Inch
[mm]
Tolerance Unless Noted
C
.00
±.05
.000
±.010
3659 Series
16
20
24
25
26
34
36
37
40
50
60
64
3659/16
3659/20
3659/24
3659/25
3659/26
3659/34
3659/36
3659/37
3659/40
3659/50
3659/60
3659/64
0.37 [ 9.4 ]
0.37 [ 9.4 ]
0.41 [ 10.4 ]
0.43 [ 10.9 ]
0.43 [ 10.9 ]
0.43 [ 10.9 ]
0.48 [ 12.2 ]
0.51 [ 13.0 ]
0.54 [ 13.7 ]
0.31 [ 7.9 ]
0.34 [ 8.6 ]
0.37 [ 9.4 ]
0.75 [ 19.1 ]
0.95 [ 24.1 ]
1.15 [ 29.2 ]
[ ] Dimensions for Reference Only
1.20 [ 30.5 ]
1.25 [ 31.8 ]
1.65 [ 41.9 ]
1.75 [ 44.5 ]
1.80 [ 45.7 ]
1.95 [ 49.5 ]
2.45 [ 62.2 ]
2.95 [ 74.9 ]
3.15 [ 80.0 ]
2.4 Ref
[61]
Bonded
1.0 Ref.
[25]
Contact 3M for availability of additional conductor counts.
R
Split
Ø
A
B
.026 Min [0.66]
PVC Jacket
Paper
[ Mfgr Option ]
Braid
Aluminum
Polyester
Film Foil
0.050 Typ
[ 1.27 ]
PVC Primary Insulation
28 AWG, 7 X 36 AWG [ 7 X
Ø
0.127 ]
Tinned Stranded Copper Conductors
Notes:
1.
Red marking on one edge of primary cable designates wire #1.
2.
Dimension B pertains to bonded area only.
Ordering Information
3659 / XX XX XX
Blank = Standard
SF = Splice Free
Blank = Standard
SO = Continuously Bonded Wire
(No Split)
Note: Available in standard lengths of 100 ft or 300 ft rolls,
please specify when ordering. Contact 3M for availability of
additional conductor counts and/or custom roll lengths.
Number of Conductors
(See Table)
TS-0083-B
Sheet 2 of 2
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Regulatory Information Appendix
