CAT24C16ZJI datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> CAT24C16ZJI

CAT24C16ZJI: DescriptionEEPROM, 2KX8, Serial, CMOS, PDSO8, 0.150 INCH, SOIC-8; Categorystorage storage; File Size305KB，8 Pages; ManufacturerCatalyst; Websitehttp://www.catalyst-semiconductor.com/

Download Datasheet Parametric Compare View All

CAT24C16ZJI Overview

EEPROM, 2KX8, Serial, CMOS, PDSO8, 0.150 INCH, SOIC-8

CAT24C16ZJI Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Catalyst
Parts packaging code	SOIC
package instruction	SOP, SOP8,.25
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	2 WIRE INTERFACE; PAGE WRITE
Maximum clock frequency (fCLK)	0.1 MHz
Data retention time - minimum	100
I2C control byte	1010MMMR
JESD-30 code	R-PDSO-G8
JESD-609 code	e0
length	4.9 mm
memory density	16384 bit
Memory IC Type	EEPROM
memory width	8
Number of functions	1
Number of terminals	8
word count	2048 words
character code	2000
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	2KX8
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	SERIAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	1.75 mm
Serial bus type	I2C
Maximum standby current	9e-7 A
Maximum slew rate	0.003 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	3.9 mm
Maximum write cycle time (tWC)	10 ms
Base Number Matches	1

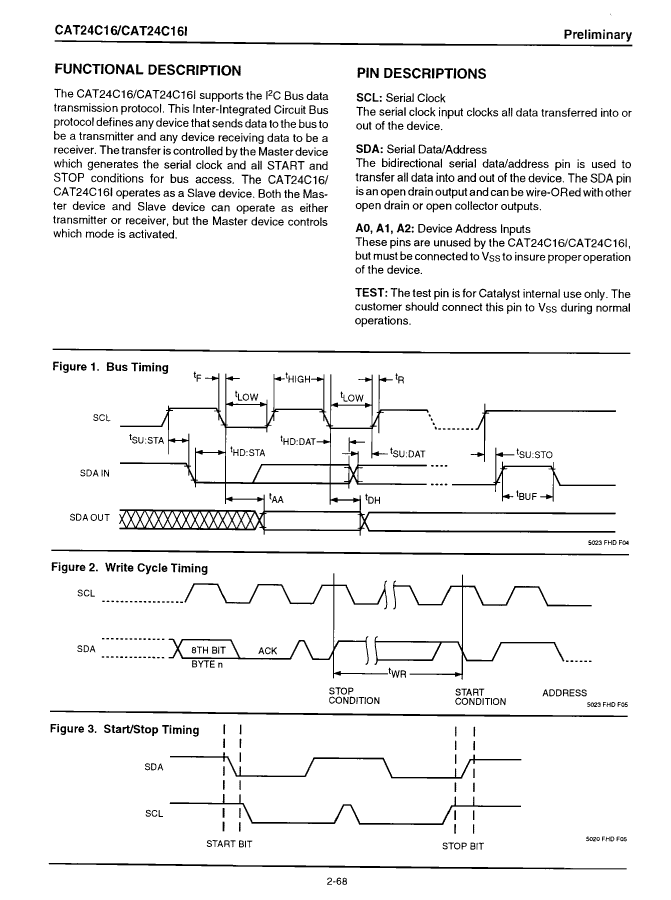

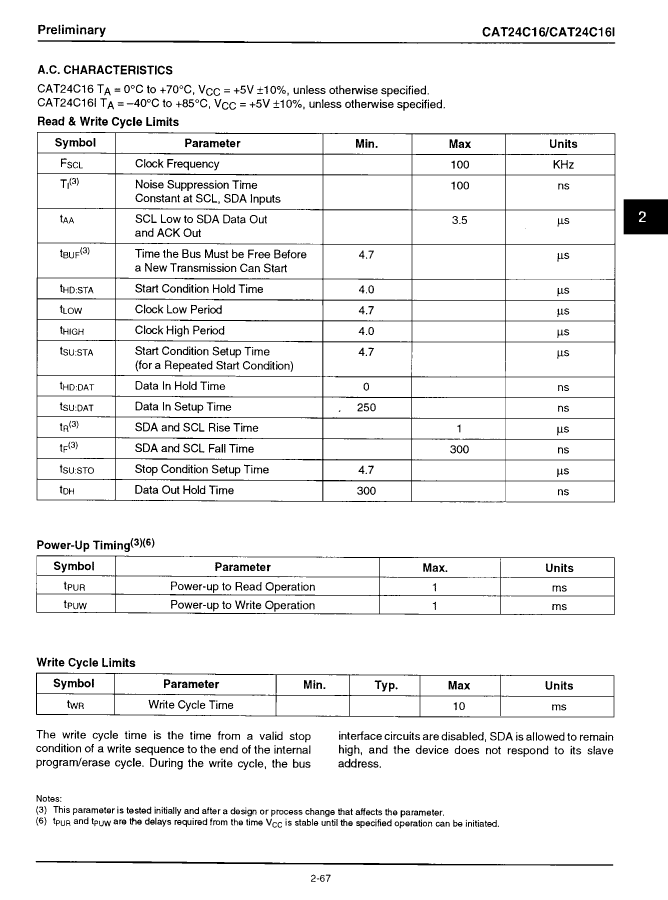

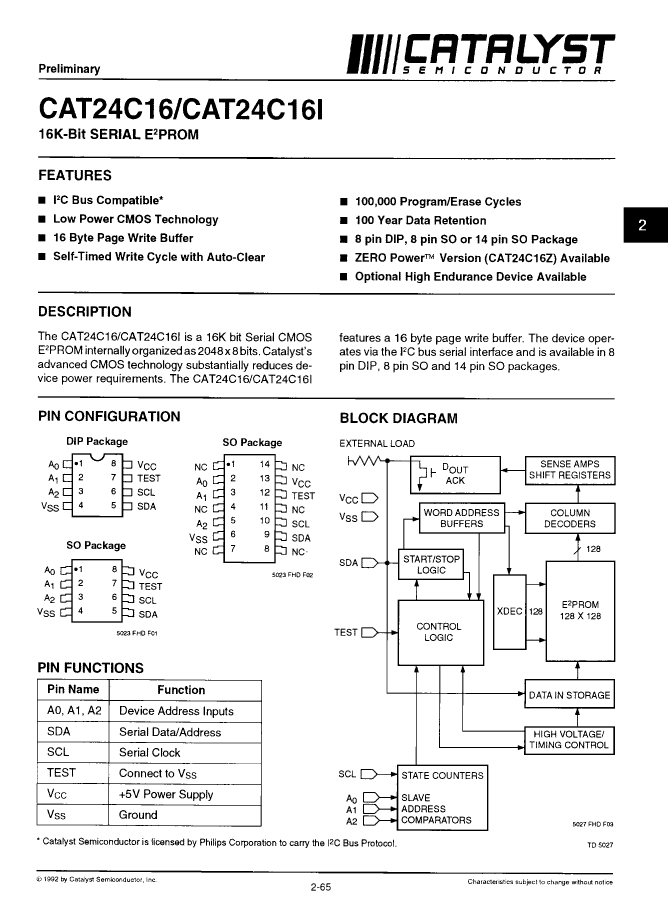

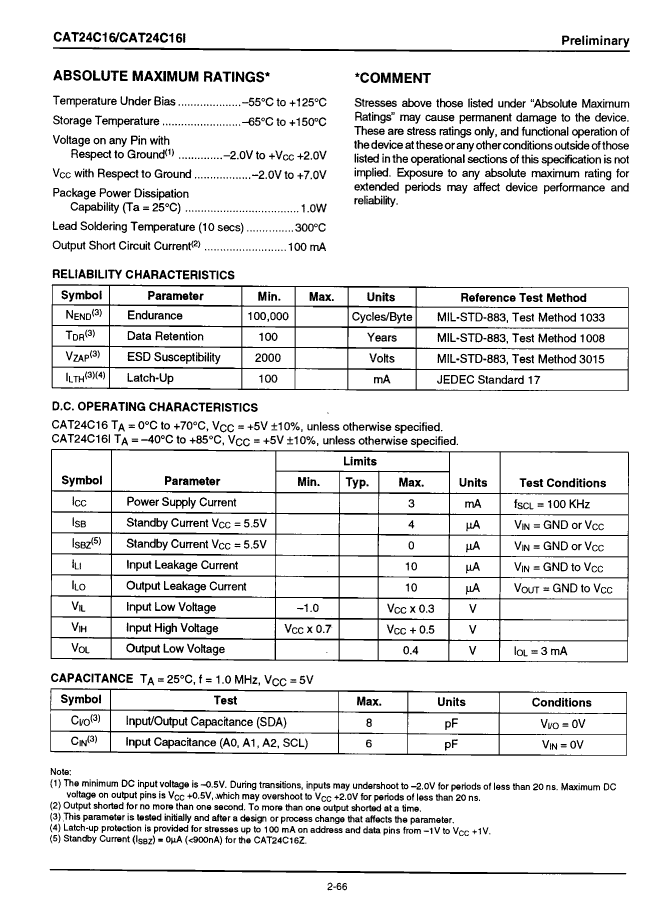

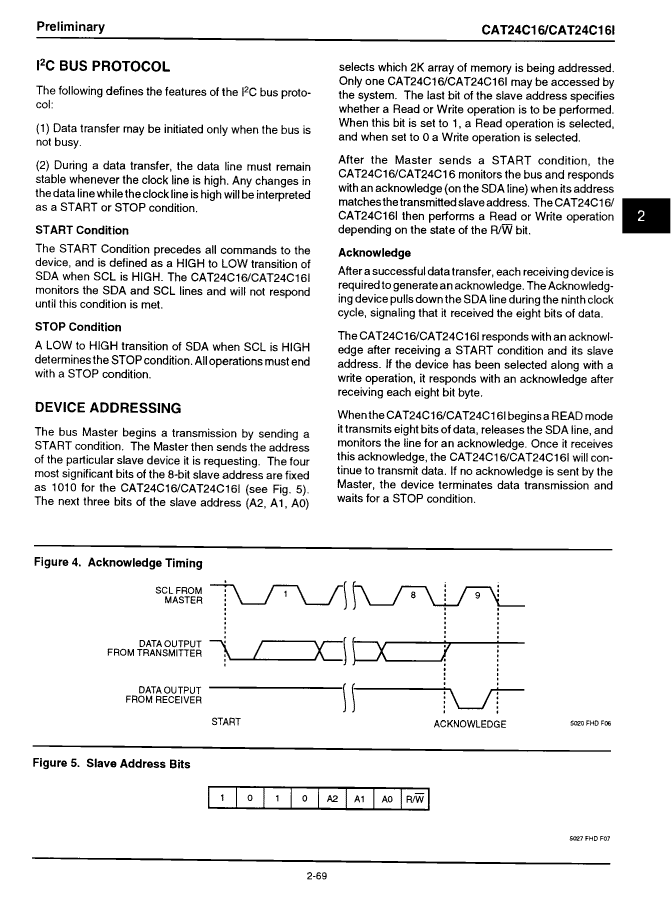

Preview

Download Datasheet

View All

CAT24C16ZJI Related Products

	CAT24C16ZJI	CAT24C16ZJ14I	CAT24C16ZJ	CAT24C16J14	CAT24C16ZJ14	CAT24C16J14I	CAT24C16J	CAT24C16JI	CAT24C16ZPI	CAT24C16ZP
Description	EEPROM, 2KX8, Serial, CMOS, PDSO8, 0.150 INCH, SOIC-8	EEPROM, 2KX8, Serial, CMOS, PDSO14, 0.150 INCH, SOIC-14	EEPROM, 2KX8, Serial, CMOS, PDSO8, 0.150 INCH, SOIC-8	EEPROM, 2KX8, Serial, CMOS, PDSO14, 0.150 INCH, SOIC-14	EEPROM, 2KX8, Serial, CMOS, PDSO14, 0.150 INCH, SOIC-14	EEPROM, 2KX8, Serial, CMOS, PDSO14, 0.150 INCH, SOIC-14	EEPROM, 2KX8, Serial, CMOS, PDSO8, 0.150 INCH, SOIC-8	EEPROM, 2KX8, Serial, CMOS, PDSO8, 0.150 INCH, SOIC-8	EEPROM, 2KX8, Serial, CMOS, PDIP8, 0.300 INCH, PLASTIC, DIP-8	EEPROM, 2KX8, Serial, CMOS, PDIP8, 0.300 INCH, PLASTIC, DIP-8
Maker	Catalyst	Catalyst	Catalyst	Catalyst	Catalyst	Catalyst	Catalyst	Catalyst	Catalyst	Catalyst
Parts packaging code	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC	DIP	DIP
package instruction	SOP, SOP8,.25	SOP, SOP14,.25	SOP, SOP8,.25	SOP, SOP14,.25	SOP, SOP14,.25	SOP, SOP14,.25	SOP, SOP8,.25	SOP, SOP8,.25	DIP, DIP8,.3	DIP, DIP8,.3
Contacts	8	14	8	14	14	14	8	8	8	8
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	2 WIRE INTERFACE; PAGE WRITE	2 WIRE INTERFACE; PAGE WRITE	2 WIRE INTERFACE; PAGE WRITE	2 WIRE INTERFACE; PAGE WRITE	2 WIRE INTERFACE; PAGE WRITE	2 WIRE INTERFACE; PAGE WRITE	2 WIRE INTERFACE; PAGE WRITE	2 WIRE INTERFACE; PAGE WRITE	2 WIRE INTERFACE; PAGE WRITE	2 WIRE INTERFACE; PAGE WRITE
Maximum clock frequency (fCLK)	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz
Data retention time - minimum	100	100	100	100	100	100	100	100	100	100
I2C control byte	1010MMMR	1010MMMR	1010MMMR	1010MMMR	1010MMMR	1010MMMR	1010MMMR	1010MMMR	1010MMMR	1010MMMR
JESD-30 code	R-PDSO-G8	R-PDSO-G14	R-PDSO-G8	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G8	R-PDSO-G8	R-PDIP-T8	R-PDIP-T8
length	4.9 mm	8.65 mm	4.9 mm	8.65 mm	8.65 mm	8.65 mm	4.9 mm	4.9 mm	9.27 mm	9.27 mm
memory density	16384 bit	16384 bit	16384 bit	16384 bit	16384 bit	16384 bit	16384 bit	16384 bit	16384 bit	16384 bit
Memory IC Type	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM
memory width	8	8	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	8	14	8	14	14	14	8	8	8	8
word count	2048 words	2048 words	2048 words	2048 words	2048 words	2048 words	2048 words	2048 words	2048 words	2048 words
character code	2000	2000	2000	2000	2000	2000	2000	2000	2000	2000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	85 °C	85 °C	70 °C	70 °C	70 °C	85 °C	70 °C	85 °C	85 °C	70 °C
organize	2KX8	2KX8	2KX8	2KX8	2KX8	2KX8	2KX8	2KX8	2KX8	2KX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	SOP	SOP	SOP	SOP	SOP	DIP	DIP
Encapsulate equivalent code	SOP8,.25	SOP14,.25	SOP8,.25	SOP14,.25	SOP14,.25	SOP14,.25	SOP8,.25	SOP8,.25	DIP8,.3	DIP8,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE
Parallel/Serial	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	1.75 mm	1.75 mm	1.75 mm	1.75 mm	1.75 mm	1.75 mm	1.75 mm	4.57 mm	4.57 mm
Serial bus type	I2C	I2C	I2C	I2C	I2C	I2C	I2C	I2C	I2C	I2C
Maximum standby current	9e-7 A	9e-7 A	9e-7 A	9e-7 A	9e-7 A	9e-7 A	9e-7 A	9e-7 A	9e-7 A	9e-7 A
Maximum slew rate	0.003 mA	0.003 mA	0.003 mA	0.003 mA	0.003 mA	0.003 mA	0.003 mA	0.003 mA	0.003 mA	0.003 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	3.9 mm	3.9 mm	3.9 mm	3.9 mm	3.9 mm	3.9 mm	3.9 mm	3.9 mm	7.62 mm	7.62 mm
Maximum write cycle time (tWC)	10 ms	10 ms	10 ms	10 ms	10 ms	10 ms	10 ms	10 ms	10 ms	10 ms
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	-	-	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	-	-	incompatible	incompatible
JESD-609 code	e0	e0	e0	e0	e0	e0	-	-	e0	e0
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	-	NOT SPECIFIED	NOT SPECIFIED
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	-	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	1	1	1	1	1	1	-	-	-	-
