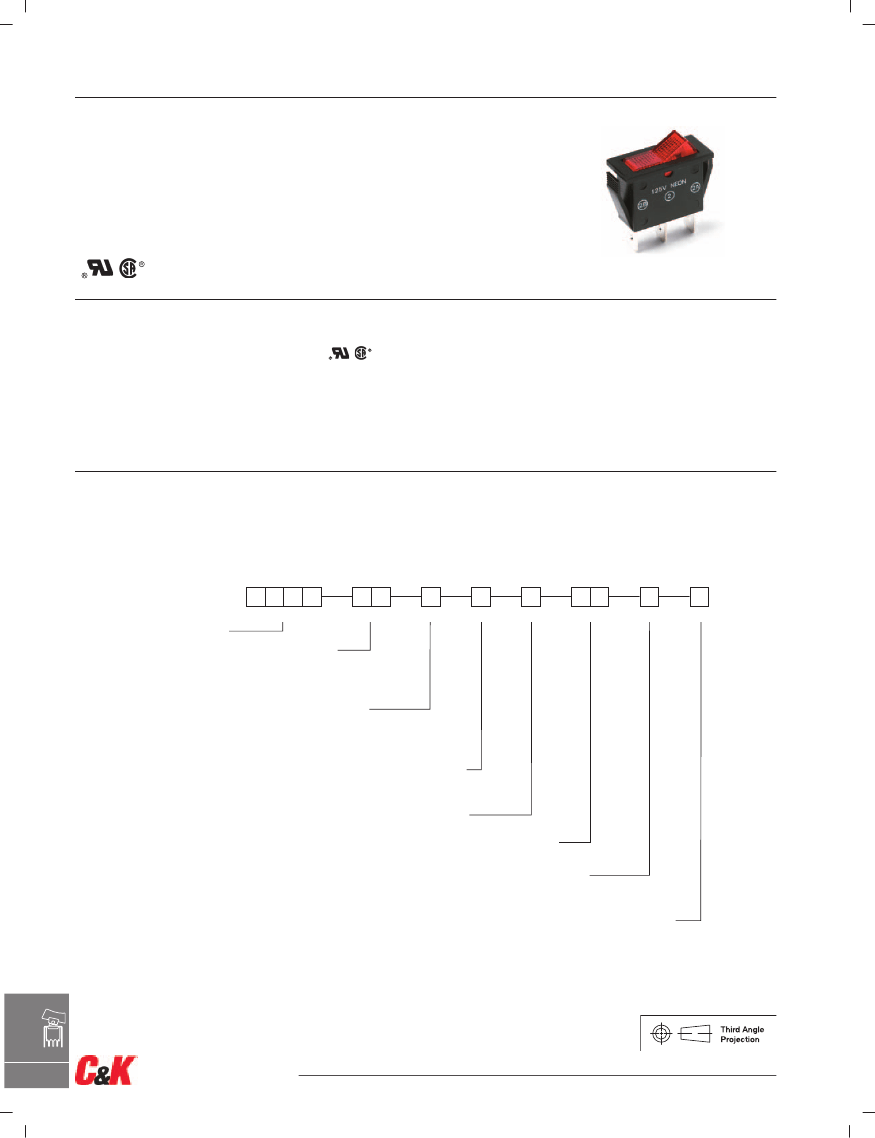

CA Series
Illuminated Power Rocker Switches
Features/Benefits
•
15 AMPS @ 125 V AC
•
Illuminated actuator
•
Various actuator styles
Typical Applications
•
Power outlet strips
•
Appliances
•
Handling and packaging machines
•
RoHS compliant
Models Available
Specifications
CONTACT RATING: 15 AMPS @ 125 V AC; 10 AMPS
@ 250 V AC; 1/4 HP @ 125 V AC or 250 V AC
.
ELECTRICAL LIFE: 10,000 make-and-break cycles at full load.
LAMP LIFE: 20,000 hours typ.
INSULATION RESISTANCE: 109
Ω
min.
DIELECTRIC STRENGTH: 1,000 Vrms min. @ sea level.
Materials
HOUSING: 6/6 nylon (UL 94V-2), black.
ACTUATOR: Polycarbonate (UL 94V-2), red.
CONTACTS: Coin silver, silver plated.
OPERATING TEMPERATURE: -30ºC to +65ºC
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown and
described on pages G–110 through G–112. For additional options not shown in catalog, consult Customer Service Center.
Switch Function
CA04
SPST, On-Off
CA24
DPST, On-Off
Actuator
J1
Rocker
J7
Curved rocker
Actuator Color
3
Red translucent
5
Yellow translucent
6
Green translucent
Lamp Voltage
7
125 V neon
8
250 V neon
Housing Color
2
Black
1
White
Terminations
07
Quick connect
Actuator Markings
NONE
No markings
D
ON-OFF
H
O|
Contact Material
P
O–
Q
Silver
Rocker
G
G–106
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
www.ck-components.com
CA Series
Illuminated Power Rocker Switches

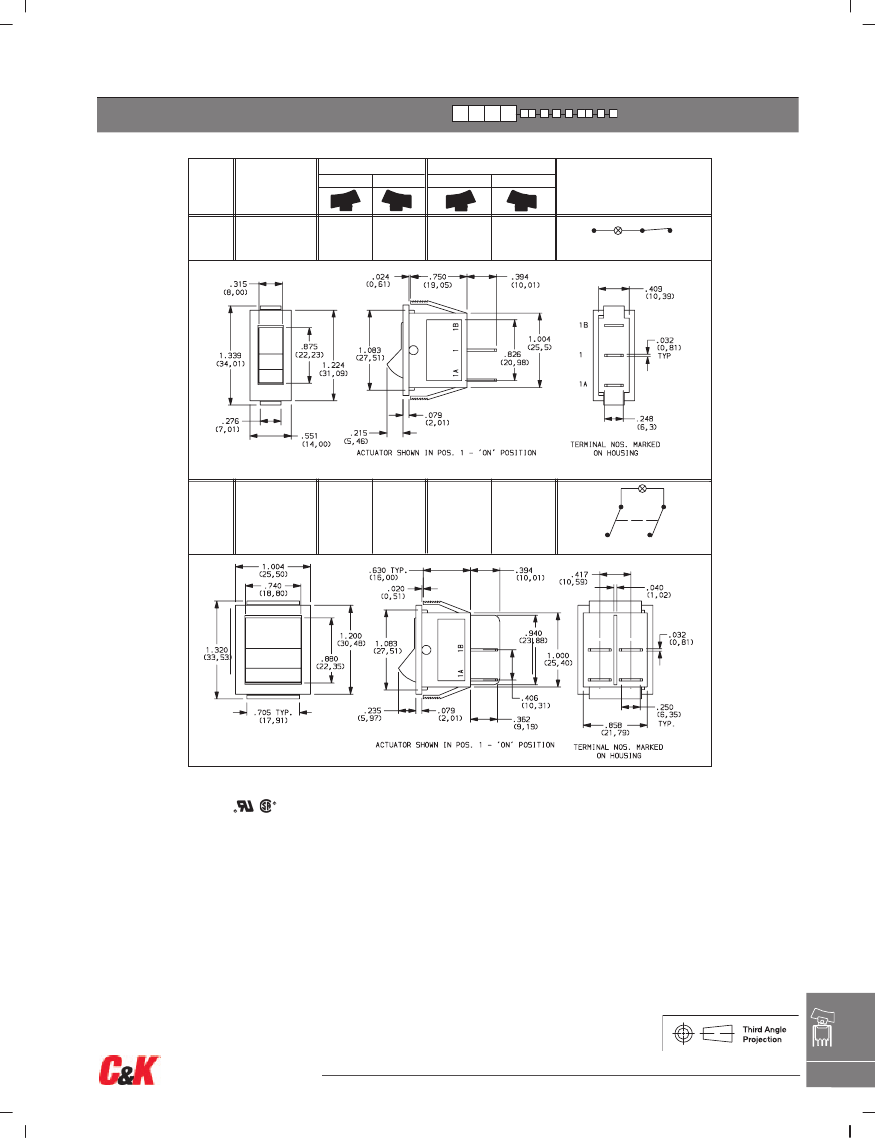

SWITCH FUNCTION
SWITCH FUNCTION
POS. 1
NO.
POLES
MODEL
NO.
POS. 2
CONNECTED TERMINALS
POS. 1
POS. 2
SCHEMATIC
SP
CA04
ON
OFF
1-1A
OPEN
SPST
1B
1
1A
SPST
Part number shown: CA04J137207Q
DP
CA24
1
2
ON
OFF
1-1A, 2-2A
OPEN
DPST
1A
2A
DPST
Part number shown: CA24J137207Q
See CONTACT MATERIAL section, page G–112, for complete contact ratings and agency approvals.
Contacts make on side opposite actuator thrown.
All models
with all options.
Rocker
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
G–107
www.ck-components.com
G
CA Series
Illuminated Power Rocker Switches
ACTUATOR
J1
ROCKER
SP
J7
CURVED ROCKER
SP
.215
(5,46)
DP
DP
ACTUATOR COLOR
NEON LAMP VOLTAGE
7
8
125 V NEON
250 V NEON
OPTION
CODE
ACTUATOR
COLOR
RED TRANSLUCENT
YELLOW
GREEN
3
5
6
NOTE:
Special colors available,
consult Customer Service Center.
HOUSING COLOR
Rocker
OPTION
CODE
HOUSING
COLOR
BLACK
WHITE
2
1
NOTE:
Housing frame finish: matte. Special colors
available, consult Customer Service Center.
G
G–108
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
www.ck-components.com
CA Series
Illuminated Power Rocker Switches

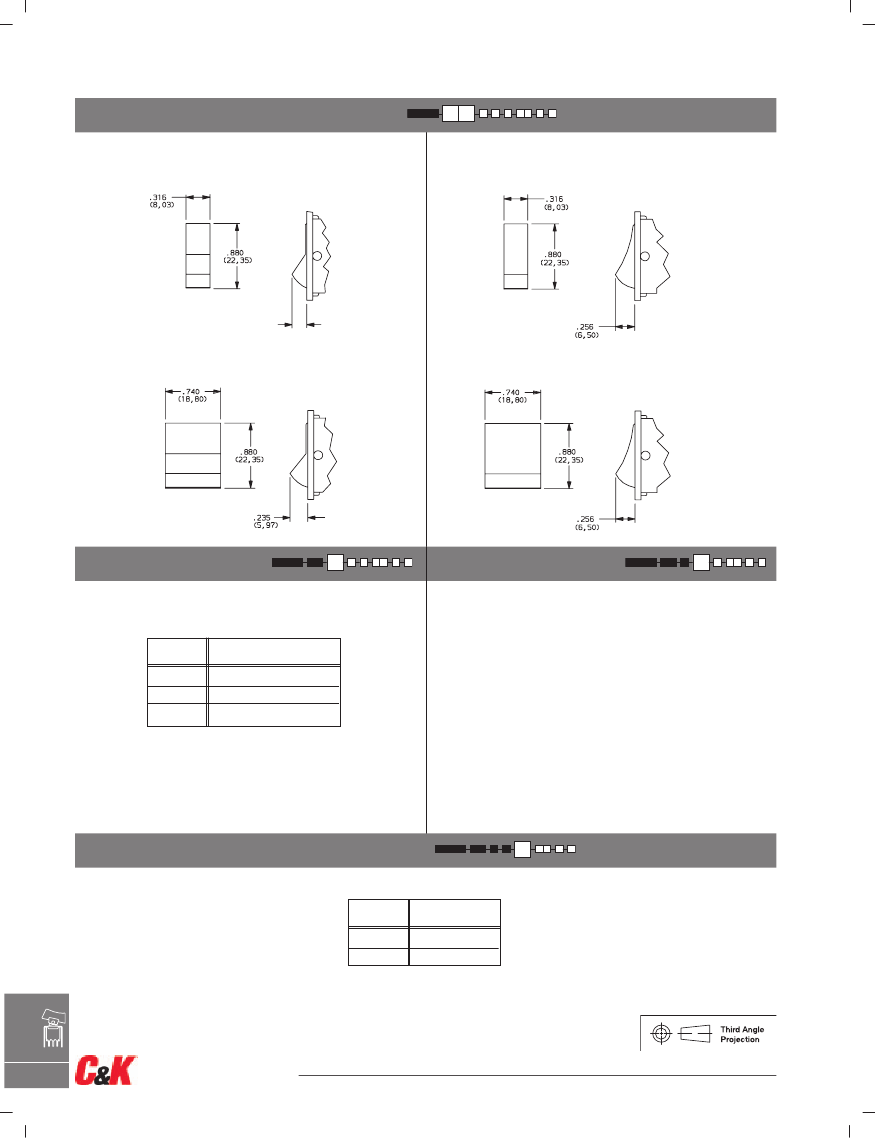

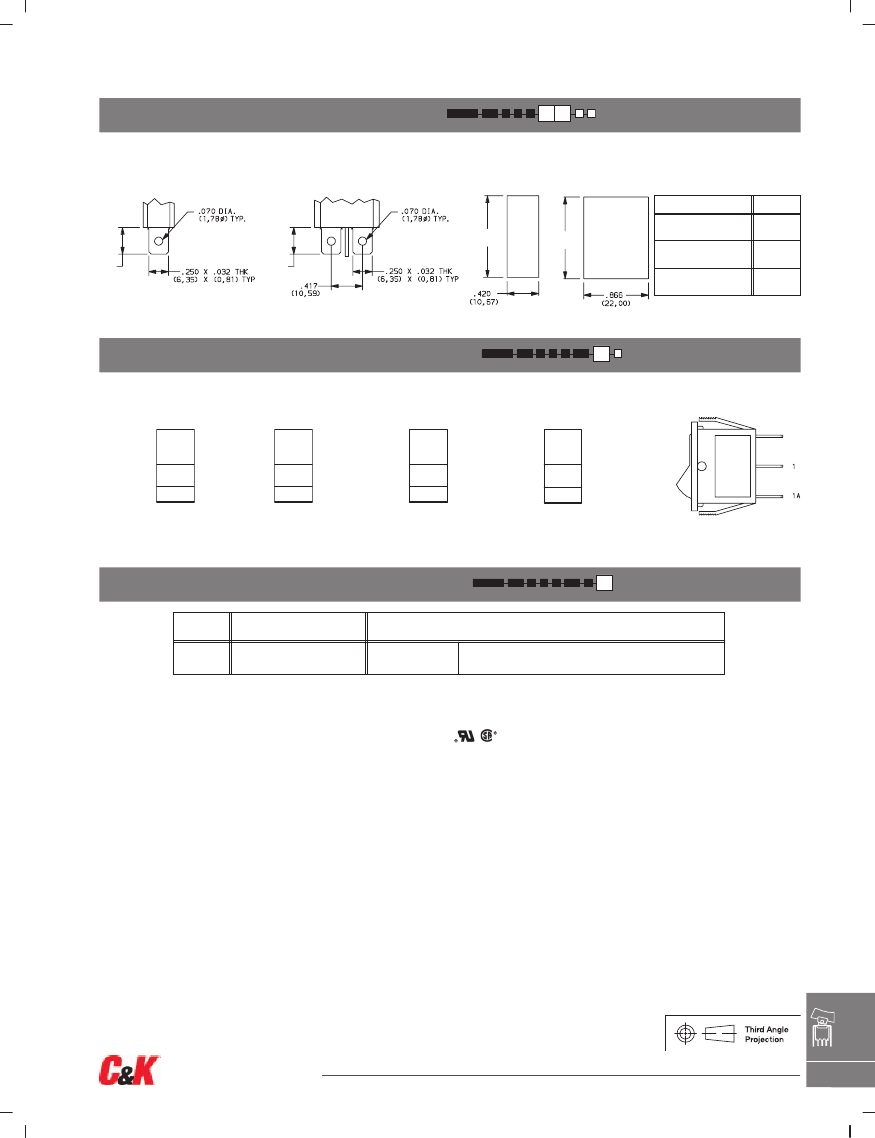

TERMINATIONS
07
QUICK CONNECT
PANEL MOUNTING
SP
DP
SP
DP
PANEL THICKNESS
.059–.078
(1,50) (2,00)
.078–.118
(2,00) (3,00)
.118–.177
(3,00) (4,50)
DIM ‘A’
1.102
(28,00)
1.110
(28,20)
1.126
(28,60)
'A'
.394
(10,0)
.394
(10,0)
'A'
ACTUATOR MARKINGS
NONE
NO MARKING
D
ON-OFF
H
OI
P
O–
ON
OFF
O
I
O
NOTE:
Orientation of actuator
markings and terminals
Marking color white, standard for all actuator colors except yellow. Marking color black, standard for
yellow actuators. Consult Customer Service Center for other available markings and colors.
CONTACT MATERIAL
OPTION
CODE
CONTACT AND
TERMINAL MATERIAL
SILVER 1
POWER
RATINGS
15 AMPS @ 125 V AC; 10 AMPS @ 250 V AC; 1/4 HP @
125 V AC or 250 V AC (UL/CSA).
Q
* Note: See Technical Data section of this catalog for RoHS compliant and compatible definitions and specifications.
1 CONTACTS: Coin silver, silver plated.
TERMINALS: Copper, silver plated.
I
2
All models
with all options.
Rocker
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
G–109
www.ck-components.com
G
