278075355012863+: DescriptionBoard Connector, 58 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size365KB，2 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric Compare View All

278075355012863+ Overview

Board Connector, 58 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, ROHS COMPLIANT

278075355012863+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	TERMINAL PITCH FOR POWER CONTACTS: 7.5 MM
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN (118) OVER NICKEL
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	8075
Mixed contacts	YES
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	58
Base Number Matches	1

Preview

Download Datasheet

View All

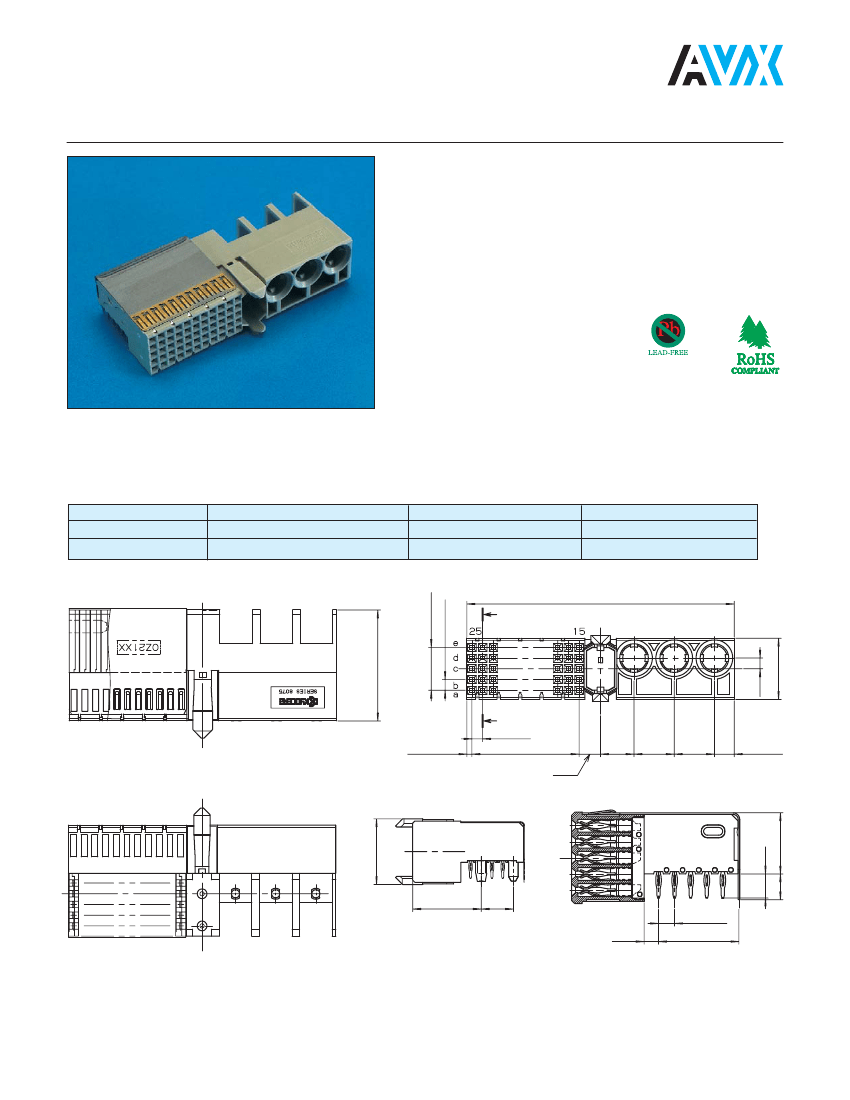

Type M Right Angle Female

for Daughter Cards

Series 8075

55 signal contacts in a 5 x 11 position configuration

3 positions for power or coax contacts

Center cavity with prealignment guides and keying option

See pages 52 and 53 for keying options

Designed for gas tight press-fit installation

This connector can be used by itself or in conjunction with Style

A, B, C, or L connectors

• See pages 54 and 55 for available contacts

•

LEAD-FREE COMPATIBLE

COMPONENT

27 8075 355 011 XXX+

27 8075 355 012 XXX+

XXX =

Plating Code

833

863

= Type M Right Angle Female with shield, with peg

= Type M Right Angle Female with shield, without peg

Contact Area

0.1µm min. Au.65µm Pd/Ni

0.76µm min. Au

Press-fit Area

1.5-3.0µm Sn

Under Coat

1.2-3.0µm Ni

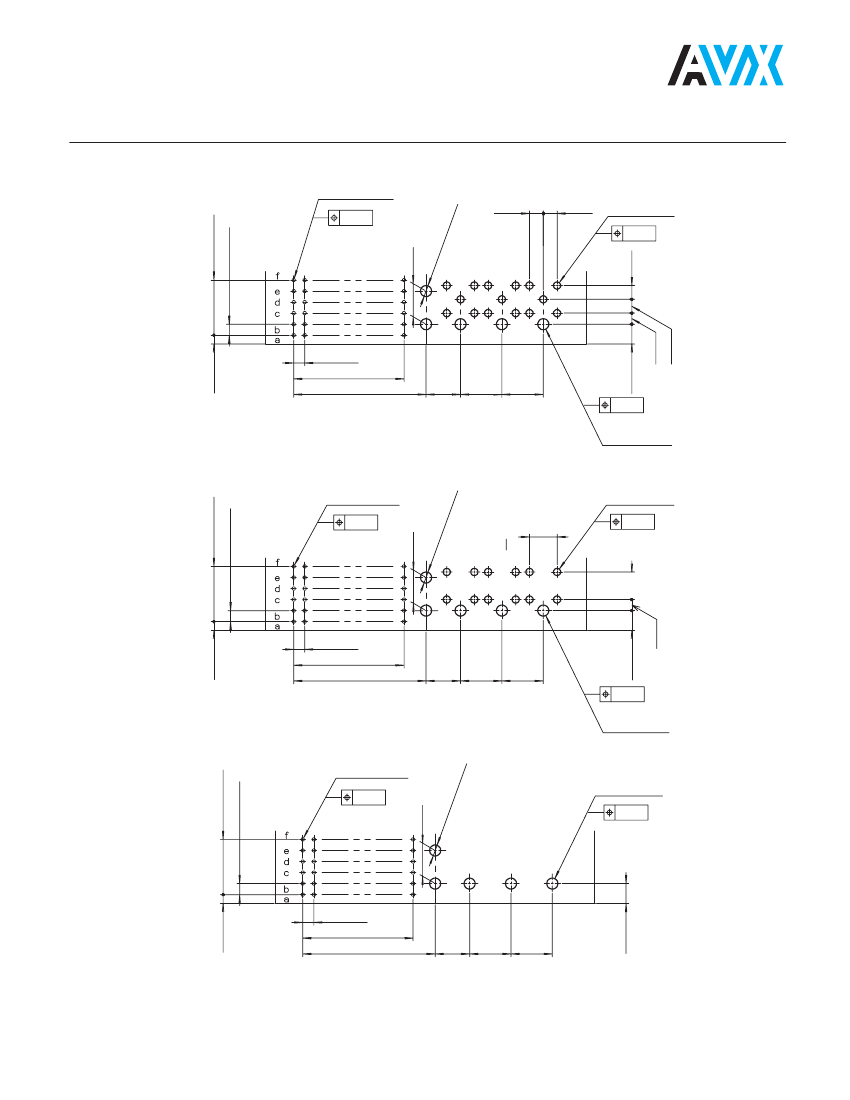

2 x 4 = 8.0

2.0 TYP.

49.9 +0 -0.2

X

20.7

0.95 MAX.

X

2.0 TYP.

2 x 10 = 20.0

4.0

6.25

7.5

3.7 MAX.

12.25

12.8

6.0

2.0 TYP.

1.8

2 x 5 = 10.0

28

3.2

3.0

7.6

2.0

11.4

278075355012863+ Related Products

	278075355012863+	278075355012833+	278075355011863	278075355012833	278075355011863+	278075355011833+
Description	Board Connector, 58 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, ROHS COMPLIANT	Board Connector, 58 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, ROHS COMPLIANT	Board Connector, 58 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, Guide Slot, Receptacle, ROHS COMPLIANT	Board Connector, 58 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, Guide Slot, Receptacle, ROHS COMPLIANT	Board Connector, 58 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, ROHS COMPLIANT	Board Connector, 58 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Other features	TERMINAL PITCH FOR POWER CONTACTS: 7.5 MM	TERMINAL PITCH FOR POWER CONTACTS: 7.5 MM	TERMINAL PITCH FOR POWER CONTACTS: 7.5 MM	TERMINAL PITCH FOR POWER CONTACTS: 7.5 MM	TERMINAL PITCH FOR POWER CONTACTS: 7.5 MM	TERMINAL PITCH FOR POWER CONTACTS: 7.5 MM
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL	GOLD (4) OVER PALLADIUM NICKEL	GOLD (30) OVER NICKEL	GOLD (4) OVER PALLADIUM NICKEL	GOLD (30) OVER NICKEL	GOLD (4) OVER PALLADIUM NICKEL
Contact completed and terminated	TIN (118) OVER NICKEL	TIN (118) OVER NICKEL	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	TIN (118) OVER NICKEL	TIN (118) OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	8075	8075	8075	8075	8075	8075
Mixed contacts	YES	YES	YES	YES	YES	YES
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	5	5	5	5	5	5
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	58	58	58	58	58	58
Base Number Matches	1	1	1	1	1	1
Is it lead-free?	Lead free	Lead free	-	-	Lead free	Lead free
