C4D28DS29C3

Description

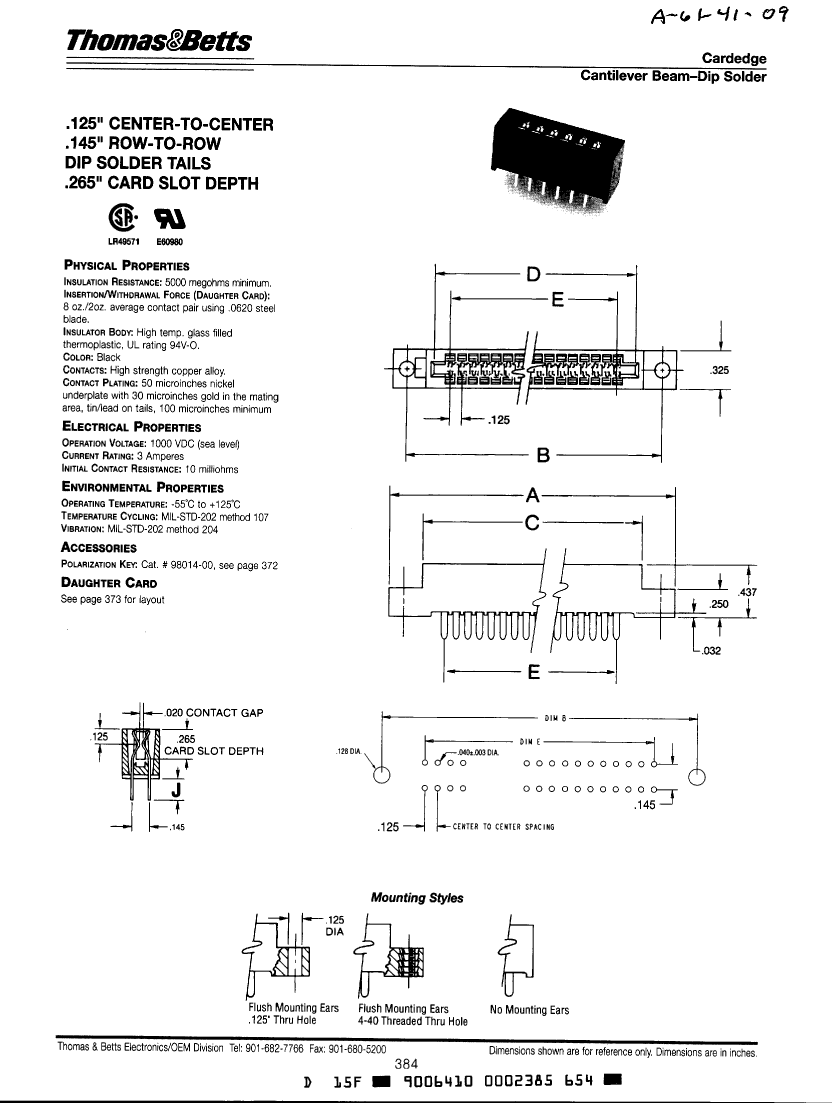

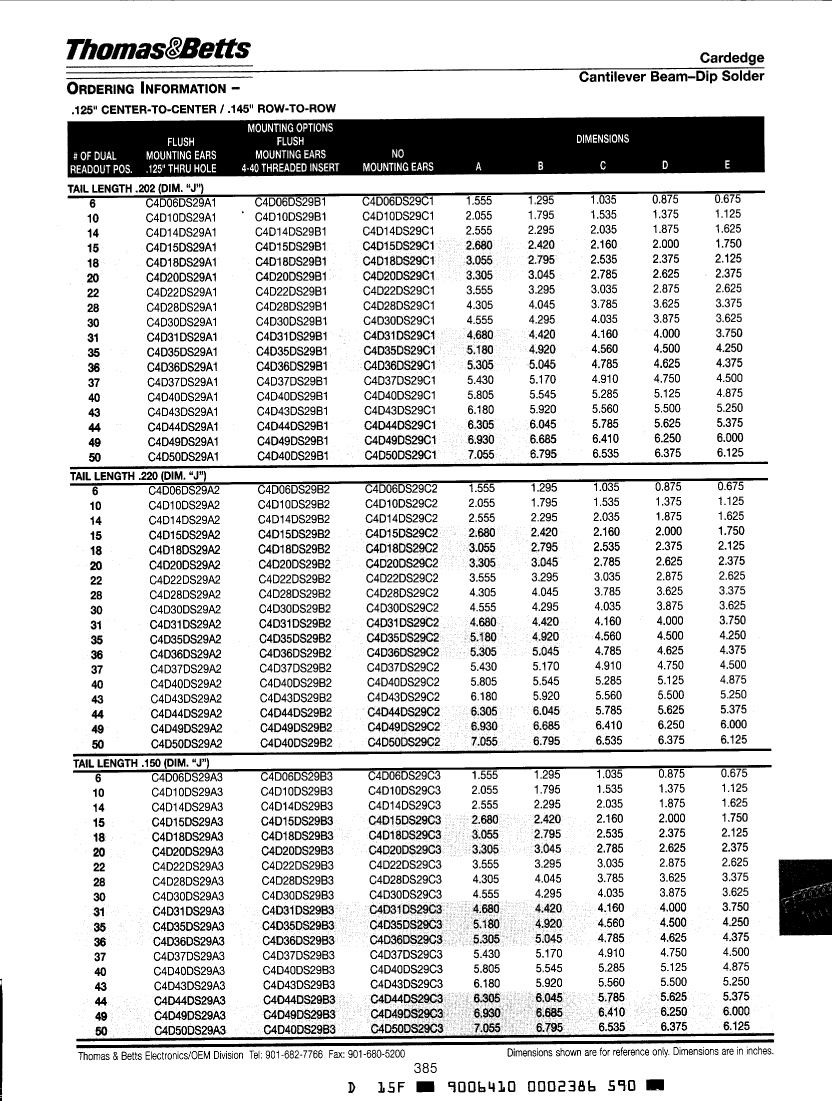

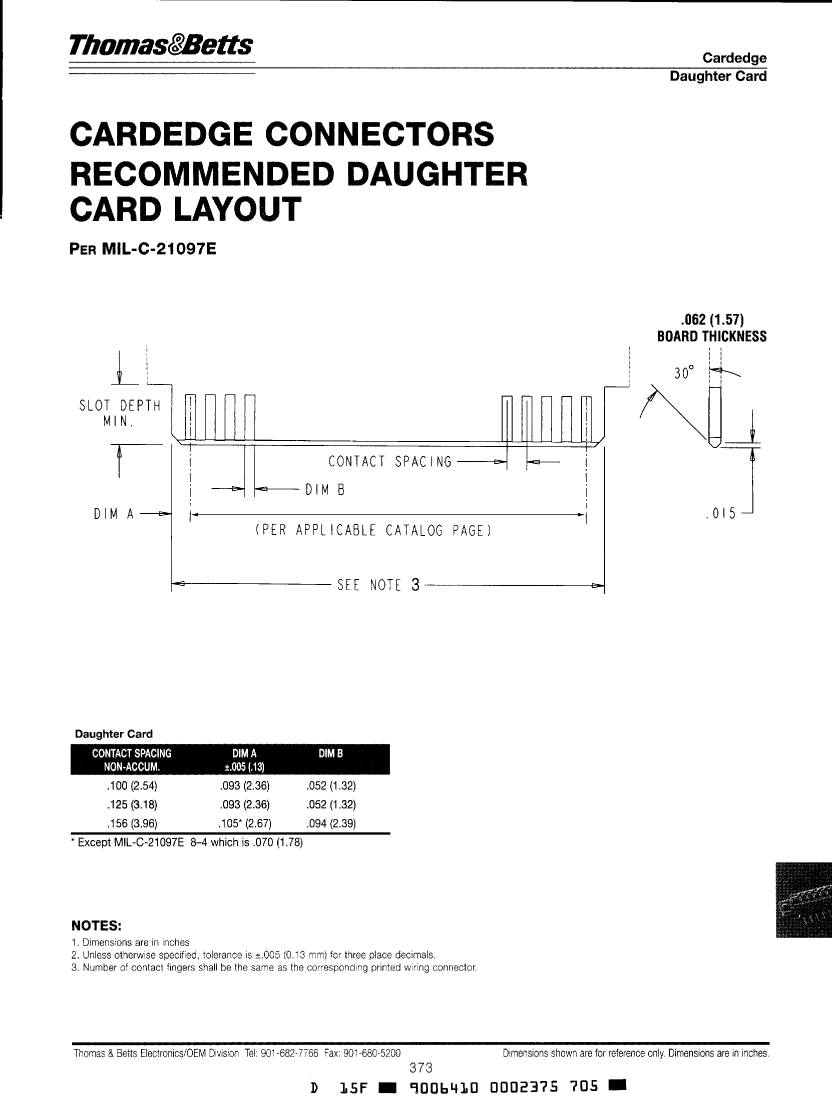

Card Edge Connector, 56 Contact(s), 2 Row(s), Straight, 0.125 inch Pitch, Solder Terminal, Black Insulator, Receptacle
CategoryThe connector    The connector
File Size305KB,3 Pages
ManufacturerThomas & Betts Corporation
Websitehttp://www.tnb.com/
Download Datasheet Parametric View All

C4D28DS29C3 Overview

Card Edge Connector, 56 Contact(s), 2 Row(s), Straight, 0.125 inch Pitch, Solder Terminal, Black Insulator, Receptacle

C4D28DS29C3 Parametric

Parameter NameAttribute value
Objectid302200521
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresOPTIONAL POLARIZATION KEY
body width0.325 inch
subject depth0.437 inch
body length3.785 inch
Body/casing typeRECEPTACLE
Connector typeCARD EDGE CONNECTOR
Contact to complete cooperationAU ON NI
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact resistance10 mΩ
Contact styleBELLOWED TYPE
Dielectric withstand voltage1000VDC V
maximum insertion force2.224 N
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialTHERMOPLASTIC
Manufacturer's serial numberC4D
Plug contact pitch0.125 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
PCB contact patternRECTANGULAR
PCB contact row spacing3.683 mm
Plating thickness30u inch
Rated current (signal)3 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.15 inch
Terminal pitch3.175 mm
Termination typeSOLDER
Total number of contacts56
Evacuation force-minimum value.556 N
