278071125000863: DescriptionBoard Connector, 125 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle; CategoryThe connector The connector; File Size118KB，1 Pages; ManufacturerAVX

Download Datasheet Parametric Compare View All

278071125000863 Overview

Board Connector, 125 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle

278071125000863 Parametric

Parameter Name	Attribute value
Maker	AVX
Reach Compliance Code	compliant
Other features	STANDARD: IEC 1076-4-101
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	8071
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	125
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

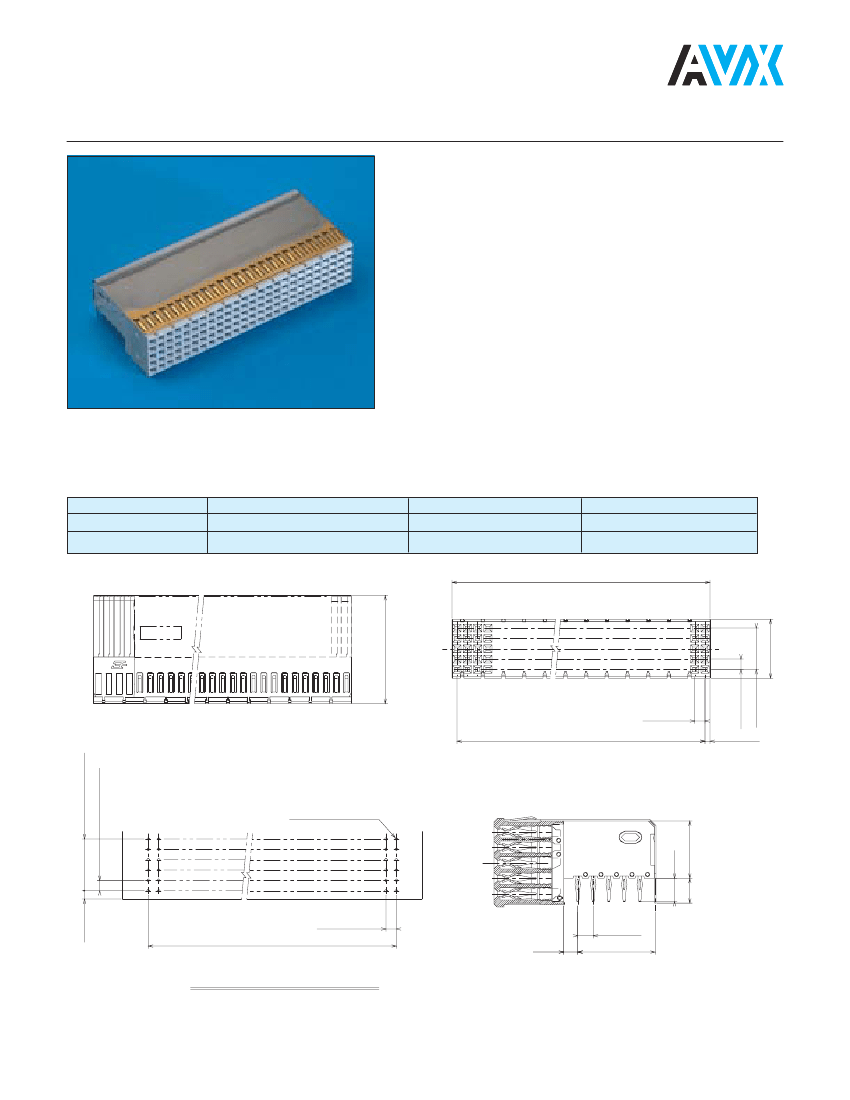

Type B Right Angle Female

for Daughter Cards

Series 8071

•

125 signal contacts in a 5 x 25 configuration

Designed for gas tight press-fit installation

Supplied with or without upper ground return shield

Daughter card applications

This connector should be used in conjunction with a Type A or AB

style to ensure proper mating alignment

• Lower ground return shield available (see page 63)

27 8071 125 000 XXX

27 8071 125 010 XXX

XXX =

Plating Code

833

863

= Type B 125 Pin Right Angle Receptacle without upper shield

= Type B 125 Pin Right Angle Receptacle with upper shield

Contact Area

0.1µm min. Au.65µm Pd/Ni

0.76µm min. Au

Press-fit Area

1.5-3.0µm Solder

49.9

-0.2

Under Coat

Nickel 1.2-3.0µm

25

9Z21XX

(20.9)

2.0

48.0

TYP.

1

e

11.4

TYP.

MAX.

d

c

b

a

2X4=8.0

0.95

2 x 5=10.0

±0.1

2.0

±0.1

TYP.

150-

f

0.6

±0.05

HOLES

f

e

d

c

b

a

3.0

1.5

MAX.

2.0

±0.1

TYP.

48.0

±0.1

1.8

2.0

TYP.

2X5=10.0

RECOMMENDED P.C. BOARD LAYOUT

(COMPONENT SIDE)

8

ELCO

3.2

7.4

2.0

278071125000863 Related Products

	278071125000863	278071125010863
Description	Board Connector, 125 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle	Board Connector, 125 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle,
Reach Compliance Code	compliant	unknown
Other features	STANDARD: IEC 1076-4-101	SHIELDED
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	FEMALE
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
MIL compliance	NO	NO
Mixed contacts	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of rows loaded	5	5
Options	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT
Total number of contacts	125	125
