Bridgelux RS Array Series

Product Data Sheet DS25

BXRA-xxx-3500-F, BXRA-xxx4000-H, BXRA-xxx7000-J,

BXRA-40E4000-F, BXRA-40E4500-H, BXRA-40E7500-J,

BXRA-xxC4500-F, BXRA-xxC5300-H, BXRA-xxC9000-J

Introduction

The Bridgelux family of LED Array products delivers high performance, compact and cost-effective solid-

state lighting solutions to serve the general lighting market. These products combine the higher efficacy,

lifetime, and reliability benefits of LEDs with the light output levels of many conventional lighting

sources. The Bridgelux RS Array Series has been specified to enable lamp and luminaire designs with

comparable performance to existing high wattage CFL and HID conventional light sources for retail,

commercial, industrial and outdoor/street lighting applications. Bridgelux Arrays are ideal for all types of

light-on-demand applications, where they can be instantaneously and smoothly dimmed up or down

without any effect on lifetime, unlike traditional CFL and HID light sources.

Bridgelux RS Array series are a high performance alternative to conventional solid state solutions,

delivering between 3,000 and 10,000 lumens under application conditions in warm, neutral and cool white

color temperatures. These compact high flux density light sources deliver uniform high quality

illumination without pixilation or the multiple shadow effect caused by LED component based solutions,

enabling excellent beam control for precision lighting.

LED array solutions reduce system complexity and enable miniaturized cost-effective designs. Luminaire

designs incorporating these LED Arrays deliver system level performance comparable to 42-55 Watt CFL,

35-90 Watt low pressure sodium, 70-150 Watt high pressure sodium or 70-200 Watt metal halide based

luminaires and feature increased system level and service life. Typical applications include retail lighting,

commercial down lights, high bay, outdoor and street lights, and entertainment lighting.

Features



Compact high flux density light source

Uniform high quality illumination

Minimum 70, 80 and 90 CRI options

Streamlined thermal path

Energy Star / ANSI compliant color binning structure

with 3SDCM options



More energy efficient than incandescent, halogen

and fluorescent lamps



Low voltage DC operation

Instant light with unlimited dimming

5-Year warranty

RoHS compliant and Pb free

Benefits



Enhanced optical control

Clean white light without pixilation

High quality true color reproduction

Significantly reduced thermal resistance and increased

operating temperatures

Uniform consistent white light

Lower operating costs

UL Recognized

Easy to use with daylight and motion detectors to

enable increased energy savings

Reduced maintenance costs

Environmentally friendly, no disposal issue

1 0 1 P ort ol a A ven u e , L i ve r mo re , CA 9 45 51 • Te l: (9 25 ) 58 3 - 840 0 • Fa x: ( 92 5) 5 83 -8 40 1 • www. b r id ge lu x.c om

Lumen Maintenance Characteristics

Bridgelux projects that its family of LED Array products will deliver, on average, greater than 70% lumen

maintenance after 50,000 hours of operation at the rated forward test current. This performance assumes

constant current operation at the nominal drive current with case temperature maintained at or below 85°C.

For use beyond these typical operating conditions please consult your Bridgelux sales representative for

further assistance.

These projections are based on a combination of package test data, semiconductor chip reliability data, a

fundamental understanding of package related degradation mechanisms, and performance observed from

products installed in the field using Bridgelux die technology. Bridgelux conducts lumen maintenance tests per

LM80. Observation of design limits is required in order to achieve this projected lumen maintenance.

Environmental Compliance

Bridgelux is committed to providing environmentally friendly products to the solid state lighting market.

Bridgelux LED Arrays comply with the European Union directives on the restriction of hazardous substances in

electronic equipment, namely the RoHS directive. Bridgelux does not intentionally add the following restricted

materials to LED Array products: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls

(PBB) or polybrominated diphenyl ethers (PBDE).

UL Recognition

Bridgelux secures UL recognition for all the LED Array products. Please refer to the UL file E350613 for the

latest list of UL recognized Arrays. Bridgelux uses UL recognized materials with suitable flammability ratings in

the LED Array to streamline the process for customers to secure UL listing of the final luminaire product.

CE Recognition

In accordance with the relevant European Union directives, the family of LED Array products conform to the

applicable requirements of the IEC/EN 62031:2008 (LED Modules for General Lighting Safety Specifications)

and IEC 62471:2006 (Photobiological Safety of Lamps and Lamp Systems). Bridgelux maintains a CE

Declaration of Conformity statement on its website and displays the CE mark on product packing labels.

Minor Product Change Policy

The rigorous qualification testing on products offered by Bridgelux provides performance assurance. Slight

cosmetic changes that do not affect form, fit, or function may occur as Bridgelux continues product

optimization.

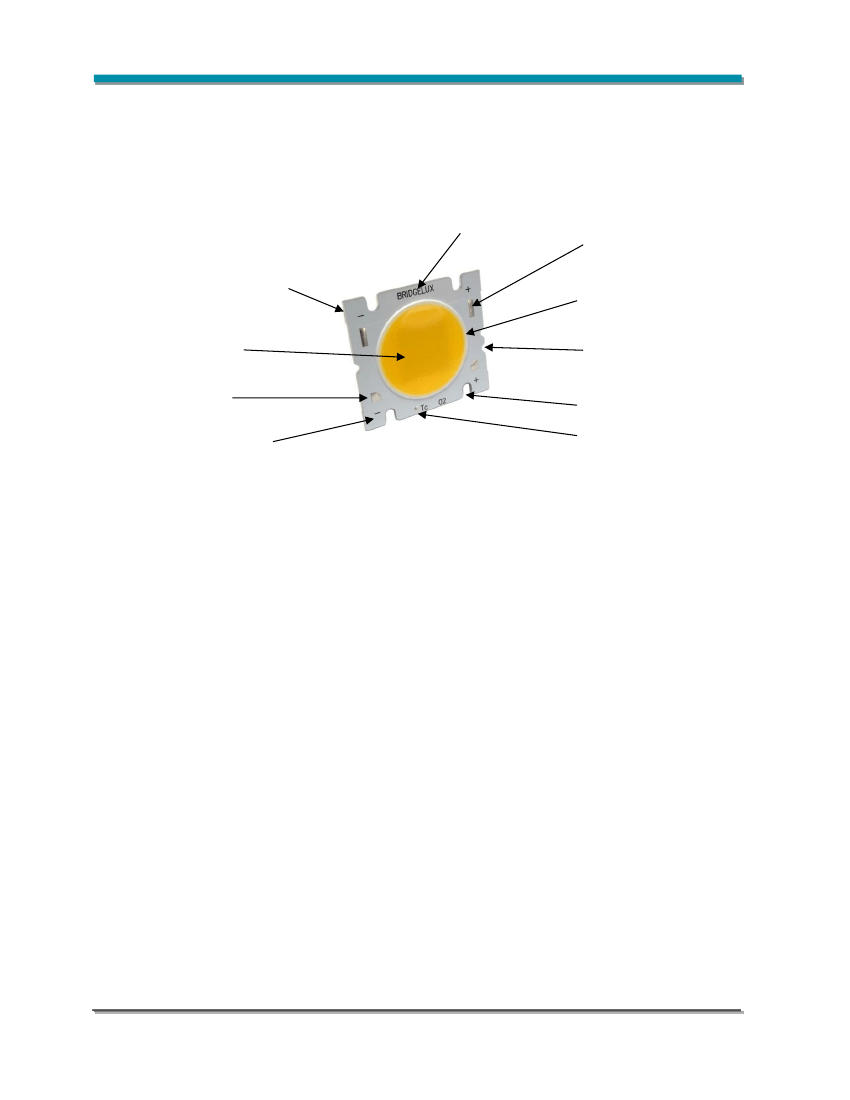

Case Temperature Measurement Point

A case temperature (T

) measurement point location is included on the top surface of the Bridgelux LED

Arrays. The location of this measurement point is indicated in the mechanical dimensions section of this data

sheet.

The purpose of this measurement point is to allow the user access to a measurement point closely linked to

the true case temperature on the back surface of the LED Array. Once the LED Array is installed, it is

challenging to measure the back surface of the array, or true case temperature.

Bridgelux has provided the case temperature measurement location in a manner which closely ties it to the

true case temperature of the LED Array under steady state operation. Deviations between thermal

measurements taken at the point indicated and the back of the LED Array differ by less than 1°C, providing a

robust method to testing thermal operation once the product is installed.

Bridgelux RS Array Series Product Data Sheet DS25 (8/30/2013 rev3)

Page 4 of 28
