CWR06DH476MAA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> CWR06DH476MAA

CWR06DH476MAA: DescriptionCAPACITOR, TANTALUM, SOLID, POLARIZED, 6 V, 47 uF, SURFACE MOUNT, 2711, CHIP; CategoryPassive components capacitor; File Size90KB，4 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric View All

CWR06DH476MAA Overview

CAPACITOR, TANTALUM, SOLID, POLARIZED, 6 V, 47 uF, SURFACE MOUNT, 2711, CHIP

CWR06DH476MAA Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	2102154150
package instruction	, 2711
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	5.4
capacitance	47 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
JESD-609 code	e0
Manufacturer's serial number	CWR06
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	6 V
Guideline	MIL-PRF-55365/4
size code	2711
surface mount	YES
Delta tangent	0.1
Terminal surface	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND

Preview

Download Datasheet

View All

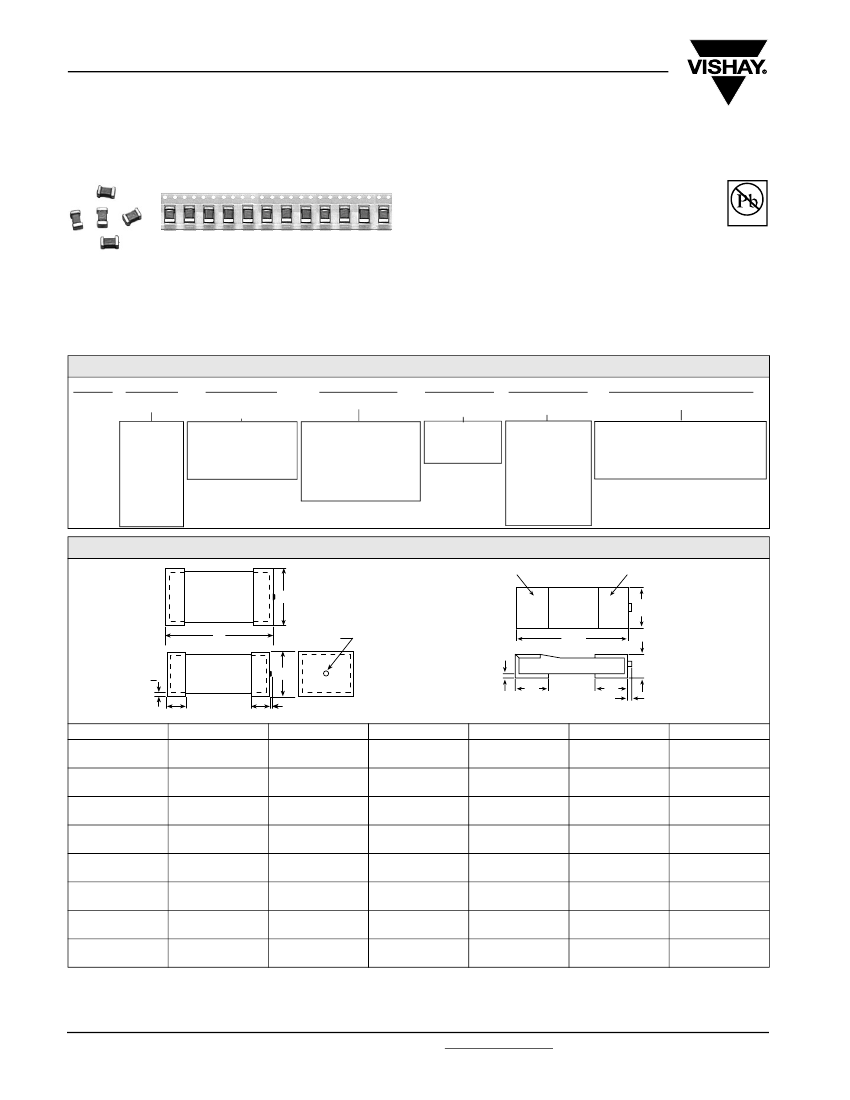

CWR06

Vishay Sprague

Solid Tantalum Chip Capacitors

ANTAMOUNT

Military, Surface Mount

MIL-PRF-55365/4 Qualified

FEATURES

•

Weibull Failure Rates B, C, D

Exponential M, P, R, S

•

Tape and Reel available per EIA 481-1 and -2

•

Termination finishes available; Gold Plate,

50 µ inch minimum (standard), Solder Plated Hot

Solder Dipped

Pb-free

Available

RoHS*

COMPLIANT

PERFORMANCE CHARACTERISTICS

Operating Temperature:

- 55 °C to + 85 °C

(To + 125 °C with voltage derating)

Note:

Refer to Doc. 40088

Capacitace Range:

0.10 µF - 100 µF

Capacitance Tolerance:

± 10 %, ± 20 % standard ± 5 %

available as special

Voltage Rating:

4 WVDC to 50 WVDC

ORDERING INFORMATION

CWR06

TYPE

VOLTAGE

C=4V

D=6V

F = 10V

H = 15 V

J = 20 V

K = 25 V

M = 35 V

N = 50 V

TERMINATION

FINISH

B = Gold - Standard

(RoHS compliant)

H = Solder Plate

C = Solder Dipped

155

CAPACITANCE

This is expressed in

picofarads. The first

two digits are the

significant figures.

The third is the number

of zeros to follow.

CAPACITANCE

TOLERANCE

K = ± 10 %

M = ± 20 %

J=±5%

FAILURE RATE

%/1000 HOURS

A = Commercial

M = 1.0

P = 0.1

R = 0.01

S = 0.001

B = 0.1

C = 0.01

D = 0.001**

OPTIONAL

SURGE CURRENT OPTIONS

A = 10 Cycles at + 25

°C

B = 10 Cycles at - 55

°C

and + 85

°C

C = 10 Cycles at - 55

°C

and + 85

°C

(Before Weibull Grading)

DIMENSIONS

in inches [millimeters]

Weld and

Dimple

Projection

Identifies

Anode (+)

Terminal

MAX.

T2 MAX.

CASE CODE

0.100 ± 0.015

[2.54 ± 0.38]

0.150 ± 0.015

[3.81 ± 0.38]

0.200 ± 0.015

[5.08 ± 0.38]

0.150 ± 0.015

[3.81 ± 0.38]

0.200 ± 0.015

[5.08 ± 0.38]

0.220 ± 0.015

[5.59 ± 0.38]

0.265 ± 0.015

[6.73 ± 0.38]

0.285 ± 0.015

[7.24 ± 0.38]

0.050 ± 0.015

[1.27 ± 0.38]

0.050 ± 0.015

[1.27 ± 0.38]

0.050 ± 0.015

[1.27 ± 0.38]

0.100 ± 0.015

[2.54 ± 0.38]

0.100 ± 0.015

[2.54 ± 0.38]

0.135 ± 0.015

[3.43 ± 0.38]

0.110 ± 0.015

[2.79 ± 0.38]

0.150 ± 0.015

[3.81 ± 0.38]

0.050 ± 0.015

[1.27 ± 0.38]

0.050 ± 0.015

[1.27 ± 0.38]

0.050 ± 0.015

[1.27 ± 0.38]

0.050 ± 0.015

[1.27 ± 0.38]

0.050 ± 0.015

[1.27 ± 0.38]

0.070 ± 0.015

[1.78 ± 0.38]

0.110 ± 0.015

[2.79 ± 0.38]

0.110 ± 0.015

[2.79 ± 0.38]

0.030 ± 0.005

[0.76 ± 0.13]

0.030 ± 0.005

[0.76 ± 0.13]

0.030 ± 0.005

[0.76 ± 0.13]

0.030 ± 0.005

[0.76 ± 0.13]

0.030 ± 0.005

[0.76 ± 0.13]

0.030 ± 0.005

[0.76 ± 0.13]

0.050 ± 0.005

[1.27 ± 0.13]

0.050 ± 0.005

[1.27 ± 0.13]

0.005

[0.13]

0.005

[0.13]

0.005

[0.13]

0.005

[0.13]

0.005

[0.13]

0.005

[0.13]

0.005

[0.13]

0.005

[0.13]

(MAX.)

0.015

[0.38]

0.015

[0.38]

0.015

[0.38]

0.015

[0.38]

0.015

[0.38]

0.015

[0.38]

0.015

[0.38]

0.015

[0.38]

Notes

When solder coated terminations are required, add 0.015" [0.38mm] to termination dimension tolerances.

** Contact marketing for availability of Weibull D FR on 50 V ratings

* Pb containing terminations are not RoHS compliant, exemptions may apply

www.vishay.com

154

For technical questions, contact: tantalum@vishay.com

Document Number: 40009

Revision: 09-May-07
