8008-422-501 datasheet, PDF - EEWORLD Datasheet

8008-422-501: DescriptionBoard Connector, 44 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size128KB，1 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric View All

8008-422-501 Overview

Board Connector, 44 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Black Insulator, Plug

Parameter Name	Attribute value
Maker	Methode Electronics Inc.
Reach Compliance Code	unknown
Other features	LOW PROFILE
body width	0.157 inch
subject depth	0.105 inch
body length	1.732 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
maximum insertion force	2.78 N
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	8000
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	44
Evacuation force-minimum value	.556 N
Base Number Matches	1

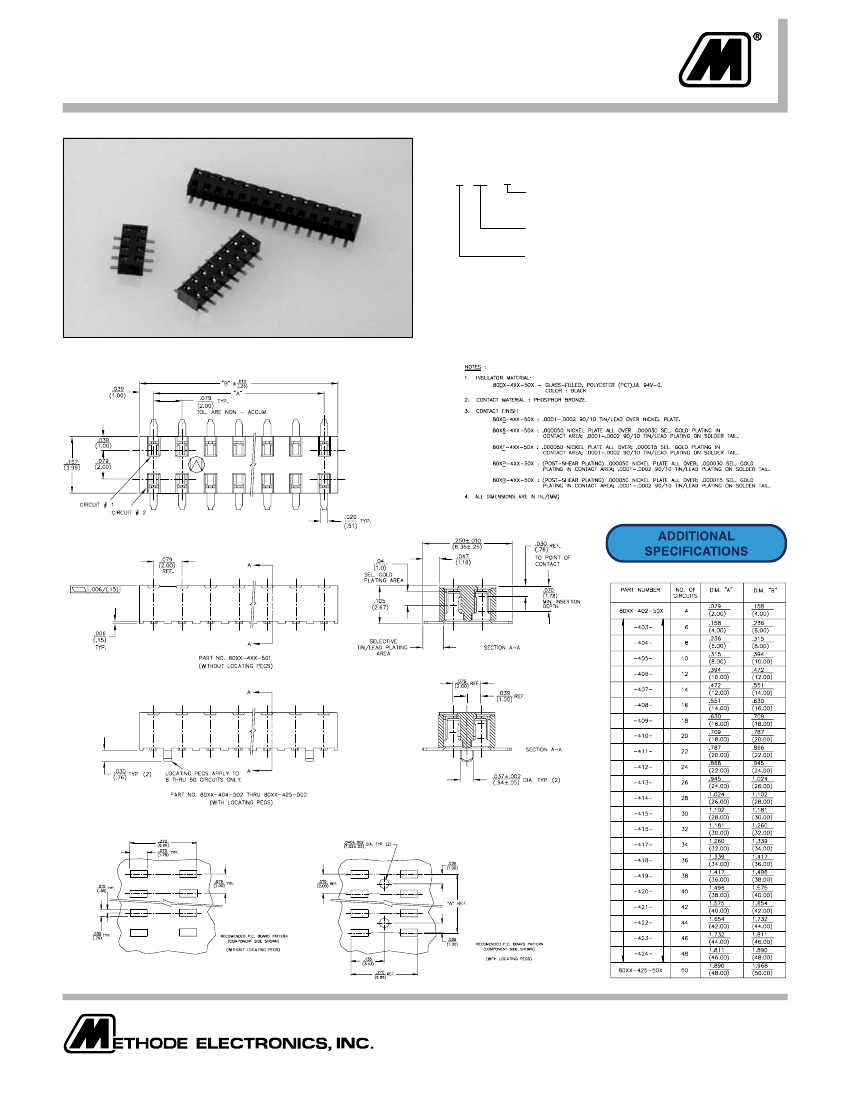

.079” (2mm) Low Profile Surface Mount

Dual Row Vertical Connectors

8000 SERIES “POST/BOXE”

PART NUMBER LEGEND

800X-4XX-50X

SOLDER TAIL LENGTH (DIM C)

1 = WITHOUT LOCATING PEGS

2 = WITH LOCATING PEGS

NUMBER OF POSITIONS PER ROW

2 - 25

CONTACT FINISH

0 = TIN/LEAD

8 = .000030 SELECTIVE GOLD

F = .000015 SELECTIVE GOLD

MATING HEADERS: 8100 SERIES

Connector Products

1700 Hicks Road • Rolling Meadows, IL 60008 USA

Telephone: 847.392.3500 • Fax: 847.392.9404

email: mcpsales@methode.com • Web Page: www.methode.com
