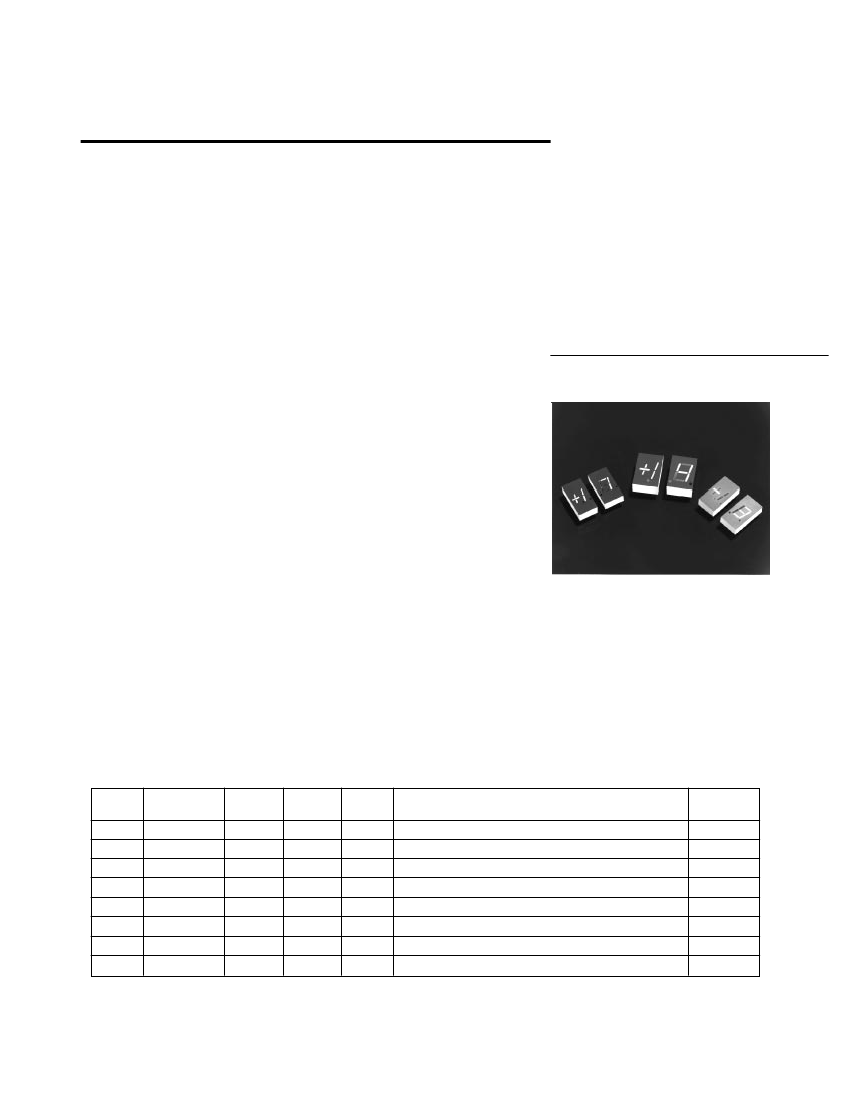

H
7.6 mm (0.3 inch)/10.9 mm
(0.43 inch) Seven Segment
Displays
Technical Data
5082-761X Series
5082-762X Series
5082-765X Series
5082-766X Series
5082-773X Series
5082-7740
5082-775X Series
5082-7760
HDSP-360X Series
HDSP-460X Series
HDSP-E15X Series
Features
• Industry Standard Size
• Industry Standard Pinout
7.62 mm (0.300 inch) DIP
Leads on 2.54 mm
(0.100 inch) Centers
•
Choice of Colors
Red, AlGaAs Red, High
Efficiency Red, Yellow, Green
• Excellent Appearance
Evenly Lighted Segments
Gray Package Gives Optimum
Contrast
±
50° Viewing Angle
•
Design Flexibility
Common Anode or
Common Cathode
Single Digits
Left or Right Hand Decimal
Point
±
1. Overflow Character
• Categorized for Luminous
Intensity
Yellow and Green Categorized
for Color
Use of Like Categories Yields a
Uniform Display
• High Light Output
• High Peak Current
• Excellent for Long Digit
String Multiplexing
• Intensity and Color
Selection Available
See Intensity and Color
Selected Displays Data Sheet
• Sunlight Viewable AlGaAs
Description
The 7.6 mm (0.3 inch) and 10.9
mm (0.43 inch) LED seven
segment displays are designed for
viewing distances up to 3 metres
(10 feet) and 5 metres (16 feet).
These devices use an industry
standard size package and
pinouts. All devices are available
as either common anode or
common cathode.
Devices
Red
5082-
7730
7731
7740
7736
7750
7751
7760
7756
E150
E151
E153
E156
AlGaAs
[1]
Red HDSP-
HER
[1]
5082-
7610
7611
7613
7616
7650
7651
7653
7656
Yellow
5082-
7620
7621
7623
7626
7660
7661
7663
7666
Green
HDSP-
3600
3601
3603
3606
4600
4601
4603
4606
Description
7.6 mm Common Anode Left Hand Decimal
7.6 mm Common Anode Right Hand Decimal
7.6 mm Common Cathode Right Hand Decimal
7.6 mm Universal
±
1. Overflow Right Hand Decimal
[2]
10.9 mm Common Anode Left Hand Decimal
10.9 mm Common Anode Right Hand Decimal
10.9 mm Common Cathode Right Hand Decimal
10.9 mm Universal
±
1. Overflow Right Hand Decimal
[2]
Package
Drawing
A
B
C
D
E
F
G
H
Notes:
1. These displays are recommended for high ambient light operation. Please refer to the HDSP-E10X AlGaAs and HDSP-335X HER data
sheet for low current operation.
2. Universal pinout brings the anode and cathode of each segment’s LED out to separate pins. See internal diagram D.
3. Universal pinout brings the anode and cathode of each segment’s LED out to separate pins. See internal diagram H.
3-50
5963-7394E
These displays are ideal for most
applications. Pin for pin equiva-
lent displays are also available in
a low current or high light
ambient design. The low current
displays are ideal for portable
applications. The high light
ambient displays are ideal for
high light ambients or long string
lengths. For additional informa-
tion see the Low Current Seven
Segment Displays, or High Light
Ambient Seven Segment Displays
data sheets.

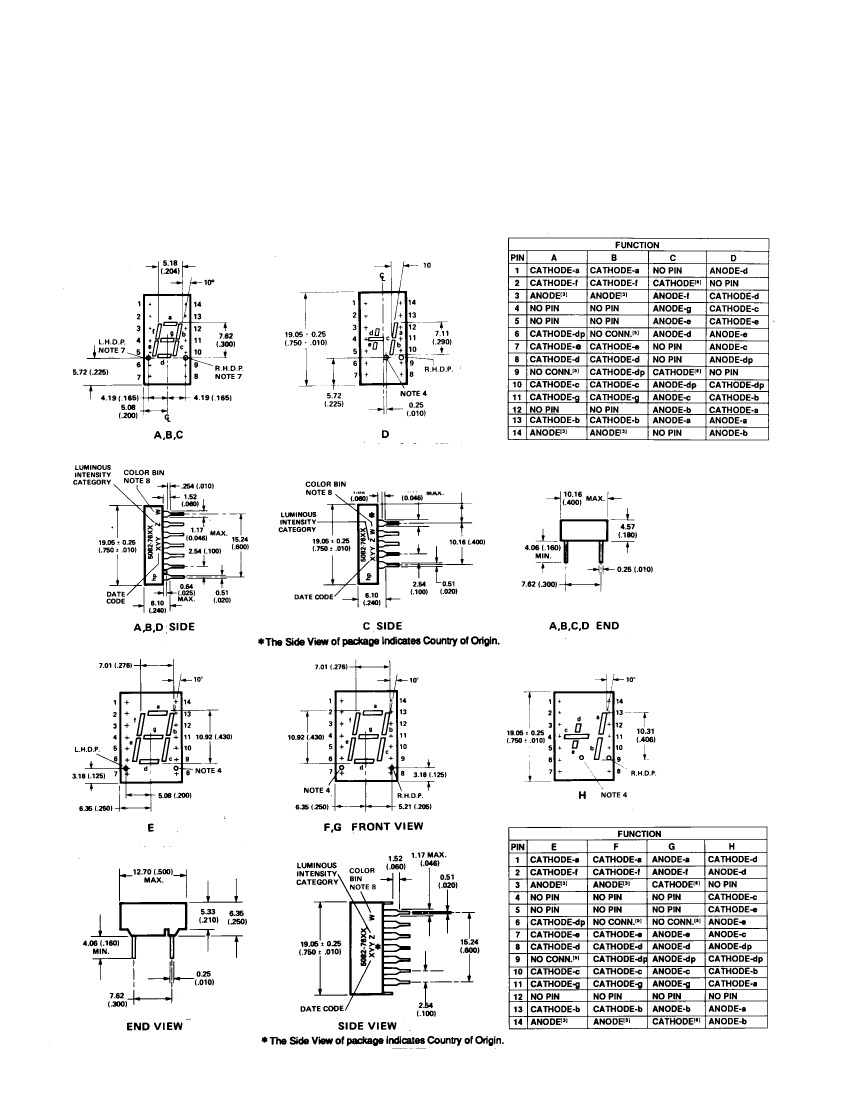

Package Dimensions
NOTES;
1. DIMENSIONS IN
MILLIMETRES AND
(INCHES).
2. ALL UNTOLERANCED
DIMENSIONS ARE
FOR REFERENCE
ONLY.
3. REDUNDANT
ANODES.
4. UNUSED DP
POSITION.
5. SEE INTERNAL
CIRCUIT DIAGRAM.
6. REDUNDANT
CATHODE.
7. SEE PART NUMBER
TABLE FOR L.H.D.P.
AND R.H.D.P.
DESIGNATION.
8. FOR YELLOW AND
GREEN DEVICES
ONLY.
3-51

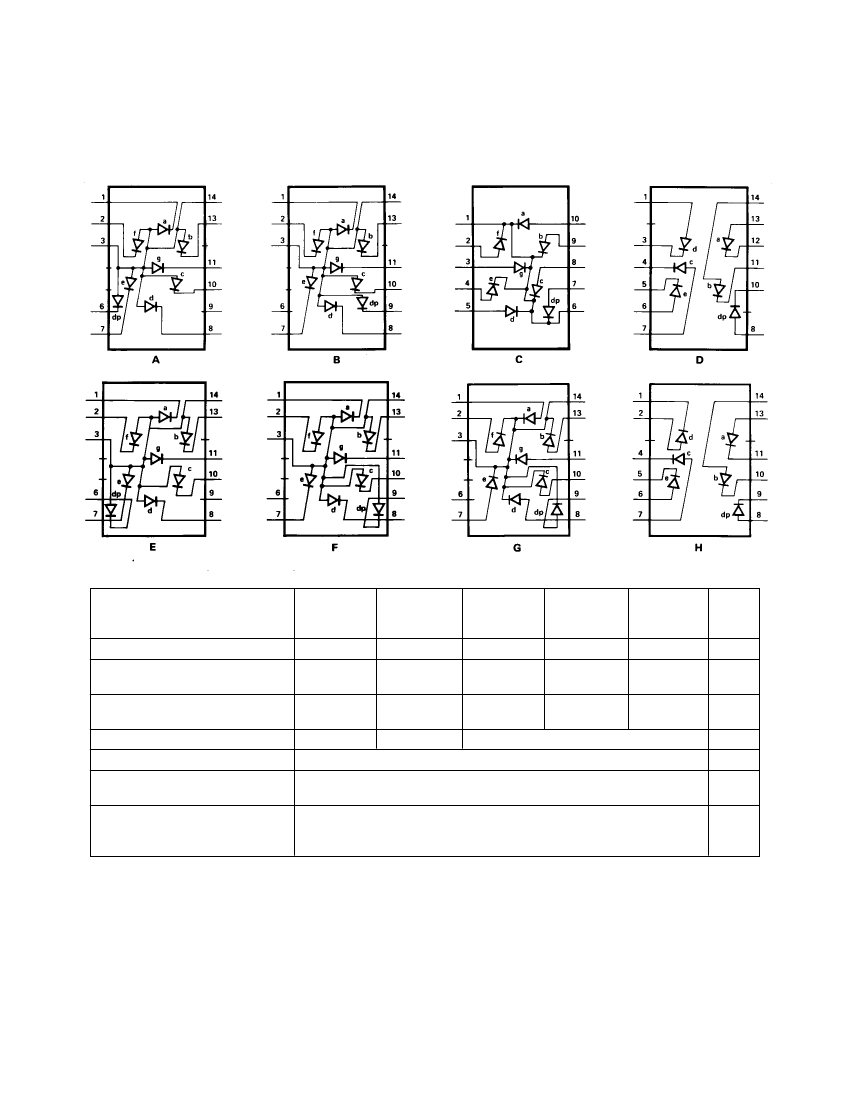

Internal Circuit Diagram
Absolute Maximum Ratings
Red
5082-7700
Series
82
150
[1]
25
[2]
-40 to +100
AlGaAs Red
HDSP-E150
Series
96
160
[3]
40
[4]
-20 to +100
[11]
-55 to +100
3.0
HER
5082-7610/
7650 Series
105
90
[5]
30
[6]
Yellow
5082-7620/
7660 Series
80
60
[7]
20
[8]
-40 to +100
Green
HDSP-3600/
4600 Series
105
90
[9]
30
10]
Description
Average Power per Segment or DP
Peak Forward Current per
Segment or DP
DC Forward Current per
Segment or DP
Operating Temperature Range
Storage Temperature Range
Reverse Voltage per
Segment or DP
Lead Solder Temperature for 3
Seconds (1.59 mm [0.063 in.]
below seating plane
Units
mW
mA
mA
°C
°C
V
260
°C
Notes:
1. See Figure 1 to establish pulsed conditions.
2. Derate above 80°C at 0.63 mA/°C.
3. See Figure 2 to establish pulsed conditions.
4. Derate above 46°C at 0.54 mA/°C.
5. See Figure 7 to establish pulsed conditions.
6. Derate above 53°C at 0.45 mA/°C.
7. See Figure 8 to establish pulsed conditions.
8. Derate above 81°C at 0.52 mA/°C.
9. See Figure 9 to establish pulsed conditions.
10. Derate above 39°C at 0.37 mA/°C.
11. For operation below -20°C, contact your local HP components sales office or an authorized distributor.
3-52
Electrical/Optical Characteristics at T
A
= 25
°
C
Red
Device
Series
5082-773X
5082-774X
5082-775X
5082-776X
Forward Voltage/Segment or DP
Peak Wavelength
All
Dominant Wavelength
[3]
Reverse Voltage/Segment or DP
[4]
Temperature Coefficient of
V
F
/Segment or DP
Thermal Resistance LED
Junction-to-Pin
V
F
λ
PEAK
λ
d
V
R
∆V
F
/°C
Rθ
J-PIN
3.0
Parameter
Luminous Intensity/Segment
[1,2]
(Digit Average)
Symbol
I
V
360
1100
1.6
655
640
12
-2
280
2.0
µcd
V
nm
nm
V
mV/°C
°C/W/Seg
I
R
= 100
µA
I
F
= 20 mA
I
F
= 20 mA
Min.
360
Typ.
770
Max.
Units
µcd
Test
Conditions
I
F
= 20 mA
AlGaAs Red
Device
Series
Parameter
Luminous Intensity/Segment
[1, 2, 5]
(Digit Average)
Forward Voltage/Segment or DP
HDSP-
E15X
Peak Wavelength
Dominant Wavelength
[3]
Reverse Voltage/Segment or DP
[4]
Temperature Coefficient of
V
F
/Segment or DP
Thermal Resistance LED Junction-
to-Pin
Symbol
I
V
Min.
8.5
Typ.
15.0
1.8
V
F
2.0
λ
PEAK
λ
d
V
R
∆V
F
/°C
Rθ
J-PIN
3.0
645
637
15
-2
340
3.0
V
nm
nm
V
mV/°C
°C/W/Seg
I
R
= 100
µA
I
F
= 100 mA
Max.
Units
mcd
V
Test Conditions
I
F
= 20 mA
I
F
= 20 mA
3-53
High Efficiency Red
Device
Series
5082-761X
5082-765X
Forward Voltage/Segment or DP
Peak Wavelength
All
Dominant Wavelength
[3]
Reverse Voltage/Segment or DP
[4]
Temperature Coefficient of
V
F
/Segment or DP
Thermal Resistance LED
Junction-to-Pin
V
F
λ
PEAK
λ
d
V
R
∆V
F
/°C
Rθ
J-PIN
3.0
Parameter
Luminous Intensity/Segment
[1,2,6]
(Digit Average)
Symbol
I
V
340
1115
2.1
635
626
30
-2
280
2.5
Min.
340
Typ.
800
Max.
Units
µcd
µcd
V
nm
nm
V
mV/°C
°C/W
I
R
= 100
µA
Test Conditions
I
F
= 5 mA
I
F
= 5 mA
I
F
= 20 mA
Yellow
Device
Series
5082-762X
5082-766X
Forward Voltage/Segment or DP
Peak Wavelength
All
Dominant Wavelength
[3,7]
Reverse Voltage/Segment or DP
[4]
Temperature Coefficient of
V
F
/Segment or DP
Thermal Resistance LED
Junction-to-Pin
V
F
λ
PEAK
λ
d
V
R
∆V
F
/°C
Rθ
J-PIN
581.5
3.0
Parameter
Luminous Intensity/Segment
[1,2]
(Digit Average)
Symbol
I
V
290
835
2.2
583
586
40
-2
280
592.5
2.5
Min.
205
Typ.
620
Max.
Units
µcd
µcd
V
nm
nm
V
mV/°C
°C/W/Seg
I
R
= 100
µA
Test Conditions
I
F
= 5 mA
I
F
= 5 mA
I
F
= 20 mA
3-54
