Thick Film Resistor Networks, Single-In-Line, Molded SIP
FEATURES
• Isolated, bussed, and dual terminator
schematics available
Available
• 0.195" (4.95 mm) “A” or 0.350" (8.89 mm) “C”
maximum seated height
• Thick film resisitive elements
• Low temperature coefficient (-55 °C to +125 °C)
± 100 ppm/°C
• Rugged, molded case construction
Available
• Reduces total assembly costs
• Compatible with automatic insertion equipment
and reduces PC board space
• Wide resistance range (10
to 2.2 M)
• Available in tube pack
• Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
Note
*
This datasheet provides information about parts that are RoHS-compliant and/or parts that are non-RoHS-compliant. For example, parts
with lead (Pb) terminations are not RoHS-compliant. Please see the information/tables in this datasheet for details.
STANDARD ELECTRICAL SPECIFICATIONS
GLOBAL
MODEL/
SCHEMATIC
POWER RATING RESISTANCE
ELEMENT
TOLERANCE
(2)
RANGE
PROFILE
P
70 °C
±%
W
A
0.20
10 to 2.2M
1, 2, 5
C
0.25
10 to 2.2M
1, 2, 5
A
0.30
10 to 2.2M
1, 2, 5
C
0.40
10 to 2.2M
1, 2, 5
A
0.20
10 to 2.2M
1, 2, 5
C
0.25
10 to 2.2M
1, 2, 5
TEMPERATURE
COEFFICIENT
(-55 °C to +125 °C)
± ppm/°C
100
100
100
100
100
100
TCR
TRACKING
(1)
(-55 °C to +125 °C)
± ppm/°C
50
50
50
50
150
150
MAXIMUM
WORKING
VOLTAGE
(3)
V
DC
100
100
100
100
100
100
MSPxxx01
MSPxxx01
MSPxxx03
MSPxxx03
MSPxxx05
MSPxxx05
Notes
(1)
Tighter tracking available
(2)
± 2 % standard, ± 1 % and ± 5 % available
(3)
Continuous working voltage shall be
P
x
R
or maximum working voltage, whichever is less
GLOBAL PART NUMBER INFORMATION
New Global Part Numbering: MSP06A031K00GDA (preferred part numbering format)
M
GLOBAL
MODEL
MSP
S
PIN
COUNT
06
= 6 pin
08
= 8 pin
09
= 9 pin
10
= 10 pin
P
0
6
A
0
3
1
K
0
0
G
D
A
SPECIAL
Blank = Standard
(Dash Number)
(Up to 3 digits)
From
1 to 999
as applicable
RESISTANCE
TOLERANCE
VALUE
CODE
01
= Bussed
R
=
F
=±1%
03
= Isolated
K
= k
G
=±2%
00
= Special
M
= M
J
=±5%
10R0
= 10
S
= Special
33K0
= 33 k
Z
=0
1M00
= 1 M
Jumper
0000
= 0
Jumper
Historical Part Number Example: MSP06A03102G (will continue to be accepted)
SCHEMATIC
MSP
06
A
03
102
PACKAGE
HEIGHT
A
= “A” profile
C
= “C” profile
PACKAGING
EJ
= Lead (Pb)-free,
tube
DA
= Tin/lead, tube
G
TOLERANCE CODE
D03
PACKAGING
HISTORICAL MODEL PIN COUNT PACKAGE HEIGHT SCHEMATIC RESISTANCE VALUE
New Global Part Numbering: MSP08C05131AGDA (preferred part numbering format)
M
GLOBAL
MODEL
MSP
S
PIN
COUNT
06
= 6 pin
08
= 8 pin
09
= 9 pin
10
= 10 pin
P
0
8
C
0
5
1
3
1
A
G
D
A
SPECIAL
Blank = Standard
(Dash Number)
(Up to 3 digits)
From
1 to 999
as applicable
D03
RESISTANCE
TOLERANCE
VALUE
CODE
05
= Dual
3 digit impedance
F
=±1%
terminator
code, followed by
G
=±2%
alpha modifier
J
=±5%
(see Impedance
Codes table)
Historical Part Number Example: MSP08C05221331G (will continue to be accepted)
SCHEMATIC
MSP
08
C
05
221
331
PACKAGE
HEIGHT
A
= “A” profile
C
= “C” profile
PACKAGING
EJ
= Lead (Pb)-free,
tube
DA
= Tin/lead, tube
G
HISTORICAL
PIN
PACKAGE
RESISTANCE
RESISTANCE
TOLERANCE
SCHEMATIC
PACKAGING
MODEL
COUNT
HEIGHT
VALUE 1
VALUE 2
CODE
Note
• For additional information on packaging, refer to the Through-Hole Network Packaging document (www.vishay.com/doc?31542).
Revision: 13-Feb-15
Document Number: 31510
1
For technical questions, contact:
ff2aresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MSP
www.vishay.com
DIMENSIONS
in inches (millimeters)
A
Max.
0.015
(0.381)
Min.
0.040 ± 0.010
(1.02 ± 0.254)
0.100 ± 0.010
(2.54 ± 0.254)
Non-Accumulative
Pin #1
D Max.
0.090 (2.29)
Max.
Vishay Dale
0.016 ± 0.003
(0.406 ± 0.076)
B
C Equal Space
0.135 + 0.015
- 0.010
(3.43 + 0.381
- 0.254)
0.012 ± 0.003
(0.305 ± 0.076)
GLOBAL MODEL
MSP06
MSP08
MSP10
MSP09
A (Max.)
0.590 (14.99)
0.790 (20.07)
0.990 (25.15)
0.890 (22.61)
B
0.500 (12.70)
0.700 (17.78)
0.900 (22.86)
0.800 (20.32)
C
5
7
9
8
D (Max.)
MSPxxA = 0.195 (4.95)
MSPxxC = 0.350 (8.89)
0.195 (4.95) only
TECHNICAL SPECIFICATIONS
PARAMETER
Package Power Rating
Maximum at +25 °C and +70 °C
Voltage Coefficient of Resistance
Dielectric Strength
Isolation Resistance (03 Schematic)
Operating Temperature Range
Storage Temperature Range
V
eff
V
AC
°C
°C
UNIT
MSP SERIES
See Derating Curves
< 50 ppm typical
200
> 100 M
-55 to +125
-55 to +150
MECHANICAL SPECIFICATIONS
Marking Resistance to Solvents
Solderability
Body
Terminals
Weight
MSP06A = 0.4 g
MSP08A = 0.5 g
MSP09A = 0.55 g
MSP10A = 0.6 g
Permanency testing per MIL-STD-202, Method 215
Per MIL-STD-202, Method 208E, RMA flux
Molded epoxy
Copper alloy, solder plated
MSP06C = 0.7 g
MSP08C = 0.9 g
MSP10C = 1.1 g
IMPEDANCE CODES
CODE
500B
750B
800C
990A
101C
111C
121B
121C
131A
R
1
()
82
120
130
160
180
180
180
220
220
R
2
()
130
200
210
260
240
270
390
270
330
CODE
141A
181A
191A
221B
281B
381B
501C
102A
202B
R
1
()
270
330
330
330
560
560
620
1.5K
3K
R
2
()
270
390
470
680
560
1.2K
2.7K
3.3K
6.2K
Note
• For additional impedance codes, refer to the Dual Terminator Impedance Code Table document (www.vishay.com/doc?31530).
Revision: 13-Feb-15
Document Number: 31510
2
For technical questions, contact:
ff2aresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MSP
www.vishay.com
Vishay Dale
5, 7, 8
(1)
, or 9 resistors with one pin common
The MSPxxx01 circuit contains 5, 7, 8
(1)
, or 9 nominally equal resistors,
each connected between a common pin (pin no. 1) and a discrete PC
board pin. Commonly used in the following applications:
• “Wired OR” Pull-up
• Power Gate Pull-up
• TTL Input Pull-down
• MOS/ROM Pull-up/Pull-down
• Open Collector Pull-up
• TTL Unused Gate Pull-up

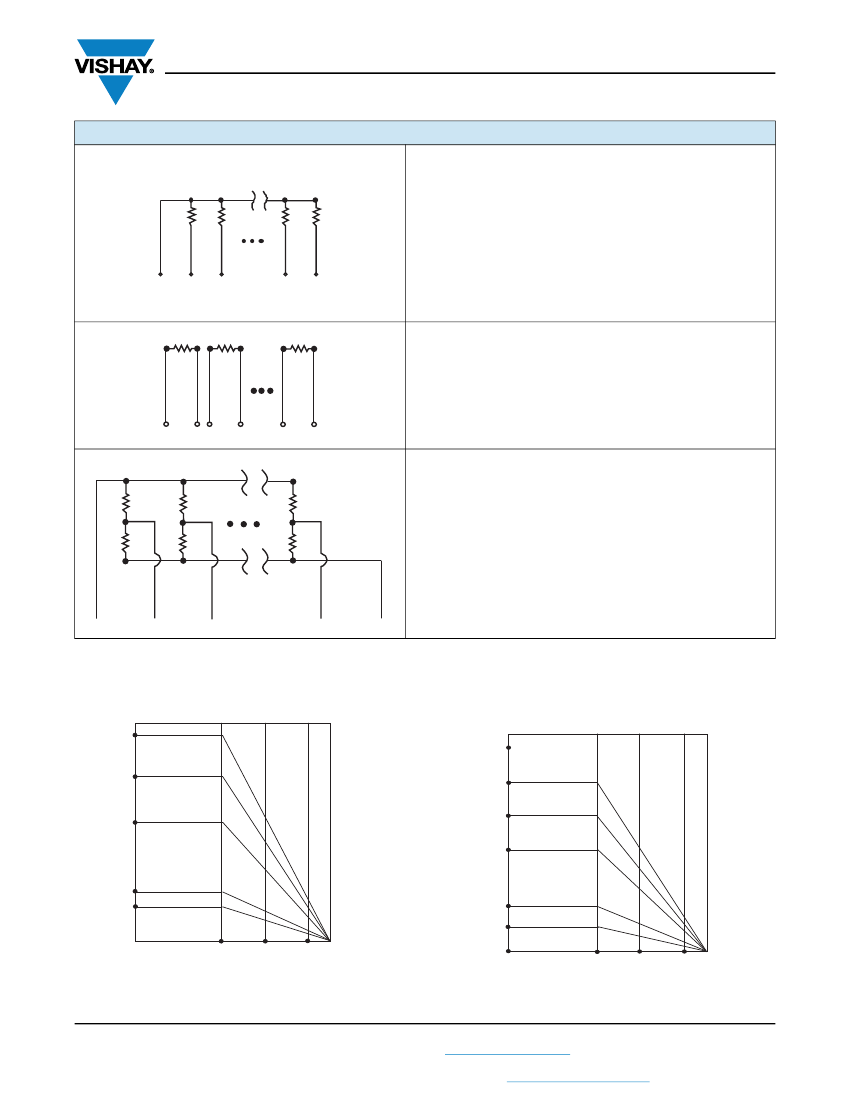

CIRCUIT APPLICATIONS
01 Schematic
1
2
3
n-1
n
(1)
Note
Available in “A” Profile only
Standard E-24 resistance values stocked. Consult factory.
03 Schematic
3, 4 or 5 isolated resistors
The MSPxxx03 circuit contains 3, 4, or 5 resistors of nominally equal
value in a compact package. Each resistor is connected to two discrete
PC pins.
1
2 3
4
n-1
n
Standard E-24 resistance values stocked. Consult factory.
Pulse squaring and TTL dual-line terminators
05 Schematic
R2
The MSPxxx05 circuits contain 4, 6, 7
(2)
, or 8 series pair of resistors.
Each series pair is connected between two common lines. The junction
of these resistor pairs is connected to the input terminals.
The 05 circuits are designed for TTL dual-line termination and pulse
squaring.
Note
(2)
Available in “A” Profile only
R1
1
2
3
n-1
n
Many dual terminator resistance values stocked. Consult factory.
DERATING
“A” Profile
“C” Profile
Power Rating (Watts)
Power Rating (Watts)
1.90
MSP10A Package
3.00
MSP10C Package
2.50
MSP08C Package
2.00
MSP06C Package
1.50
MSP08A Package
1.15
MSP06A Package
1.50
Single Resistor
03
01 and 05
0.60
0.38
- 50
+ 25
+ 70
+ 125 + 150
0.45
0.30
Single Resistor
03
01 and 05
Derating
Ambient Temperature
°C
- 50
+ 25
+ 70
+ 125 + 150
Derating
Ambient Temperature C
Revision: 13-Feb-15
Document Number: 31510
3
For technical questions, contact:
ff2aresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MSP
www.vishay.com
Vishay Dale
“C” PROFILE +70 °C PACKAGE RATINGS
MSP10C
MSP08C
MSP06C
1.60 W
1.30 W
1.00 W
1.25 W
1.12 W
1.00 W
0.75 W
“A” PROFILE +70 °C PACKAGE RATINGS
MSP10A
MSP09A
MSP08A
MSP06A
Note
• Higher power ratings available. Contact factory.
PERFORMANCE
TEST
Power Conditioning
Thermal Shock
Short Time Overload
Low Temperature Operation
Moisture Resistance
Resistance to Soldering Heat
Shock
Vibration
Load Life
Terminal Strength
Insulation Resistance
Dielectric Withstanding Voltage
CONDITIONS
1.5 x rated power, applied 1.5 h “ON” and 0.5 h “OFF”
for 100 h ± 4 h at +25 °C ambient temperature
5 cycles between -65 °C and +125 °C
2.5 x rated working voltage 5 s
45 min at full rated working voltage at -65 °C
240 h with humidity ranging from 80 % RH to 98 % RH
Leads immersed in +260 °C solder to within 1/16" of device body for 10 s
Total of 18 shocks at 100
g’s
12 h at maximum of 20
g’s
between 10 Hz and 2000 Hz
1000 h at +70 °C, rated power applied 1.5 h “ON”, 0.5 h “OFF”
for full 1000 h period. Derated according to the curve.
4.5 pound pull for 30 s
10 000 M (minimum)
-
MAX.
R
(TYPICAL TEST LOTS)
± 0.50 %
R
± 0.50 %
R
± 0.25 %
R
± 0.25 %
R
± 0.50 %
R
± 0.25 %
R
± 0.25 %
R
± 0.25 %
R
± 1.00 %
R
± 0.25 %
R
-
-
Revision: 13-Feb-15
Document Number: 31510
4
For technical questions, contact:
ff2aresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Legal Disclaimer Notice
www.vishay.com
Vishay
Disclaimer
ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,
“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other
disclosure relating to any product.
Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or
the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all
liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,
consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular
purpose, non-infringement and merchantability.
Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical
requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements
about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular
product with the properties described in the product specification is suitable for use in a particular application. Parameters
provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All
operating parameters, including typical parameters, must be validated for each customer application by the customer’s
technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,
including but not limited to the warranty expressed therein.
Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining
applications or for any other application in which the failure of the Vishay product could result in personal injury or death.
Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please
contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by
any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.
Material Category Policy
Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as RoHS-Compliant fulfill the
definitions and restrictions defined under Directive 2011/65/EU of The European Parliament and of the Council
of June 8, 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment
(EEE) - recast, unless otherwise specified as non-compliant.
Please note that some Vishay documentation may still make reference to RoHS Directive 2002/95/EC. We confirm that
all the products identified as being compliant to Directive 2002/95/EC conform to Directive 2011/65/EU.
Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as Halogen-Free follow Halogen-Free
requirements as per JEDEC JS709A standards. Please note that some Vishay documentation may still make reference
to the IEC 61249-2-21 definition. We confirm that all the products identified as being compliant to IEC 61249-2-21
conform to JEDEC JS709A standards.
Revision: 02-Oct-12
1
Document Number: 91000
Suggestions & Announcements
京公网安备 11010802033920号
EEWORLD
