MCC310-06IO1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> MCC310-06IO1

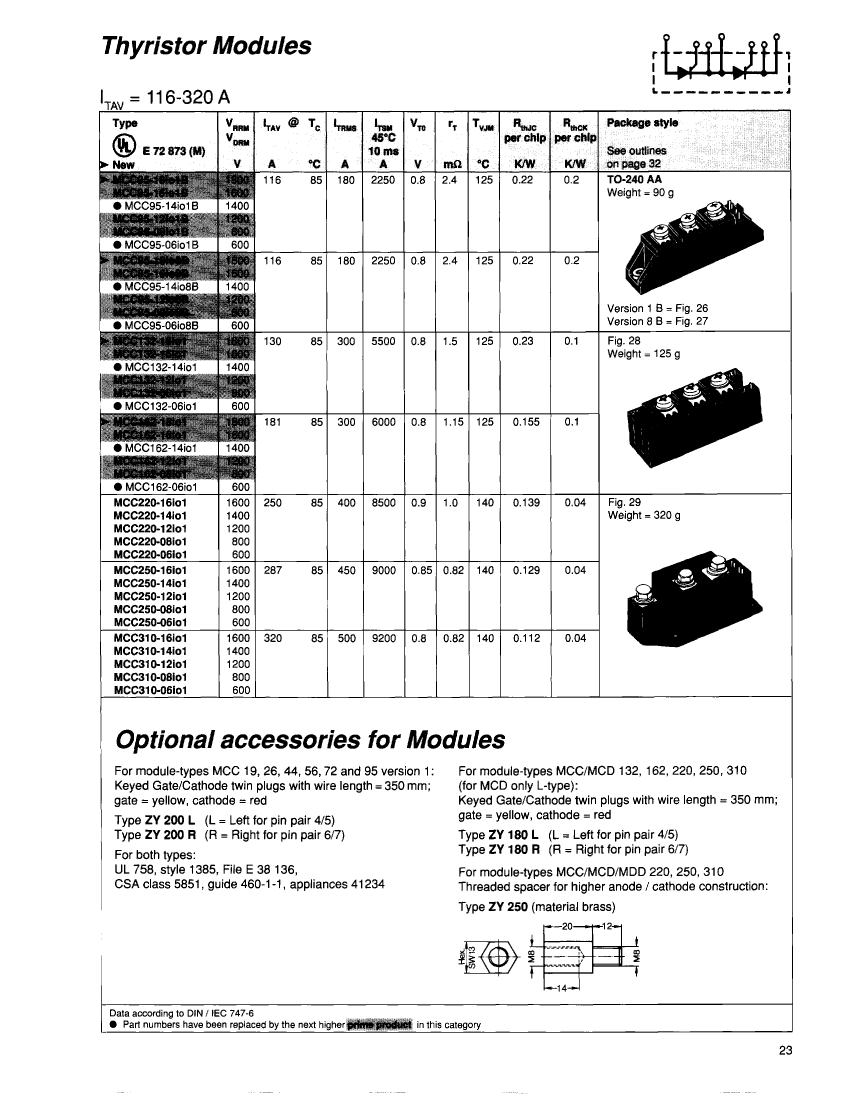

MCC310-06IO1: DescriptionSilicon Controlled Rectifier, 500A I(T)RMS, 520000mA I(T), 600V V(DRM), 600V V(RRM), 2 Element; CategoryAnalog mixed-signal IC Trigger device; File Size253KB，2 Pages; ManufacturerIXYS

Download Datasheet Parametric Compare View All

MCC310-06IO1 Overview

Silicon Controlled Rectifier, 500A I(T)RMS, 520000mA I(T), 600V V(DRM), 600V V(RRM), 2 Element

MCC310-06IO1 Parametric

Parameter Name	Attribute value
Maker	IXYS
package instruction	FLANGE MOUNT, R-PUFM-X7
Reach Compliance Code	unknown
Shell connection	ISOLATED
Configuration	SERIES CONNECTED, 2 ELEMENTS
Maximum DC gate trigger current	200 mA
Maximum DC gate trigger voltage	3 V
Quick connection description	2G-2GR
Description of screw terminals	A-K-AK
Maximum holding current	150 mA
JESD-30 code	R-PUFM-X7
Maximum leakage current	40 mA
On-state non-repetitive peak current	9800 A
Number of components	2
Number of terminals	7
Maximum on-state current	520000 A
Maximum operating temperature	140 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum rms on-state current	500 A
Off-state repetitive peak voltage	600 V
Repeated peak reverse voltage	600 V
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UPPER
Trigger device type	SCR
Base Number Matches	1
