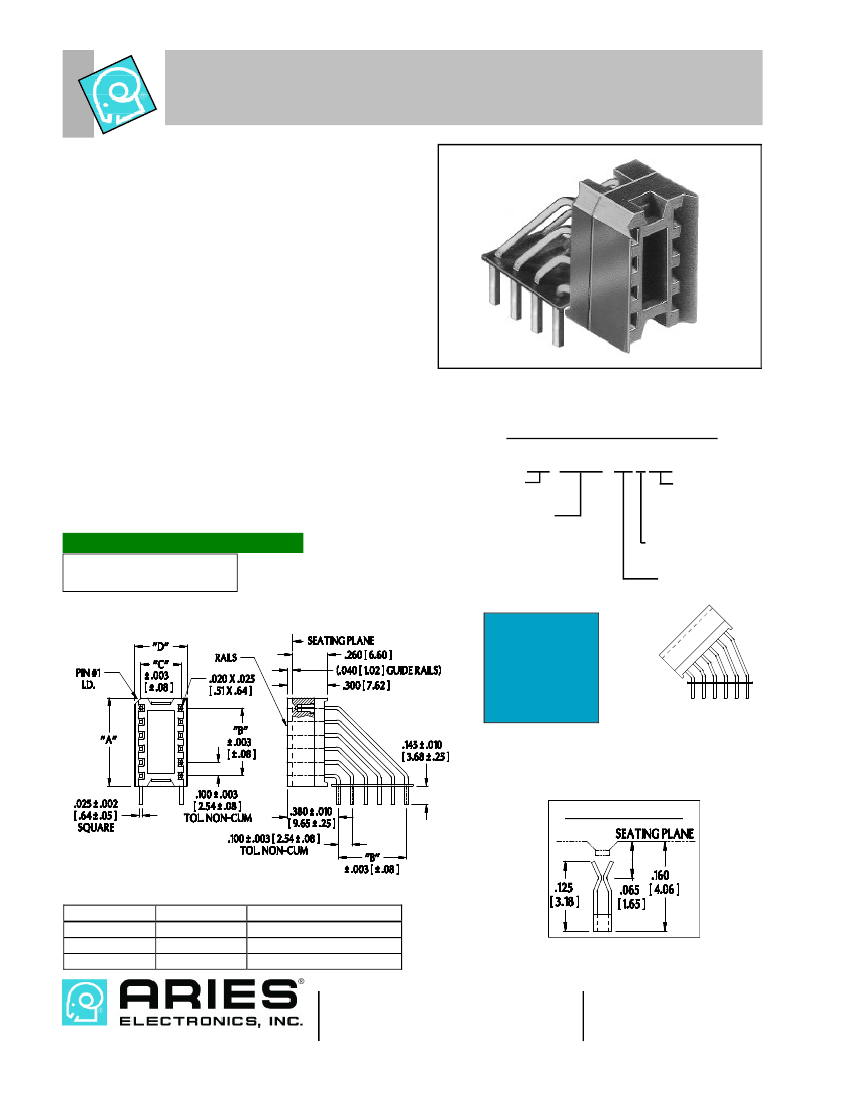

Series 800 Vertisockets
™
Vertical Mounting with Bifurcated Contacts
FEATURES:
• Aries offers a full line of Vertisockets
TM
for DIP packaging of
LEDs, incandescent lamps, DIP switches, test points, etc.
The variations of mounting position and pin configuration
provide exceptional design freedom.
• Restricted entry for contact protection.
• Accepts standard LEDs and incandescent displays as well
as .500 [12.70] and .600 [15.24] high large displays.
SPECIFICATIONS:
• Standard body material is red UL 94-HB Glass-filled Nylon.
• Hi-temp body material is black 94V-0 4/6 Nylon.
• Bifurcated contacts are Grade A spring-tempered Phosphor
Bronze per QQ-B-750.
• Contact plating is either 100µ [2.54µm] min. Tin per MIL-T-
10727 or 10µ [.254µm] min. Gold per MIL-G-45204, over
50µ [1.27µm] min. Nickel per QQ-N-290.
• Contact current rating=1.5 Amps.
• Operating temperature=221 °F [105°C] Tin plating,
=257°F [125°C] Gold plating.
• Insertion Force=110 grams/pin average; Withdrawal
Force=75 grams/pin average.
• Accepts flat leads up to .014 [.36] thick and .020 [.51] wide;
round leads up to .020 [.51] in diameter.
• Accepts lead lengths: .075-.160 [1.91-4.06].
MOUNTING CONSIDERATIONS:
• Suggested PCB hole size=.044 ± .002 [1.12 ± .05] dia.
Note: Aries specializes in custom design and production. In addition to the
standard products shown on this page, special materials, platings, sizes, and
configurations can be furnished, depending on quantities. Aries reserves the
right to change product specifications without notice.
ORDERING INFORMATION
X X - X 8 1 0 - 9 0 X X X
Optional suffix:
No. of pins
(see table)
Series:
2810: “C”=.200 [5.08]
810: “C”=.300 [7.62]
6810: “C”=.600 [15.24]
WR=Without
rails
V0=UL94V-0
plastic
T=Tin plating
No suffix=Gold plating
Display angle
A
LL
DIMENSIONS
:
INCHES
[
MILLIMETERS
]
All tolerances ± .005 [.13]
unless otherwise specified
“A”=(NO. OF PINS PER ROW X .100 [2.54]) + .050 [1.27]
“B”=(NO. OF PINS PER ROW - 1) X .100 [2.54]
90° ± 2°
Consult Data
Sheet No. 13001
for Horizontal
Mounting
Vertisockets
TM
with bifurcated
contacts.
Consult factory for other
display angles
CONTACT DETAIL
Consult factory for non-standard sizes
Centers “C”
.200 [5.08]
.300 [7.62]
.600 [15.24]
Dim. “D”
.290 [7.37]
.390 [9.91]
.690 [17.53]
Available Sizes
8, 10
8, 14, 16, 18, 20
8, 10, 12, 14, 16, 18, 20
13002
http://www.arieselec.com • info@arieselec.com
REV.B
